Blustream Video Extenders

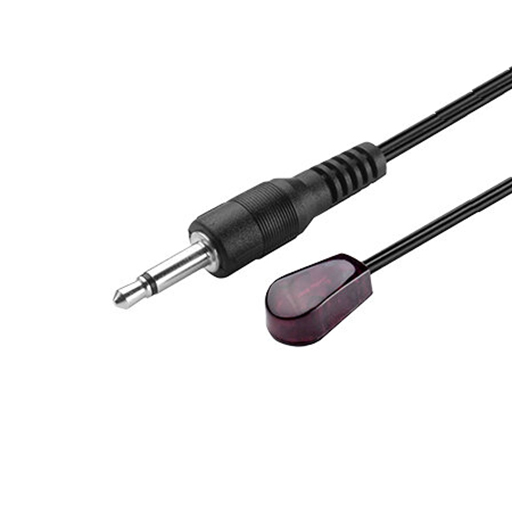

The Blustream IRE1 is a compact single IR emitter designed to provide precise infrared control for AV devices. Operating at 5V, it connects via a 3.5mm mono jack and delivers IR signals over a wide frequency range, making it compatible with a variety of consumer and professional AV equipment. Its 1.45m cable allows flexible placement directly over the device's IR sensor, ensuring reliable remote command transmission in home or commercial AV installations.

Key Features of BlueStream IRE1 5V IR single emitter
3.5mm mono jack
20kHz to 55kHz frequency range
1.45m cable length
Compact Design The IRE1 features a small footprint, allowing it to be discreetly placed over the IR sensor of a display, receiver, or other AV device without obstructing operation or aesthetics.

Integration and Compatibility It integrates seamlessly with Blustream HDBaseT and AV over IP systems, as well as other third-party control setups that use 3.5mm mono IR connections. This ensures reliable transmission of remote commands across various setups.

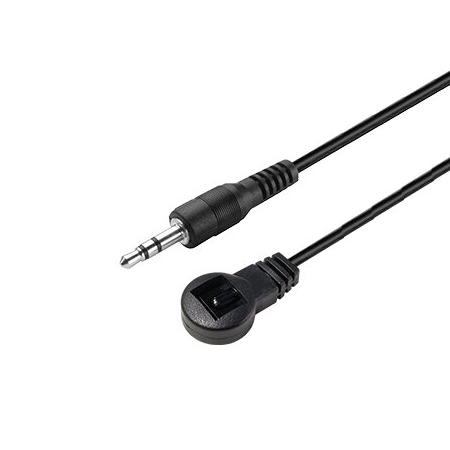

The Blustream IRR IR Receiver (5V) allows remote control signals to be captured and transmitted to AV equipment that is hidden or out of direct sight. Compact and easy to install, it ensures reliable operation in home or professional setups, making it simple to control devices like set-top boxes, media players, and other IR-enabled components.

Key Features of BlueStream IRR 5V IR Receiver
3.5mm stereo jack
20kHz to 55kHz frequency range
1.45m cable length
Seamless Integration The IRR connects easily to Blustream matrices, extenders, and distribution devices, allowing captured IR commands to control multiple AV components from a single location.

Discreet Installation Its compact design and practical cable length make the IRR ideal for installations where equipment is stored in cabinets or racks, keeping the setup clean while maintaining full remote control functionality.

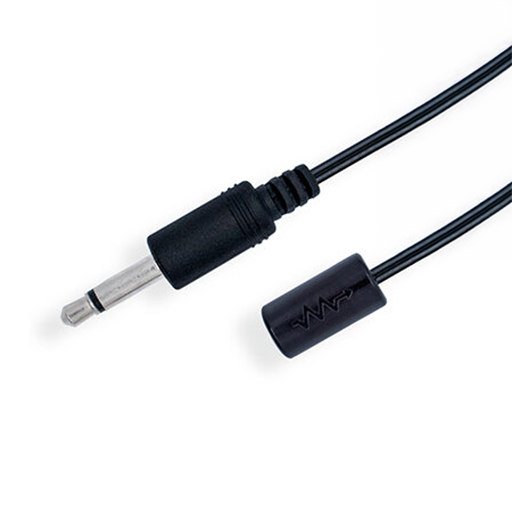

The Blustream IRDE1 Designer IR Emitter 5V is a compact infrared transmitter designed to control AV equipment remotely. It plugs into a 5V-compatible IR control port on Blustream products and emits IR signals to operate devices such as receivers, matrices, and extenders. With a simple installation and adhesive mounting, it provides reliable signal transmission in professional or residential AV setups.

Key Features of BlueStream IRDE1 Adhesive backing included to attach IR Emitter to controlled equipment
Visible red indicator LED
3.5mm mono plug
Installation and Mounting The IRDE1 features an adhesive backing that allows it to be mounted directly onto or near the target device, ensuring the IR signal is accurately transmitted without affecting the device’s appearance or accessibility.

Compatibility This emitter is compatible with all Blustream devices that accept a 5V IR control input and is intended for use with IR distribution systems, making it ideal for integration into both simple and complex AV networks.

Operation The IRDE1 transmits standard IR signals to the target equipment. The visible red LED provides a clear indication that the emitter is active, helping verify correct installation and functionality during setup.

The Blustream IRE2 Twin IR Emitter (5V) is designed to deliver reliable infrared control to multiple devices from a single IR output. Ideal for AV installations where equipment is stored out of sight, it allows IR commands to be passed directly to two source components at the same time, maintaining consistent control without the need for direct line-of-sight.

Key Features of BlueStream IRE2 5V IR twin emitter
3.5mm mono jack
20kHz to 55kHz frequency range
1.45m cable length
Flexible Control Integration The IRE2 connects easily to Blustream matrices, extenders, and distribution hardware, allowing IR commands to be routed from a central location to hidden AV components such as set-top boxes, media players, or source devices.

Designed for Discreet Installations With its compact twin emitter heads and practical cable length, the IRE2 is well suited for rack-based or cabinet installations where neat cable management and dependable device control are essential.

The Blustream IRDIR Designer IR Receiver 5V is a compact infrared receiver designed to capture remote control signals and feed them into Blustream AV systems. It connects via a 3.5mm stereo plug to 5V-compatible IR ports and allows remote operation of connected devices. With an adhesive mounting and versatile cable routing, it provides a simple and reliable method to integrate IR control into professional or residential AV setups.

Key Features of BlueStream IRDIR Adhesive backing included to attach IR Receiver to equipment
Functional cable recess allowing the cable to exit from vertical or horizontal direction
Visible red indicator LED
3.5mm stereo plug
Installation and Mounting The IRDIR features adhesive backing and a functional cable recess, making it easy to mount on equipment or surfaces while providing flexible cable routing options.

IR Signal Reception The receiver captures IR signals from standard remote controls and transmits them to compatible Blustream devices. The visible red LED provides confirmation that signals are being received.

Compatibility Designed for 5V IR input ports, the IRDIR integrates seamlessly with Blustream extenders, matrices, and receivers. For 12V IR systems, a voltage converter like the IRCAB cable is required to ensure compatibility.

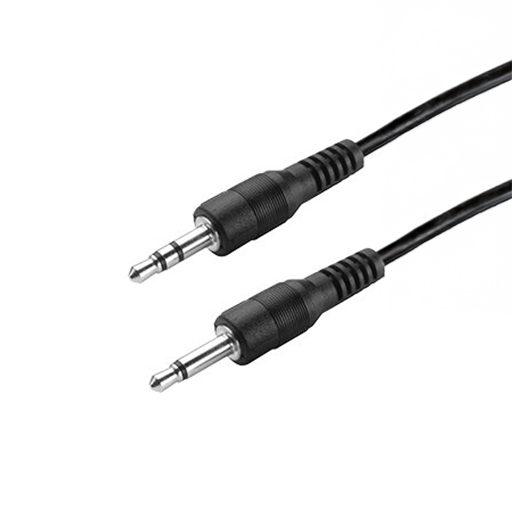

The Blustream IRCAB is a 3.5mm mono-to-stereo IR control and link cable designed to interface external infrared control devices with Blustream products. It converts 12V IR signals from third-party controllers to the 5V input required by Blustream hardware, ensuring compatibility across a wide range of IR systems. With a frequency range suitable for most consumer remote controls, this cable provides flexible connectivity for AV installations.

Key Features of BlueStream IRCAB 3.5mm mono to 3.5mm stereo converter
12V to 5V step-down conversion
20kHz to 55kHz frequency range
1.95m cable length
IR Signal Compatibility The IRCAB allows 12V IR outputs from external control systems to be safely converted to 5V for Blustream hardware, supporting a wide range of remote control frequencies without interference.

Installation Flexibility The 1.95m cable length provides easy routing options for AV setups, whether linking local devices or integrating with centralised control systems. Its directional design ensures proper signal flow for reliable IR transmission.

Use Cases Ideal for connecting third-party IR controllers to Blustream devices, the IRCAB simplifies integration in meeting rooms, classrooms, and residential AV setups where IR control signals need voltage conversion for compatibility.

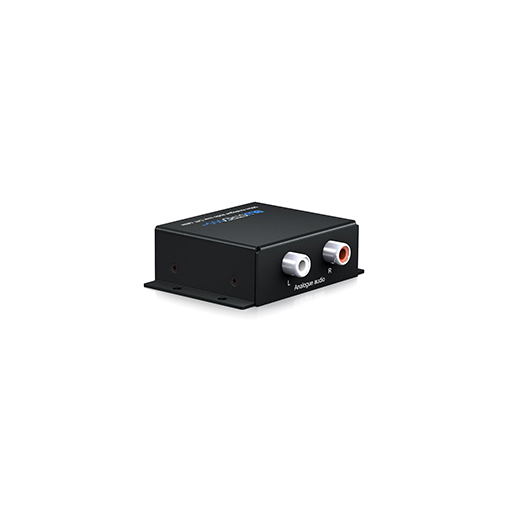

The Blustream PAC500AU Passive Analogue Audio over CAT allows stereo audio signals to be transmitted over long distances using a single CAT cable. With a simple plug-and-play design and no power requirement, it is ideal for installations where audio needs to be sent up to 500 meters away, such as multi-room setups, commercial spaces, or AV racks.

Key Features of BlueStream PAC500AU Extend analogue audio signals up to distances of 500m over a single CAT cable
Passive solution - Extender kit does not require a power supply
Simple Integration The PAC500AU connects seamlessly between audio sources and destinations, allowing stereo signals to travel long distances without additional hardware or complex setup.

Flexible Installation Its small footprint and lightweight design make it easy to position the transmitter and receiver in cabinets, racks, or other out-of-sight locations, keeping installations neat while delivering consistent audio performance.

The AD11AU Analogue Audio Delay Processor is designed to correct lip-sync and timing issues caused when audio and video signals are separated within an AV system. By allowing precise delay adjustment and line-level volume control, the AD11AU ensures audio aligns accurately with on-screen visuals for consistent, reliable performance.

Key Features of Blustream AD11AU Analogue Audio Delay Processor In-line 2-channel analogue audio delay processor with integrated volume control
Selectable audio delay from 50ms to 1,000ms
Supports 48kHz / 24-bit audio sample rates
Wide-range line-level volume adjustment from -75dB to 0dB
Precise Audio Delay Adjustment The AD11AU provides adjustable audio delay of up to one second, allowing installers to accurately compensate for processing delays introduced by displays or video signal paths. Delay selection is clearly defined to support consistent and repeatable system tuning.

Flexible Delay Increments Audio delay can be configured from 0 to 500ms in precise 50ms steps, and from 500ms to 1,000ms in 100ms steps. This tiered approach offers both fine adjustment and extended range to suit a wide variety of AV system requirements.

Integrated Line-Level Volume Control A built-in line-level volume control allows output adjustment from -75dB to 0dB. This enables precise balancing of audio levels within the signal chain without the need for additional external processing equipment.

High-Quality Audio Performance Supporting 48kHz / 24-bit sample rates, the AD11AU maintains audio clarity and signal integrity while applying delay and volume adjustments, making it suitable for professional AV installations where consistent sound quality is required.

The Blustream UEX50B-KIT USB 2.0 Extender Set allows USB devices to be connected over long distances using a single CAT cable. With four USB-A ports on the transmitter and a USB-B port on the receiver, it supports a variety of peripherals and maintains reliable communication up to 50 meters without requiring driver installation.

Key Features of BlueStream UEX50B-KIT Extends USB up to a distance of 50m over a single CAT cable
Supports USB 2.0 signal extension
Backwards compatible with USB 1.1 devices
Combined transmitted data bandwidth up to 480Mbps
1 x USB Type-B on the Receiver for connection to USB host
4 x USB-A hub on transmitter for connection to USB devices
USB Type-A ports 1-2 support 5V 1A, with ports 3-4 supporting 5V 500mA
Simple plug and play, no driver installation or setup required
*Signal distribution length subject to length of device and host USB cables and CAT cable type
**For installations where additional USB hubs are required, please use the UEX100E-KIT

Simple Integration The UEX50B-KIT easily connects multiple USB devices to a host over long distances, making it suitable for classrooms, offices, and AV installations where direct USB connections are impractical.

Flexible Installation Compact transmitter and receiver units with included power supply and mounting options allow the extender set to be discreetly placed in racks, cabinets, or behind desks, maintaining a clean and functional setup.

The CAT100AU is a digital audio over CAT5e/6 extender kit designed to transmit high-quality audio signals over long distances using a single CAT cable. Built for professional AV environments, it provides a reliable solution for extending both optical and coaxial digital audio while maintaining signal integrity and audio clarity.

Key Features of Blustream CAT100AU Digital Audio Over Cat5e/6 Extender Extends optical and coaxial digital audio signals up to 300m over CAT5e/6
Supports simultaneous distribution of optical and coaxial digital audio
Built-in DAC converts digital audio to analogue stereo left/right output
Selectable digital source on receiver unit
Supports sample rates from 32kHz to 192kHz at up to 24-bit resolution
Ultra-low jitter design for high-fidelity audio performance
Long-Distance Audio Extension The CAT100AU enables dependable digital audio transmission across extended distances using standard CAT5e or CAT6 cabling. It supports transmission up to 300m for lower sample rates, making it suitable for large venues, commercial installations, and distributed audio systems.

Dual Digital Input Support Both optical and coaxial digital audio inputs are supported and can be transmitted at the same time. This allows greater flexibility when integrating multiple digital audio sources within a single installation.

Integrated Digital-to-Analogue Conversion A built-in DAC allows either optical or coaxial digital audio to be converted into analogue stereo left and right outputs. The active source is easily selected on the receiver unit, simplifying system configuration and output routing.

High-Resolution Audio Compatibility The extender supports sample rates of 32kHz, 44.1kHz, 48kHz, 96kHz, and 192kHz with up to 24-bit resolution. Maximum transmission distances vary by sample rate, with support up to 100m at 192kHz, 150m at 96kHz, and 300m below 48kHz.

Precision Audio Performance Designed with ultra-low jitter and high-fidelity circuitry, the CAT100AU preserves audio accuracy and signal stability, ensuring consistent performance in demanding professional audio applications.

The HEX70CS-RX is a high-performance HDBaseT™ receiver designed for professional AV environments requiring reliable long-distance HDMI signal reception. Utilising advanced Colour Space Conversion (CSC) technology, it supports full HDMI 2.0 18Gbps bandwidth with HDR, ensuring compatibility with modern 4K UHD sources while maintaining stable performance across extended cable runs.

Key Features of Blustream HEX70CS-RX HDBaseT™ CSC Receiver HDBaseT™ distribution of HDMI video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supporting HDMI 2.0 18Gbps with HDR
4K 60Hz 4:4:4 UHD video support up to 40m
1080p video extension up to 70m
Simultaneous analogue stereo and digital coaxial audio breakout
HDMI re-clocking for improved HDCP and device compatibility
Bi-directional IR and RS-232 pass-through
Bi-directional PoC support
Advanced EDID management
HDCP 2.2 compliant
Advanced CSC and HDMI 2.0 Support The HEX70CS-RX supports HDMI 2.0 at the full 18Gbps specification, including HDR formats, through integrated Colour Space Conversion technology. This ensures accurate colour reproduction and compatibility with high-bandwidth 4K 60Hz 4:4:4 content across HDBaseT™ infrastructure.

Long-Distance Video Reception Designed to operate over a single CAT cable, the receiver supports 4K UHD video up to 40m and Full HD 1080p signals up to 70m. This makes it suitable for commercial, education, and residential installations where extended cable distances are required.

Integrated Audio Breakout The receiver provides concurrent HDMI audio breakout to both analogue left/right stereo and digital coaxial outputs. This enables flexible integration with external audio systems without the need for additional converters or extractors.

Control, Stability, and Compatibility With support for bi-directional IR and RS-232 pass-through, the HEX70CS-RX allows full device control across the HDBaseT™ link. HDMI re-clocking improves signal stability and helps resolve HDCP, compatibility, and handshaking issues, while advanced EDID management ensures consistent communication between sources and displays.

The Blustream HEX70SL-KIT is a compact HDBaseT extender set that transmits uncompressed video and audio over a single CAT cable with zero latency. Designed to handle 4K UHD and 1080p signals over long distances, it features a slimline chassis for discreet placement and includes bi-directional IR and Power over Cable (PoC) for simplified installation and control integration.

Key Features of BlueStream HEX70SL-KIT Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Enhanced slimline chassis
Extends HDMI 1080p up to a distance of 70m over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Bi-directional IR pass-through
Supplied with Blustream IR receiver and emitter
Supports Bi-directional PoC to power extenders from either transmitter or receiver end
HDCP 2.2 compliant with smart EDID management
Compact and Discreet Design The slimline form factor allows the HEX70SL-KIT to be installed in tight spaces or hidden from view, making it ideal for professional and residential AV setups where appearance matters.

High-Quality Video and Audio Transmission Maintaining uncompressed video and audio over long distances ensures clarity and fidelity. The extender set supports both high-resolution 4K content and full 1080p HD video, with multichannel audio passthrough for immersive sound.

Flexible Control and Power Integration With bi-directional IR and PoC, the HEX70SL-KIT allows remote control of connected devices and simplified power delivery, reducing the need for additional cables and power adapters.

The CAT100EARC is an Audio over CAT extender designed to distribute HDMI eARC/ARC or optical digital audio signals over long distances using a single CAT cable. Engineered for modern AV systems, it enables flexible audio routing while maintaining compatibility with high-bandwidth and multichannel audio formats.

Key Features of Blustream CAT100EARC HDMI eARC/ARC Audio over CAT Extends HDMI eARC/ARC or optical digital audio over a single CAT cable
Supports eARC/ARC audio distribution up to 100m
Supports optical digital audio distribution up to 200m
Built-in DAC converts digital audio to analogue stereo left/right output (2ch PCM only)
CEC pass-through supported when HDMI eARC/ARC mode is selected
Supports bitstream passthrough of multichannel surround sound, including object-based formats
Bi-directional Power over Cable (PoC) to power extenders from either end
Flexible Audio Signal Distribution The CAT100EARC allows installers to extend either HDMI eARC/ARC or optical digital audio signals depending on system requirements. Input selection is managed via a dipswitch on the transmitter, providing straightforward configuration during setup.

HDMI eARC/ARC Compatibility When operating in HDMI eARC/ARC mode, the extender supports audio transmission distances of up to 100m and enables CEC pass-through for compatible system control. This makes it suitable for TV-based audio return channel applications in residential and commercial environments.

Extended Optical Audio Transmission For optical digital audio sources, the CAT100EARC supports transmission distances of up to 200m over CAT cabling. This provides a practical solution for long-range audio distribution where HDMI eARC/ARC is not required.

Integrated Digital-to-Analogue Conversion A built-in DAC converts either HDMI eARC/ARC or optical digital audio into a stereo left and right analogue output. This allows seamless integration with analogue audio systems when using 2-channel PCM sources.

Advanced Audio Format Support The extender supports bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications. This ensures compatibility with modern immersive audio systems without signal degradation.

Power Over Cable Convenience Bi-directional Power over Cable functionality enables the transmitter and receiver units to be powered from either end of the link. This simplifies installation by reducing the need for power outlets at both locations.

The Blustream HEX70CS-TX is a professional-grade HDBaseT transmitter designed to carry 4K 60Hz video, audio, and control signals over a single CAT cable. It supports full HDMI 2.0 signals with HDCP 2.2 and includes Colour Space Conversion (CSC) to manage high-bandwidth 4K content. The product extends HDMI, bi-directional IR & RS-232, and bi-directional PoC (Power over Cable) up to lengths of 70m (4K 40m) to a compatible receiver or matrix.

Key Features of BlueStream HEX70CS-TX Advanced HDBaseT™ technology for distributing video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC)
Supports HDMI 2.0 18Gbps specification including HDR
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
Features 1 × HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
Supports bi-directional RS-232 pass-through
Supports bi-directional IR pass-through
Supports bi-directional IR pass-through with switchable
5V/12V IR hardware support
HDCP 2.2 support
Professional Installation Flexibility The HEX70CS-TX allows source equipment to be placed remotely from displays without compromising video or audio quality. Its bi-directional control capabilities and loop-out port make it ideal for conference rooms, lecture theatres, digital signage, and distributed home AV setups.

High-Quality Audio and Video Delivering full 4K 60Hz video with HDR support, this transmitter ensures clear, detailed images and immersive audio experiences. It handles all common HDMI audio formats and maintains signal integrity over long distances using a single CAT cable.

Seamless Control Integration With bi-directional IR and RS-232 pass-through, the HEX70CS-TX allows remote control of source and display devices from a single location, simplifying operation in complex AV environments.

The Blustream UEX3H-WP-EU is a USB 3.2 Gen1 HDBaseT™ Host wall plate designed to extend high-speed USB connectivity over long distances using standard CAT cabling. The UEX3H-WP-EU allows 2 x USB Hosts to be switched between the 2 x local USB Devices as well as the Devices connected to a remote compatible Blustream USB HDBaseT™ Transmitter (Device) extender, with support for a combined transmission data bandwidth of up to 5Gbps.

The UEX3H-WP-EU is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT™ link. The UEX3H supports both auto or manual Host selection, which can be controlled via the front panel button, or RS-232 from 3rd party control solutions.

Key Features of BlueStream UEX3H-WP-EU USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB host devices and 2 x local USB devices
Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
Backwards compatible with USB 2.0 and USB 1.1 devices
Combined USB 3.2 Gen1 data transfer rate up to 5Gbps *
1 x USB-A and 1 x USB-C port for connection to host devices with manual or auto switching
2 x USB-A ports for connection to local devices
1 x USB-C host charging port for connection of external power supply to power host device
Provides up to 500mA combined power to USB devices (up to 500mA per single USB port)
Configurable USB device power management via API commands
Bi-directional Power over Cable (PoC) to power extenders from either the host or device unit (supports 12-48V PoC) - PSU supplied with the device end of the link
Supports bi-directional RS-232 when used with compatible HDBaseT™ products
PoC function can be enabled or disabled via dipswitch
Simple plug and play, no driver installation or setup required
Compatible with Blustream UEX3D and UEX3D-WP

* Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

USB Connectivity The UEX3H-WP-EU allows multiple USB devices to connect simultaneously, enabling remote peripherals like cameras, storage drives, and control devices to operate seamlessly alongside local devices.

Power and Control Bi-directional Power over Cable provides flexible power delivery from either the host or device end. RS-232 support allows control systems to manage and switch USB devices remotely over the HDBaseT™ link.

The Blustream UEX3H is a USB 3.2 Gen1 HDBaseT™ Host extender that allows USB devices to be connected over long distances using a single CAT cable. It provides high-speed data transfer and flexible power delivery while supporting multiple host and local USB connections. The UEX3H allows 2 x USB Hosts to be switched between the 2 x local USB Devices as well as the Devices connected to a remote compatible Blustream USB HDBaseT™ Transmitter (Device) extender with support for a combined transmission data bandwidth of up to 5Gbps.

The UEX3H is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT™ link. The UEX3H supports both auto or manual Host selection, which can be controlled via the front panel button, or RS-232 from 3rd party control solutions.

Key Features of BlueStream UEX3H USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB host devices and 2 x local USB devices
Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
Backwards compatible with USB 2.0 and USB 1.1 devices
Combined USB 3.2 Gen1 data transfer rate up to 5Gbps *
1 x USB-A and 1 x USB-C port for connection to host devices with manual or automatic switching
2 x USB-A ports for connection to local devices
1 x USB-C host charging port for connection of an external power supply to power the host device
Provides up to 500mA combined power to USB devices (up to 500mA per single USB port)
Configurable USB device power management via API commands
Bi-directional Power over Cable (PoC) to power extenders from either the host or device unit (supports 12-48V PoC) - PSU supplied with the device end of the link
Supports bi-directional RS-232 when used with compatible HDBaseT™ products
PoC function can be enabled or disabled via dipswitch
Simple plug and play operation with no driver installation or setup required
Compatible with Blustream UEX3D and UEX3D-WP

* Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

USB Connectivity The UEX3H supports simultaneous connection of host and local USB devices, allowing peripherals such as cameras, storage drives, and control devices to operate seamlessly across extended distances without compromising speed or responsiveness.

Power and Control Bi-directional Power over Cable allows flexible power delivery from either the host or device end. RS-232 integration ensures control systems can communicate effectively with connected USB devices over the same HDBaseT™ link.

The Blustream UEX3D USB 3.2 Gen1 HDBaseT™ Extender Device allows USB peripherals to be connected over long distances using a single CAT cable. The UEX3D allows for 4 x USB Devices (2 x USB type A, and 2 x USB-C) to be connected to a compatible Blustream USB HDBaseT™ Receiver (Host) extender with support for a combined transmission data bandwidth of up to 5Gbps.

The UEX3D is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT link. The UEX3D is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices, and other USB 3.2 Gen1 devices.

Key Features of BlueStream UEX3D USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB Host devices and 2 x local USB Devices
Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
Backwards compatible with USB 2.0 & 1.1 devices
Combined USB 3.2 Gen1 data transfer rate up to 5Gbps *
2 x USB-A & 2 x USB-C ports for connection to local devices
Provides up to 3A combined power to USB devices (up to 1.7A per single USB port)
Configurable USB device power management via API commands
Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC) - PSU supplied with the Device end of the link only
Supports bi-directional RS-232 when used with compatible HDBaseT™ products
PoC function can be enabled/disabled via dipswitch
Simple plug and play, no driver installation or setup required
Compatible with Blustream UEX3H and UEX3H-WP

* Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

Flexible Deployment The UEX3D is ideal for AV and IT environments where USB devices need to operate at full speed over extended distances. It integrates seamlessly into conference rooms, lecture halls, control rooms, and remote workstation setups, providing reliable connectivity for a variety of USB peripherals.

Reliable Performance With multiple USB ports, configurable power management, and plug-and-play operation, this HDBaseT™ extender ensures consistent data transmission and device functionality across distances up to 100 meters, simplifying installation and reducing cable clutter.

The Blustream UEX3D-WP-EU is a USB 3.2 Gen1 HDBaseT™ wall plate device designed to extend high-speed USB connectivity over long distances using standard CAT cabling. Built for clean, in-wall installations, it provides convenient access to multiple USB device connections at the display or user end while maintaining reliable data transfer and power delivery when paired with a compatible Blustream host unit.

Key Features of BlueStream UEX3D-WP-EU USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB-C and 2 x USB-B ports for connection to USB devices
Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
Backwards compatible with USB 2.0 & 1.1 devices
Combined USB 3.2 Gen1 data transfer rate up to 5Gbps *
Provides up to 3A combined power to USB devices (up to 1.7A per single USB port)
Configurable USB device power management via API commands
Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC) - PSU supplied with the device end of the link only
Supports bi-directional RS-232 when used with compatible HDBaseT™ products
PoC function can be enabled or disabled via dipswitch
Simple plug and play operation with no driver installation or setup required
Compatible with Blustream UEX3H and UEX3H-WP

* Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

USB Connectivity The UEX3D-WP-EU supports simultaneous connection of multiple USB peripherals through its dual USB-C and USB-B ports. This makes it well suited for cameras, storage devices, control peripherals, and other USB equipment that needs to be positioned away from the host system.

Power and Control With bi-directional Power over Cable support, the wall plate can be powered from either end of the link depending on installation requirements. RS-232 pass-through allows compatible control systems to communicate seamlessly across the same HDBaseT™ connection.

The Blustream IP50HD-TX is a high-definition video transmitter that delivers HDMI, audio, and control signals over a standard network using H.265 compression. The IP50HD-TX is an industry leading 1080p HDMI transmitter that, using H.265 compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB for KVM up to lengths of 100m over standard network architecture.

The transmitter includes a HDMI loop-out for cascading to multiple devices and can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP50HD-TX Advanced HD video, control, and KVM over network infrastructure
Extends HDMI up to 100m over a single CAT cable
Supports unicast transmission over unmanaged networks
Supports multicast transmission for large managed networks
Supports up to 1080p @ 60Hz
Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
Supports PCM 2.0 channel audio only
Advanced signal management for independent routing of IR, RS-232, USB 1.1 for KVM, and combined video/audio
PoE (Power over Ethernet) to power the product from a PoE switch
HDCP 1.4 compliant with advanced EDID management
Analogue L/R audio embedding and audio breakout (2ch PCM only)
Local 12V 1A power supply required if Ethernet switch does not support PoE (supplied separately)
Features two operational modes: Matrix distribution (requires 100Mbps network switch)
One-to-one HDMI extender (no network switch required)

Video Performance The IP50HD-TX transmits full HD 1080p video with accurate colours and smooth frame rates. The built-in HDMI loop-out allows local display connection or cascading to multiple receivers without compromising signal quality.

Audio and Control Audio is transmitted as PCM 2.0 and can be broken out via analogue L/R outputs. Bi-directional IR, RS-232, and USB 1.1 signals enable KVM functionality and integration with control systems.

Deployment Flexibility The IP50HD-TX supports both matrix distribution via a 100Mbps network switch and simple point-to-point HDMI extension, providing versatile deployment options for classrooms, meeting rooms, and commercial AV installations.

The Blustream IP50HD-RX is a high-definition video receiver designed to deliver HDMI, audio, and control signals over a standard network using H.265 compression. The IP50HD-RX is an industry leading 1080p HDMI video scaling receiver that, using H.265 compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB for KVM up to lengths of 100m over standard network architecture.

The receiver can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP50HD-RX Advanced HD video, control, and KVM over network infrastructure
Extends HDMI up to 100m over a single CAT cable
Supports unicast transmission over unmanaged networks
Supports multicast transmission for large managed networks
In-built video scaler allows inclusion of displays with differing resolutions (1080p max)
Supports up to 1080p @ 60Hz video output
Supports PCM 2.0 channel audio only
Advanced signal management for independent routing of IR, RS-232, USB 1.1 for KVM, and combined video/audio
PoE (Power over Ethernet) to power Blustream products from a PoE switch
HDCP 1.4 compliant with advanced EDID management
Analogue L/R audio breakout
Local 12V 1A power supply required if Ethernet switch does not support PoE (not included)
Features two operational modes: Matrix distribution (requires 100Mbps network switch)
One-to-one HDMI extender (no network switch required)

Video Performance The IP50HD-RX delivers full HD 1080p video with accurate colour reproduction and smooth frame rates. Its built-in video scaler ensures consistent output quality across displays with different native resolutions.

Audio and Control Audio is transmitted as PCM 2.0 with optional analogue breakout. Bi-directional IR, RS-232, and USB 1.1 pass-through allows for KVM control and integration with remote automation systems.

Deployment Flexibility With support for both matrix distribution and direct HDMI extension, the IP50HD-RX can be deployed in small point-to-point setups or as part of a larger managed network, providing flexible AV distribution options for various environments.

The Blustream BLUARC is a multi-format audio switching and processing solution designed to embed, de-embed, and route audio in environments where HDMI video is already being distributed. With support for multiple analogue, digital, HDMI, ARC, and Bluetooth audio formats, the BLUARC provides flexible audio management for both residential and commercial AV installations.

Key Features of BLUARC Audio Switch HDMI 2.0b 18Gbps 4K UHD 60Hz 4:4:4 video pass-through with HDR support
Multi-format audio embedding, de-embedding, and routing
Bluetooth 5.0 audio transmission with wide codec support
Concurrent audio output to multiple audio destinations
HDMI ARC audio integration for soundbars and audio systems
Comprehensive control options including Web-GUI and IP control
Advanced EDID management with HDCP 2.3 compliance
Multi-Format Audio Switching The BLUARC supports a wide range of audio input sources including HDMI embedded audio, analogue L/R audio, optical digital audio, Bluetooth audio, and HDMI ARC. These inputs can be freely routed to multiple audio outputs, allowing seamless integration between different source and sink devices.

Concurrent Audio Distribution Audio can be distributed simultaneously to Bluetooth audio devices, HDMI outputs, HDMI audio-only outputs, HDMI ARC soundbars, optical digital outputs, and analogue L/R outputs. This concurrent routing capability ensures consistent audio delivery across multiple zones and devices.

Audio Embedding and De-Embedding The BLUARC enables analogue L/R and optical digital audio to be embedded into HDMI signals, as well as de-embedded from HDMI sources. This functionality allows legacy audio devices to be integrated into modern HDMI-based distribution systems.

Bluetooth Audio Integration Featuring Bluetooth 5.0 output, the BLUARC supports SBC, MP3, AAC, APTX, APTX-LL, and APTX-HD codecs at 44.1kHz to 48kHz, 16/24-bit, 2-channel PCM. Bluetooth and analogue L/R outputs support volume adjustment for local audio control.

HDMI ARC Support HDMI ARC audio can be routed to Bluetooth audio devices, HDMI audio-only outputs, HDMI soundbar outputs, analogue L/R audio, and optical digital outputs concurrently. This makes the BLUARC ideal for installations requiring flexible TV audio return routing.

High-Resolution Video Pass-Through The BLUARC supports all standard video resolutions from VGA to WUXGA and up to 4K UHD 60Hz, including HDR. Video is passed through without processing, maintaining signal integrity while audio is independently managed.

Advanced Audio Format Support Bitstream passthrough of multichannel surround sound, including object-based audio formats, is supported in line with HDMI specifications. This ensures compatibility with modern AV receivers and immersive audio systems.

Comprehensive Control Options Control of the BLUARC is available via front panel buttons, IR, RS-232, TCP/IP, Web-GUI, GPIO, and CEC. Third-party control drivers are available for major automation platforms, allowing straightforward system integration.

Bluetooth Performance Considerations When two Bluetooth devices are connected simultaneously, the codec defaults to SBC format. Bluetooth Low Latency (APTX-LL) operation is limited to a single connected Bluetooth receiving device. Audio latency and performance are dependent on connected devices, codec compatibility, and source material.

The Blustream UEX100E-KIT is a USB 2.0 HDBaseT™ extender set that allows USB devices to be connected over long distances using a single CAT cable. It has a USB data extender kit utilising HDBaseT™ technology to extend USB 2.0 data, 2ch analogue audio, and control signals up to 100m / 330ft over a single CAT cable. The UEX100E-KIT allows up to 4 x USB devices to be connected to a single USB host with support for a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices which also provides bi-directional Power over Cable (PoC), bi-directional IR, RS-232, 2ch analogue audio, and 100Mbps Ethernet/LAN pass through.

Key Features of BlueStream UEX100E-KIT Extends USB up to 100m over a single CAT cable using HDBaseT™ technology
Supports USB 2.0 signal extension
Backwards compatible with USB 1.1 devices
Transmitted data bandwidth up to 480Mbps (combined)
1 x USB-B port on the receiver for connection to host device
4 x USB-A ports on transmitter for connection to devices
USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA
Bi-directional Ethernet pass-through (100Mbps)
Bi-directional IR & RS-232 pass through
Supports 2ch PCM Analogue Audio pass through (direction selectable)
Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
Simple plug and play, no driver installation or setup required
*Signal distribution length subject to length of device / host USB cables and CAT cable type

Flexible Integration The UEX100E-KIT is designed for use in AV over HDBaseT™ systems, conference rooms, classrooms, and home office setups where devices need to be controlled or accessed remotely. It integrates easily with existing network infrastructure while maintaining high-speed USB performance.

Reliable Performance With PoC capability, multiple USB peripheral support, and extended pass-through for control signals and audio, the kit ensures uninterrupted operation across long distances, providing a simple yet dependable method to extend USB devices beyond standard cable limits.

The HEX70ARC-KIT is a feature-rich HDBaseT™ ARC extender set designed for custom installation environments requiring reliable HDMI extension with integrated audio return functionality. Supporting both HDMI ARC and optical audio return, it provides a streamlined solution for high-quality video distribution and flexible audio routing over extended distances.

Key Features of Blustream HEX70ARC-KIT HDBaseT ARC Extender Set HDBaseT™ extension of HDMI, ARC, control, and power over a single CAT cable
Uncompressed video and audio transmission with zero latency
Supports 4K UHD video up to 40m and 1080p up to 70m
Integrated HDMI loop-out on transmitter
Bi-directional IR and PoC support
HDBaseT™ Video and Audio Distribution Using advanced HDBaseT™ technology, the HEX70ARC-KIT delivers uncompressed HDMI video and audio with zero latency over a single CAT cable. This ensures stable performance and consistent signal quality across custom installation environments.

4K UHD and Extended 1080p Support The extender set supports 4K UHD video transmission up to 40 metres, including 3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0 formats. Full HD 1080p signals can be extended up to 70 metres.

ARC and Optical Audio Return Audio Return Channel (ARC) is supported from the connected display via HDMI ARC or optical digital input. This enables audio from built-in display apps or connected sources to be returned to the system audio device using a single cable infrastructure.

HDMI Loop-Out and System Expansion An HDMI loop-out on the HEX70ARC-TX allows integration of a local display or cascading to additional devices. This provides added flexibility when designing multi-display or distributed AV systems.

Audio Passthrough and Format Support The system supports bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications. This ensures compatibility with modern audio formats used in home cinema and professional AV installations.

Control, Power, and EDID Management Bi-directional IR pass-through allows remote control of connected devices from either end of the system. Bi-directional PoC enables the extender units to be powered from the transmitter or receiver, reducing the need for local power supplies. Smart EDID management and HDCP 2.2 compliance ensure reliable communication between sources and displays.

The ACM210 Advanced Control Module is designed to provide centralised control and configuration for UHD Multicast HDMI video distribution over a 1Gb managed network. Acting as the control backbone of compatible Blustream Multicast systems, the ACM210 enables flexible signal routing, simplified system deployment, and intuitive operation across a wide range of professional AV installations.

Key Features of Blustream ACM210 Advanced Control Module Web-based interface for configuration and control of compatible UHD Multicast systems
Drag-and-drop source selection with live video preview
Independent routing of video, audio, IR, RS-232, USB / KVM, and CEC
Automatic system configuration for faster deployment
Dual RJ45 LAN ports for network bridging and traffic separation
TCP/IP, RS-232, and IR control integration
PoE-powered operation with optional local 12V power input
Compatible with iOS and Android control applications
Third-party control drivers available for major automation platforms
Advanced Web Interface Control The ACM210 features an integrated web interface module that allows installers and administrators to configure and control supported Multicast systems from a standard browser. The interface provides real-time system visibility and intuitive management tools without the need for specialist networking knowledge.

Drag and Drop Signal Routing An intuitive drag-and-drop interface allows sources to be quickly assigned to displays with live video preview. This visual workflow enables fast routing changes while providing active monitoring of system status across the network.

Independent Signal Management The ACM210 supports advanced signal management with independent routing of video, audio, IR, RS-232, USB / KVM, and CEC. This flexibility allows full customisation of control and content delivery to meet the needs of complex AV environments.

Dual Network Architecture Two RJ45 LAN connections allow the Multicast video distribution network to be bridged with an existing LAN while maintaining traffic separation. Each LAN port operates with an independent IP address, improving system performance and simplifying TCP/IP control.

Third-Party Control Integration With support for TCP/IP, RS-232, and IR control, the ACM210 integrates easily with major third-party control systems. Pre-built drivers reduce setup time and remove the need for complex network infrastructure configuration.

Power and Installation Flexibility The ACM210 can be powered directly from a PoE-enabled Ethernet switch, reducing the need for additional power cabling. An optional local 12V power input is available for installations where PoE is not supported.

System Compatibility The ACM210 is compatible with IP50HD, IP200UHD, IP250UHD, IP300UHD, and IP350UHD Multicast systems. The unit ships preloaded with firmware for IP300UHD and IP350UHD systems. IP50HD and IP2xxUHD systems require alternative firmware. Multicast systems across different series are not interoperable.

The HEX70CS-KIT is a high-performance HDBaseT™ extender solution designed for professional AV installations requiring reliable long-distance 4K signal distribution. Leveraging advanced Colour Space Conversion (CSC) technology, this extender set delivers full HDMI 2.0 18Gbps performance while enabling intelligent video down-conversion for seamless compatibility across mixed-resolution display environments.

Key Features of Blustream HEX70CS-KIT HDBaseT™ CSC Extender Set HDBaseT™ distribution of HDMI video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supporting HDMI 2.0 18Gbps with HDR
4K 60Hz 4:4:4 UHD transmission up to 40m
1080p video extension up to 70m
HDMI receiver video down-conversion for legacy display compatibility
HDMI loop-out on transmitter for local display integration or cascading
Simultaneous analogue stereo and digital coaxial audio breakout
Bi-directional IR and RS-232 pass-through
Bi-directional PoC for simplified power deployment
Advanced EDID management and HDCP 2.2 compliance
Advanced CSC Video Processing Built with Colour Space Conversion technology, the HEX70CS-KIT supports full HDMI 2.0 bandwidth, including HDR and 18Gbps video signals. The receiver can intelligently down-convert video output to 4K 60Hz 4:2:0 or 1080p, allowing compatibility with displays that do not support full 4K 4:4:4, while maintaining native resolution on the transmitter HDMI loop-out.

Long-Distance Signal Extension The extender set delivers dependable signal transmission over a single CAT cable, supporting 4K UHD video up to 40m and 1080p video up to 70m. This makes it well suited for commercial, educational, and residential AV installations where long cable runs are required without compromising signal integrity.

Flexible HDMI and Audio Integration The HEX70CS-TX includes an HDMI loop-out for local monitoring or cascading to additional devices. On the receiver side, HDMI audio can be broken out simultaneously to analogue left/right stereo and digital coaxial outputs, enabling straightforward integration with a wide range of audio systems.

Comprehensive Control and Compatibility Supporting bi-directional IR and RS-232 pass-through, the HEX70CS-KIT allows full device control across the HDBaseT™ link. HDMI re-clocking on the receiver improves compatibility and helps resolve HDCP and handshaking issues, while advanced EDID management ensures stable communication between connected sources and displays.

The ACM500 Control Module is the central management interface for Blustream’s UHD SDVoE Multicast distribution platform, enabling the delivery of uncompressed 4K audio and video with zero latency over 10GbE copper or optical fibre networks. Designed for precision control and simplified deployment, the ACM500 provides a powerful yet accessible way to configure, monitor, and route AV signals across compatible SDVoE Multicast systems.

Key Features of Blustream ACM500 Control Module Web interface module for configuration and control of IP500UHD and IP510UHD SDVoE Multicast systems
Intuitive drag & drop source selection with live video preview
Independent routing of IR, RS-232, USB/KVM, audio, and video
Automatic system configuration for faster deployment
Dual LAN architecture for simplified TCP/IP control and improved network performance
Support for iOS and Android App control
Third-party drivers available for all major control platforms
Advanced SDVoE Multicast Control The ACM500 enables advanced third-party control of Blustream SDVoE 10GbE Multicast systems using TCP/IP, RS-232, and IR. Its integrated web-based interface provides centralized access to configuration and operational controls, reducing complexity when managing large-scale AV deployments.

Intuitive Web Interface with Live Monitoring A built-in web interface allows real-time system monitoring and configuration through an intuitive drag and drop workflow. Live video previews offer immediate visual confirmation of routing decisions, helping operators manage sources and displays with confidence.

Independent Signal Routing The platform supports advanced signal management by allowing independent routing of video, audio, IR, RS-232, and USB/KVM signals. This flexibility enables precise system design, ensuring control and data paths operate exactly as required for each application.

Dual Network Architecture Two RJ45 LAN connections allow bridging between an existing control network and the dedicated Multicast video distribution network. This separation improves overall performance, removes the need for advanced network configuration, and assigns independent IP addresses to each LAN interface.

Simplified Integration and Control Pre-built Blustream drivers simplify installation and configuration, removing the need for in-depth knowledge of complex network infrastructures. Dual RS-232 ports support direct system control or pass-through to remote third-party devices, enhancing integration flexibility.

Flexible Power and Control Options The ACM500 supports Power over Ethernet (PoE) for streamlined installation when used with a compatible network switch, with an optional local 12V power input available when PoE is not supported. Integrated 5V/12V IR ports further expand control options for connected Multicast systems.

System Compatibility The ACM500 Control Module is compatible exclusively with Blustream IP500UHD and IP510UHD SDVoE Multicast systems. It is not interoperable with IP50HD, IP2xxUHD, IP3xxUHD, or IP5xxUHD platforms.

The Blustream IP200UHD-TX is a UHD video transmitter built to send high-quality HDMI video, audio, and control signals over a 1Gb Ethernet network. The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture. The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP200UHD-TX Advanced UHD video over 1Gb Network
Virtually unlimited system size
Extends HDMI up to a distance of 100m over a single CAT cable
Supports up to 4K HDR UHD video sources (3840 × 2160 @ 30Hz 4:4:4, 4096 × 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio, and video
PoE (Power over Ethernet) to power Blustream products from a PoE switch
HDCP 2.2 compliant with advanced EDID management
Analogue L/R audio embedding
Analogue L/R audio breakout
Local 24-56V power supply (required if the Ethernet switch does not support PoE) - sold separately
Features 4 operational modes: Matrix distribution (requires 1Gb network switch)
Video wall (requires 1Gb network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

Distribution Modes The transmitter can be used in matrix distribution and video wall setups when connected to a 1Gb network switch. It also operates as a direct HDMI extender in one-to-one or one-to-many configurations without a switch, providing versatile deployment options for both small and large AV systems.

Control and Integration Integrated routing for IR, RS-232, and USB/KVM ensures that displays and connected devices can be managed centrally. This allows full control of system devices while maintaining synchronized video and audio performance across the network.

Power and Connectivity The IP200UHD-TX can draw power directly from a PoE-enabled switch or an optional local power supply. This flexibility simplifies installation in locations where PoE may not be available while ensuring uninterrupted operation of the transmitter and connected devices.

The Blustream UEX3C-KIT is a high-speed USB-C and USB 3.2 HDBaseT™ extender set that allows peripherals to be connected over long distances using a single CAT cable. It supports data transfer rates up to 5Gbps and is backwards compatible with USB 2.0 and 1.1 devices, making it ideal for connecting cameras, storage devices, KVM systems, and other USB peripherals up to 100m from the host. The kit provides bi-directional Power over Cable (PoC) and allows configurable USB power management, delivering reliable connectivity without the need for drivers or complicated setup.

Key Features of BlueStream UEX3C-KIT Supports USB 3.2 signal extension up to 100m*
Backwards compatible with USB 2.0 & 1.1 devices
USB 3.2 Gen1 data transfer rate up to 5Gbps*
1x USB-C port on the receiver for connection to host device
1x USB-C host charging port for connection of external power supply to power host device
1x USB-A & 1x USB-C port on transmitter for connection to devices
Provides up to 2.5A combined power to USB devices (up to 1.7A per single USB port)
Configurable USB device power management via API commands
Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit
PoC function can be enabled/disabled via dipswitch
Simple plug and play, no driver installation or setup required
* Signal distribution bandwidth and length are subject to length of device and host USB cables and CAT cable type. CAT6A F/UTP is recommended for use wiht this product.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

Flexible Deployment The UEX3C-KIT integrates seamlessly into AV and IT setups, including conference rooms, lecture halls, and remote workstations. Its combination of high-speed USB extension, PoC, and versatile connectivity makes it easy to extend USB peripherals without compromising performance.

Reliable Performance With support for both USB-C and USB-A devices, configurable power management, and plug-and-play operation, this kit ensures consistent data transmission and device functionality over long distances while simplifying installation and maintenance.

The Blustream HEX70USB-KIT is a versatile HDBaseT extender set that transmits uncompressed video, audio, and USB signals over a single CAT cable. It supports HDMI 1080p up to 70 m and 4K UHD up to 40 m, while providing USB 2.0 connectivity for peripherals such as keyboards, mice, and other devices. The set includes bi-directional IR and RS-232 control, audio breakout, and Power over Cable (PoC), making it suitable for professional and home AV setups where centralized control and long-distance signal distribution are required.

Key Features of BlueStream HEX70USB-KIT Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Extends HDMI 1080p up to a distance of 70m over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280Mbps
USB Type-A connections support 5V 500mA output per port
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Bi-directional IR pass-through
Bi-directional RS-232 pass-through
Supplied with Blustream IR receiver and emitter
Supports bi-directional PoC (Power over Cable) to power extenders from either Transmitter or Receiver end
HDCP 2.2 compliant with advanced EDID management
HDMI audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently
Extended USB and Device Connectivity The HEX70USB-KIT allows peripheral devices to be connected remotely to the source system. USB extension supports peripherals such as keyboards, mice, and controllers, providing seamless interaction with systems across long distances.

High-Resolution Video and Audio Maintaining uncompressed HDMI signals ensures crisp 1080p and 4K UHD visuals along with full multichannel audio pass-through. The audio can be routed to both analogue and optical outputs for flexible integration with AV systems.

Control and Power Management With bi-directional IR and RS-232, the HEX70USB-KIT allows full remote control of connected devices. Power over Cable (PoC) simplifies power delivery to both transmitter and receiver, reducing cabling requirements and installation complexity.

The Blustream IP200UHD-RX is a UHD video receiver designed for scalable video distribution over a standard 1GB network. It delivers high-quality HDMI video, audio, and control signals to displays across long distances using existing network infrastructure. The IP200UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that, using visually lossless compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB / KVM up to lengths of 100m over standard network architecture. The IP200UHD-RX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP200UHD-RX Advanced UHD video over 1GB Network
Virtually unlimited system size
Extends HDMI up to a distance of 100m over a single CAT cable
Video up-scaling and down-scaling
Supports up to 4K @ 30Hz UHD video output
Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio, and video
PoE (Power over Ethernet) to power Blustream products from a PoE switch
HDCP 2.2 compliant with advanced EDID management
Analogue L/R audio breakout
LAN loop-out for one-to-many extender mode
Local 24-56V power supply (required if the Ethernet switch does not support PoE) - sold separately
Features 4 operational modes: Matrix distribution (requires 1GB network switch)
Video wall (requires 1GB network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

Flexible Distribution Modes The IP200UHD-RX supports multiple operating modes, including matrix distribution and video wall configurations when used with a 1GB network switch. It can also operate as a direct HDMI extender in one-to-one or one-to-many setups without the need for a network switch, allowing straightforward deployment in both simple and complex layouts.

Control and Integration Designed for full system control, the receiver supports IR, RS-232, and USB/KVM routing alongside video and audio. This allows displays and connected devices to be managed remotely while maintaining consistent signal performance across the network.

Power and Connectivity The unit can be powered directly from a PoE-enabled network switch, reducing the need for local power at the display location. Where PoE is unavailable, a local 24-56V power supply can be used, providing added flexibility during installation.

The HEX100CS-KIT is a high-performance HDMI 2.0 HDBaseT™ extender set designed for professional AV installations requiring reliable long-distance 4K signal distribution. Leveraging advanced Colour Space Conversion (CSC) technology, it delivers full-bandwidth 18Gbps video with intelligent down-conversion, ensuring compatibility across mixed-resolution display environments while maintaining native 4K quality where required.

Key Features of Blustream HEX100CS-KIT HDMI 2.0 HDBaseT™ extender Set HDBaseT™ signal extension up to 100m over a single CAT cable
Supports HDMI 2.0 18Gbps bandwidth with HDR and CSC processing
4K 60Hz 4:4:4 video transmission up to 70m
Integrated HDMI loop-out on transmitter for local display or cascading
Simultaneous analogue and digital audio breakout on receiver
Advanced HDBaseT™ Signal Distribution Utilising market-proven HDBaseT™ technology, the HEX100CS-KIT transmits uncompressed video, audio, control signals, and power over a single CAT cable. This streamlined approach reduces cabling complexity while ensuring stable, high-quality signal delivery across extended distances.

Colour Space Conversion with Intelligent Down-Conversion Built-in CSC processing allows the system to handle full HDMI 2.0 18Gbps signals, including HDR content. The receiver can down-convert video output to 4K 60Hz 4:2:0 or 1080p for compatibility with lower-resolution displays, while the transmitter HDMI loop-out continues to output maximum 4K UHD resolution.

Long-Distance 4K and 1080p Performance The extender set supports 4K 60Hz 4:4:4 UHD video transmission up to 70 metres and extends 1080p signals up to 100 metres. This flexibility makes it well suited for boardrooms, classrooms, and commercial AV environments requiring dependable long-range performance.

Integrated HDMI Loop-Out Functionality The HEX100CS-TX transmitter includes a dedicated HDMI loop-out, enabling easy integration of a local display or cascading to additional devices. This feature simplifies system design where both local and remote video outputs are required.

Audio Breakout and HDMI Re-Clocking The receiver provides concurrent analogue stereo L/R and coaxial digital audio outputs, offering flexible audio integration options. HDMI re-clocking on the receiver improves signal integrity and helps resolve HDCP, compatibility, and handshaking issues in complex installations.

Control, EDID, and Content Protection Bi-directional IR and RS-232 pass-through enable full remote control of connected devices. Advanced EDID management ensures optimal source-to-display communication, while HDCP 2.2 compliance supports protected 4K content delivery across the system.

The HEX100HDVGA-KIT is a versatile HDBaseT™ extender set engineered for environments that require both digital and analogue video distribution. Featuring switchable HDMI and VGA inputs, it provides a flexible solution for legacy and modern source devices while delivering dependable long-distance signal transmission over a single CAT cable.

Key Features of Blustream HEX100HDVGA-KIT Extender Set Extends HDMI and VGA with audio up to 100m over a single CAT cable
Automatic input sensing between HDMI and VGA/audio sources
Manual input switching via toggle button or RS-232 control
4K UHD video support up to 70m depending on resolution and format
Bi-directional IR, RS-232, and PoC support
Switchable HDMI and VGA Input Support Designed for mixed-technology environments, the HEX100HDVGA-KIT supports both HDMI and VGA with audio inputs. Auto signal sensing prioritises the last connected source, while manual switching is available using a front-panel toggle button or RS-232 control from either end of the system.

4K UHD and Legacy Resolution Compatibility The extender set supports 4K UHD video transmission up to 70 metres, including 3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0 formats. It also accommodates industry standard video resolutions from 480i through to 4K, along with a wide range of VGA resolutions.

Single Cable HDBaseT™ Transmission Using advanced HDBaseT™ technology, the HEX100HDVGA-KIT distributes video, audio, control signals, and power over a single CAT cable up to 100 metres. This reduces installation complexity while maintaining consistent signal quality across extended distances.

Audio and Control Signal Support The system supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications. Bi-directional IR and RS-232 pass-through enable seamless control of connected devices from any input or output location.

CEC Bypass and 3D Support CEC bypass functionality is supported on HDMI inputs, allowing compatible devices to communicate control commands directly. Full 3D signal display support ensures compatibility with a broad range of source and display technologies.

Bi-Directional Power and Content Protection Bi-directional PoC allows the extender units to be powered from either the transmitter or receiver, simplifying power requirements at the display location. HDCP 1.4 compliance ensures secure delivery of protected content within supported formats.

The HEX150CS-KIT is part of the Platinum Range of HDBaseT™ solutions, delivering high-bandwidth HDMI 2.0 signal extension with maximum reach and flexibility. Designed for advanced AV installations, it combines full 18Gbps 4K performance with Colour Space Conversion (CSC) and intelligent video down-conversion to support mixed-resolution display environments without compromising source quality.

Key Features of Blustream HEX150CS-KIT HDBaseT™ Extender Set HDBaseT™ extension of video, audio, control, Ethernet, and power over a single CAT cable
Supports HDMI 2.0 18Gbps with HDR and CSC processing
4K 60Hz 4:4:4 video transmission up to 100m
1080p extension up to 150m using HDBaseT™ long-reach mode
ARC, Ethernet pass-through, and HDMI loop-out support
Platinum Range HDBaseT™ Performance Engineered for demanding professional environments, the HEX150CS-KIT utilises advanced HDBaseT™ technology to distribute high-resolution video, audio, control signals, Ethernet, and power over a single CAT cable. This ensures reliable long-distance transmission while reducing system complexity.

Colour Space Conversion and Video Down-Conversion Advanced CSC processing supports the full HDMI 2.0 18Gbps specification, including HDR formats. Integrated video down-conversion allows displays limited to 4K 60Hz 4:2:0 or 1080p to receive compatible signals, while other outputs continue to deliver maximum native 4K UHD resolution.

Extended Distance Video Distribution The HEX150CS-KIT supports 4K 60Hz 4:4:4 UHD video transmission up to 100 metres and extends 1080p signals up to 150 metres using HDBaseT™ long-reach mode. This makes it suitable for large-scale installations where distance and signal integrity are critical.

HDMI Loop-Out and Signal Re-Clocking An integrated HDMI loop-out on the transmitter enables local display monitoring or signal cascading to additional devices. HDMI re-clocking on the receiver enhances signal stability and helps resolve HDCP, compatibility, and handshaking challenges in complex systems.

Advanced Audio and ARC Support The extender set supports Audio Return Channel (ARC) from the display via HDMI or optical digital inputs. Audio can be routed back to HDMI, optical digital, or analogue L/R outputs, providing flexible audio integration options for a wide range of system designs.

Ethernet, Control, and System Management Bi-directional 10/100BaseT Ethernet pass-through enables network connectivity between transmitter and receiver locations. Bi-directional IR and RS-232 pass-through provide full device control, while advanced EDID management ensures optimal communication between sources and displays.

Power Delivery and Content Protection Bi-directional PoC allows the extender units to be powered from either the transmitter or receiver end, simplifying power requirements during installation. HDCP 2.2 support ensures secure transmission of protected 4K content across the system.

The HEX18G-KIT is an uncompressed HDMI 2.0 HDBaseT3™ extender set designed for applications where absolute video fidelity is required. By delivering bit-for-bit 18Gbps HDMI signals with no compression or conversion, it ensures pristine 4K UHD performance for critical viewing environments.

Key Features of Blustream HEX18G-KIT HDBaseT3™ Extender Set Uncompressed 18Gbps HDMI distribution over HDBaseT3™
Supports HDMI 2.0 4K 60Hz 4:4:4 UHD video
Full support for HDR10 and HDR10+ formats
Video transmission distances up to 100m over CAT6A
Bi-directional IR, RS-232, and PoC support
Uncompressed HDBaseT3™ Video Transmission Utilising the latest HDBaseT3™ technology, the HEX18G-KIT delivers uncompressed and unconverted HDMI video and audio over a single CAT6A cable. This bit-for-bit transmission preserves original source quality, making it ideal for environments where image accuracy is critical.

Full 18Gbps HDMI 2.0 and HDR Support The extender set supports the full HDMI 2.0 18Gbps specification, including 4K 60Hz 4:4:4 UHD video. It also supports uncompressed HDR formats such as HDR10 and HDR10+, ensuring high dynamic range content is delivered without compromise.

Long-Distance HDMI Distribution HDMI video signals can be extended up to 100 metres, subject to video format, cable type, and installation environment. For optimal performance and maximum reach, the use of CAT6A cabling is recommended.

Comprehensive Resolution Compatibility The HEX18G-KIT supports all industry standard video resolutions, from legacy formats such as VGA through to WUXGA and 4K. This ensures broad compatibility with a wide range of source and display devices.

HDMI Re-Clocking and Audio Passthrough HDMI re-clocking on the receiver improves signal integrity and helps resolve HDCP, compatibility, and handshaking issues. The system also supports bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications.

Control, Power, and Content Protection Bi-directional IR and RS-232 pass-through allow full remote control of connected devices. Bi-directional PoC enables the extender units to be powered from either end of the link, simplifying installation. Support for HDCP 2.3, 2.2, and 1.4 ensures compatibility with protected content sources.

The Blustream IP300UHD-TX is an 18Gbps UHD video transmitter designed to send 4K HDMI video, audio, and control signals over a 1Gb managed network. Featuring full interoperability with the IP350UHD product line where Dante may be required, the IP300UHD-TX is an industry leading 4K HDCP2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, embedded audio, ARC / eARC / optical audio return, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m / 328ft over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.

The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of a video over IP platform makes this solution ideal for a variety installation types across commercial and residential systems.

Key Features of BlueStream IP300UHD-TX Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
Virtually unlimited system size
Extends HDMI up to a distance of 100m / 328ft over a single CAT cable
SFP port for long-distance signal distribution over fibre
1 × HDMI loop-out for integrating local displays or cascading to multiple devices
Supports up to 4K UHD 60Hz 4:4:4
Supports HDR
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
PoE (Power over Ethernet) to power Blustream unit from PoE switch
HDCP 2.2 compliant with advanced EDID management
Audio breakout to analogue L/R audio, supporting both balanced and unbalanced audio signals
Balanced/unbalanced analogue audio input for replacing the HDMI embedded audio with a different audio signal
HDMI ARC, eARC, or optical audio return from a display connected to an IP300UHD or IP350UHD receiver
OLED front panel display for advanced system information and manual configuration
Optional 24V power supply (should Ethernet switch not support PoE)
Compatible with Blustream IP300UHD-RX and IP350UHD-RX products
IP300UHD/IP350UHD platform features 4 operational modes: Matrix distribution (requires 1Gb network switch)
Video wall (requires 1Gb network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

Distribution Modes The IP300UHD-TX can operate in matrix distribution and video wall configurations over a managed network switch. It also supports one-to-one and one-to-many HDMI extender setups without a switch, providing flexibility for both small and large AV installations.

Audio and Control Management Integrated audio breakout, analogue inputs/outputs, and HDMI ARC/eARC support allow precise audio routing. IR, RS-232, and USB/KVM control enable centralized management of connected devices while maintaining synchronized video and audio performance.

Power and Connectivity The transmitter can be powered via PoE from a compatible switch or an optional 24V local supply. Dual network ports, SFP fibre interface, and HDMI loop-out provide multiple connectivity options for short- and long-distance installations.

The Blustream IP300UHD-RX is an 18Gbps UHD video receiver designed to deliver 4K HDMI video, audio, and control signals over a 1Gb managed network. It supports HDR and full 4:4:4 chroma, allowing high-fidelity video distribution across multiple displays.

Featuring full interoperability with the IP350UHD product line, the IP300UHD-RX is an industry leading 4K HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.

The IP300UHD-RX features a second RJ45 LAN port for daisy chaining the HDMI signal onto further IP300UHD-RX units. With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K. The scaling capabilities of this unit also allow for videowalls to be created where needed.

The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.

Key Features of BlueStream IP300UHD-RX Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
Virtually unlimited system size
Extends HDMI up to a distance of 100m / 328ft over a single CAT cable
SFP port for long-distance signal distribution over fibre
Supports up to 4K UHD 60Hz 4:4:4
Supports HDR
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
PoE (Power over Ethernet) to power Blustream unit from a PoE switch
HDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the system
Analogue L/R audio output supports both balanced and unbalanced audio signals
HDMI ARC, eARC, or optical audio return from display to an IP300UHD or IP350UHD transmitter
LAN loop-out for one-to-many extender mode
OLED front panel display for advanced system information and manual configuration
Optional 24V power supply (should Ethernet switch not support PoE)
Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products
Features 4 operational modes: Matrix distribution (requires 1Gb network switch)
Video wall (requires 1Gb network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

Distribution Modes The IP300UHD-RX supports matrix distribution and video wall setups over a managed network switch. It also functions as a direct one-to-one or one-to-many HDMI extender without requiring a switch, offering versatility for both small and large AV networks.

Audio and Control Management Integrated HDMI audio, analogue outputs, and ARC/eARC support allow flexible audio routing. IR, RS-232, and USB/KVM control interfaces enable centralized management of connected devices while maintaining synchronized video and audio delivery.

Power and Connectivity The receiver can be powered via PoE from a compatible switch or an optional 24V local power supply. Dual LAN ports and an SFP fibre interface provide multiple connectivity options for both short and long-distance installations.

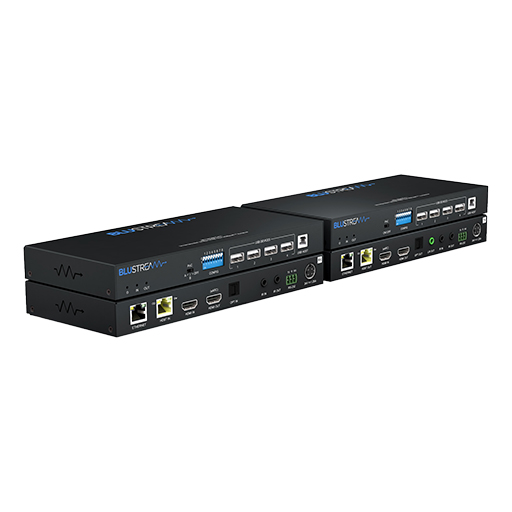

The HEX18GARC-KIT is an advanced HDMI 2.0 HDBaseT™ extender set engineered for high-end AV environments where uncompromised video quality and system integration are essential. Delivering uncompressed, unconverted 18Gbps 4K UHD signals, it combines HDBaseT3™ performance with expanded audio, control, and USB capabilities for complex professional installations.

Key Features of Blustream HEX18GARC-KIT HDBaseT™ Extender Set Uncompressed 18Gbps HDMI distribution using HDBaseT3™ technology
Supports HDMI 2.0 4K 60Hz 4:4:4 UHD video with HDR10 and HDR10+
Video transmission up to 100m over CAT6A infrastructure
Integrated HDMI loop-out, eARC/ARC, KVM, and 1Gb Ethernet support
Bi-directional IR, RS-232, and PoC functionality
Uncompressed HDBaseT3™ Video Performance Utilising advanced HDBaseT3™ technology, the HEX18GARC-KIT delivers bit-for-bit, uncompressed HDMI video and audio over a single CAT6A cable. This ensures the original source signal is preserved without compression or conversion, making it ideal for critical viewing applications.

Full HDMI 2.0 18Gbps and HDR Support The extender set supports the full HDMI 2.0 specification, including 4K 60Hz 4:4:4 UHD video formats. Uncompressed support for HDR10 and HDR10+ ensures accurate reproduction of high dynamic range content without loss of detail or colour fidelity.

Extended Distance Signal Distribution HDMI video can be transmitted up to 100 metres, subject to video format, cable type, and installation conditions. For reliable performance and compliance with HDBaseT3™ specifications, CAT6A F/UTP or better cabling is required.

HDMI Loop-Out and Signal Stability A built-in HDMI loop-out on the transmitter enables local display monitoring or cascading to additional devices. HDMI re-clocking on the receiver enhances signal integrity and helps resolve HDCP, compatibility, and handshaking issues within complex AV systems.

Advanced Audio Return and Distribution The HEX18GARC-KIT supports eARC from the display via HDMI, as well as standard ARC via HDMI or optical (S/PDIF) inputs. Returned audio can be routed to HDMI (eARC compatible), optical digital, or analogue L/R outputs, providing flexible audio integration options.

KVM, USB, and Control Integration Integrated USB 2.0 support enables KVM functionality with combined data speeds of up to 350Mbps. Bi-directional IR and RS-232 pass-through allow comprehensive device control, supporting seamless operation across transmitter and receiver locations.

Networking, Power, and Content Protection Bi-directional 1Gb Ethernet pass-through provides high-speed network connectivity between endpoints. Bi-directional PoC allows the extender units to be powered from either end of the link, simplifying installation. Support for HDCP 2.3, 2.2, and 1.4 ensures compatibility with protected content sources.

The Blustream IP300UHD-WP-TX is a 4K UHD wall plate transmitter designed to send HDMI or USB-C (DP Alt Mode) video over a 1Gb managed network. It supports high-quality 4K 60Hz 4:4:4 video, HDR and HDR10+, while providing flexible source management and independent routing of video, audio, and control signals. With PoE capability and compatibility with Blustream IP300UHD/350UHD receivers, it simplifies distribution of high-resolution content across meeting rooms, classrooms, and digital signage systems.

Key Features of BlueStream IP300UHD-WP-TX Advanced 4K HDMI 2.0 or USB-C video over a 1Gb managed network
Virtually unlimited system size
Extends HDMI or USB-C (DP Alt Mode) up to 100m over a single CAT cable
Manual and automatic source switching of inputs
Supports up to 4K UHD 60Hz 4:4:4 via HDMI and USB-C connections
Supports HDR and HDR10+
Supports bitstream passthrough of multichannel surround sound including object-based audio formats
Advanced signal management for independent routing of RS-232, audio, and video
USB-B host connection for KVM connectivity from HDMI or USB-C video connections
PoE (Power over Ethernet) support to power compatible Blustream products from a PoE switch
Local 24V power supply option when Ethernet switch does not support PoE (PSU sold separately)
HDCP 2.2 compliant with advanced EDID management
Compatible with Blustream IP300UHD-TX/RX and IP350UHD-TX/RX products
Dual US Decora faceplate surround and backbox compatibility
Flexible IP300 Series deployment options: Matrix distribution (requires 1Gb network switch)
Video wall (requires 1Gb network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

*Please note that the USB-C connection is DP Alt Mode video only and does not carry USB data

Video and Audio Management The transmitter handles high-bandwidth HDMI and USB-C video, supporting up to 4K UHD 60Hz 4:4:4 with HDR. Audio is managed concurrently through bitstream passthrough, allowing analogue, digital, and multichannel formats to be routed seamlessly across the network.

Deployment and Control The IP300UHD-WP-TX integrates easily into existing AV networks, with PoE or optional local power. Control is available via the front panel, web interface, or through compatible Blustream receivers, making it ideal for scalable installations in professional AV, educational, and commercial environments.

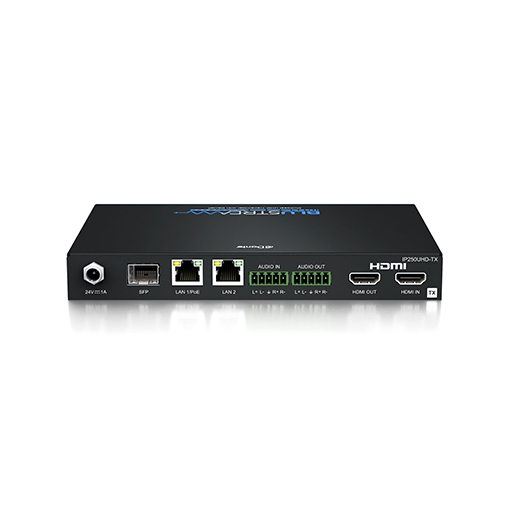

The Blustream IP250UHD-TX is a UHD video transmitter built to deliver high-quality HDMI and Dante audio signals over a 1Gb managed network. Compatible with the current IP200 platform, the IP250UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 10Gb HDMI, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built fibre SFP port. The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP250UHD-TX Advanced UHD video over 1Gb Managed Network
Operates as a stand-alone system, or together with existing IP200UHD products
Virtually unlimited system size
Extends HDMI and Dante up to a distance of 100m over a single CAT cable
Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
Supports up to 4K HDR UHD video sources (3840 × 2160 @ 30Hz 4:4:4, 4096 × 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
Supports HDR input @ 4K 30/25/24Hz
Features 1 × HDMI loop-out for integrating local displays or cascading to multiple devices
In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
Analogue L/R audio embedding
Analogue L/R audio outputs support both balanced and unbalanced audio signals
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
OLED front panel display for advanced system information and manual configuration
PoE (Power over Ethernet) to power Blustream Multicast products from a PoE switch
HDCP 2.2 compliant with advanced EDID management
Local 24V 1A power supply if Ethernet switch does not support PoE (not included)
Features 4 operational modes: Matrix distribution (requires 1Gb network switch)
Video wall (requires 1Gb network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

Distribution Modes The IP250UHD-TX can operate in matrix distribution or video wall configurations when connected to a 1Gb network switch. It also functions in one-to-one or one-to-many HDMI extender setups without a switch, making it adaptable for both small and large AV systems.

Audio and Control Management Integrated Dante audio, analogue inputs/outputs, and HDMI loop-out allow flexible audio routing. IR, RS-232, and USB/KVM support provide full control of connected devices across the network while maintaining consistent video and audio performance.

Power and Connectivity The transmitter can be powered via PoE from a compatible network switch or with an optional 24V local power supply. Dual Ethernet ports and an SFP fibre interface provide versatile connectivity for both short and long-distance installations.

The Blustream IP250UHD-RX is a UHD video receiver designed to deliver high-quality HDMI and Dante audio signals over a 1Gb managed network. Compatible with the current IP200 platform, the IP250UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that, using visually lossless compression technology, delivers 10Gb HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built Fibre SFP port. The unit can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP250UHD-RX Advanced UHD video over 1Gb Managed Network
Operates as a stand-alone system, or together with existing IP200UHD products
Virtually unlimited system size
Extends HDMI and Dante up to a distance of 100m over a single CAT cable
Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
Video up-scaling and down-scaling
Supports up to 4K 30Hz UHD video output
In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
Optical (S/PDIF) audio input for conversion of a stereo digital audio format into a Dante audio system
Analogue L/R audio outputs support both balanced and unbalanced audio signals
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
OLED front panel display for system information and manual configuration
PoE (Power over Ethernet) to power Blustream Multicast products from a PoE switch
HDCP 2.2 compliant with advanced EDID management
Local 24V 1A power supply if Ethernet switch does not support PoE (not included)
Features 4 operational modes: Matrix distribution (requires 1Gb network switch)
Video wall (requires 1Gb network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

Distribution Modes The IP250UHD-RX can operate in matrix distribution and video wall configurations when connected to a 1Gb network switch. It also functions in one-to-one or one-to-many HDMI extender setups without requiring a switch, providing flexible deployment for both small and large AV networks.

Audio and Control Management Integrated Dante audio management, optical input, and analogue outputs allow precise routing and embedding of audio. IR, RS-232, and USB/KVM support ensure full control of connected devices across the network while maintaining consistent video and audio performance.

Power and Connectivity The receiver can be powered via PoE from a compatible network switch or with an optional 24V local power supply. Dual Ethernet ports and an SFP fibre interface provide multiple connectivity options for both short and long-distance installations.

The FVE4K-KIT is a high-performance HDMI 2.0 fibre extender solution designed for uncompromised 4K UHD signal distribution using advanced SDVoE technology. Built for professional AV environments, it enables visually lossless, zero-latency transmission of full-bandwidth 18Gbps video signals over long-distance fibre links that far exceed the limitations of traditional copper cabling.

Key Features of Blustream FVE4K-KIT 4K UHD Fibre Extender Set 18Gbps UHD video transmission over 10Gbps fibre with zero latency
Full HDMI 2.0 support up to 4K 60Hz 4:4:4 with HDR
Bi-directional control and data pass-through
HDCP 2.2 compliance with advanced EDID management
SDVoE-based architecture for enterprise-grade performance
Uncompressed 4K Fibre Transmission The FVE4K-KIT supports full-bandwidth HDMI 2.0 18Gbps video distribution over fibre using visually lossless compression and zero latency processing. This enables reliable transport of 4K 60Hz 4:4:4 HDR content across distances that are not achievable with copper-based HDMI extenders.

HDMI 2.0 and HDR Support The system provides full pass-through support for HDMI 2.0 signals, including up to 4K 60Hz 4:4:4 video and 10/12-bit HDR sources. This ensures accurate colour reproduction, high dynamic range performance, and compatibility with modern UHD source devices and displays.

Local HDMI Loop-Out Integration The FVE4K-TX features a dedicated HDMI loop-out port, allowing direct connection of a local display or cascading to additional devices. This simplifies system expansion and enables local monitoring without additional splitters.

Advanced Audio Pass-Through The extender supports bitstream pass-through of multichannel surround sound formats, including object-based audio, in full compliance with HDMI specifications. This ensures high-fidelity audio distribution alongside UHD video signals.

Bi-Directional Control and Data Transport The FVE4K-KIT supports bi-directional IR, RS-232, USB 1.1, and 10/100/1000BaseT Ethernet pass-through. This enables full remote device control, peripheral connectivity, and network extension over the same fibre infrastructure.

Fibre and SFP+ Based Architecture Using 10Gbps SFP+ modules and fibre cabling, the system supports long-distance transmission based on the fibre type and modules in use. This design ensures scalability, signal stability, and long-term infrastructure compatibility.

HDCP and EDID Management HDCP 2.2 compliance with advanced EDID management ensures secure content transmission and reliable compatibility between sources and displays, reducing handshake issues in complex AV systems.

Power and Deployment Both the transmitter and receiver are powered via local 12V 2A power supplies, which are included with the kit. This provides stable and consistent operation in professional installations where PoE is not required.

The Blustream IP350UHD-TX is an 18Gbps UHD video transmitter designed to distribute full-bandwidth 4K HDMI video and audio over a 1Gb managed network. Featuring full interoperability with the IP300UHD product line, the IP350UHD-TX is an industry leading Dante enabled 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, embedded audio, ARC / eARC / optical audio return, Dante & AES67 audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m / 328ft over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.

Key Features of BlueStream IP350UHD-TX Advanced 4K HDMI 2.0 video over a 1Gb managed network supporting 18Gbps HDMI signals
Virtually unlimited system size
Extends HDMI up to 100m / 328ft over a single CAT cable
SFP port for long-distance signal distribution over fibre
HDMI loop-out for integrating local displays or cascading to multiple devices
Supports up to 4K UHD 60Hz 4:4:4
Supports HDR
Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
In-built 2-channel Dante transmitter for audio breakout from HDMI source or local analogue audio input
In-built 2-channel Dante receiver for embedding audio onto the HDMI signal or breakout to local analogue audio output
HDMI ARC, eARC, or optical audio return from a display connected to an IP300UHD or IP350UHD receiver
Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
PoE (Power over Ethernet) support to power the Blustream unit from a PoE switch
HDCP 2.2 compliant with advanced EDID management
Balanced and unbalanced analogue L/R audio embedding
Audio breakout to analogue L/R audio supporting both balanced and unbalanced signals
OLED front panel display for system information and manual configuration
Optional 24V power supply when PoE is not available
Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products
IP300UHD/IP350UHD platform features four operational modes: Matrix distribution (requires 1Gb network switch)
Video wall (requires 1Gb network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

The IP350UHD-TX can support both video and Dante audio distribution from a single network. A second RJ45 connection allows for the Dante audio network interface to be segregated from the video over IP network for larger systems, or where the networks need to be managed independently. The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of a video over IP platform makes this solution ideal for a variety installation types across commercial and residential systems.

Video Distribution The IP350UHD-TX delivers high-resolution UHD video with consistent colour depth and frame accuracy. It supports multiple distribution modes, including matrix and video wall layouts, while maintaining compatibility with mixed-resolution display environments.

Audio Handling Integrated Dante audio support allows audio to be embedded, extracted, or routed independently of video. Analogue audio inputs and outputs, along with ARC and eARC support, provide flexibility for both local and networked audio paths.

System Integration With support for IR, RS-232, and USB/KVM routing, the transmitter integrates cleanly into controlled AV systems. Network and fibre connectivity options allow the IP350UHD-TX to be deployed across a wide range of installation sizes and layouts.

The Blustream IP350UHD-RX is a high-performance 18Gbps UHD video receiver that brings 4K 60Hz 4:4:4 video and audio distribution over a 1Gb managed network. Featuring full interoperability with the IP300UHD product line, the IP350UHD-RX is an industry leading Dante enabled 4K HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, ARC / eARC / optical audio return, embedded audio, Dante & AES67 audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m / 328ft over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.

Key Features of BlueStream IP350UHD-RX Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
Virtually unlimited system size
Extends HDMI up to a distance of 100m over a single CAT cable
SFP port for signal distribution over fibre
Supports up to 4K UHD 60Hz 4:4:4
Supports HDR
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Extends HDMI and Dante up to a distance of 100m over a single CAT cable
Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
PoE (Power over Ethernet) to power Blustream unit from PoE switch
HDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the system
Analogue L/R audio output supports both balanced and unbalanced audio signals
HDMI ARC, eARC or optical audio return from display to an IP300UHD or IP350UHD transmitter
Optical (S/PDIF) input for 2ch optical audio return that can be fed into Dante network
OLED front panel display for advanced system information and manual configuration
Optional 24V power supply (should Ethernet switch not support PoE)
Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products
Features 4 operational modes: Matrix distribution (requires 1Gb network switch)
Video wall (requires 1Gb network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

The IP350UHD-RX can support both video and Dante audio distribution from a single network. A second RJ45 connection allows for the Dante audio network interface to be segregated from the video over IP network for larger systems, or where the networks need to be managed independently.

With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K distribution. The scaling capabilities of this unit also allows for video walls to be created where needed.

The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of a video over IP platform makes this solution ideal for a variety installation types across commercial and residential systems.

Video and Audio Performance The IP350UHD-RX delivers visually lossless 4K video and supports full multichannel audio, including object-based formats. It maintains HDR and high-quality audio integrity across long distances and through complex AV setups.

Connectivity and Control With dual network ports, SFP fibre support, HDMI outputs, and bi-directional control signals, the receiver allows flexible system design. IR, RS-232, and USB/KVM signals can be routed independently, making it suitable for integrated AV networks and video walls.

Deployment Flexibility The IP350UHD-RX can be deployed in matrix distribution, video wall, one-to-one HDMI extender, or one-to-many HDMI extender modes. PoE support simplifies installation, while OLED front panel feedback provides easy configuration and monitoring.

The DA1414 is a PoE+ powered 14 x 14 audio matrix engineered for flexible, high-performance audio distribution across multi-zone environments. Designed to handle mixed digital and analogue sources, it delivers precise routing, processing, and control while maintaining a compact 1U rack-mount form factor suitable for both commercial and residential installations.

Key Features of Blustream DA1414 Dante® Audio Matrix 14 x 14 audio matrix supporting Dante/AES67, analogue, and USB audio
Independent mono routing with per-channel control
8-band parametric EQ with high/low shelf and high/low pass filters
PoE+ powered operation with optional local power supply
Redundant Dante networking with dual LAN ports
Flexible Audio Matrix Architecture The DA1414 supports full 14 x 14 matrix routing, enabling independent distribution of mono audio signals across Dante/AES67, balanced or unbalanced analogue, and USB audio domains. Each input can be routed freely to any output, providing granular control for complex multi-zone audio systems.

Advanced Audio Processing Each input and output channel includes comprehensive processing tools such as volume control, balance adjustment, and an 8-band parametric equaliser. High and low shelf filters, along with high and low pass filtering, allow precise tonal shaping at both the source and destination stages.

Comprehensive Input and Output Connectivity The unit is equipped with 8 Dante/AES67 inputs, 4 balanced or unbalanced analogue inputs, and 2 USB audio inputs. Outputs mirror this flexibility with 8 Dante/AES67, 4 analogue, and 2 USB audio channels, ensuring compatibility with a wide range of system designs.

Analogue Input Support with Phantom Power Analogue inputs support both microphone and line-level signals, with selectable 48V phantom power at 0.5mA. This enables direct connection of condenser microphones or line-level sources without additional external hardware.

USB Audio Integration Selectable USB-C and USB Type-B connections provide versatile USB audio interfacing. USB Audio Class 2.0 support ensures reliable, high-quality digital audio connectivity for computers and compatible devices.

Dante and AES67 Network Audio The DA1414 supports Dante and AES67 RTP audio transport, with configurable device latency options ranging from 2ms to 10ms via Dante Controller. Dual Dante LAN ports provide network redundancy for improved reliability in critical audio systems.

API Switching and Third-Party Control Integrated API switching allows Dante channel routing through third-party control platforms, bypassing the need for standard Dante Controller or Domain Manager workflows. This enables tighter integration with broader control ecosystems.

Power and Control Options The unit can be powered via PoE+ (Class 4 IEEE 802.3at) through the primary LAN connection or via a local power supply where PoE is unavailable. Control is available through the front panel, RS-232, TCP/IP, and a web-based GUI for flexible system management.

Rack-Mount Ready Design Housed in a 1U chassis designed for standard 19-inch racks, the DA1414 integrates cleanly into professional AV installations. A rack mounting kit is included, simplifying deployment within structured equipment racks.

The Blustream IP500UHD-TZ is an 18Gbps UHD video transceiver designed for high-performance AV distribution over a 10Gb managed network. As an SDVoE compliant video over IP solution, the IP500UHD offers uncompromised 4K video transmission with zero latency, supporting both copper and fibre (SFP+) 10Gbps network connectivity. The IP500UHD-TZ supports HDMI 2.0, including HDR (High Dynamic Range), 10/12-bit colour depth, and multi-channel HD audio distribution.

Designed for versatility, the IP500UHD-TZ includes multi-view functionality, allowing up to 16 individual sources to be displayed on a single screen in various layout configurations. It also enables seamless transmission of multiple control and data signals alongside 4K video and audio, including IR, RS-232, USB 1.1 (KVM), CEC and 1Gb Ethernet pass-through. Engineered for demanding 4K HDMI environments where image quality and zero-latency performance are critical, the IP500UHD-TZ is fully interoperable with our IP510UHD-TZ offering a fully flexible video over IP matrix system, supporting both multi-view and video wall applications.

Key Features of BlueStream IP500UHD-TZ Advanced 18Gbps UHD video over a 10Gb network with zero latency
Supports video scaling and single-frame switching
Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
Fixed signal routing support for IR, RS-232, CEC, and USB
USB end-to-end and point-to-point pass-through
Analogue L/R audio embedding and audio breakout, supporting balanced and unbalanced signals
Bi-directional 10/100/1000BaseT Ethernet pass-through
Supports bi-directional 5V or 12V IR pass-through
PoE (Power over Ethernet) support to power Blustream products from a PoE+ switch
HDCP 2.2 compliant with advanced EDID management
Local 12V 2.5A power supply required when PoE+ is not available (sold separately)
Features four operational modes: Matrix distribution (requires 10Gb network switch)
Video wall (requires 10Gb network switch)
Multiview mode (requires 10Gb network switch)
One-to-one HDMI extender (no network switch required)

Please note: The Blustream SDVoE system distributes HDMI video over 10Gb managed network hardware. It is advised that the products are connected on an independent network switch to prevent interference or drop in signal performance. Please take care to make sure that you have read and understood the instructions in the User Manual, and that you have set up the network switch correctly prior to connecting the SDVoE products.

Video and Audio Performance The IP500UHD-TZ delivers high-fidelity 4K UHD video while maintaining HDR and full colour depth. Audio signals, including object-based formats, are transmitted without loss, supporting both embedded HDMI audio and analogue breakout.

Connectivity and Control Multiple ports allow IR, RS-232, USB/KVM, and Ethernet signals to be routed alongside video and audio. USB and control pass-through ensures seamless integration with remote systems and automation environments.

Deployment Flexibility Its ability to operate as a transmitter or receiver, combined with support for matrix, video wall, multiview, and point-to-point modes, provides adaptability for a wide range of AV installations, from single-room setups to complex multi-display environments.

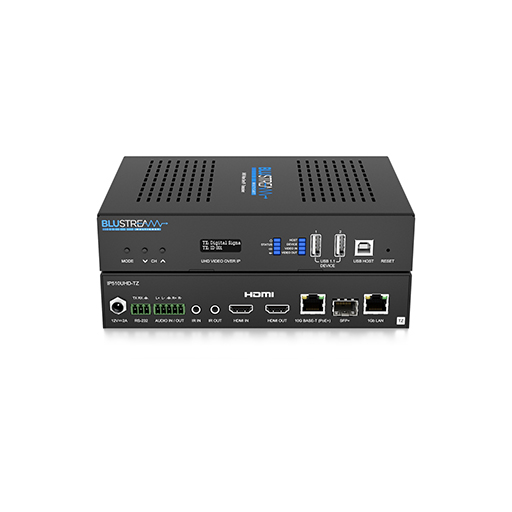

The Blustream IP510UHD-TZ is a simultaneous UHD video transceiver that operates over a 10Gb managed network, delivering 18Gbps 4K 60Hz 4:4:4 video with zero latency. It functions as both a transmitter and receiver from a single connection, supporting full HDR and high-bit-depth colour, multichannel audio pass-through, and advanced control signal routing.

As an SDVoE compliant video over IP solution, the IP510UHD offers uncompromised 4K video transmission with zero latency, supporting both copper and fibre (SFP+) 10Gbps network connectivity. The IP510UHD-TZ supports HDMI 2.0, including HDR (High Dynamic Range), 10/12-bit colour depth, and multi-channel HD audio distribution.

Designed for versatility, the IP510UHD-TZ includes multi-view functionality, allowing up to 16 individual sources to be displayed on a single screen in various layout configurations. It also enables seamless transmission of multiple control and data signals alongside 4K video and audio, including IR, RS-232, USB 1.1 (KVM), CEC and 1Gb Ethernet pass-through.

Engineered for demanding 4K HDMI environments where image quality and zero-latency performance are critical, the IP510UHD-TZ is ideal for scenarios where source devices and displays are co-located. Multiple units can be integrated into a flexible video over IP matrix system, supporting both multi-view and video wall applications.

Key Features of BlueStream IP510UHD-TZ Advanced SDVoE 4K UHD video over a 10Gb managed network with visually lossless compression and zero latency
HDMI 2.0 18Gbps specification with pass-through for resolutions up to 4K 60Hz 4:4:4, supporting 10/12-bit colour and HDR*
Transceiver can function simultaneously as an encoder (TX) and decoder (RX) from a single 10Gbps connection
Supports video scaling and single-frame switching where scaling is deployed
Multi-view output allows up to 16 independent sources to be displayed on a single output
Video wall functionality for creating arrays of differing sizes and layouts
Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
Fixed signal routing for dedicated IR, RS-232, CEC, and USB 1.1 control pass-through
USB end-to-end / point-to-point pass-through (USB 1.1 specification)
Analogue L/R audio embedding and audio breakout, supporting balanced and unbalanced signals
10/100/1000BaseT Ethernet pass-through
Supports bi-directional 5V or 12V IR pass-through
10Gbps copper or SFP+ network connectivity
PoE+ (Power over Ethernet) to power Blustream Multicast products from a PoE+ switch
HDCP 2.2 compliant with advanced EDID management
Local 12V 2.5A power input if PoE+ is not available (PSU sold separately)
Fully interoperable with Blustream IP500UHD-TZ (selectable transceiver)
The Blustream SDVoE platform features four operational modes: Matrix distribution (requires 10Gb network switch)
Video wall (requires 10Gb network switch)
Multiview mode (requires 10Gb network switch)
One-to-one HDMI extender (no network switch required)

*HDR content requires Genlock mode to be enabled (video scaler in pass-through mode)

Please Note: The Blustream SDVoE system distributes HDMI video over 10Gb managed network hardware. It is advised that the products are connected on an independent network switch to prevent interference or drop in signal performance. Please take care to make sure that you have read and understood the instructions in the User Manual, and that you have set up the network switch correctly prior to connecting the SDVoE products.

Video Performance The IP510UHD-TZ delivers high-fidelity UHD video with full colour depth, HDR support, and visually lossless compression. It ensures smooth, frame-accurate transmission across all supported modes, from matrix distributions to video walls.

Audio and Control Audio signals, including object-based formats, can be embedded, extracted, or routed independently. IR, RS-232, USB/KVM, and Ethernet signals are supported for flexible control and integration with AV systems.

Deployment Flexibility With dual TX/RX functionality, multiple network options, and four operational modes, the IP510UHD-TZ can be deployed in single-room setups, complex multi-display environments, and professional AV networks requiring high-bandwidth video and audio distribution.

The Blustream HEX70HDUK-KIT is a versatile multi-format HDBaseT extender set designed to transmit 4K 60Hz 4:4:4 video, audio, USB, and control signals over a single CAT cable. With HDMI 2.0 and HDCP 2.2 support, it features Colour Space Conversion (CSC) to handle high-bandwidth content. The kit allows long-distance distribution of high-resolution signals while providing flexible input and control options for complex AV setups.

Key Features of BlueStream HEX70HDUK-KIT Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selection
Features 1 x local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p up to a distance of 70m over single CAT cable
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*
Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2
Features 2 x USB-Type A devices (RX - peripherals), 2 x USB-Type A devices (TX - peripherals) and 2 x USB Type-B (TX - host source specific) that support a combined data transmission bandwidth of up to 250Mbps
USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
Independent USB Type-A connection to support charging only of devices up to 5V 2A
Audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently**
Bi-directional IR pass-through
Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232
Web interface module for control and configuration of HEX70HDUK-KIT
Control via front panel, IR, RS-232 and TCP/IP
Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
Advanced EDID and HDCP management
*USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device
**Analogue audio breakout supports 2ch PCM only

Flexible Multi-Format Connectivity The HEX70HDUK-KIT accommodates HDMI, USB-C, and DisplayPort inputs, with automatic or manual source switching. Its receiver includes a local HDMI input for nearby sources, enabling seamless integration into diverse AV setups such as classrooms, conference rooms, and digital signage installations.

High-Quality Video and Audio Transmission Supporting full 4K 60Hz 4:4:4 video and multichannel audio, the extender set maintains signal integrity over long distances. Audio can be routed to both analogue and digital outputs, ensuring clear sound and high-definition visuals for professional AV applications.

Comprehensive Control and Management Control options include front panel, IR, RS-232, TCP/IP, and a web interface, with bi-directional IR and RS-232 pass-through. Auto display on/off functionality allows centralized control of connected displays, while advanced EDID and HDCP management ensures compatibility across devices.

The C66CS Contractor 6x6 HDBaseT™ CSC Matrix is engineered to deliver high-performance 4K UHD signal distribution with flexibility and reliability for professional AV installations. Designed for the custom installation market, this matrix combines advanced HDBaseT™ technology with Colour Space Conversion to support modern HDMI 2.0 workflows while maintaining long-distance signal integrity over a single CAT cable.

Key Features of C66CS Contractor 6x6 HDBaseT™ CSC Matrix 6 x HDMI 2.0 inputs independently routable to 6 x HDBaseT™ outputs
Advanced HDBaseT™ technology for audio and video distribution over a single CAT cable
Colour Space Conversion (CSC) supporting HDMI 2.0 18Gbps and HDR
Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p up to 70m
Simultaneous HDMI and HDBaseT™ output on output 1
Web-based interface for matrix control and configuration
High-Resolution HDMI 2.0 Performance The C66CS supports HDMI 2.0 4K 60Hz 4:4:4 video with HDCP 2.2 compliance, ensuring compatibility with modern UHD sources and displays. Advanced Colour Space Conversion enables full 18Gbps bandwidth transmission while maintaining signal quality across extended distances.

Flexible Output and Down-Conversion Output 1 features simultaneous HDMI and HDBaseT™ connectivity, allowing local and remote display support from a single output. Integrated video down-conversion on HDBaseT™ outputs enables mixed-resolution systems, ensuring legacy displays can receive compatible signals while other outputs maintain full 4K UHD resolution.

Extended Signal Distribution The matrix delivers 4K 60Hz 4:4:4 video up to 40m and extends 1080p signals up to 70m over a single CAT cable. Support for resolutions from VGA through WUXGA and up to 4K ensures broad compatibility across diverse AV environments.

Advanced Audio and Control Capabilities Bitstream passthrough of multichannel surround sound, including object-based audio formats, is supported in line with HDMI specifications. Control options include front panel operation, bi-directional IR, RS-232, and TCP/IP, providing flexibility for system integration.

Simplified Installation and Power Management Power over Cable (PoC) allows compatible HDBaseT™ receivers to be powered directly from the matrix, reducing the need for local power supplies. The 1U chassis design supports 19-inch rack mounting, with mounting hardware included for streamlined installation.

System Integration and Compatibility Advanced EDID management ensures stable source-to-display communication, while third-party drivers enable integration with major control systems. For full 18Gbps CSC performance, the RX70CS receiver is recommended.

The C88CS Contractor 8x8 HDBaseT™ CSC Matrix is designed to deliver scalable, high-bandwidth 4K UHD signal distribution for professional AV installations. Built for the custom installation market, this matrix combines advanced HDBaseT™ transmission with Colour Space Conversion technology to support modern HDMI 2.0 systems while maintaining reliable long-distance performance over a single CAT cable.

Key Features of C88CS Contractor 8x8 HDBaseT™ CSC Matrix 8 x HDMI 2.0 inputs independently routable to 8 x HDBaseT™ outputs
Advanced HDBaseT™ technology for audio and video distribution over a single CAT cable
Colour Space Conversion (CSC) supporting HDMI 2.0 18Gbps and HDR
Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p up to 70m
Simultaneous HDMI and HDBaseT™ output on output 1
Web-based interface for matrix control and configuration
High-Performance HDMI 2.0 Matrix Switching The C88CS supports HDMI 2.0 4K 60Hz 4:4:4 video with HDCP 2.2 compliance, ensuring compatibility with current UHD sources and displays. Integrated Colour Space Conversion enables full 18Gbps signal transmission while preserving image quality across extended cable runs.

Flexible Output Configuration and Down-Conversion Output 1 provides simultaneous HDMI and HDBaseT™ connectivity, supporting both local and remote display requirements. Video down-conversion on HDBaseT™ outputs allows mixed-resolution systems, enabling lower-resolution displays to operate alongside full 4K UHD outputs without compromising overall system performance.

Extended Distribution Distances The matrix delivers 4K 60Hz 4:4:4 UHD video up to 40 metres and extends 1080p video signals up to 70 metres over a single CAT cable. Support for industry-standard resolutions from VGA to WUXGA and up to 4K ensures compatibility across a wide range of AV environments.

Advanced Audio and Control Integration Bitstream passthrough of multichannel surround sound, including object-based audio formats, is supported in line with HDMI specifications. Comprehensive control options include front panel operation, bi-directional IR, RS-232, and TCP/IP for seamless system integration.

Power, Installation, and System Integration Power over Cable (PoC) enables compatible HDBaseT™ receivers to be powered directly from the matrix, reducing installation complexity. The 1U chassis supports 19-inch rack mounting with the supplied mounting kit, while advanced EDID management and third-party control drivers ensure stable and flexible system operation.

Receiver Compatibility For full 18Gbps Colour Space Conversion performance, the RX70CS receiver is recommended. The matrix is HDCP 2.2 compliant and supplied with IR receivers and emitters to support complete system deployment.
