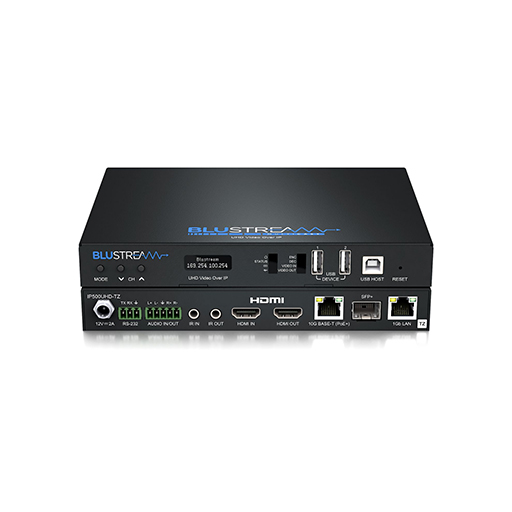

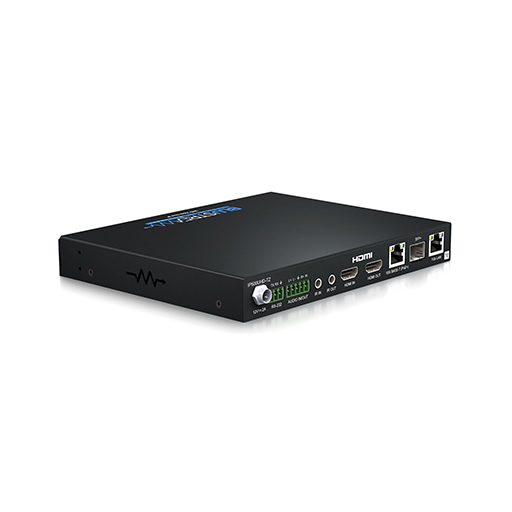

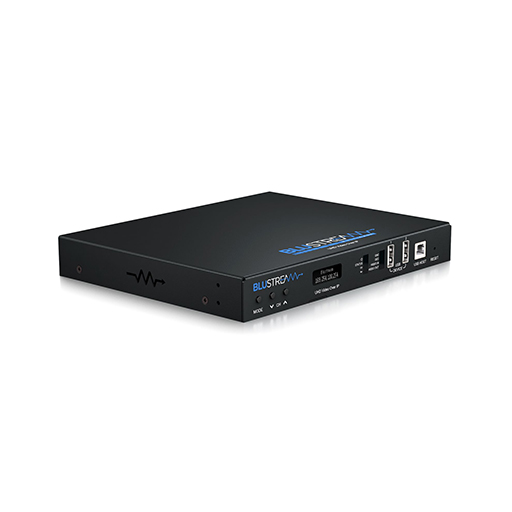

Blustream IP500UHD-TZ UHD Video Transceiver

The Blustream IP500UHD-TZ is an 18Gbps UHD video transceiver designed for high-performance AV distribution over a 10Gb managed network. As an SDVoE compliant video over IP solution, the IP500UHD offers uncompromised 4K video transmission with zero latency, supporting both copper and fibre (SFP+) 10Gbps network connectivity. The IP500UHD-TZ supports HDMI 2.0, including HDR (High Dynamic Range), 10/12-bit colour depth, and multi-channel HD audio distribution.

Designed for versatility, the IP500UHD-TZ includes multi-view functionality, allowing up to 16 individual sources to be displayed on a single screen in various layout configurations. It also enables seamless transmission of multiple control and data signals alongside 4K video and audio, including IR, RS-232, USB 1.1 (KVM), CEC and 1Gb Ethernet pass-through. Engineered for demanding 4K HDMI environments where image quality and zero-latency performance are critical, the IP500UHD-TZ is fully interoperable with our IP510UHD-TZ offering a fully flexible video over IP matrix system, supporting both multi-view and video wall applications.

Key Features of BlueStream IP500UHD-TZ

• Advanced 18Gbps UHD video over a 10Gb network with zero latency
• Supports video scaling and single-frame switching
• Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
• Fixed signal routing support for IR, RS-232, CEC, and USB
• USB end-to-end and point-to-point pass-through
• Analogue L/R audio embedding and audio breakout, supporting balanced and unbalanced signals
• Bi-directional 10/100/1000BaseT Ethernet pass-through
• Supports bi-directional 5V or 12V IR pass-through
• PoE (Power over Ethernet) support to power Blustream products from a PoE+ switch
• HDCP 2.2 compliant with advanced EDID management
• Local 12V 2.5A power supply required when PoE+ is not available (sold separately)
• Features four operational modes:
  • Matrix distribution (requires 10Gb network switch)
  • Video wall (requires 10Gb network switch)
  • Multiview mode (requires 10Gb network switch)
  • One-to-one HDMI extender (no network switch required)

Please note: The Blustream SDVoE system distributes HDMI video over 10Gb managed network hardware. It is advised that the products are connected on an independent network switch to prevent interference or drop in signal performance. Please take care to make sure that you have read and understood the instructions in the User Manual, and that you have set up the network switch correctly prior to connecting the SDVoE products.

Video and Audio Performance

The IP500UHD-TZ delivers high-fidelity 4K UHD video while maintaining HDR and full colour depth. Audio signals, including object-based formats, are transmitted without loss, supporting both embedded HDMI audio and analogue breakout.

Connectivity and Control

Multiple ports allow IR, RS-232, USB/KVM, and Ethernet signals to be routed alongside video and audio. USB and control pass-through ensures seamless integration with remote systems and automation environments.

Deployment Flexibility

Its ability to operate as a transmitter or receiver, combined with support for matrix, video wall, multiview, and point-to-point modes, provides adaptability for a wide range of AV installations, from single-room setups to complex multi-display environments.
