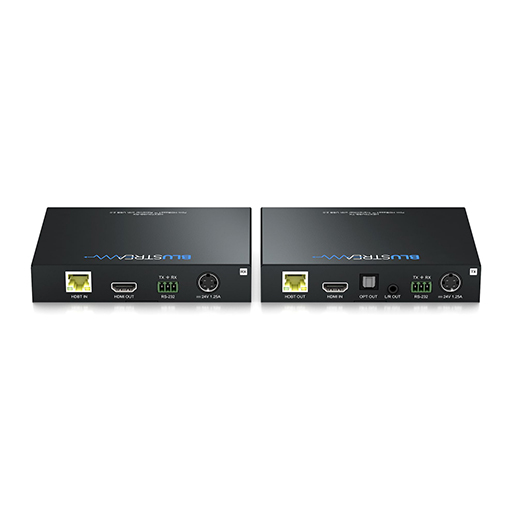

Blustream HEX70USB-KIT HDBaseT™ USB Extender Set

The Blustream HEX70USB-KIT is a versatile HDBaseT extender set that transmits uncompressed video, audio, and USB signals over a single CAT cable. It supports HDMI 1080p up to 70 m and 4K UHD up to 40 m, while providing USB 2.0 connectivity for peripherals such as keyboards, mice, and other devices. The set includes bi-directional IR and RS-232 control, audio breakout, and Power over Cable (PoC), making it suitable for professional and home AV setups where centralized control and long-distance signal distribution are required.

Key Features of BlueStream HEX70USB-KIT

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280Mbps
• USB Type-A connections support 5V 500mA output per port
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Bi-directional IR pass-through
• Bi-directional RS-232 pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoC (Power over Cable) to power extenders from either Transmitter or Receiver end
• HDCP 2.2 compliant with advanced EDID management
• HDMI audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently

Extended USB and Device Connectivity

The HEX70USB-KIT allows peripheral devices to be connected remotely to the source system. USB extension supports peripherals such as keyboards, mice, and controllers, providing seamless interaction with systems across long distances.

High-Resolution Video and Audio

Maintaining uncompressed HDMI signals ensures crisp 1080p and 4K UHD visuals along with full multichannel audio pass-through. The audio can be routed to both analogue and optical outputs for flexible integration with AV systems.

Control and Power Management

With bi-directional IR and RS-232, the HEX70USB-KIT allows full remote control of connected devices. Power over Cable (PoC) simplifies power delivery to both transmitter and receiver, reducing cabling requirements and installation complexity.
