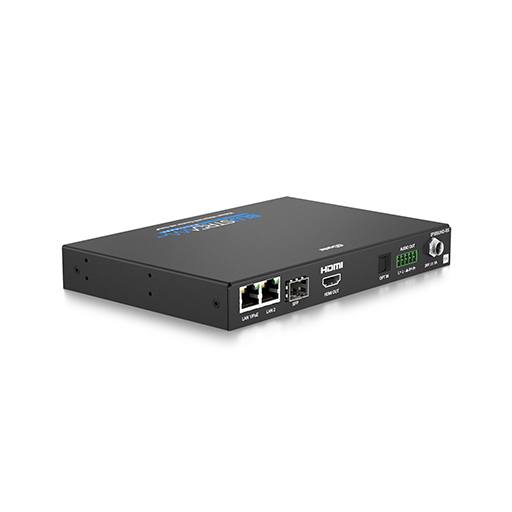

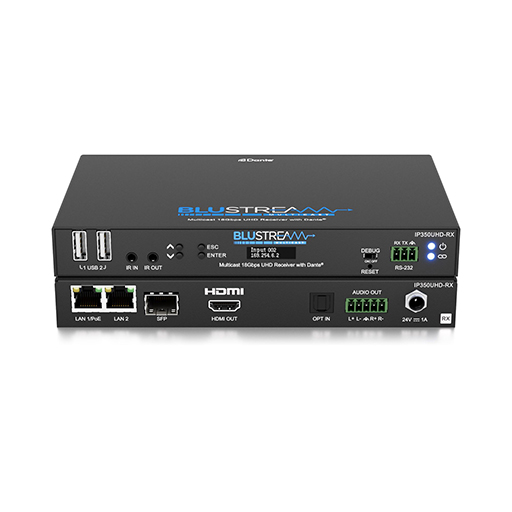

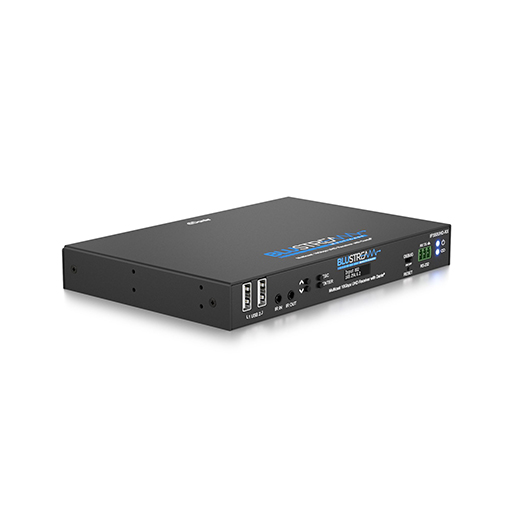

Blustream IP350UHD-RX 18Gbps UHD Video Receiver

The Blustream IP350UHD-RX is a high-performance 18Gbps UHD video receiver that brings 4K 60Hz 4:4:4 video and audio distribution over a 1Gb managed network. Featuring full interoperability with the IP300UHD product line, the IP350UHD-RX is an industry leading Dante enabled 4K HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, ARC / eARC / optical audio return, embedded audio, Dante & AES67 audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m / 328ft over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.

Key Features of BlueStream IP350UHD-RX

• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• SFP port for signal distribution over fibre
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Extends HDMI and Dante up to a distance of 100m over a single CAT cable
• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• PoE (Power over Ethernet) to power Blustream unit from PoE switch
• HDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the system
• Analogue L/R audio output supports both balanced and unbalanced audio signals
• HDMI ARC, eARC or optical audio return from display to an IP300UHD or IP350UHD transmitter
• Optical (S/PDIF) input for 2ch optical audio return that can be fed into Dante network
• OLED front panel display for advanced system information and manual configuration
• Optional 24V power supply (should Ethernet switch not support PoE)
• Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products
• Features 4 operational modes:
  • Matrix distribution (requires 1Gb network switch)
  • Video wall (requires 1Gb network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

The IP350UHD-RX can support both video and Dante audio distribution from a single network. A second RJ45 connection allows for the Dante audio network interface to be segregated from the video over IP network for larger systems, or where the networks need to be managed independently.

With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K distribution. The scaling capabilities of this unit also allows for video walls to be created where needed.

The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of a video over IP platform makes this solution ideal for a variety installation types across commercial and residential systems.

Video and Audio Performance

The IP350UHD-RX delivers visually lossless 4K video and supports full multichannel audio, including object-based formats. It maintains HDR and high-quality audio integrity across long distances and through complex AV setups.

Connectivity and Control

With dual network ports, SFP fibre support, HDMI outputs, and bi-directional control signals, the receiver allows flexible system design. IR, RS-232, and USB/KVM signals can be routed independently, making it suitable for integrated AV networks and video walls.

Deployment Flexibility

The IP350UHD-RX can be deployed in matrix distribution, video wall, one-to-one HDMI extender, or one-to-many HDMI extender modes. PoE support simplifies installation, while OLED front panel feedback provides easy configuration and monitoring.
