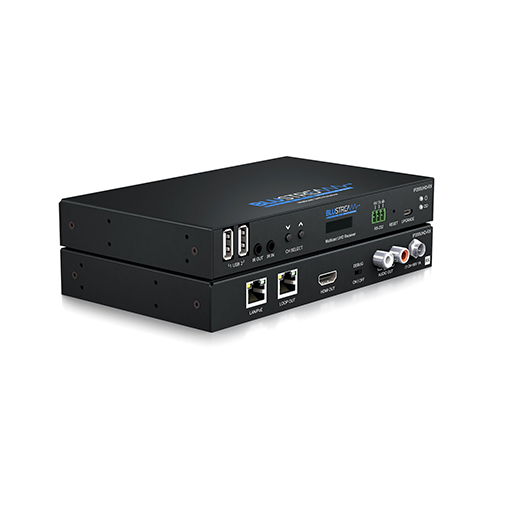

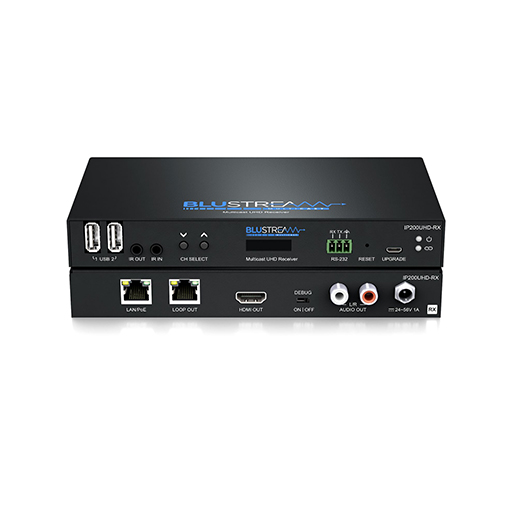

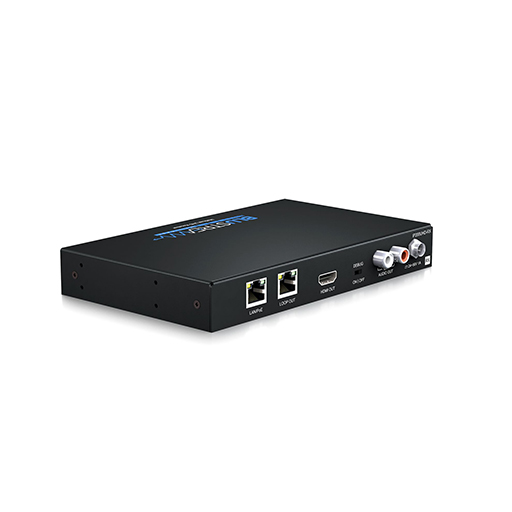

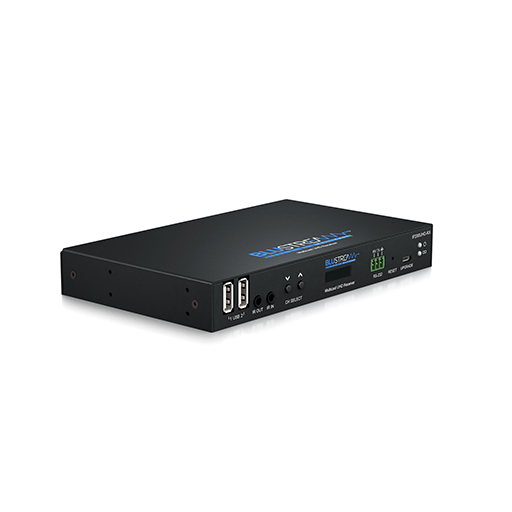

Blustream IP200UHD-RX UHD Video Receiver

The Blustream IP200UHD-RX is a UHD video receiver designed for scalable video distribution over a standard 1GB network. It delivers high-quality HDMI video, audio, and control signals to displays across long distances using existing network infrastructure. The IP200UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that, using visually lossless compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB / KVM up to lengths of 100m over standard network architecture. The IP200UHD-RX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP200UHD-RX

• Advanced UHD video over 1GB Network
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• Video up-scaling and down-scaling
• Supports up to 4K @ 30Hz UHD video output
• Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio, and video
• PoE (Power over Ethernet) to power Blustream products from a PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Analogue L/R audio breakout
• LAN loop-out for one-to-many extender mode
• Local 24-56V power supply (required if the Ethernet switch does not support PoE) - sold separately
• Features 4 operational modes:
  • Matrix distribution (requires 1GB network switch)
  • Video wall (requires 1GB network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

Flexible Distribution Modes

The IP200UHD-RX supports multiple operating modes, including matrix distribution and video wall configurations when used with a 1GB network switch. It can also operate as a direct HDMI extender in one-to-one or one-to-many setups without the need for a network switch, allowing straightforward deployment in both simple and complex layouts.

Control and Integration

Designed for full system control, the receiver supports IR, RS-232, and USB/KVM routing alongside video and audio. This allows displays and connected devices to be managed remotely while maintaining consistent signal performance across the network.

Power and Connectivity

The unit can be powered directly from a PoE-enabled network switch, reducing the need for local power at the display location. Where PoE is unavailable, a local 24-56V power supply can be used, providing added flexibility during installation.
