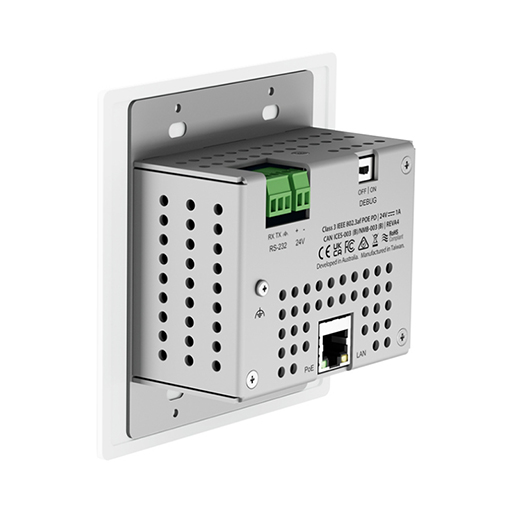

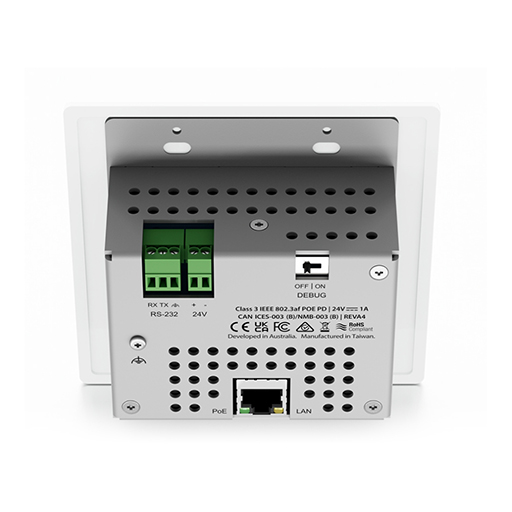

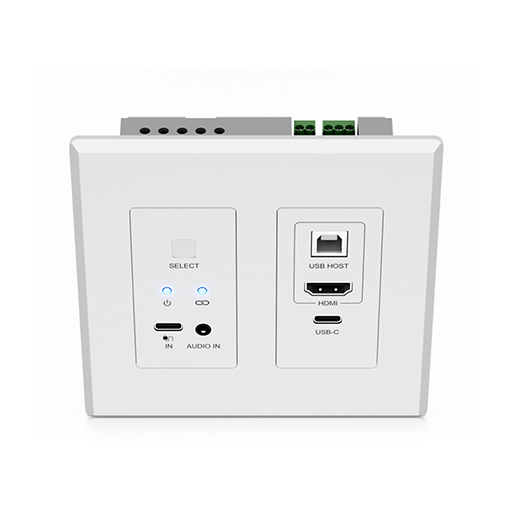

Blustream IP300UHD-WP-TX 18Gbps UHD Video Wall Plate HDMI and USB-C Transmitter

The Blustream IP300UHD-WP-TX is a 4K UHD wall plate transmitter designed to send HDMI or USB-C (DP Alt Mode) video over a 1Gb managed network. It supports high-quality 4K 60Hz 4:4:4 video, HDR and HDR10+, while providing flexible source management and independent routing of video, audio, and control signals. With PoE capability and compatibility with Blustream IP300UHD/350UHD receivers, it simplifies distribution of high-resolution content across meeting rooms, classrooms, and digital signage systems.

Key Features of BlueStream IP300UHD-WP-TX

• Advanced 4K HDMI 2.0 or USB-C video over a 1Gb managed network
• Virtually unlimited system size
• Extends HDMI or USB-C (DP Alt Mode) up to 100m over a single CAT cable
• Manual and automatic source switching of inputs
• Supports up to 4K UHD 60Hz 4:4:4 via HDMI and USB-C connections
• Supports HDR and HDR10+
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats
• Advanced signal management for independent routing of RS-232, audio, and video
• USB-B host connection for KVM connectivity from HDMI or USB-C video connections
• PoE (Power over Ethernet) support to power compatible Blustream products from a PoE switch
• Local 24V power supply option when Ethernet switch does not support PoE (PSU sold separately)
• HDCP 2.2 compliant with advanced EDID management
• Compatible with Blustream IP300UHD-TX/RX and IP350UHD-TX/RX products
• Dual US Decora faceplate surround and backbox compatibility
• Flexible IP300 Series deployment options:
  • Matrix distribution (requires 1Gb network switch)
  • Video wall (requires 1Gb network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

*Please note that the USB-C connection is DP Alt Mode video only and does not carry USB data

Video and Audio Management

The transmitter handles high-bandwidth HDMI and USB-C video, supporting up to 4K UHD 60Hz 4:4:4 with HDR. Audio is managed concurrently through bitstream passthrough, allowing analogue, digital, and multichannel formats to be routed seamlessly across the network.

Deployment and Control

The IP300UHD-WP-TX integrates easily into existing AV networks, with PoE or optional local power. Control is available via the front panel, web interface, or through compatible Blustream receivers, making it ideal for scalable installations in professional AV, educational, and commercial environments.
