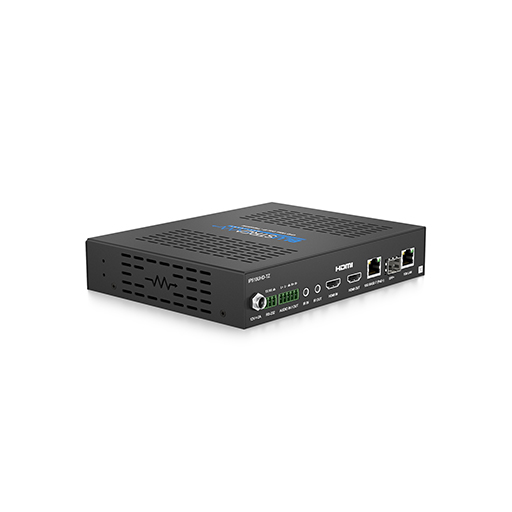

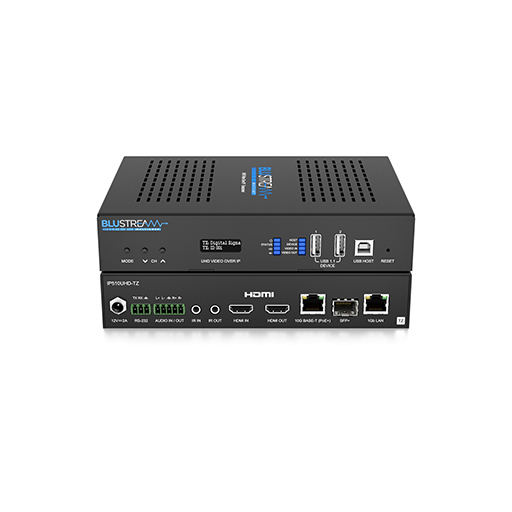

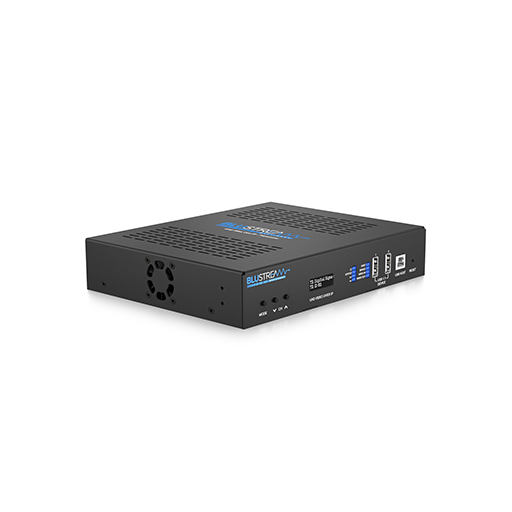

Blustream IP510UHD-TZ Simultaneous UHD Video Transceiver

The Blustream IP510UHD-TZ is a simultaneous UHD video transceiver that operates over a 10Gb managed network, delivering 18Gbps 4K 60Hz 4:4:4 video with zero latency. It functions as both a transmitter and receiver from a single connection, supporting full HDR and high-bit-depth colour, multichannel audio pass-through, and advanced control signal routing.

As an SDVoE compliant video over IP solution, the IP510UHD offers uncompromised 4K video transmission with zero latency, supporting both copper and fibre (SFP+) 10Gbps network connectivity. The IP510UHD-TZ supports HDMI 2.0, including HDR (High Dynamic Range), 10/12-bit colour depth, and multi-channel HD audio distribution.

Designed for versatility, the IP510UHD-TZ includes multi-view functionality, allowing up to 16 individual sources to be displayed on a single screen in various layout configurations. It also enables seamless transmission of multiple control and data signals alongside 4K video and audio, including IR, RS-232, USB 1.1 (KVM), CEC and 1Gb Ethernet pass-through.

Engineered for demanding 4K HDMI environments where image quality and zero-latency performance are critical, the IP510UHD-TZ is ideal for scenarios where source devices and displays are co-located. Multiple units can be integrated into a flexible video over IP matrix system, supporting both multi-view and video wall applications.

Key Features of BlueStream IP510UHD-TZ

• Advanced SDVoE 4K UHD video over a 10Gb managed network with visually lossless compression and zero latency
• HDMI 2.0 18Gbps specification with pass-through for resolutions up to 4K 60Hz 4:4:4, supporting 10/12-bit colour and HDR*
• Transceiver can function simultaneously as an encoder (TX) and decoder (RX) from a single 10Gbps connection
• Supports video scaling and single-frame switching where scaling is deployed
• Multi-view output allows up to 16 independent sources to be displayed on a single output
• Video wall functionality for creating arrays of differing sizes and layouts
• Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
• Fixed signal routing for dedicated IR, RS-232, CEC, and USB 1.1 control pass-through
• USB end-to-end / point-to-point pass-through (USB 1.1 specification)
• Analogue L/R audio embedding and audio breakout, supporting balanced and unbalanced signals
• 10/100/1000BaseT Ethernet pass-through
• Supports bi-directional 5V or 12V IR pass-through
• 10Gbps copper or SFP+ network connectivity
• PoE+ (Power over Ethernet) to power Blustream Multicast products from a PoE+ switch
• HDCP 2.2 compliant with advanced EDID management
• Local 12V 2.5A power input if PoE+ is not available (PSU sold separately)
• Fully interoperable with Blustream IP500UHD-TZ (selectable transceiver)
• The Blustream SDVoE platform features four operational modes:
  • Matrix distribution (requires 10Gb network switch)
  • Video wall (requires 10Gb network switch)
  • Multiview mode (requires 10Gb network switch)
  • One-to-one HDMI extender (no network switch required)

*HDR content requires Genlock mode to be enabled (video scaler in pass-through mode)

Please Note: The Blustream SDVoE system distributes HDMI video over 10Gb managed network hardware. It is advised that the products are connected on an independent network switch to prevent interference or drop in signal performance. Please take care to make sure that you have read and understood the instructions in the User Manual, and that you have set up the network switch correctly prior to connecting the SDVoE products.

Video Performance

The IP510UHD-TZ delivers high-fidelity UHD video with full colour depth, HDR support, and visually lossless compression. It ensures smooth, frame-accurate transmission across all supported modes, from matrix distributions to video walls.

Audio and Control

Audio signals, including object-based formats, can be embedded, extracted, or routed independently. IR, RS-232, USB/KVM, and Ethernet signals are supported for flexible control and integration with AV systems.

Deployment Flexibility

With dual TX/RX functionality, multiple network options, and four operational modes, the IP510UHD-TZ can be deployed in single-room setups, complex multi-display environments, and professional AV networks requiring high-bandwidth video and audio distribution.
