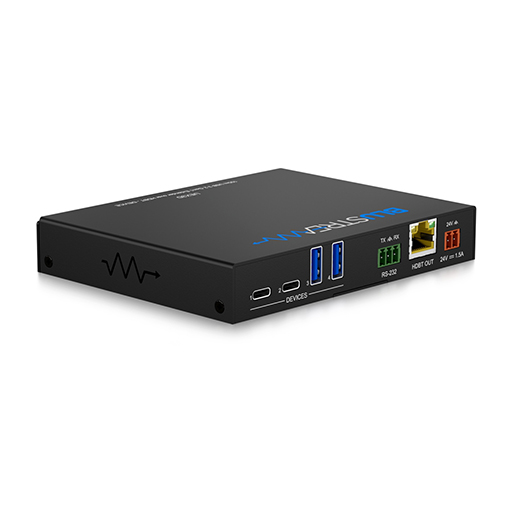

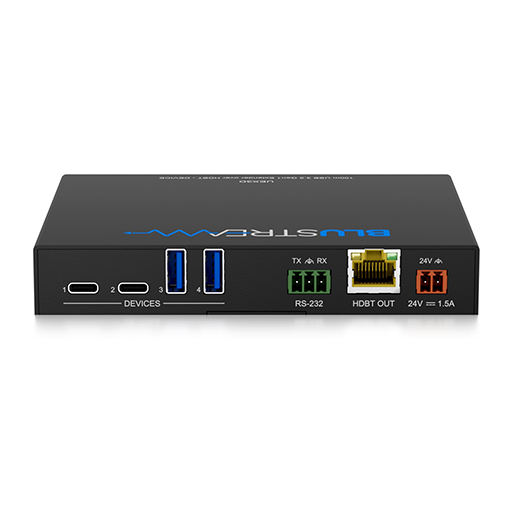

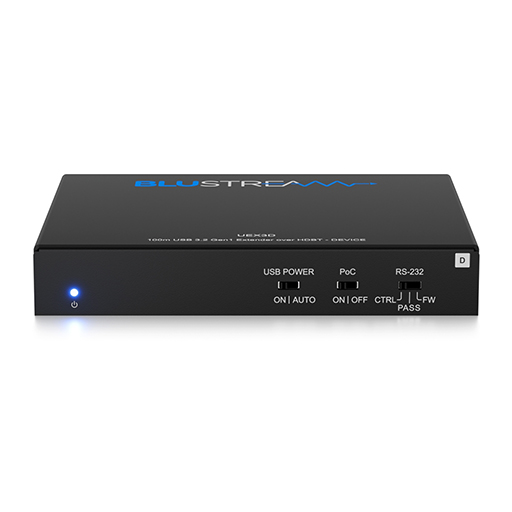

Blustream UEX3D USB 3.2 Gen1 HDBaseT™ Extender - Device

The Blustream UEX3D USB 3.2 Gen1 HDBaseT™ Extender Device allows USB peripherals to be connected over long distances using a single CAT cable. The UEX3D allows for 4 x USB Devices (2 x USB type A, and 2 x USB-C) to be connected to a compatible Blustream USB HDBaseT™ Receiver (Host) extender with support for a combined transmission data bandwidth of up to 5Gbps.

The UEX3D is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT link. The UEX3D is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices, and other USB 3.2 Gen1 devices.

Key Features of BlueStream UEX3D

• USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB Host devices and 2 x local USB Devices
• Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
• Backwards compatible with USB 2.0 & 1.1 devices
• Combined USB 3.2 Gen1 data transfer rate up to 5Gbps *
• 2 x USB-A & 2 x USB-C ports for connection to local devices
• Provides up to 3A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC) - PSU supplied with the Device end of the link only
• Supports bi-directional RS-232 when used with compatible HDBaseT™ products
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup required

Compatible with Blustream UEX3H and UEX3H-WP

* Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

Flexible Deployment

The UEX3D is ideal for AV and IT environments where USB devices need to operate at full speed over extended distances. It integrates seamlessly into conference rooms, lecture halls, control rooms, and remote workstation setups, providing reliable connectivity for a variety of USB peripherals.

Reliable Performance

With multiple USB ports, configurable power management, and plug-and-play operation, this HDBaseT™ extender ensures consistent data transmission and device functionality across distances up to 100 meters, simplifying installation and reducing cable clutter.
