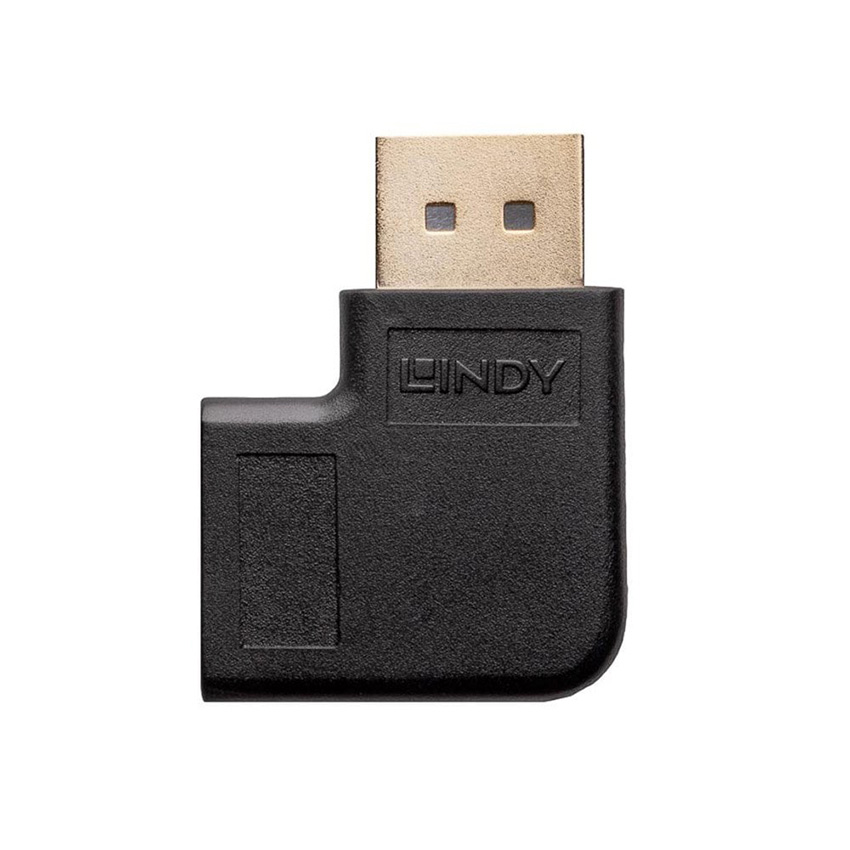

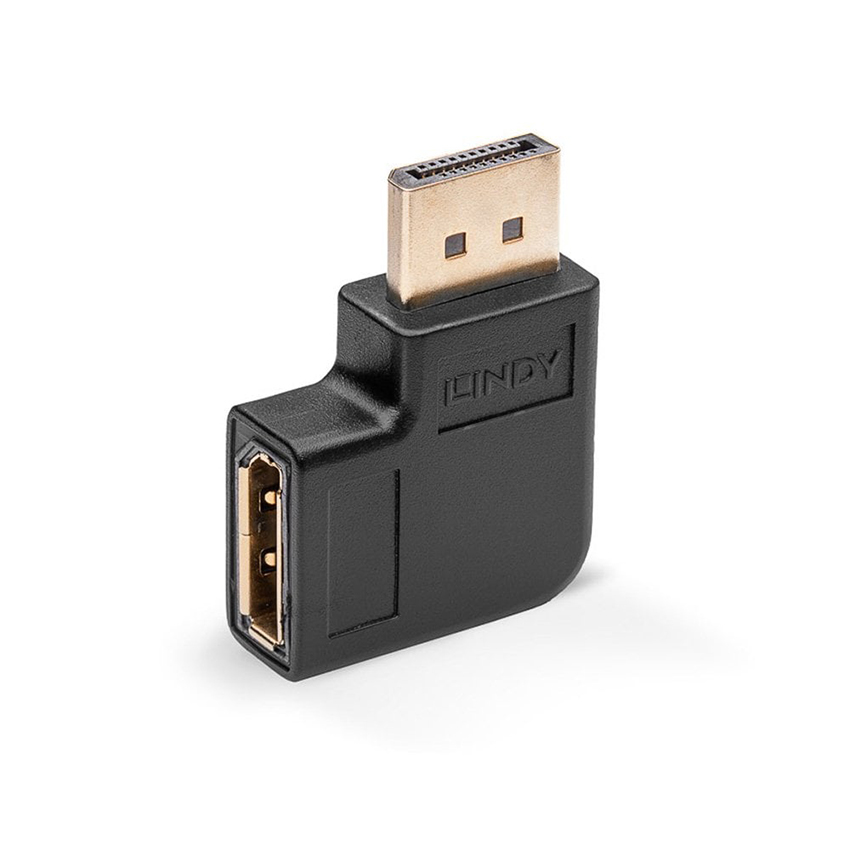

Lindy 41334 DisplayPort 1.4 Left Angled Adapter

DisplayPort 1.4 Left Angled Adapter

Key Features:

• Connect a DisplayPort cable to a DisplayPort display with recessed ports or within limited spaces
• Install at a 90° angle for setup at the left-hand side of the display
• Supports DisplayPort 1.4 resolutions up to 8K@60Hz 4:2:0
• Compact design, perfect for use in discreet or wall mounted installations
• 10 year warranty

The Lindy DisplayPort 1.4 left angled adapter is a compact solution for connecting DisplayPort cables to DisplayPort monitors with recessed ports, or within limited space where cable connector sizing may affect installation. This adapter allows for a 90° connection from the left of the display.

With DisplayPort 1.4 support, this adapter can be used with DisplayPort 1.4 cables and monitors, while also being backwards compatible with previous DisplayPort specifications. 8K@60Hz resolutions can be easily passed through the adapter, ensuring this adapter is an ideal tool within wall mounted digital signage installations, gaming setups or educational spaces, with no lasting impact on a connected cables strain relief or lifespan.

Specifications:

• AV Interface: DisplayPort
• Interface Standard: DisplayPort 1.4
• Supported Bandwidth: 32.4Gbps
• Maximum Resolution:
• 7680x4320@60Hz 4:2:0 8bit
• 4096x2160@144Hz 4:4:4 8bit
• HDCP Support: Pass-through
• Supported Audio: Pass-through
• Input: DisplayPort (Female)
• Output: DisplayPort (Male)
• Dimensions (approx.) WxDxH: 31.57x41.22x11.88mm (1.24x1.62x0.47in)
• Housing Material: PVC
• Net Weight: 0.015kg (0.03lb)
• Operating Temperature: -20°C - 60°C (-4°F - 140°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity: 30-90% RH (Non-condensing)
• Colour: Black
• Packaging Type: Polybag
• Packaging Dimensions: 133x144mm (5.24x5.67in)
• Gross Weight: 0.019kg (0.04lb)
• Warranty (Years): 10
• Certificated: RoHS, REACH & California Proposition 65

Package Contents:

• DisplayPort Adapter

Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
