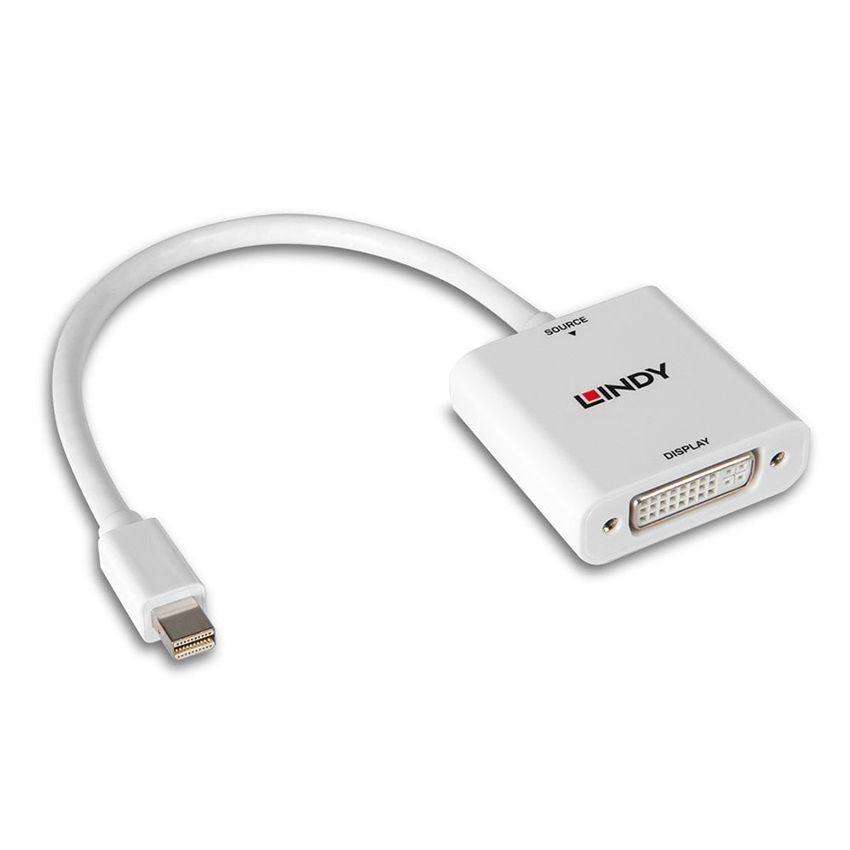

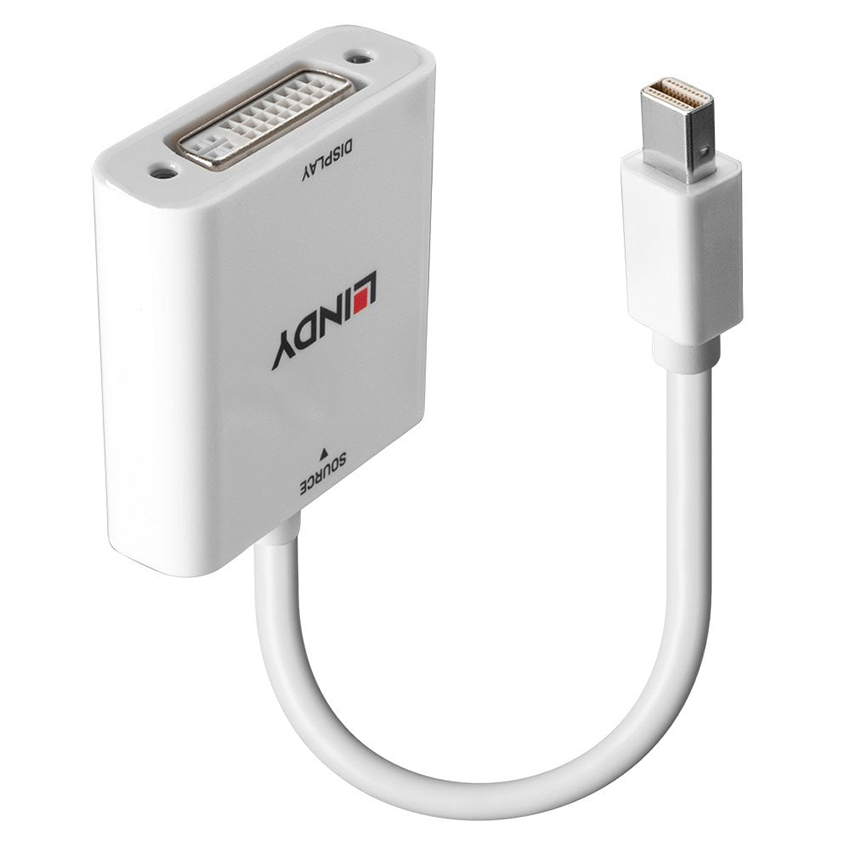

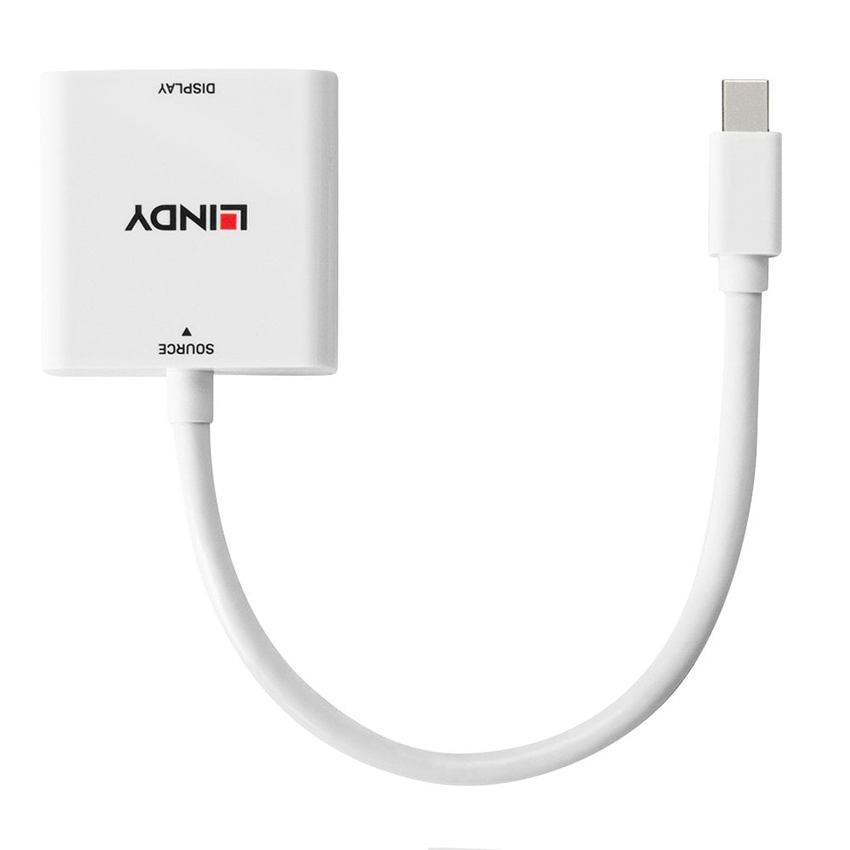

Lindy 38318 Mini DisplayPort to DVI Converter

Mini DisplayPort to DVI Converter

Key Features:

• Connects a Mini DisplayPort equipped PC, Mac or laptop to a DVI display
• Supports resolutions up to 1920x1200
• Add a DVI monitor as a secondary display
• Compact, portable design, perfect for travel and field based use
• 2 Year Warranty

The Lindy MiniDP to DVI Converter allows a DVI display to be connected to a Mini DisplayPort equipped source device such as a notebook, laptop or mDP PC. The converter supports high quality resolutions up to Full HD 1920x1200.

This converter is a perfect tool for flexible working in different environments, whether its in the office, when travelling, to hold presentations or at home. Internal copper shielding provides enhanced reliability and compatibility. It is ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation.

Specifications:

• AV Interface: Mini DisplayPort to DVI
• Interface Standard: DisplayPort 1.1
• Supported Bandwidth: 4.45Gbps
• Maximum Input Resolution: 1920x1200@60Hz
• Maximum Output Resolution: 1920x1200@60Hz
• Chipset: NXP PTN3361
• HDCP Support: HDCP 1.4, HDCP 2.2
• Special Features: Passive converter
• Input: Mini DisplayPort (Male)
• Output: DVI-I (Female)
• Dimensions (approx.) WxDxH:
• 18.9x11x9.3mm (0.71x0.43x0.37in)
• 44.5x44.5x15mm (1.75x1.75x0.59in)
• Cable Length: 180mm (7.09in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 5.5mm (0.22in)
• Minimum Bend Radius: 33mm (1.3in)
• Net Weight: 0.035kg (0.08lb)
• Operating Temperature: -20° to 40° (-4°F - 104°F)
• Storage Temperature: -40° to +80° (-40°F - 176°F)
• Humidity: 20 - 90% RH (non-condensing)
• Colour: Black
• Packaging Type: Polybag
• Packaging Dimensions: 176x194x20mm (6.93x7.64x0.79in)
• Gross Weight: 0.045kg (0.1lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, REACH, Calif. Prop. 65

Package Contents:

• Mini DisplayPort to DVI Converter

Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
