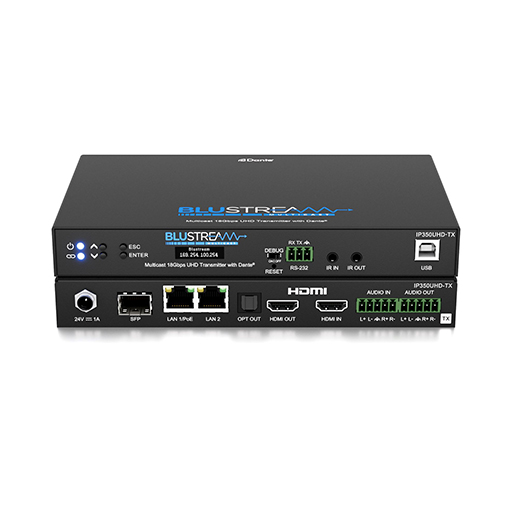

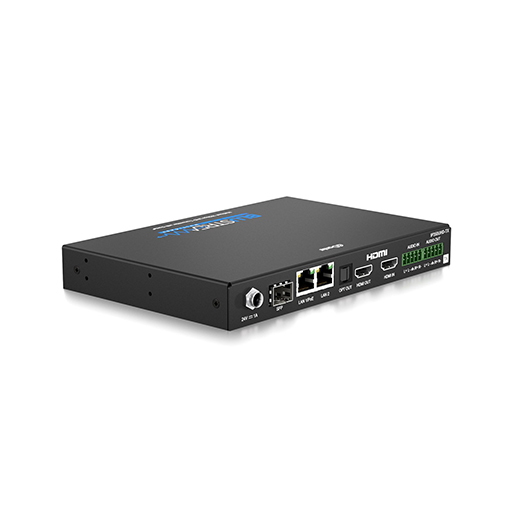

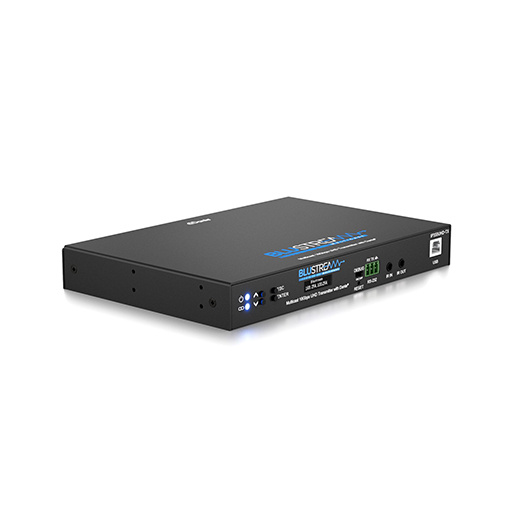

Blustream IP350UHD-TX 18Gbps UHD Video Transmitter

The Blustream IP350UHD-TX is an 18Gbps UHD video transmitter designed to distribute full-bandwidth 4K HDMI video and audio over a 1Gb managed network. Featuring full interoperability with the IP300UHD product line, the IP350UHD-TX is an industry leading Dante enabled 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, embedded audio, ARC / eARC / optical audio return, Dante & AES67 audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m / 328ft over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.

Key Features of BlueStream IP350UHD-TX

• Advanced 4K HDMI 2.0 video over a 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to 100m / 328ft over a single CAT cable
• SFP port for long-distance signal distribution over fibre
• HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR
• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
• In-built 2-channel Dante transmitter for audio breakout from HDMI source or local analogue audio input
• In-built 2-channel Dante receiver for embedding audio onto the HDMI signal or breakout to local analogue audio output
• HDMI ARC, eARC, or optical audio return from a display connected to an IP300UHD or IP350UHD receiver
• Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
• PoE (Power over Ethernet) support to power the Blustream unit from a PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Balanced and unbalanced analogue L/R audio embedding
• Audio breakout to analogue L/R audio supporting both balanced and unbalanced signals
• OLED front panel display for system information and manual configuration
• Optional 24V power supply when PoE is not available
• Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products
• IP300UHD/IP350UHD platform features four operational modes:
  • Matrix distribution (requires 1Gb network switch)
  • Video wall (requires 1Gb network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

The IP350UHD-TX can support both video and Dante audio distribution from a single network. A second RJ45 connection allows for the Dante audio network interface to be segregated from the video over IP network for larger systems, or where the networks need to be managed independently. The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of a video over IP platform makes this solution ideal for a variety installation types across commercial and residential systems.

Video Distribution

The IP350UHD-TX delivers high-resolution UHD video with consistent colour depth and frame accuracy. It supports multiple distribution modes, including matrix and video wall layouts, while maintaining compatibility with mixed-resolution display environments.

Audio Handling

Integrated Dante audio support allows audio to be embedded, extracted, or routed independently of video. Analogue audio inputs and outputs, along with ARC and eARC support, provide flexibility for both local and networked audio paths.

System Integration

With support for IR, RS-232, and USB/KVM routing, the transmitter integrates cleanly into controlled AV systems. Network and fibre connectivity options allow the IP350UHD-TX to be deployed across a wide range of installation sizes and layouts.
