Blustream Video Switches

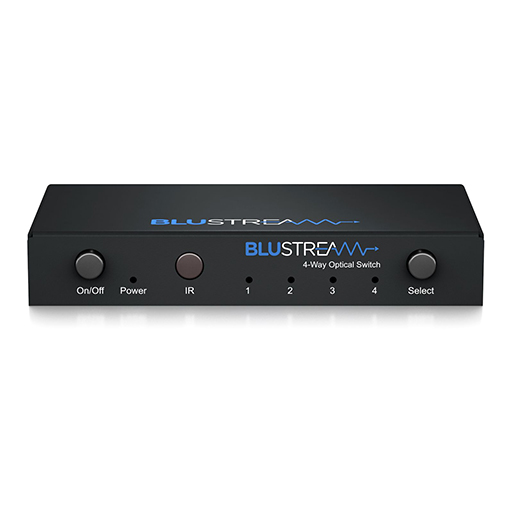

The Blustream OPT41AU is a 4-way optical (S/PDIF) audio switch that allows multiple digital audio sources to be routed to a single output. It converts selected optical signals to coaxial digital and analogue stereo outputs simultaneously, supporting high-fidelity audio up to 192kHz. With front-panel selection, IR remote control, and external IR extension capability, it provides flexible audio management for home or professional AV setups.

Key Features of BlueStream OPT41AU 4 x optical S/PDIF digital inputs which can be switched to a single optical output
DAC (Digital to Analogue Audio Converter) converts selected optical digital to analogue left/right stereo audio output
Built-in digital audio converter converts selected optical audio input to coaxial digital output
Outputs optical digital, coaxial digital, and analogue left/right stereo audio concurrently
Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Ultra low jitter and high fidelity design
Input selection button on front panel to toggle between optical inputs
IR receiver on front panel to switch inputs and turn on/off audio outputs using supplied IR remote
External IR input can be used to extend IR with Blustream IR receiver cable
High-Fidelity Audio Conversion The OPT41AU converts optical digital audio to both analogue and coaxial digital formats, allowing simultaneous output to multiple devices. It supports high-resolution audio up to 192kHz for clear, accurate sound reproduction.

Flexible Control Options Inputs can be selected using the front panel button, IR remote, or external IR input extension. This allows seamless integration into AV setups where remote or automated control is required, ensuring convenient switching between multiple digital audio sources.

The Blustream HEX70SL-TX Slimline HDBaseT™ Transmitter delivers HDMI video, audio, and control signals over a single CAT cable to a compatible receiver or matrix. It supports 4K UHD video up to 40m and 1080p up to 70m, with bi-directional IR and PoC (Power over Cable) capabilities. Its slimline chassis fits neatly into installations where space is limited, while smart EDID management and HDCP 2.2 compliance ensure compatibility with a wide range of AV equipment.

Key Features of BlueStream HEX70SL-TX Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Enhanced slimline chassis
Extends HDMI 1080p up to a distance of 70m over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Bi-directional IR pass-through
Supports bi-directional PoC (Power over Cable) to power, or be powered from, a compatible receiver point (power supply not included)
Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility
HDCP 2.2 compliant
Discreet Integration The slimline chassis allows the transmitter to be installed in tight spaces or behind displays, keeping AV cabling tidy while maintaining signal integrity.

Control & Connectivity Supports multiple control interfaces including bi-directional IR and PoC, providing full communication between source and display devices and simplifying system setup.

The Blustream HEX70SL-RX is a slimline HDBaseT™ receiver designed to extend HDMI video, audio, and control signals over a single CAT cable from a compatible transmitter or matrix. It supports full 4K UHD video up to 40m and 1080p up to 70m, including HDR formats. The receiver passes multichannel HDMI audio and allows bi-directional IR control. With bi-directional Power over Cable (PoC), the unit can be powered from a compatible HDBaseT transmitter or receiver, eliminating the need for a local power source. Its compact, slimline chassis fits discreetly behind displays or within AV racks, while the unit remains HDCP 2.2 compliant for protected content.

Key Features of BlueStream HEX70SL-RX Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Enhanced slimline chassis
Extends HDMI 1080p up to a distance of 70m over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Bi-directional IR pass-through
Supports bi-directional PoC (Power over Cable) to power, or be powered from, a compatible transmitter point (power supply not included)
HDCP 2.2 compliant
Video & Audio Performance Delivers high-quality 4K UHD video and full HDMI audio formats over long CAT cable runs. Maintains zero-latency transmission for a seamless AV experience with full support for multichannel audio.

Control & Connectivity Includes bi-directional IR pass-through and PoC support, allowing the unit to be powered from compatible HDBaseT transmitters or receivers. Ensures reliable control and connectivity for remote devices and displays.

The Blustream SW41AB-V2 is a 4-way HDMI 2.0 switch that allows four HDMI sources to be routed to a single display. It supports 4K UHD 60Hz 4:4:4 video, HDR, and 3D content. The unit offers bitstream passthrough for multichannel audio, with analogue and optical audio breakout, and provides flexible control via front panel, IR remote, or RS-232. Advanced EDID management ensures compatibility with a wide range of displays and devices.

Key Features of BlueStream SW41AB-V2 4x HDMI inputs switchable to a single HDMI output
Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
HDCP 2.2 compliant
Supports 3D signal display
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
CEC (Consumer Electronic Command) blocked from inputs to the end sink/display
Control via front panel, RS-232, and IR
Advanced EDID management
Video Handling The SW41AB-V2 provides full 4K UHD 60Hz support with HDR and 3D playback. It supports legacy resolutions and ensures smooth video switching between multiple HDMI sources without signal degradation.

Audio & Control Audio can be routed to analogue and optical outputs while preserving multichannel formats. Control is available via the front panel, IR remote, or RS-232, and advanced EDID management ensures reliable operation with a wide range of displays and devices.

The Blustream SW41AB-8K is a 4-way HDMI 2.1 switch that allows up to four HDMI sources to be routed to a single display. It supports high-bandwidth video up to 8K60 YCbCr 4:2:0, 8K30 RGB/YCbCr 4:4:4, and 4K120 RGB/YCbCr 4:4:4, along with HDR. With selection of 4 x HDMI input sources, the SW41AB-8K can auto-switch based on detecting a 5V hot plug, or a new TMDS signal, RS-232, or manually using IR, or the front panel. Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. The SW41AB-8K is HDCP2.3 compliant and has advanced EDID management of source devices connected.

Key Features of BlueStream SW41AB-8K 4x HDMI 2.1 inputs switchable to a single HDMI output
Supports HDMI 2.1 40Gbps specification including HDR
Supports up to 8K60 YCbCr 4:2:0 10bit, 8K30 RGB/YCbCr 4:4:4 10bit, or 4K120 RGB/YCbCr 4:4:4 10bit
Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
Bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Auto HDMI source switching via 5V and/or TMDS signal sensing
Manual HDMI source switching via front panel, IR, and RS-232
Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
5V / 12V IR compatible
HDCP 2.3 compliant with advanced EDID management
High-Bandwidth Video Support The SW41AB-8K delivers high-resolution HDMI 2.1 performance, including 8K and 4K120 video. HDR support, ALLM, and VRR ensure smooth, low-latency viewing across compatible displays.

Audio & Control Audio can be extracted concurrently to both analogue and optical outputs, supporting multichannel surround formats. Control is available via front panel buttons, IR remote, or RS-232, and advanced EDID management ensures compatibility with a wide range of sources and displays.

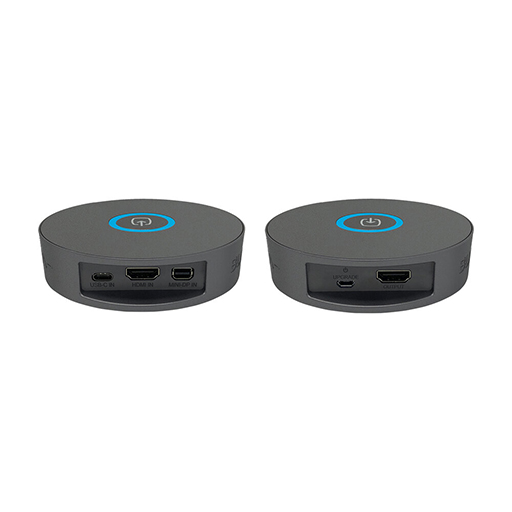

The Blustream MFP31 is a portable multi-format presentation switch designed to connect multiple devices to a single HDMI display. With HDMI, USB-C, and Mini DisplayPort™ inputs, it supports 4K UHD 60Hz 4:4:4 video and high-bandwidth audio formats, making it ideal for boardrooms, huddle spaces, and small meeting environments. Manual or automatic source switching allows seamless operation, while compact design ensures portability for on-the-go presentations.

Key Features of BlueStream MFP31 Features 1 x HDMI, 1 x USB-C, and 1 x Mini DisplayPort™ input switchable to a single HDMI output
Supports HDMI 2.0 18Gbps specification including HDR
Supports resolutions up to 4K UHD 60Hz 4:4:4
Supports bitstream passthrough of multichannel surround sound including object-based audio formats
Supports Mini DisplayPort™ up to 4K UHD 60Hz 4:4:4, DP1.2
Supports USB Type-C up to 4K UHD 60Hz 4:4:4, DP1.2
Supports both manual and automatic source selection
HDCP 2.2 compliant
Flexible Video Routing The MFP31 allows multiple video sources to be routed to a single display with full support for high-resolution 4K UHD content. Smart handling of different input formats ensures consistent image quality across HDMI, USB-C, and Mini DisplayPort™ connections.

Audio Compatibility Supports multichannel audio passthrough, including Dolby Atmos, DTS-HD, and other object-based formats. Audio is maintained alongside video without loss of quality, providing clear and immersive sound for presentations.

Portability and Convenience Compact and lightweight, the MFP31 can be easily transported between locations. Manual or automatic source selection provides simple operation, while a small footprint allows for easy setup in tight spaces or shared presentation areas.

The Blustream MX22AB-8K is a compact 2x2 HDMI 2.1 matrix that allows two HDMI sources to be independently routed to two HDMI displays. It supports high-bandwidth video formats up to 8K 60Hz and 4K 120Hz with HDR, while also passing multichannel audio through analogue L/R and optical outputs. The matrix features automatic source switching based on signal detection as well as manual control via front panel, IR, or RS-232. With HDCP 2.3 compliance and advanced EDID management, it ensures compatibility with the latest HDMI devices and high-performance content.

Key Features of BlueStream MX22AB-8K Features 2 selectable HDMI 2.1 inputs that can be independently routed to 2 HDMI 2.1 outputs
Supports HDMI 2.1 specification including HDR with up to 40Gbps bandwidth
Supports up to 8K 60Hz YCbCr 4:2:0 10-bit, 8K 30Hz RGB / YCbCr 4:4:4 10-bit, or 4K 120Hz RGB / YCbCr 4:4:4 10-bit
Supports ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
Automatic HDMI source switching via 5V and/or TMDS signal sensing
Manual HDMI source switching via front panel controls, IR, and RS-232
Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
Compatible with 5V and 12V IR control
HDCP 2.3 compliant with advanced EDID management
Video & Audio Performance Delivers high-resolution 8K or 4K video with HDR support and multichannel audio, providing crisp visuals and immersive sound. Audio can be independently output via analogue or optical connections for integration with external sound systems.

Control & Switching Supports automatic source selection using signal sensing or manual switching via front panel, IR, or RS-232. IR inputs are compatible with both 5V and 12V systems, allowing seamless integration into existing control setups.

Compatibility & Installation HDCP 2.3 compliance and advanced EDID management ensure full compatibility with modern HDMI 2.1 devices. Compact design allows easy placement in AV racks, entertainment systems, or gaming setups where space is limited.

The Blustream SW12USB USB 3.2 Gen2 Hub allows multiple USB devices to be shared between two host systems with fast data transfer speeds and simple switching options. Supporting both USB-C and USB-A peripherals, the hub is designed for professional AV setups, collaboration environments, and workspace systems where reliable USB connectivity and flexible control are needed. It provides automatic or manual host switching while offering multiple control interfaces for easy integration into existing setups.

Key Features of BlueStream SW12USB USB 3.2 Gen2 switch allowing up to 4 x USB peripheral devices to connect to 2 x USB hosts
Features 2 x USB-C and 2 x USB-A device inputs and 2 x USB-C hosts
USB 3.2 Gen2 connectivity with data transfer rate up to 10Gbps
Backwards compatible with USB 2.0 and 1.1
Auto or manual switching
Plug-and-play with no drivers, downloads, or software required
Features 1 x GPI port for integration with 3rd party products
Features 802.3at PoE+ for powering of product from PoE+ network
Local 24V power supply input for when network switch does not support PoE+
Web interface module for control and configuration of SW12USB
Control via front panel buttons, RS-232, or TCP/IP
Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

Flexible Device and Host Management The SW12USB hub allows two USB hosts to access four connected USB devices, including both USB-C and USB-A types. Switching between hosts can be automatic based on activity or manually controlled for precise operation.

High-Speed Data Transfer With USB 3.2 Gen2 connectivity, data can move at speeds up to 10Gbps while maintaining compatibility with older USB standards. This ensures fast, reliable performance for peripherals such as storage devices, cameras, and interactive tools.

Integration and Control The hub can be managed using front panel buttons, RS-232, TCP/IP, or a web interface, and includes a GPI port for integration with third-party systems. Power options include PoE+ from a network switch or a local 24V DC supply, offering flexibility for different installation environments.

The Blustream HEX11WPW-TX is a wallplate HDBaseT™ transmitter that extends HDMI video, audio, and control signals over a single CAT cable to compatible receivers or matrix units. It supports 4K UHD video up to 40m and 1080p up to 70m, with full support for HDR and all HDMI audio formats. Smart EDID management ensures compatibility with connected displays, while bi-directional RS-232 and IR pass-through allow remote control of source devices. Power over Cable (PoC) support allows the unit to receive power from compatible Blustream receivers or matrix devices, eliminating the need for a local power supply.

Key Features of BlueStream HEX11WPW-TX Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Extends HDMI at 1080p up to a distance of 70m
Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
Bi-directional RS-232 pass-through
Supports IR pass-through to HDBaseT™ device
Compatible with all Blustream HDBaseT™ receiver / matrix products
White magnetic faceplate surround allowing for both UK & EU backbox compatibility
HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device.

Video & Audio Performance Delivers 4K UHD video with HDR and full HDMI audio formats over long CAT cable runs. Maintains signal integrity and supports multichannel and object-based audio passthrough for high-fidelity performance.

Control & Connectivity Includes bi-directional RS-232 and IR pass-through for remote device management. Smart EDID handling ensures connected devices communicate correctly. PoC support allows the transmitter to be powered from compatible receivers or matrix units.

The Blustream HEX100CS-RX HDBaseT™ Receiver is designed to deliver high-quality HDMI video, audio, and control signals over a single CAT cable from a compatible Blustream transmitter or matrix. It supports 4K UHD 60Hz 4:4:4 video with HDR. The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 100m (4K to 70m). The Receiver features simultaneous analogue stereo and digital coax audio breakout.

Key Features of BlueStream HEX100CS-RX Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
Supports 4K 60Hz 4:4:4 UHD video up to 70m
Extends HDMI 1080p video up to 100m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
Supports bi-directional RS-232 pass-through
Supports bi-directional IR pass-through
Advanced EDID management
HDCP 2.2 compliant
Flexible Integration The HEX100CS-RX supports multiple control and audio interfaces, allowing seamless integration into both residential and commercial AV systems while maintaining signal integrity over long distances.

Reliable Performance With re-clocking, PoC compatibility, and support for a wide range of resolutions, this receiver ensures consistent video and audio delivery while simplifying system setup and maintenance.

The Blustream TX150CS HDBaseT™ CSC Transmitter delivers high-quality video, audio, and control signals over a single CAT cable, making it ideal for professional AV installations with extended cable runs. With Advanced Colour Space Conversion and support for HDMI 2.0, it handles 4K UHD video, HDR formats, and high-fidelity audio. Bi-directional control, Ethernet, and Power over Cable features provide flexible integration with compatible receivers and matrix systems.

Key Features of BlueStream TX150CS Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
Supports 4K 60Hz 4:4:4 UHD video up to 100m
Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
Supports ARC (Audio Return Channel) from connected display via HDMI or optical (S/PDIF) digital inputs (when used with compatible Blustream RX150CS Receiver or PLA88CS Platinum matrix)
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Bi-directional 100Mbps Ethernet pass through when used with Blustream RX150CS Receiver or PLA88CS Platinum matrix
Bi-directional RS-232 pass through
Bi-directional IR from all input and output locations
Supports bi-directional PoC (Power over Cable) to power extender from either matrix, transmitter or receiver end
HDCP 2.2 support
Video Distribution The transmitter allows long-distance 4K and 1080p video transmission over a single CAT cable, maintaining image quality and supporting the latest HDR and HDMI standards. Loop-through HDMI output enables local display while sending signals to remote receivers.

Audio Handling Audio is transmitted alongside video, supporting all known HDMI formats. The unit also provides ARC and S/PDIF outputs for flexible integration with audio systems, ensuring high-fidelity multi-channel sound is delivered to compatible receivers.

Control and Integration Bi-directional RS-232, IR, and Ethernet pass-through allow seamless integration with control systems. PoC support eliminates the need for separate power cables, providing a cleaner and simpler installation when paired with compatible receivers or matrix devices.

The Blustream CMX42CS Contractor 4x2 HDMI 2.0 Matrix provides flexible routing of up to four HDMI sources to two displays, making it ideal for both residential and commercial AV setups. Delivering premium 4K video support and advanced integration capabilities, it represents unmatched value and flexibility for professional AV installers. Supporting full HDMI 2.0 with HDCP 2.2 compliance, the CMX42CS enables the reliable distribution of up to four HDMI source devices to two independent HDMI outputs.

All video resolutions up to 4K UHD at 60Hz 4:4:4 (18Gbps) are supported, ensuring full compatibility with the latest UHD and HDR content. Audio can be extracted via analogue L/R and coaxial outputs, while multiple control options, advanced EDID management, and IR routing allow seamless integration with existing AV systems.

Key Features of BlueStream CMX42CS Features 4 x HDMI inputs which can be independently routed to 2 x HDMI outputs
Supports HDMI 2.0 18Gbps specification including HDR
Supports up to 4K UHD 60Hz 4:4:4
Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video output
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
Control via front panel, TCP/IP, IR and RS-232
IR routing
Supplied with Blustream 5V IR receivers and emitters
3rd Party drivers available for all major control brands
Advanced EDID management
HDCP 2.2 support
Video Management The CMX42CS allows high-quality 4K UHD video to be routed to two displays independently, with output down-conversion for compatibility with lower resolution screens. It supports all standard video resolutions and maintains consistent image quality across all outputs.

Audio Handling Audio signals from HDMI sources can be extracted to analogue L/R and coaxial digital outputs, enabling integration with external sound systems while preserving multichannel surround sound, including Dolby and DTS formats.

Control and Integration Multiple control options, including front panel, TCP/IP, RS-232, and IR, allow easy operation and integration into existing AV setups. Advanced EDID management and HDCP 2.2 compliance ensure compatibility with all HDMI sources and displays.

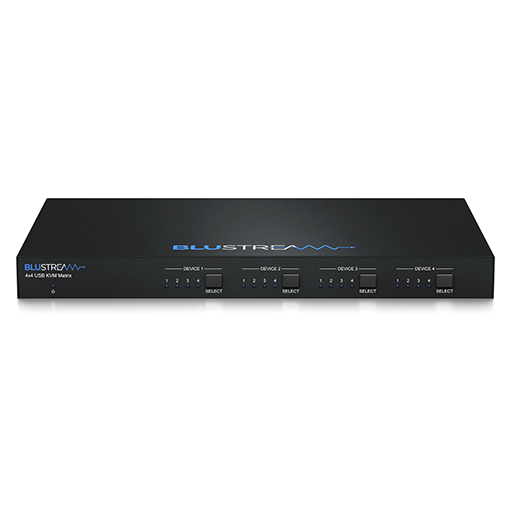

The Blustream MX44KVM is a 4x4 USB 3.0 KVM matrix that allows multiple USB peripheral devices to be shared between four host computers. The Matrix provides advanced features including cascading of multiple MX44KVM units, GPIO functionality for 3rd party product triggers, an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration. An RS-232 loop-through connection allows for the MX44KVM to be intrinsically linked to any Blustream video matrix product for the addition of KVM support to our video-only switching products.

Key Features of BlueStream MX44KVM 4x4 USB KVM Matrix allowing up to 4 x USB peripheral devices to be shared between 4 x host devices
USB 3.0 connectivity with data transfer rates up to 5Gbps
Backwards compatible with USB 2.0 and 1.1
Plug-and-play with no drivers, downloads, or software required
USB-A connections provide 5V / 900mA
Features 4 x configurable GPIO ports for integration with 3rd party products
RS-232 loop-through for repetition of incoming RS-232 commands to additional Blustream products
Assignable inputs and outputs allowing automated switching when used with existing Blustream Matrix products
Web interface module for control and configuration of the MX44KVM
Control via front panel, IR, RS-232, and TCP/IP
Flexible Peripheral Sharing The MX44KVM allows multiple USB devices, including keyboards, mice, and storage drives, to be shared seamlessly across four host systems. Assignable inputs and outputs simplify automated switching when integrated with other Blustream Matrix devices.

Control and Integration Control can be managed through the front panel, IR remote, RS-232, TCP/IP, or the web interface. The inclusion of GPIO ports and RS-232 loop-through allows integration with third-party products and larger AV systems, providing versatile management of connected devices.

The Blustream HEX11WPW-RX is a wallplate HDBaseT™ receiver designed to extend HDMI video and audio over a single CAT cable. It delivers 4K UHD video up to 40m and 1080p up to 70m, supporting HDR and full HDMI audio formats. The receiver passes RS-232, CEC, and bi-directional IR signals, allowing control of connected devices from the display location. PoC (12-48V) enables power from compatible Blustream transmitters or matrix units, removing the need for a local power supply. The magnetic faceplate supports both UK and EU backboxes, making it ideal for professional AV installations with a clean, discreet finish.

Key Features of BlueStream HEX11WPW-RX Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Extends HDMI at 1080p up to a distance of 70m
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Supports CEC and RS-232 pass through
Supports bi-directional IR pass-through to compatible HDBaseT™ device
Supports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products
Compatible with all Blustream HDBaseT™ transmitter / matrix products*
Magnetic faceplate surround allowing both UK & EU backbox compatibility
HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device.

Video & Audio Performance Supports 4K UHD video with HDR and full HDMI audio formats, including multichannel and object-based audio. Maintains high-quality signal transmission up to 40m over CAT cable with full compatibility to source and display devices.

Control & Connectivity Passes CEC, RS-232, and bi-directional IR signals for complete remote control. Compatible with Blustream transmitters and matrix units, with PoC support allowing power over cable without the need for a local supply.

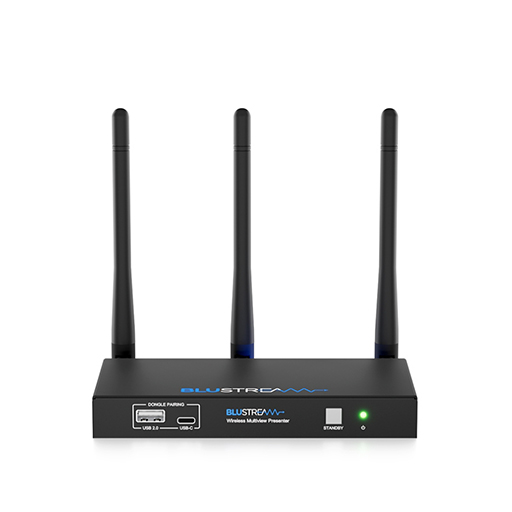

The Blustream WMF51 Wireless Multi-Format Presentation Switch is designed for modern collaboration environments, providing a flexible way to share multiple video sources to a single HDMI display. Supporting AirPlay, Miracast®, Chromecast®, and Blustream wireless dongles, it allows up to four concurrent video streams with configurable multi-view layouts. Integrated video scaling, local Wi-Fi hotspot, and advanced control options make it suitable for classrooms, boardrooms, and huddle spaces where seamless content sharing is essential.

Key Features of BlueStream WMF51 4K multi-format multi-view presentation switch
Features AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to a single HDMI output
Multiview presentation with up to 4 concurrent video signals with configurable screen layout
In-built video scaler with output timing up to 4K 60Hz 4:4:4
Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p)
Dual LAN connection for integration to existing network infrastructures
Supports USB 3.0 touch-back feature via WMF-USBC / WMF-HDMI dongles and Miracast®
Audio breakout to analogue L/R audio
Web interface module for control and configuration of unit
OSD control with preview function
Whiteboard and screen overlay annotation feature
Control via front panel, RS-232 and TCP/IP with manual or auto source selection
Features Class 0 IEEE 802.3af PoE for powering of product from a PoE switch
*Miracast touch-back compatibility subject to Windows features. USB 3.0 connection is for connectivity to an interactive display for touch-back capabilities only, and does not feature the full USB 3.0 bandwidth capabilities for use with VC / UC equipment.

Multi-View and Wireless Support The WMF51 enables up to four video sources to be displayed simultaneously on a single screen. Wireless connectivity through AirPlay, Miracast®, and Chromecast® allows participants to share content without cables, while Blustream wireless dongles ensure compatibility with HDMI and USB-C devices.

Video and Audio Management The in-built scaler ensures that all video inputs are output at high-quality 4K 60Hz 4:4:4 resolution. Audio can be extracted through analogue L/R outputs for integration with room sound systems, maintaining clarity across both visual and audio channels.

Control and Integration Flexible control options include front panel operation, RS-232 commands, TCP/IP, and a web interface. Manual or automatic source selection allows for smooth operation during meetings or lessons, and PoE support simplifies installation by eliminating the need for a separate power supply.

The Blustream MFP62 is a 6-input multi-format presentation switch designed for commercial and collaborative AV environments. It accepts HDMI, USB-C, DisplayPort™, and VGA sources, routing them to dual HDMI outputs with video scaling for consistent display performance. It has enhanced features Including video scaling on output, MIC input with phantom power and audio mixing. The MFP62 also features Web GUI for control and configuration, analogue audio embedding, audio de-embedding, and control via front panel, IR, RS-232 and TCP/IP.

Key Features of BlueStream MFP62 Features 3 x HDMI, 1 x USB-C, 1 x DisplayPort™ & 1 x VGA input switchable to dual HDMI outputs
Supports HDMI 2.0 18Gbps specification including HDR
Supports resolutions up to 4K UHD 60Hz 4:4:4
Supports bitstream passthrough of multichannel surround sound including object-based audio formats
Dual HDMI outputs with video scaling
Supports USB Type-C up to 4K UHD 60Hz 4:4:4, DP1.2 & Alt mode
Supports DisplayPort up to 4K UHD 60Hz 4:4:4, DP1.2
Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
Features audio mixer with independent level adjustment
Analogue audio embedding
MIC input supports line level, 48V/0.5mA Phantom power or 1ch balanced / unbalanced audio
Web interface module for control and configuration of switch
Control via front panel, IR, RS-232, and TCP/IP
HDCP 2.2 compliant with advanced EDID management
Flexible Video Routing The MFP62 allows multiple video sources to be routed to dual HDMI displays with consistent resolution handling. Video scaling ensures compatibility across various display types while maintaining clarity and sharpness for all inputs.

Integrated Audio Management The switch supports comprehensive audio handling including embedded audio, independent level adjustment, and microphone input with phantom power support. Audio can be routed to both analogue and digital outputs, maintaining high-quality sound across all outputs.

Control and Integration Control options include front panel operation, IR remote, RS-232, TCP/IP, and a web interface for configuration. Advanced EDID management and HDCP 2.2 compliance ensure compatibility with a wide range of sources and displays, allowing seamless operation in diverse AV setups.

The Blustream MV41 is a 4×1 HDMI 2.0 multiview switcher that allows multiple HDMI sources to be displayed on a single screen simultaneously. With support for PIP, PBP, POP, and multiple window layouts, it provides flexible viewing options while maintaining 4K UHD 60Hz 4:4:4 video quality. HDMI loop-outs, audio breakout options, and multiple control methods make it suitable for both commercial and residential AV setups.

Key Features of BlueStream MV41 Advanced 4x HDMI input switch with multi-view HDMI output
4x HDMI loop out for integrating local displays or cascading to multiple devices
Supports PIP, PBP, POP, Dual, Triple, and Quad-windows layouts with pre-defined and customisable configurations
Video down-scaling and HDR to SDR conversion on HDMI multiview output
Supports HDMI2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Bitstream passthrough of multichannel surround sound including object-based audio formats
HDMI audio breakout to analogue L/R audio, and optical digital outputs concurrently
Analogue L/R audio outputs support both balanced and unbalanced audio signals
Control via front panel, IR, RS-232, TCP/IP, web-GUI, and 12V trigger
Supplied with Blustream 5V IR receiver and remote control
3rd party drivers available for all major control brands
HDCP2.3 compliant with advanced EDID management
Flexible Viewing Layouts The MV41 allows four HDMI sources to be displayed in various configurations, including picture-in-picture, side-by-side, and quad layouts. Customisable options enable users to create the ideal viewing arrangement for any setting.

Audio Management Supports both embedded HDMI audio and breakout to analogue L/R and optical outputs, with balanced and unbalanced signal compatibility. Bitstream passthrough ensures full fidelity for multichannel audio formats, including object-based audio.

Control and Integration The MV41 can be controlled via front panel, IR, RS-232, TCP/IP, web interface, or 12V trigger. Advanced EDID management and HDCP2.3 compliance ensure compatibility with a wide range of source devices and displays, while HDMI loop-outs allow cascading or integration with additional equipment.

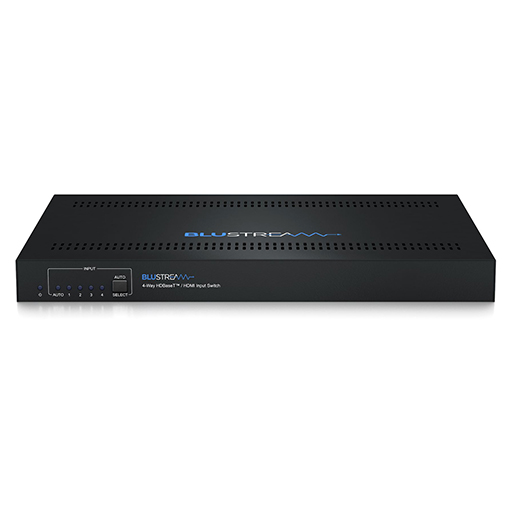

The Blustream SW41HDBT is a versatile 4x1 input switch designed to manage both HDMI and HDBaseT™ sources within a single system. The SW41HDBT provides enhanced features including PoC to power connected Blustream Transmitter and Receiver products, web GUI for configuration and control, source / display control via CEC, manual or automated source selection, RS-232 pass-through and control via front panel, IR, RS-232 and TCP/IP.

Key Features of BlueStream SW41HDBT Features 2 x HDMI 2.0 and 2 x HDBaseT™ inputs which can be switched to simultaneous HDBaseT™ and HDMI outputs
Advanced HDBaseT™ technology for distributing video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supporting HDMI 2.0 18Gbps specification including HDR
Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 4K 30Hz 4:4:4, 4K 60Hz 4:2:0, or 1080p on HDBaseT™
HDBaseT™ input supports 4K UHD video up to 40m, with HDBaseT™ output supporting 4K UHD video up to 40m when used with compatible CSC receivers
Extends HDMI 1080p up to 70m from transmitter to switch, and up to 70m from switch to receiver
Supports bitstream passthrough of multichannel surround sound including object-based audio formats
Supports PoC when used with compatible 12V HDBaseT™ transmitters and receivers
Compatible with all Blustream HDBaseT™ transmitters and receivers
Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
Web interface module for configuration and control
Manual or automatic source selection with control via front panel, IR, RS-232, and TCP/IP
Automatic source selection supported by compatible Blustream HDBaseT™ transmitters only
HDCP 2.2 compliant with advanced EDID management
*Technical performance is subject to the features supported on the connected HDBaseT™ transmitter / receiver

Flexible Input Switching The SW41HDBT supports both HDMI and HDBaseT™ input sources, allowing installers to combine local devices and remotely located transmitters within one switch. Inputs can be selected manually or automatically, providing straightforward operation in dynamic environments.

Reliable Signal Distribution Using HDBaseT™ technology, video, audio, and control signals are distributed over a single CAT cable. This simplifies cabling while supporting high-resolution video formats, making the unit suitable for boardrooms, classrooms, and shared presentation spaces.

Control and Integration The unit offers control via front panel buttons, IR, RS-232, TCP/IP, and a built-in web interface. Compatibility with Blustream HDBaseT™ transmitters and receivers allows easy integration into existing AV systems and control platforms.

The Blustream MFP112 is an 11-input multi-format presentation switch designed to manage a wide variety of video sources in commercial AV settings. The MFP112 works in 2 modes, first as a 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1x HDBaseT™ & 4 x HDMI inputs only and output 2 switching all 11 video + audio inputs. With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Key Features of BlueStream MFP112 Switcher can function in 2 modes: Splitter Mode - Both HDMI output 1 & HDBaseT™ output 2 display the same selected input
Matrix Switcher Mode - HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT™ input + HDMI inputs 1-4 only (HDMI signal pass-through including 4K resolution), whilst HDBaseT™ output 2 has access to all HDMI, HDBaseT™, and analogue video inputs with associated audio

HDBaseT™ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving, and EDID management
HDBaseT™ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions)
Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K
Scaled video output resolutions include 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050
Audio embedding - independent analogue L/R audio input can be embedded to HDMI/HDBaseT™ outputs & analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI/HDBaseT™ outputs 1 & 2 in Splitter mode and HDBaseT™ output 2 only in Matrix Switcher mode)
HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs
PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Front panel display for status feedback
Control via front panel, IR, RS-232 and TCP/IP
3rd party drivers available for all major home control brands
Advanced EDID management
HDCP 1.4 compliant
Flexible Video Management The MFP112 allows multiple video sources to be routed to local and remote displays with full control over input selection and output resolution. Smart scaling ensures that content is compatible with all connected displays without compromising clarity or detail.

Comprehensive Audio Handling Integrated audio embedding and de-embedding provide flexible audio routing across HDMI, HDBaseT™, analogue, and digital outputs. Volume control and support for major audio formats allow precise audio distribution in multi-zone setups.

Control and Integration Control options include front panel buttons, IR remote, RS-232, and TCP/IP interfaces. Built-in feedback through the front panel display provides status information, while drivers enable integration with major third-party control systems for seamless operation.

The Blustream SW42DA 4-Way HDMI Switcher provides flexible video and audio management for professional AV installations. The SW42DA will pass native video with the embedded multi-channel audio to compatible equipment on output 1, with a second HDMI output featuring optional video down-scaling from 4K 60Hz 4:4:4 or 4:2:0, video down to 1080p, with the native embedded audio, or down-mixed 2ch audio as required.

Audio capabilities include the selection and manipulation of formats across both multichannel and 2ch downmixed. The Dante output allows for 9.1ch breakout and embedding into a Dante digital signal, and/or 7.1ch breakout with a separate 2ch down-mixed Dante output. Optical S/PDIF breakout (2ch or 5.1ch as required), individual analogue multi-channel breakout, and 2ch downmixed balanced/unbalanced analogue audio can also be broken out as required directly from the unit.

The SW42DA provides an advanced, but cost effective solution for ensuring that 4K UHD video and multi-channel audio can be distributed around a Dante multi-room system where there are a mixture of 2ch and/or 7.1ch zones or 7.1.2ch / 5.1.4ch (9.1ch) audio, with multiple output resolution requirements. Perfect for cinema and media room set up's where local content would be shared within a multi-zone distributed system where either multichannel or down-mixed audio is required.

Features 4 x HDMI inputs which can be switched to the dual HDMI outputs simultaneously
Supporting Dolby Atmos® Technology
Supports HDMI 2.0b 18Gbps specification, including 4K 60Hz 4:4:4 UHD video
Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
HDMI output 1 replicates the HDMI input signal - up to 4K 60Hz 4:4:4 and 5.1.4ch / 7.1.2ch Dolby Atmos® and DTS-HD multi-channel audio
HDMI output 2 features an optional 4K video down-scaler, and 5.1.4ch / 7.1.2ch to 2ch Dolby Atmos® and DTS-HD audio downmixing
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos®, Dolby Digital Plus and DTS-HD Master Audio transmission
HDMI audio breakout of Dolby Atmos® and DTS-HD to up to 8 channels of Dante audio (7.1ch), with an independent 2 down-mixed channels of Dante audio
HDMI audio breakout of Dolby Atmos® and DTS-HD to up to 10 channels of Dante audio (7.1.2ch / 5.1.4ch)
HDMI audio breakout to 7.1ch balanced / unbalanced analogue audio outputs
HDMI Dolby Atmos® and DTS-HD 7.1 down-mixing to 2ch balanced and unbalanced audio outputs
Supports ARC/eARC including breakout to 7.1ch and 2ch downmixed analogue, and Dante audio
Supports: 44.1, 48, 88.2 & 96kHz Dante® sample rates @ 24-bit
Configurable Dante® device latency using Dante® Controller
Supports AES67 RTP audio transport
Control via TCP/IP, web-GUI, RS-232, front panel buttons, and infrared
HDCP 2.3 compliant with advanced EDID management
* The Dante 2ch down-mix channels can be re-allocated to allow for additional height channels (7.1.2ch / 5.1.4ch)

® Dolby Atmos is a registered trademark of Dolby Laboratories Licensing Corporation.

Video and Audio Distribution The SW42DA enables high-quality video distribution with the option to replicate or downscale outputs. Multi-channel audio can be routed directly or downmixed for broader compatibility, ensuring both HDMI outputs provide the appropriate format for connected displays or audio systems.

Advanced Audio Breakout Audio can be broken out to up to 10 channels of Dante®, with additional down-mixed channels for secondary outputs. Balanced and unbalanced analogue outputs are also supported, providing flexible integration with sound systems and networked audio infrastructures.

Control and Integration The switcher offers multiple control methods including TCP/IP, RS-232, web GUI, front panel, and infrared, allowing integration with automated AV environments or manual operation. Advanced EDID management and HDCP 2.3 compliance ensure compatibility with modern devices and content protection requirements.

The Blustream HMXL42ARC-KIT 4x2 HDBaseT™ CSC AV Matrix Kit provides flexible routing of four HDMI sources to two HDBaseT™ outputs plus a local HDMI output. With advanced HDBaseT™ technology, Colour Space Conversion (CSC), and video Smart Scaling, it delivers high-quality 4K UHD video up to 40m and 1080p up to 70m, along with multichannel audio, IR, and PoC over a single CAT cable. The kit comes complete with two RX70CS receivers for a fully integrated AV setup.

Key Features of BlueStream HMXL42ARC-KIT Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
Output 1 features simultaneous HDMI and HDBaseT™ output
Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
8 x 2 audio matrix that is independently controllable from video
Audio source inputs include: 4 x audio breakout from HDMI source
2 x audio breakout from zone outputs
2 x ARC from zone outputs

Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs
Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
Web interface module for control and configuration of matrix
Supports bi-directional IR on all HDBaseT™ outputs
Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
3rd Party drivers available for all major control brands
Advanced EDID management
HDCP 2.2 compliant
Supplied with 2 x RX70CS HDBaseT™ receivers
Flexible Installation Slimline design and included receivers allow the kit to fit neatly into professional AV installations while keeping cabling simple and organized.

Control & Integration Supports front panel, IR, RS-232, TCP/IP, and web-based control, with compatibility for third-party control systems to integrate seamlessly into larger AV setups.

The Blustream WMF72 Wireless Multi-Format Presentation Switch is designed for advanced collaboration and conferencing environments, video scaling and web-GUI for control and configuration, localised 2.4/5G WiFi hotspot, and dual LAN connection and has a dual HDMI output for mirrored or managed source control with multiview presentation.

The WMF72 also features OSD control, USB camera and MIC over WiFi, USB touch-back to connected host device, whiteboard and screen overlay annotation, manual or automated source selection, and control via front panel, RS-232 and TCP/IP.

It supports HDMI, USB-C, AirPlay, Miracast®, Chromecast®, and Blustream wireless dongles, enabling up to five concurrent video streams with fully configurable multi-view layouts. Integrated video scaling, local Wi-Fi hotspot, and comprehensive control features make it ideal for boardrooms, classrooms, and huddle spaces where seamless content sharing and interaction are needed.

Key Features of BlueStream WMF72 4K multi-format multi-view presentation switch
Features HDMI, USB-C, AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to dual HDMI outputs
Dual HDMI output supports mirror or desktop extension for managed source control within advanced video conferencing set-ups
Multi-view presentation with up to 5 concurrent video signals with fully configurable screen layout
In-built video scaler with output timing up to 4K 60Hz 4:4:4
USB-C connection for BYOM, with DP, USB, 1Gbps network and up to 65W power charging
HDMI & USB Type B connection for BYOM, with USB and 1Gbps network via USB Type B connection
Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p 30Hz)
Dual LAN connection for integration to existing network infrastructures
Supports USB camera and MIC over WiFi (1080p 30Hz)
Dual USB camera switching capabilities
Supports USB touch-back feature via WMF-USBC-D and WMF-HDMI-D dongles and Miracast®
Audio breakout to balanced / unbalanced analogue L/R audio
Web interface module for control and configuration of switch
OSD control with preview function
Whiteboard and screen overlay annotation feature
Control via front panel, RS-232 and TCP/IP with manual or auto source selection
*Miracast touch-back compatibility subject to Windows features

Multi-View and Wireless Functionality The WMF72 allows multiple participants to share content simultaneously, displaying up to five video sources on dual HDMI outputs. Wireless compatibility with AirPlay, Miracast®, Chromecast®, and Blustream dongles ensures flexible device connections and interactive participation.

Video and Audio Management All inputs are scaled to maintain high-quality 4K 60Hz 4:4:4 output. Audio is delivered through balanced or unbalanced analogue L/R outputs, providing clear and synchronized sound across connected audio systems.

Control and Integration The switcher can be controlled via front panel buttons, RS-232, TCP/IP, or a web interface. Manual or automatic source selection simplifies operation during presentations, while PoE and network connectivity streamline installation and integration within modern AV setups.

The Blustream CUSTOMPRO-HUB 8x8 Custom Pro Matrix Hub is a modular AV matrix chassis designed to give installers full control over system configuration. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

Key Features of BlueStream CUSTOMPRO-HUB Custom Pro Matrix Hub with 8 modular bays for population of control and input/output boards
Supports up to 8 video inputs and 8 video outputs using Custom Pro boards
8 analogue L/R audio inputs that can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
Matrix control via front panel, IR, RS-232, TCP/IP and Web GUI / App
Supports PoC (Power over Cable) when used with compatible HDBaseT™ input and output cards
Web interface module for control and configuration of the matrix
3rd party drivers available for major home control brands
Advanced EDID management
HDCP 2.2 compliant
Modular System Design The CUSTOMPRO-HUB allows installers to build a matrix that fits exact project requirements, with the flexibility to mix and match HDMI, HDBaseT™, audio, and control boards as needed.

Control and Integration With multiple control interfaces and support for third-party automation platforms, the hub integrates easily into managed AV environments while providing straightforward configuration through its web-based interface.

The Blustream C44CS-KIT Contractor 4x4 HDBaseT™ CSC Matrix allows four HDMI sources to be independently routed to four HDBaseT™ outputs, delivering video, audio, and control signals over a single CAT cable up to 70m. The C44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional IR, and PoC up to lengths of 70m over a single CAT cable.

The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.

Key Features of BlueStream C44CS-KIT Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
Output 1 features simultaneous HDMI and HDBaseT™ output
Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Web interface module for control and configuration of matrix
Supports bi-directional IR on all HDBaseT™ outputs
Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
Supports 12V PoC (Power over Cable) to power compatible HDBaseT™ receivers
Supplied with Blustream IR receivers and emitters
3rd party drivers available for all major control brands
1U design for 19” rack mount integration - mounting kit included
Advanced EDID management and HDCP 2.2 compliant
*CSC feature compatible with RX70CSL only

Professional Integration The C44CS-KIT provides a complete AV matrix system with flexible routing, control, and audio/video management for contractor and commercial installations.

Flexible Connectivity Integrated PoC, bi-directional IR, and video down-conversion allow seamless operation with a wide range of displays and HDBaseT™ receivers, simplifying installation and day-to-day use.

The Blustream DMP168 is a 16x8 digital audio matrix processor that routes multiple analogue and digital sources to eight independent outputs. It supports comprehensive audio processing including volume, balance, high/low shelf, high/low pass filters, and a 4-band parametric equalizer on both inputs and outputs. Each channel can be individually adjusted for gain, lip-sync delay, and audio ducking. Assignable bus inputs and output grouping allow flexible mixing and grouping of audio zones, while control is possible via web-GUI, RS-232, TCP/IP, and IR. This matrix is designed for multi-zone audio installations requiring precise control and versatile signal distribution.

Key Features of BlueStream DMP168 Features 8 x analogue L/R inputs, 4 x digital coaxial inputs, and 4 x digital optical inputs which can be switched to 8 x analogue L/R outputs
Supports separation (mono) of all audio channels and independent control resulting in switching of up to 32x16 audio feeds
Supports: volume, balance, high/low shelf, high/low pass filter, and 4 band parametric equalizer control per input and output
Supports independent gain adjustment for all analogue and digital inputs
Features 8 x assignable bus inputs allowing mixing of source inputs
Features output grouping to combine audio outputs for a single group control
Combining the output grouping feature with high/low pass filter results in up to 4 x 2.1ch audio outputs
Features assignable audio ducking with independent level and ramp up/down rate adjustment
Features 8x configurable presets
Supports 48kHz 24-bit sampling rate for A/D and D/A conversion
Digital audio inputs support resolutions up to 192kHz 24-bit
Supports independent lip-sync delay (0-500ms) per output
Features input audio sensing, 2 x contact closures and 2 x trigger inputs allowing programmable events based on the presence of audio, NO/NC connections, and/or voltage between 2-15V AC or DC voltage
Supports control via web-GUI, RS-232, TCP/IP and IR
Audio Processing & Performance Handles precise audio control for multi-zone environments, supporting both analogue and digital formats with full EQ, gain, and filter adjustments. Lip-sync delay ensures audiovisual alignment in all outputs.

Connectivity & Control Includes multiple analogue and digital inputs and outputs, assignable bus channels, and contact/trigger inputs. Control options include web interface, RS-232, TCP/IP, and IR remote, providing flexible integration with automation systems.

The Blustream MX44VW is a 4x4 HDMI/VGA matrix switch that combines flexible video routing with advanced display modes. It can operate as a seamless switching matrix, a configurable video wall processor, or a multi-viewer system. Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App, IR remote control, RS-232 interface and TCP/IP.

Key Features of BlueStream MX44VW Features 3 operational modes: 4x4 Seamless Switching Matrix (HDMI or VGA inputs)
Video Wall (2x2, 4x1, or 1x4 configuration)
Multi-Viewer mode with preset layouts

4 video inputs configurable as HDMI or VGA with associated L/R analogue audio for instantaneous seamless switching (Matrix and Video Wall modes)
Video inputs support industry standard resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)
HDMI output resolution fixed to 1080p @60Hz
Supports HDMI 2-channel PCM audio only
Discreet IR routing
Supplied with Blustream IR receivers and emitters
Control via front panel, IR, RS-232, TCP/IP, and Blustream matrix App
3rd party control drivers available for all major home control brands
Advanced EDID management
HDCP 1.4 compliant
Flexible Display Modes The MX44VW provides multiple display configurations, including seamless switching, video wall arrangements, and multi-viewer layouts. This versatility allows users to adapt the system to a variety of AV setups and presentation environments.

Audio and Control The matrix supports HDMI 2-channel PCM audio and analogue L/R routing, with discrete IR management for multiple zones. Control options include front panel, IR, RS-232, TCP/IP, and the Blustream Matrix App, with third-party drivers enabling integration into larger AV control systems.

The Blustream CMX88CS is an 8x8 HDMI matrix that allows eight HDMI sources to be independently routed to eight displays. Supporting full 4K UHD at 60Hz with 4:4:4 chroma and HDR, each output can down-convert video to accommodate displays with lower 4K capabilities while maintaining full resolution on other outputs. Audio is available through analogue L/R and optical digital outputs concurrently. Control options include front panel, IR, RS-232, TCP/IP, and a web interface module, with third-party drivers for major home automation systems. Advanced EDID management and HDCP 2.2 compliance ensure broad compatibility across devices and formats.

Key Features of BlueStream CMX88CS Features 8x HDMI inputs which can be independently routed to 8x HDMI outputs
Supports 4K UHD video including HDR (up to 4K @60Hz 4:4:4)
Independent video down conversion on all HDMI outputs allowing a display only capable of supporting lower 4K video resolutions (4K 60Hz 4:2:0) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining outputs
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
HDMI audio breakout to associated output analogue L/R audio and optical digital outputs concurrently
Web interface module for control and configuration of the Matrix
Control via front panel, IR, RS-232 & TCP/IP
3rd party drivers available for all major home control brands
Advanced EDID management
HDCP 2.2 compliant
Video & Audio Performance Supports 4K UHD at 60Hz with 4:4:4 chroma and HDR. Audio passthrough includes multichannel and object-based formats, with audio breakout on all outputs for flexible sound distribution.

Connectivity & Control Options Includes 8 HDMI inputs, 8 HDMI outputs, analogue and optical audio outputs, IR input, RS-232, TCP/IP, and web interface module. Control can be manual, via remote, network, or integrated third-party systems.

The Blustream MX44AVW is a 4x4 HDMI 2.0 video processor designed for flexible video distribution and display management. It combines matrix switching, multiview, and video wall functionality in a single unit. With support for 4K UHD 60Hz 4:4:4 signals and HDR, the MX44AVW allows multiple input sources to be routed and displayed across four outputs with advanced layout options, including PIP, PBP, POP, and customizable video wall arrangements. Audio can be output via analogue or optical channels, and control is possible through front panel, IR, RS-232, TCP/IP, or web interface.

Key Features of BlueStream MX44AVW Advanced 4K HDMI 2.0 multi-purpose high-speed video processor supporting matrix, multiview, and video wall function
Advanced video wall configuration allowing individual overlap and rotation of panels
Multiview mode supports PIP, PBP, POP, Dual, Triple, and Quad-windows layouts with pre-defined and customizable configurations
Seamless video switching
Supports HDMI 2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
IR routing
Control via front panel, IR, RS-232, TCP/IP, and web-GUI
Supplied with Blustream 5V IR receiver and remote control
HDCP2.2 compliant with advanced EDID management
Please note - a 1080i image is only supported in Matrix and Multiview mode, but will not work on Video Wall mode. Video Wall & Multiview Functionality Supports creative video wall layouts with independent panel rotation and overlap, as well as flexible multiview configurations including picture-in-picture and split-screen layouts, allowing multiple sources to be displayed simultaneously.

Audio & Control Audio can be output concurrently through analogue and optical channels, while IR routing, RS-232, TCP/IP, and web-GUI control provide full integration with AV systems and easy management of source switching and display layouts.

Installation & Compatibility The MX44AVW is compatible with all HDMI 2.0 sources and displays, handling high-resolution video with HDR, and includes advanced EDID management to ensure proper handshake and display of protected content. Its compact design allows installation in AV racks or standalone setups.

The Blustream AMF42AU Advanced Multi-Format Presentation Switch is designed to manage multiple high-resolution video sources in professional AV environments. The AMF42AU provides enhanced features including seamless switching, independent video scaling on outputs, MIC input with audio mixing and 48V phantom power, PoC to power a Blustream compatible HDBaseT™ receiver.

The AMF42AU also features Web GUI for control and configuration, source and display control via CEC, RS-232 and IR, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP. The AMF42AU is an ideal product for your boardroom, classroom or huddle-space application.

Key Features of BlueStream AMF42AU Features 3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs
Dual HDMI / HDBaseT™ on output 2
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*
Independent video scaling on outputs
Supports resolutions up to 4K UHD 60Hz 4:4:4
Seamless source switching with manual or auto source selection
Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability
Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
ARC breakout available via S/PDIF when using RX70CS receiver
Analogue audio inputs and output support both balanced and unbalanced audio
Features MIC mixer over source audio with independent level adjustment
MIC input supports line level or 48V/0.5mA Phantom power
Configurable source and display control via CEC, RS-232 and IR
Web interface module for control and configuration of matrix
3rd party drivers available for major control brands
HDCP 2.2 compliant with advanced EDID management
*All features designed to work with the Blustream RX70CS HDBaseT™ receiver. HDBaseT™ output is compatible with all Blustream receivers however functionality may vary. Refer to product manual for compatibility before connecting.

Professional Integration The AMF42AU allows seamless management of multiple high-resolution sources, providing flexible video routing, scaling, and control options to fit professional presentation or conferencing environments.

Flexible Audio Management Audio integration is fully supported with breakout options, microphone mixing, and phantom power support, allowing for complete control over both source and presentation audio.

The Blustream HMXL44ARC-KIT 4x4 HDBaseT™ CSC AV Matrix is a versatile AV distribution system designed to route four HDMI sources to four HDBaseT™ outputs with a local HDMI output. It supports 4K UHD 60Hz 4:4:4 with HDR, along with Smart Scaling to allow displays with lower resolution support to receive compatible video while maintaining full resolution on other outputs.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs and independent 14x4 audio matrix including Audio Return Channel (ARC). The HMXL44ARC includes in-built web browser interface module for control and configuration of the Matrix and RS-232 and IR pass through to enable seamless 3rd party control integration.

Key Features of BlueStream HMXL44ARC-KIT Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
Output 1 features simultaneous HDMI and HDBaseT™ output
Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
14x4 Audio Matrix independently controllable from video. Audio source inputs include: 4x audio breakout from HDMI source inputs
4x audio breakout from zone outputs
4x ARC from zone outputs
1x Optical and 1x Analogue audio input

Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Web interface module for control and configuration of matrix
Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
Supplied with Blustream IR receivers and emitters
Advanced EDID management and HDCP 2.2 compliant
Supplied with 4x RX70CS HDBaseT Receivers
*ARC feature supports HDMI ARC or Optical ARC
*CSC and ARC Feature compatible with RX70CS only

Flexible Installation Slimline design with included receivers allows clean integration into professional AV setups, reducing cable clutter and simplifying installation in multi-room or multi-display environments.

Control & Integration Supports comprehensive control methods including web interface, front panel, IR, RS-232, TCP/IP, and mobile apps. Compatible with third-party control systems, allowing seamless integration into larger AV systems.

The Blustream HMXL66ARC is a 6x6 HDBaseT™ AV matrix designed for distributing high-resolution video and flexible audio routing across multiple zones using a single CAT cable per output. The HMXL66ARC features enhanced audio routing via an integrated 20x6 audio matrix. This enables the audio both from displays and sources, to be embedded and routed through the system at the users discretion.

The HMXL66ARC includes a simultaneous HDBaseT™ / HDMI output on output 1, video smart scaling on all HDBaseT™ outputs, and PoC (Power over Cable) to the remote RX70CS HDBaseT™ receivers. A in-built web browser interface for configuration and control of the Matrix, along with RS-232 and IR pass-through to enable seamless 3rd party control integration.

Key Features of BlueStream HMXL66ARC Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supporting HDMI 2.0 18Gbps specification including HDR*
Features 6 x HDMI inputs independently routed to 6 x HDBaseT™ outputs
Output 1 supports simultaneous HDMI and HDBaseT™ output
Video Smart Scaling on HDBaseT™ outputs, allowing displays with lower resolution capability (4K 60Hz 4:2:0 or 1080p) to receive content while maintaining full 4K 60Hz 4:4:4 on other outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
20x6 audio matrix with independent audio and video control, supporting: 6 x audio breakout from HDMI source inputs
6 x audio breakout from zone outputs
6 x ARC from zone outputs*
1 x optical and 1 x analogue audio input

Supports bitstream passthrough of multichannel surround sound, including object-based audio formats
Web interface module for matrix control and configuration
Bi-directional IR and RS-232 supported on all HDBaseT™ outputs
Control via front panel, IR, iOS / Android app, RS-232, and TCP/IP
Supports 24V PoC (Power over Cable) for compatible Blustream RX70CS receivers
Supplied with Blustream IR receivers and emitters
Advanced EDID management and HDCP 2.2 compliant
*ARC feature supports HDMI ARC or Optical ARC
*PoC, CSC, and ARC feature compatible with RX70CS only

Flexible Video Distribution Using HDBaseT™ technology, the HMXL66ARC delivers uncompressed video and audio over standard CAT cabling, reducing infrastructure complexity while supporting long-distance transmission. Colour Space Conversion ensures compatibility with HDMI 2.0 bandwidth requirements, allowing HDR and full-bandwidth 4K signals to be delivered where required.

Independent Audio Routing The built-in 20x6 audio matrix allows audio to be routed separately from video, supporting a wide range of source and output combinations. Audio breakouts from HDMI sources and zone outputs, along with ARC, optical, and analogue inputs, provide extensive routing options for multi-zone audio setups.

Control and Integration Designed for seamless system integration, the HMXL66ARC supports control via front panel, IR, iOS and Android apps, RS-232, and TCP/IP. A built-in web interface simplifies configuration and ongoing management, while bi-directional control over HDBaseT™ enables consistent operation across all connected zones.

The Blustream PRO88HDMI-V2 Custom Pro 8x8 HDMI 2.0 Matrix is designed for professional AV environments where flexible signal routing and consistent performance are essential. With eight HDMI sources routed independently to eight displays, it supports modern 4K UHD video formats and advanced audio passthrough, making it well suited for commercial installations, control-driven systems, and multi-display setups that require dependable HDMI distribution and straightforward management.

Key Features of BlueStream PRO88HDMI-V2 Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
Supports 18 Gbps 4K UHD video including HDR, HDR10+
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Control via front panel, IR, RS-232 & TCP/IP
3rd party drivers available for major control brands
Advanced EDID management
HDCP 2.2 compliant
Flexible HDMI Routing Eight HDMI inputs can be switched or routed to any of the eight HDMI outputs, allowing multiple sources to be shared across multiple displays. This configuration supports complex AV layouts while maintaining consistent video and audio delivery.

Support for Modern Video and Audio Formats The matrix handles 4K UHD video at up to 60Hz with full 18Gbps bandwidth, alongside HDR formats supported within HDMI specifications. Audio is passed through in its original format, including multichannel surround sound and object-based audio where supported by connected devices.

Integration and Control Designed with system integration in mind, the PRO88HDMI-V2 offers multiple control methods including front-panel buttons, IR, RS-232, TCP/IP, and browser-based configuration. Compatibility with popular control systems makes it a practical choice for professionally managed AV installations.

The Blustream HMXL88ARC is an 8x8 HDBaseT™ AV matrix designed to distribute high-quality video and flexible audio across multiple zones using a single CAT cable per output. The HMXL88ARC is an 8x8 HDMI 2.0 4K 60Hz 4:4:4 matrix that uses CSC (Colour Space Conversion) technology to deliver 18Gbps HDMI over distances of up to 40m (1080p to 70m).

It features enhanced audio routing via an integrated 26x8 audio matrix. This enables the audio both from displays and sources, to be embedded and routed through the system at the users discretion. With a simultaneous HDBaseT™ / HDMI output on output 1, video smart scaling on all HDBaseT™ outputs, and PoC (Power over Cable) to the remote RX70CS HDBaseT™ receivers. A in-built web browser interface for configuration and control of the Matrix, along with RS-232 and IR pass-through to enable seamless 3rd party control integration.

Key Features of BlueStream HMXL88ARC Advanced HDBaseT™ technology for distributing video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supporting HDMI 2.0 18Gbps specification including HDR*
8 x HDMI inputs independently routed to 8 x HDBaseT™ outputs
Output 1 supports simultaneous HDMI and HDBaseT™ output
Video Smart Scaling on HDBaseT™ outputs, allowing displays with lower resolution capability (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 content while maintaining full 4K UHD on other outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
26x8 audio matrix with independent audio and video control, supporting: 8 x audio breakout from HDMI source inputs
8 x audio breakout from zone outputs
8 x ARC from zone outputs*
1 x optical and 1 x analogue audio input

Supports bitstream passthrough of multichannel surround sound, including object-based audio formats
Web interface module for matrix control and configuration
Bi-directional IR and RS-232 supported on all HDBaseT™ outputs
Control via front panel, IR, iOS / Android app, RS-232, and TCP/IP
Supports 24V PoC (Power over Cable) for compatible Blustream RX70CS receivers
Supplied with Blustream IR receivers and emitters
Advanced EDID management and HDCP 2.2 compliant
*ARC feature supports HDMI ARC or Optical ARC
*PoC, CSC, and ARC feature compatible with RX70CS only

Flexible Video Distribution Using HDBaseT™ technology, the HMXL88ARC delivers uncompressed video and audio over standard CAT cabling, supporting long-distance transmission while maintaining full 4K UHD resolution. Colour Space Conversion ensures HDMI 2.0 bandwidth compatibility and HDR support, with Smart Scaling allowing lower-resolution displays to receive compatible content without affecting other outputs.

Independent Audio Routing The integrated 26x8 audio matrix allows each audio source to be independently routed to any output. Audio breakouts from HDMI sources, zone outputs, ARC, optical, and analogue inputs provide extensive flexibility for multi-zone audio setups.

Control and Integration Control options include front panel operation, IR, iOS and Android apps, RS-232, and TCP/IP. The built-in web interface enables configuration and ongoing management, while bi-directional IR and RS-232 on all HDBaseT™ outputs allow seamless control of connected devices across all zones.

The Blustream HMX44-18G-KIT is a 4x4 HDBaseT3™ AV matrix kit designed to distribute uncompressed 4K UHD video, audio, and control signals over a single CAT6A cable. The HMX44-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ resulting in the ultimate in picture quality for your critical viewing areas.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video smart scaling on HDBaseT™ outputs, and an independent 14x4 audio matrix, and ARC. The HMX44-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and 1Gb Ethernet pass through to enable seamless 3rd party control integration.

Key Features of BlueStream HMX44-18G-KIT Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
Output 1 features a simultaneous HDMI and HDBaseT™ output
Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
Supports distribution of the latest HDR resolutions including HDR10/10+
14x4 Audio Matrix independently controllable from video. Audio source inputs include: 4 x audio breakout from HDMI source inputs
4 x audio breakout from zone outputs
4 x audio return from zone outputs*
1 x optical and 1 x analogue audio input

Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
Web interface module for control and configuration of the Matrix
Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power the supplied HDBaseT™ receivers
Advanced EDID management and HDCP 2.3 compliant
Supplied with 4 x RX18G HDBaseT™ Receivers
* Transmission distance is subject to video format, cable type and installation environment.

* The HDBaseT3 specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.

** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only

Video & Audio Distribution Delivers high-quality 4K UHD video with HDR support and full HDMI audio formats across multiple zones. The 14x4 audio matrix allows independent audio routing and multichannel audio passthrough for each output.

Control & Connectivity Supports bi-directional IR, RS-232, TCP/IP, and app-based control. Integrated Ethernet switch allows LAN distribution when paired with RX18G receivers. PoC enables powering receivers over CAT6A cable.

The Blustream HMX88-18G is an 8x8 HDBaseT3™ AV matrix designed to manage and distribute high-bandwidth HDMI signals across multiple zones with consistency and clarity. The HMX88-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ resulting in the ultimate in picture quality for your critical viewing areas.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on outputs 1 & 2, video smart scaling on HDBaseT outputs, and an independent 26x8 audio matrix and ARC. The HMX88-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and Ethernet pass through to enable seamless 3rd party control integration.

Key Features of BlueStream HMX88-18G Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
Outputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputs
Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
Supports distribution of the latest HDR resolutions including HDR10/10+
26x8 Audio Matrix independently controllable from video. Audio source inputs include: 8 x audio breakout from HDMI source inputs
8 x audio breakout from zone outputs
8 x audio return from zone outputs*
1 x Optical and 1 x Analogue audio input

Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
Web interface module for control and configuration of the Matrix
Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
Advanced EDID management and HDCP 2.3 compliant
* Transmission distance is subject to video format, cable type and installation environment.

* The HDBaseT3™ specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.

** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only

Flexible Video & Audio Routing With the ability to route eight HDMI sources to eight independent zones, the HMX88-18G offers extensive control over both video and audio paths. Its integrated audio matrix allows audio sources to be managed separately from video, providing greater freedom when designing multi-room or multi-zone AV layouts.

Control & Integration The matrix supports control via front panel buttons, IR, RS-232, TCP/IP, and mobile applications for iOS and Android. A built-in web interface simplifies configuration and monitoring, while bi-directional IR and RS-232 over HDBaseT™ ensure seamless communication with connected devices.

Long-Distance Distribution Using HDBaseT3™ technology, the HMX88-18G delivers uncompressed HDMI signals over distances of up to 100 metres via a single CAT6A cable. Power over Cable support allows compatible receivers to be powered directly from the matrix, reducing the need for additional power supplies at remote locations.

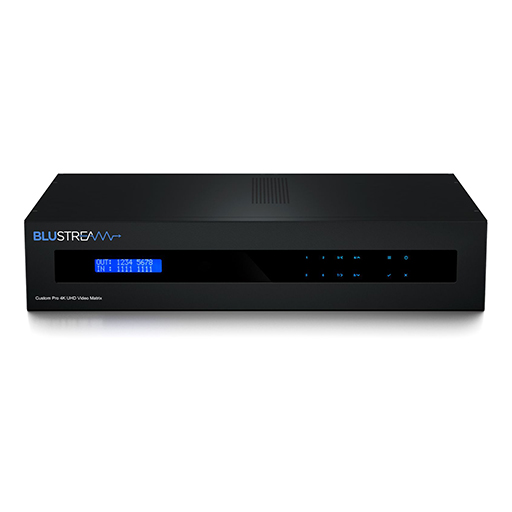

The Blustream PRO48HBT70CS is a 4x8 HDBaseT™ CSC matrix designed for professional AV installations. It allows four HDMI sources to be independently routed to eight HDBaseT™ outputs over a single CAT cable per output. It delivers HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K with HDR up to 40m), with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. The Matrix also provides advanced features including audio breakout and a web browser interface module for control and configuration of the matrix.

Key Features of BlueStream PRO48HBT70CS HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
4 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats: 1080p 60Hz (for screens that do not support 4K)
4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

Supports 4K HDR
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
Analogue audio input can be embedded onto any HDMI input
Web interface module for control and configuration of Matrix
Supports bi-directional IR
Supplied with Blustream IR receivers and emitters
Control via front panel, IR, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
3rd Party drivers available for major control brands
2U Design for 19" rack mount integration - Mounting kit included
Advanced EDID management
HDCP 2.2 compliant
To be used with the HEX70CS-RX receivers
Flexible Video Distribution This matrix provides independent routing of multiple HDMI sources to multiple HDBaseT™ outputs. Down-scaling and Colour Space Conversion allow displays with lower resolution capabilities to receive compatible signals without losing maximum video quality on other outputs.

Audio and Control Supports embedded analogue audio, bitstream passthrough for multichannel formats, and offers control via front panel, IR, RS-232, TCP/IP, or web interface. Supplied IR receivers and emitters and third-party driver support ensure integration into diverse AV control systems.

The Blustream CUSTOMPRO-HUB16 16x16 Custom Pro Matrix Hub is a modular AV matrix chassis designed for large-scale installations where flexibility is key. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

Key Features of BlueStream CUSTOMPRO-HUB16 Custom Pro Matrix with 12 modular bays for population of input, output, and control boards
Supports up to 16 video inputs and 16 video outputs using a combination of 2-way and 4-way interchangeable boards
Supports 4K UHD video up to 4K 60Hz 4:4:4*
Optional Colour Space Conversion (CSC) boards support HDMI 2.0 18Gbps specification including HDR over HDBaseT™
Optional CSC boards provide independent downscaling of up to 4K 60Hz 4:4:4 video to 1080p @ 60Hz or 4K 60Hz 4:2:0
16 analogue L/R audio inputs for embedding onto corresponding HDMI / HDBaseT™ zone outputs
16 IR outputs for routed control of local source equipment
16 IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
Optional RS-232 control board for bi-directional control with Blustream HDBaseT™ receivers
Optional analogue and digital audio breakout board with line-level volume control
Web browser interface for matrix control and configuration
Matrix control via front panel, RS-232, TCP/IP, IR, and Web GUI
Supports PoC (Power over Cable) with compatible Blustream HDBaseT™ receivers
3rd party drivers available for major control brands
Advanced EDID management
HDCP 2.2 compliant
*Full 4K 60Hz 4:4:4 support is subject to input / output boards specified

Flexible Modular Design The CUSTOMPRO-HUB16 allows installers to configure each bay with specific input, output, and control boards to match project requirements, making it ideal for complex residential or commercial AV setups.

Control and Integration Multiple control methods, including front panel, IR, RS-232, TCP/IP, and web GUI, provide full system management. The hub also supports PoC and IR distribution to streamline integration with compatible HDBaseT™ receivers.

The Blustream PRO88HBT70CS is a professional 8x8 HDBaseT™ matrix designed to deliver seamless video and audio distribution across multiple displays. The PRO88HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K HDR up to 40m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.

Key Features of BlueStream PRO88HBT70CS HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats: 1080p 60Hz (for screens that do not support 4K)
4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

Supports 4K with HDR
Extends HDMI 1080p video up to 70m
4 x Simultaneous HDMI Outputs
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs
Analogue audio input can be embedded onto any HDMI input
Web interface module for control and configuration of matrix
Supports bi-directional IR
Supplied with Blustream IR receivers and emitters
Control via front panel, IR, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
3rd Party drivers available for major control brands
2U Design for 19" rack mount integration - Mounting kit included
Advanced EDID management
HDCP 2.2 compliant
To be used with the HEX70CS-RX receivers
Video & Display Management Handles multiple 4K UHD sources with HDR, provides down-scaling for screens that do not support full 4K, and supports simultaneous HDMI and HDBaseT™ outputs for versatile display arrangements.

Audio Capabilities Supports multichannel audio passthrough, analogue embedding, and both digital and variable line-level outputs to maintain full audio fidelity across all outputs.

Control & Integration Offers control through front panel, IR, RS-232, TCP/IP, and web interface. Includes bi-directional IR and PoC functionality for easier integration with compatible receivers.

The Blustream PRO88HBT100CS is a pre-configured 8x8 HDBaseT™ CSC matrix designed for AV installations requiring precise source routing and long-distance video distribution. It supports eight HDMI inputs routed independently to eight HDBaseT™ outputs, with four simultaneous HDMI outputs for local displays. Using HDBaseT™ Colour Space Conversion (CSC), the matrix delivers 4K UHD 60Hz 4:4:4 video over CAT cable up to 40m for full 4K signals, or 1080p up to 100m. Automatic downscaling ensures compatibility with displays that cannot handle full 4K 4:4:4. The matrix includes audio breakout, line-level pre-amp control, bi-directional IR and RS-232, and full network control via TCP/IP and web interface.

Key Features of Blustream PRO88HBT100CS HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
Supports 4K 60Hz 4:4:4 UHD video up to 70m
Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
1080p 60Hz (for screens that do not support 4K)
4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
Supports 4K with HDR
Extends HDMI 1080p video up to 100m
4 x Simultaneous HDMI Outputs
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs
Analogue audio input can be embedded onto any HDMI input
Web interface module for control and configuration of Matrix
Supports bi-directional IR
Supplied with Blustream IR receivers and emitters
Control via front panel, IR, RS-232 and TCP/IP
Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
2U Design for 19" rack mount integration - Mounting kit included
Advanced EDID management
HDCP 2.2 compliant
To be used with the HEX100CS-RX receivers
Video Distribution Simultaneous HDBaseT™ and HDMI outputs allow connection to multiple display types while maintaining 4K video quality over long distances. HDBaseT™ Colour Space Conversion ensures all displays receive compatible signals.

Audio & Control Integration Includes comprehensive audio management with breakout and pre-amp control, plus full IR and RS-232 routing. Control is available through multiple interfaces, including front panel, web interface, TCP/IP, and third-party drivers for commercial or residential systems.

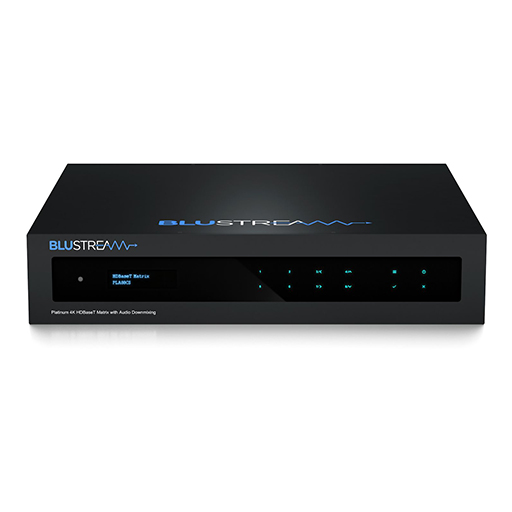

The Blustream PLA88CS is an 8x8 HDMI 2.0 HDBaseT™ AV matrix featuring advanced Colour Space Conversion (CSC) for high-resolution video distribution. Advanced optional features include dual HDMI and HDBaseT™ outputs featuring CSC for support of 4K resolutions including 4K 60Hz 4:4:4 colour space, and HDR, with independent down-scaling of 4K video to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original UHD resolution on the higher-definition displays.

The Matrix also provides advanced features including independent Dolby Audio® & DTS Audio down mixing on HDMI and audio outputs allowing a mixture of different audio output formats for use with different audio capable displays and AV amplifiers. The PLA88CS also includes independent audio routing, Audio Return Channel (ARC), Optical (S/PDIF) audio delay for lip sync correction, bi-directional IR and RS-232 pass-through, and a web-GUI for control and configuration.

Key Features of BlueStream PLA88CS Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supporting HDMI 2.0 18Gbps specification including HDR
4 outputs featuring simultaneous HDBaseT™ and HDMI connections for dual display per zone
Extends HDMI up to 150m at 1080p, and 4K UHD video up to 100m (up to 4K 60Hz 4:4:4)
8 HDMI inputs independently routable to 8 HDBaseT™ + HDMI outputs
Independent video scaling on all outputs
Supports Dolby Audio® technology
Up to 24x16 audio matrix independently controllable from video
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Bi-directional IR & RS-232 on all input and output locations (with compatible transmitters & receivers)
Integrated Ethernet 100Mbps switch (LAN Serving) when used with Blustream RX150CS Receivers
Web interface module for control and configuration of matrix
Control via front panel, IR, RS-232, and TCP/IP
Supports PoC (Power over Cable) to power compatible RX150CS Receivers
3rd party drivers available for all major control brands
HDCP 2.2 compliant with advanced EDID management
2U 19” rack-mount design with mounting kit included
4 independent analogue L/R audio inputs routable to audio outputs or embedded onto HDBaseT™/HDMI outputs
HDMI audio breakout to coaxial digital and analogue L/R outputs with variable pre-amp line level control
Supports ARC (Audio Return Channel) via HDMI or optical digital inputs from compatible RX150CS Receivers
Supports Dolby Audio® and DTS audio breakout, including downmix from HDMI inputs to 2-channel audio
® Dolby Audio is a registered trademark of Dolby Laboratories Licensing Corporation.

Video Distribution Supports simultaneous HDBaseT™ and HDMI outputs for dual displays per zone, independent scaling on each output, and long-distance transmission while maintaining full 4K HDR quality.

Audio Management Includes a 24x16 audio matrix with Dolby and DTS support, audio breakout for both digital and analogue outputs, and ARC support, providing flexible routing and integration with external audio systems.

Control & Integration Full system control is available via front panel, IR, RS-232, TCP/IP, and web GUI. The matrix also supports 3rd party control drivers, bi-directional IR/RS-232 pass-through, and PoC for powering compatible receivers.

The Blustream PRO16HBT70CS is a pre-configured 16x16 HDBaseT™ CSC matrix designed for large-scale AV systems requiring extensive source routing and long-distance video distribution. It allows sixteen HDMI sources to be routed independently to sixteen HDBaseT™ outputs with simultaneous HDMI pass-through.

The matrix supports 4K UHD 60Hz 4:4:4 video up to 40m over HDBaseT™ and 1080p up to 70m, with automatic Colour Space Conversion for displays with lower capabilities. It features a 24x16 audio matrix with Dolby and DTS support, HDMI audio breakout, analogue L/R audio inputs, and full IR/RS-232 control. Operation is available via front panel, TCP/IP, RS-232, or web interface, making it suitable for complex commercial or residential AV installations.

Key Features of BlueStream PRO16HBT70CS Pre-configured Custom Pro Matrix bundle with 16 video inputs, 16 video outputs, audio breakout, and 2-way IR control
Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 40m at 4K 60Hz 4:4:4, or up to 70m at 1080p
HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats: 1080p@60Hz (for screens that do not support 4K)
4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

16 analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
Extend 16 IR outputs for routed control of local source equipment
16 IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
Audio breakout board with line-level volume control
Web browser interface for control and configuration of matrix
Control of matrix via front panel, RS-232, TCP/IP and Web GUI / App
Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
3rd Party drivers available for major commercial & residential control brands
Advanced EDID management
HDCP 2.2 compliant
Video Distribution & Compatibility Simultaneous HDBaseT™ and HDMI outputs with independent Colour Space Conversion ensure compatibility with all connected displays, allowing high-resolution 4K signals to be delivered over long distances without loss of quality.

Audio & Control Integration Includes a 24x16 audio matrix supporting Dolby and DTS formats, HDMI audio breakout, and full IR/RS-232 integration. Control can be executed via front panel, TCP/IP, RS-232, or web interface, with optional third-party control system support.

The Blustream PRO16HBT100CS is a pre-configured 16x16 HDBaseT™ CSC matrix designed for large-scale AV installations. It allows sixteen HDMI sources to be independently routed to sixteen HDBaseT™ outputs with simultaneous HDMI outputs, supporting long-distance transmission up to 70m for 4K UHD 60Hz 4:4:4 signals or 100m at 1080p. The matrix includes automatic Colour Space Conversion (CSC) for compatibility with displays of varying capabilities, a 24x16 audio matrix with Dolby and DTS support, HDMI audio breakout, 16 analogue L/R audio inputs, and full IR/RS-232 integration. Control is available via front panel, RS-232, TCP/IP, and web interface, making it suitable for complex commercial and residential AV systems.

Key Features of BlueStream PRO16HBT100CS Pre-configured Custom Pro matrix bundle with 16 video inputs, 16 video outputs, audio breakout, and 2-way IR control
Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 70m at 4K 60Hz 4:4:4, or up to 100m at 1080p
HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats: 1080p@60Hz (for screens that do not support 4K)
4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

16 analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
Extend 16 IR outputs for routed control of local source equipment
16 IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
Audio breakout board with line-level volume control
Web browser interface for control and configuration of matrix
Control via front panel, RS-232, TCP/IP, and Web GUI / App
Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
3rd party drivers available for major commercial & residential control brands
Advanced EDID management
HDCP 2.2 compliant
Video Distribution & Colour Management Supports simultaneous HDBaseT™ and HDMI outputs, with independent video scaling and automatic Colour Space Conversion to ensure compatibility with displays that do not support full 4K 60Hz 4:4:4.

Audio & Control Integration Features a 24x16 audio matrix with Dolby and DTS support, ARC, and flexible breakout options. Full control is available via front panel, IR, RS-232, TCP/IP, or web interface, with optional third-party integration and PoC for connected receivers.

Installation & Compatibility Rack-mountable 4U design with included mounting kit. Compatible with Blustream HDBaseT™ receivers such as HEX100CS-RX and HEX70CS-RX, supporting high-quality video, audio, and control distribution across large installations.
