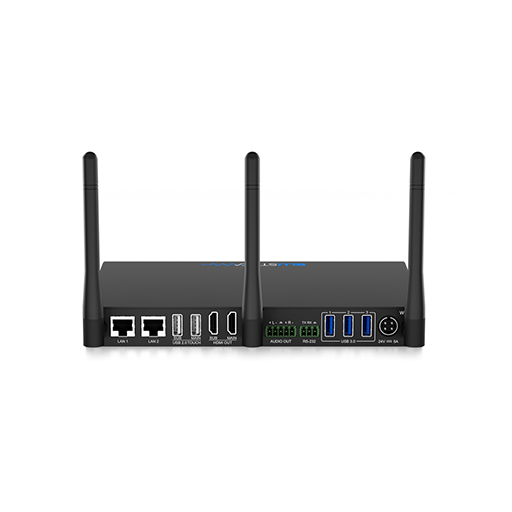

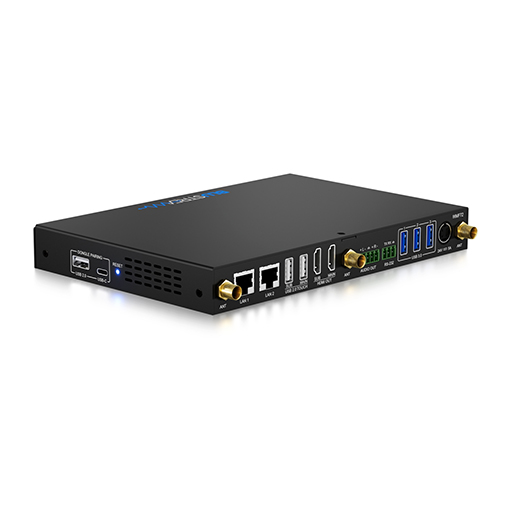

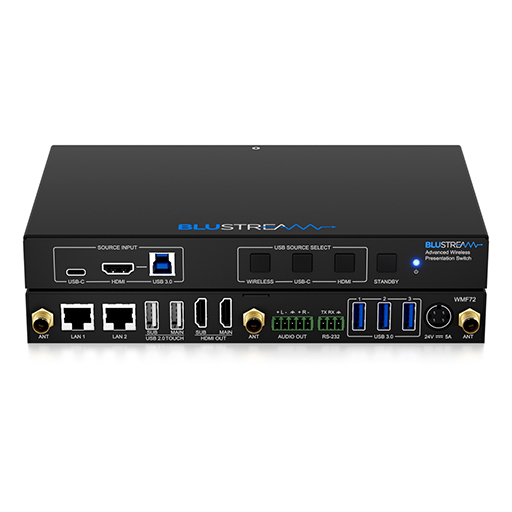

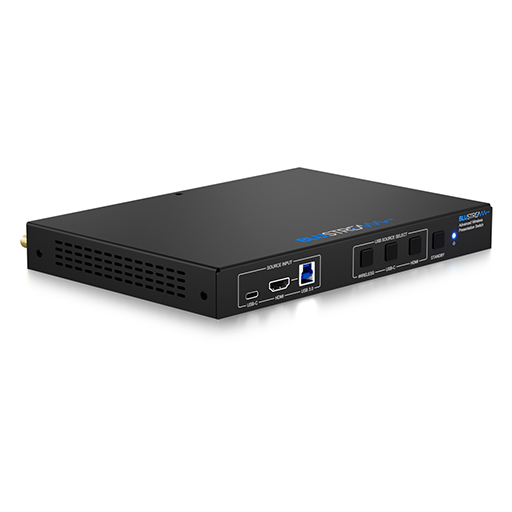

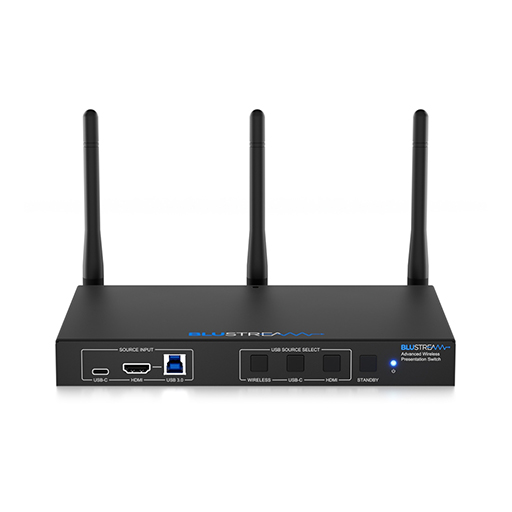

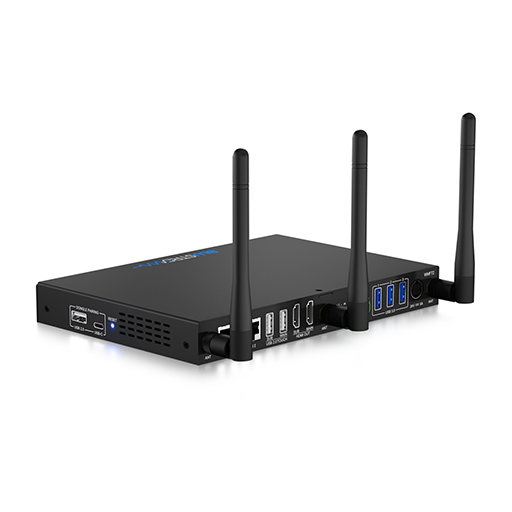

Blustream WMF72 Wireless Multi-Format Presentation Switch

The Blustream WMF72 Wireless Multi-Format Presentation Switch is designed for advanced collaboration and conferencing environments, video scaling and web-GUI for control and configuration, localised 2.4/5G WiFi hotspot, and dual LAN connection and has a dual HDMI output for mirrored or managed source control with multiview presentation.

The WMF72 also features OSD control, USB camera and MIC over WiFi, USB touch-back to connected host device, whiteboard and screen overlay annotation, manual or automated source selection, and control via front panel, RS-232 and TCP/IP.

It supports HDMI, USB-C, AirPlay, Miracast®, Chromecast®, and Blustream wireless dongles, enabling up to five concurrent video streams with fully configurable multi-view layouts. Integrated video scaling, local Wi-Fi hotspot, and comprehensive control features make it ideal for boardrooms, classrooms, and huddle spaces where seamless content sharing and interaction are needed.

Key Features of BlueStream WMF72

• 4K multi-format multi-view presentation switch
• Features HDMI, USB-C, AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to dual HDMI outputs
• Dual HDMI output supports mirror or desktop extension for managed source control within advanced video conferencing set-ups
• Multi-view presentation with up to 5 concurrent video signals with fully configurable screen layout
• In-built video scaler with output timing up to 4K 60Hz 4:4:4
• USB-C connection for BYOM, with DP, USB, 1Gbps network and up to 65W power charging
• HDMI & USB Type B connection for BYOM, with USB and 1Gbps network via USB Type B connection
• Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p 30Hz)
• Dual LAN connection for integration to existing network infrastructures
• Supports USB camera and MIC over WiFi (1080p 30Hz)
• Dual USB camera switching capabilities
• Supports USB touch-back feature via WMF-USBC-D and WMF-HDMI-D dongles and Miracast®
• Audio breakout to balanced / unbalanced analogue L/R audio
• Web interface module for control and configuration of switch
• OSD control with preview function
• Whiteboard and screen overlay annotation feature
• Control via front panel, RS-232 and TCP/IP with manual or auto source selection

*Miracast touch-back compatibility subject to Windows features

Multi-View and Wireless Functionality

The WMF72 allows multiple participants to share content simultaneously, displaying up to five video sources on dual HDMI outputs. Wireless compatibility with AirPlay, Miracast®, Chromecast®, and Blustream dongles ensures flexible device connections and interactive participation.

Video and Audio Management

All inputs are scaled to maintain high-quality 4K 60Hz 4:4:4 output. Audio is delivered through balanced or unbalanced analogue L/R outputs, providing clear and synchronized sound across connected audio systems.

Control and Integration

The switcher can be controlled via front panel buttons, RS-232, TCP/IP, or a web interface. Manual or automatic source selection simplifies operation during presentations, while PoE and network connectivity streamline installation and integration within modern AV setups.
