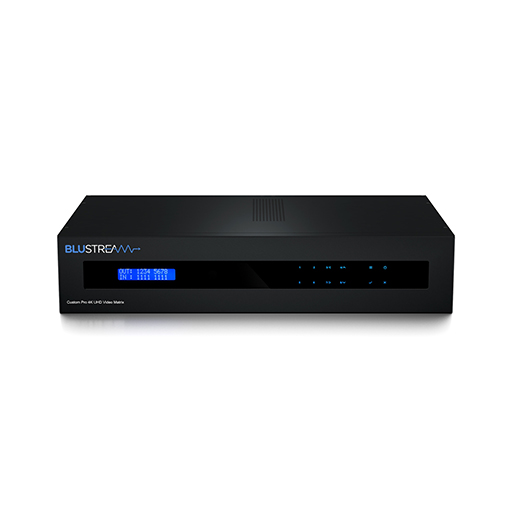

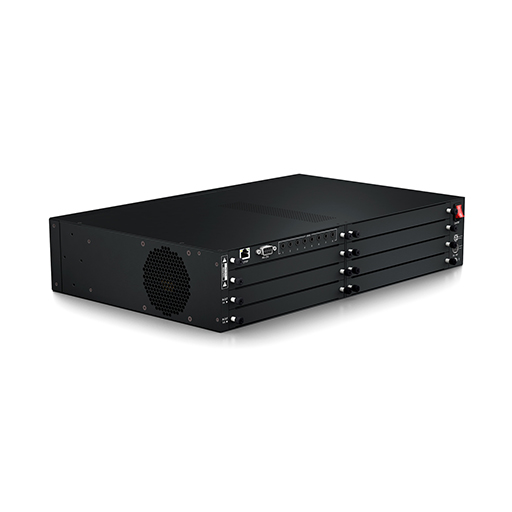

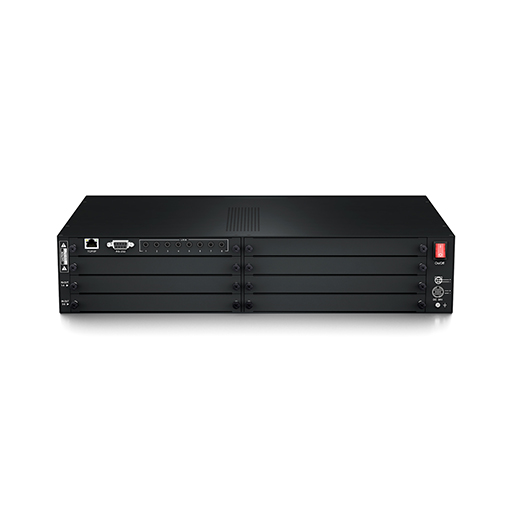

Blustream CUSTOMPRO-HUB 8x8 Custom Pro Matrix Hub

The Blustream CUSTOMPRO-HUB 8x8 Custom Pro Matrix Hub is a modular AV matrix chassis designed to give installers full control over system configuration. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

Key Features of BlueStream CUSTOMPRO-HUB

• Custom Pro Matrix Hub with 8 modular bays for population of control and input/output boards
• Supports up to 8 video inputs and 8 video outputs using Custom Pro boards
• 8 analogue L/R audio inputs that can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Matrix control via front panel, IR, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible HDBaseT™ input and output cards
• Web interface module for control and configuration of the matrix
• 3rd party drivers available for major home control brands
• Advanced EDID management
• HDCP 2.2 compliant

Modular System Design

The CUSTOMPRO-HUB allows installers to build a matrix that fits exact project requirements, with the flexibility to mix and match HDMI, HDBaseT™, audio, and control boards as needed.

Control and Integration

With multiple control interfaces and support for third-party automation platforms, the hub integrates easily into managed AV environments while providing straightforward configuration through its web-based interface.
