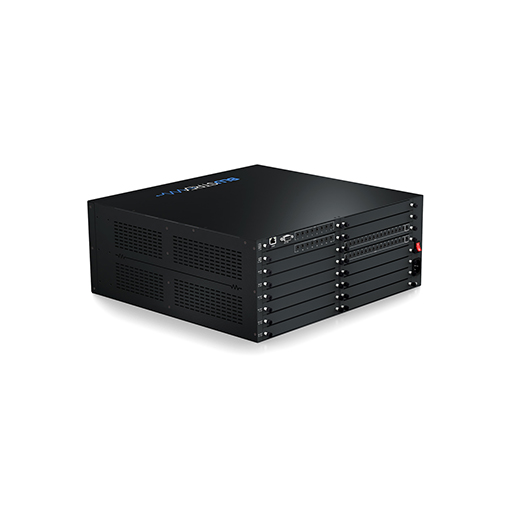

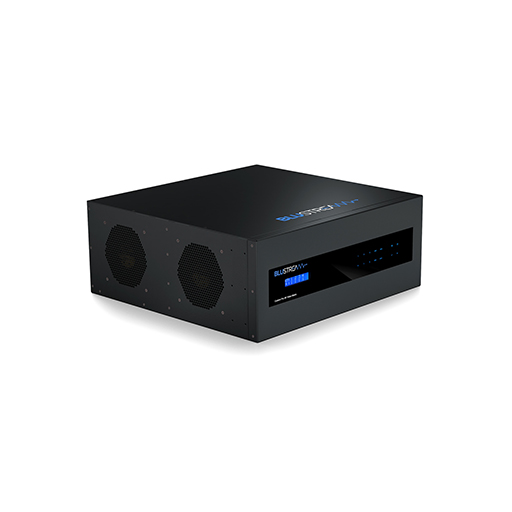

Blustream CUSTOMPRO-HUB16 16x16 Custom Pro Matrix Hub

The Blustream CUSTOMPRO-HUB16 16x16 Custom Pro Matrix Hub is a modular AV matrix chassis designed for large-scale installations where flexibility is key. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

Key Features of BlueStream CUSTOMPRO-HUB16

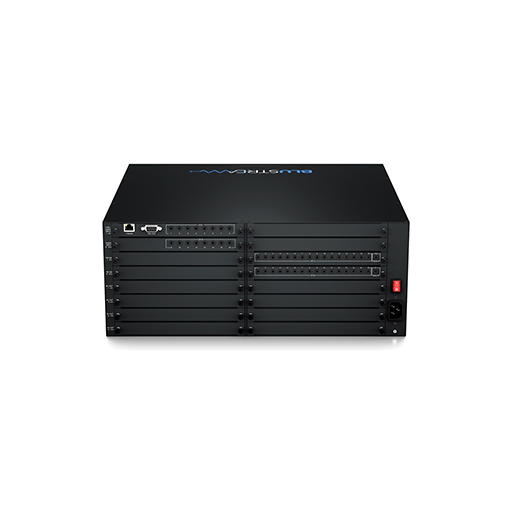

• Custom Pro Matrix with 12 modular bays for population of input, output, and control boards
• Supports up to 16 video inputs and 16 video outputs using a combination of 2-way and 4-way interchangeable boards
• Supports 4K UHD video up to 4K 60Hz 4:4:4*
• Optional Colour Space Conversion (CSC) boards support HDMI 2.0 18Gbps specification including HDR over HDBaseT™
• Optional CSC boards provide independent downscaling of up to 4K 60Hz 4:4:4 video to 1080p @ 60Hz or 4K 60Hz 4:2:0
• 16 analogue L/R audio inputs for embedding onto corresponding HDMI / HDBaseT™ zone outputs
• 16 IR outputs for routed control of local source equipment
• 16 IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
• Optional RS-232 control board for bi-directional control with Blustream HDBaseT™ receivers
• Optional analogue and digital audio breakout board with line-level volume control
• Web browser interface for matrix control and configuration
• Matrix control via front panel, RS-232, TCP/IP, IR, and Web GUI
• Supports PoC (Power over Cable) with compatible Blustream HDBaseT™ receivers
• 3rd party drivers available for major control brands
• Advanced EDID management
• HDCP 2.2 compliant

*Full 4K 60Hz 4:4:4 support is subject to input / output boards specified

Flexible Modular Design

The CUSTOMPRO-HUB16 allows installers to configure each bay with specific input, output, and control boards to match project requirements, making it ideal for complex residential or commercial AV setups.

Control and Integration

Multiple control methods, including front panel, IR, RS-232, TCP/IP, and web GUI, provide full system management. The hub also supports PoC and IR distribution to streamline integration with compatible HDBaseT™ receivers.
