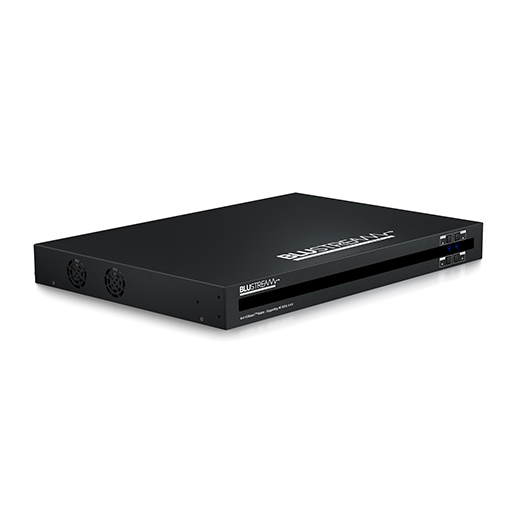

Blustream C44CS-KIT Contractor 4x4 HDBaseT™ CSC Matrix - 70m

The Blustream C44CS-KIT Contractor 4x4 HDBaseT™ CSC Matrix allows four HDMI sources to be independently routed to four HDBaseT™ outputs, delivering video, audio, and control signals over a single CAT cable up to 70m. The C44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional IR, and PoC up to lengths of 70m over a single CAT cable.

The matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.

Key Features of BlueStream C44CS-KIT

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
• Supports 12V PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for all major control brands
• 1U design for 19” rack mount integration - mounting kit included
• Advanced EDID management and HDCP 2.2 compliant

*CSC feature compatible with RX70CSL only

Professional Integration

The C44CS-KIT provides a complete AV matrix system with flexible routing, control, and audio/video management for contractor and commercial installations.

Flexible Connectivity

Integrated PoC, bi-directional IR, and video down-conversion allow seamless operation with a wide range of displays and HDBaseT™ receivers, simplifying installation and day-to-day use.
