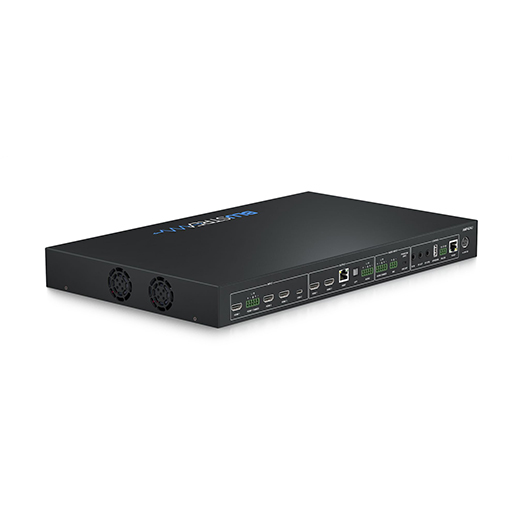

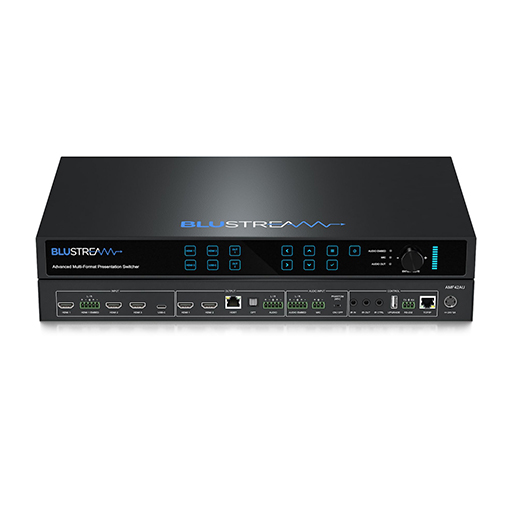

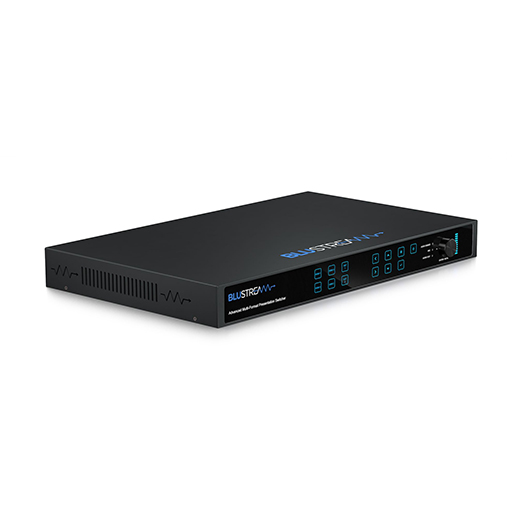

Blustream AMF42AU Advanced Multi-Format Presentation Switch

The Blustream AMF42AU Advanced Multi-Format Presentation Switch is designed to manage multiple high-resolution video sources in professional AV environments. The AMF42AU provides enhanced features including seamless switching, independent video scaling on outputs, MIC input with audio mixing and 48V phantom power, PoC to power a Blustream compatible HDBaseT™ receiver.

The AMF42AU also features Web GUI for control and configuration, source and display control via CEC, RS-232 and IR, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP. The AMF42AU is an ideal product for your boardroom, classroom or huddle-space application.

Key Features of BlueStream AMF42AU

• Features 3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs
• Dual HDMI / HDBaseT™ on output 2
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*
• Independent video scaling on outputs
• Supports resolutions up to 4K UHD 60Hz 4:4:4
• Seamless source switching with manual or auto source selection
• Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability
• Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
• ARC breakout available via S/PDIF when using RX70CS receiver
• Analogue audio inputs and output support both balanced and unbalanced audio
• Features MIC mixer over source audio with independent level adjustment
• MIC input supports line level or 48V/0.5mA Phantom power
• Configurable source and display control via CEC, RS-232 and IR
• Web interface module for control and configuration of matrix
• 3rd party drivers available for major control brands
• HDCP 2.2 compliant with advanced EDID management

*All features designed to work with the Blustream RX70CS HDBaseT™ receiver. HDBaseT™ output is compatible with all Blustream receivers however functionality may vary. Refer to product manual for compatibility before connecting.

Professional Integration

The AMF42AU allows seamless management of multiple high-resolution sources, providing flexible video routing, scaling, and control options to fit professional presentation or conferencing environments.

Flexible Audio Management

Audio integration is fully supported with breakout options, microphone mixing, and phantom power support, allowing for complete control over both source and presentation audio.
