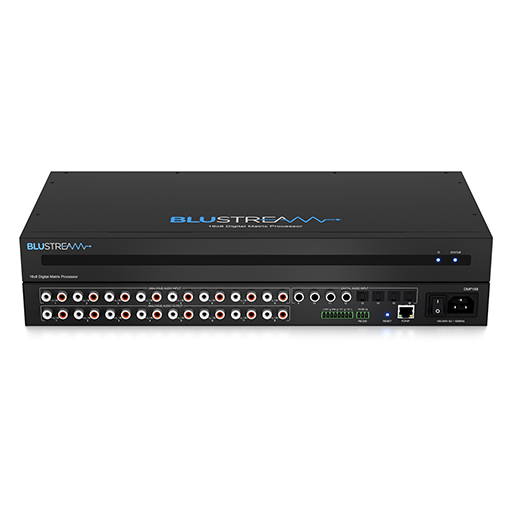

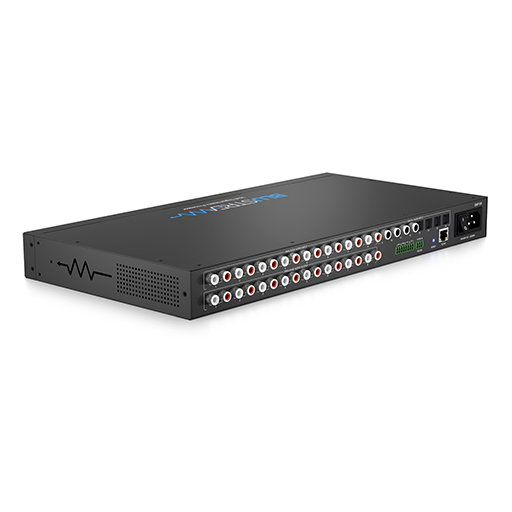

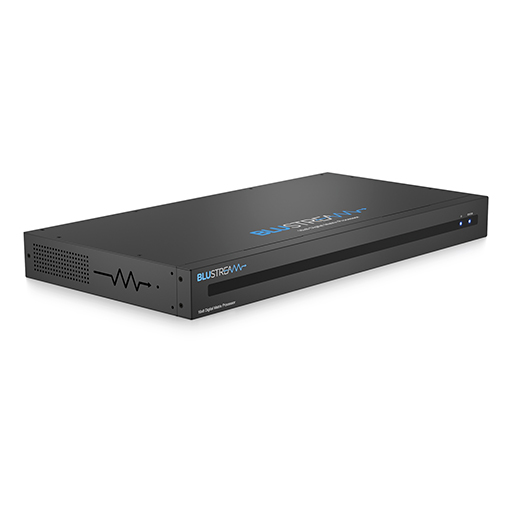

Blustream DMP168 16x8 Digital Matrix Processor

The Blustream DMP168 is a 16x8 digital audio matrix processor that routes multiple analogue and digital sources to eight independent outputs. It supports comprehensive audio processing including volume, balance, high/low shelf, high/low pass filters, and a 4-band parametric equalizer on both inputs and outputs. Each channel can be individually adjusted for gain, lip-sync delay, and audio ducking. Assignable bus inputs and output grouping allow flexible mixing and grouping of audio zones, while control is possible via web-GUI, RS-232, TCP/IP, and IR. This matrix is designed for multi-zone audio installations requiring precise control and versatile signal distribution.

Key Features of BlueStream DMP168

• Features 8 x analogue L/R inputs, 4 x digital coaxial inputs, and 4 x digital optical inputs which can be switched to 8 x analogue L/R outputs
• Supports separation (mono) of all audio channels and independent control resulting in switching of up to 32x16 audio feeds
• Supports: volume, balance, high/low shelf, high/low pass filter, and 4 band parametric equalizer control per input and output
• Supports independent gain adjustment for all analogue and digital inputs
• Features 8 x assignable bus inputs allowing mixing of source inputs
• Features output grouping to combine audio outputs for a single group control
• Combining the output grouping feature with high/low pass filter results in up to 4 x 2.1ch audio outputs
• Features assignable audio ducking with independent level and ramp up/down rate adjustment
• Features 8x configurable presets
• Supports 48kHz 24-bit sampling rate for A/D and D/A conversion
• Digital audio inputs support resolutions up to 192kHz 24-bit
• Supports independent lip-sync delay (0-500ms) per output
• Features input audio sensing, 2 x contact closures and 2 x trigger inputs allowing programmable events based on the presence of audio, NO/NC connections, and/or voltage between 2-15V AC or DC voltage
• Supports control via web-GUI, RS-232, TCP/IP and IR

Audio Processing & Performance

Handles precise audio control for multi-zone environments, supporting both analogue and digital formats with full EQ, gain, and filter adjustments. Lip-sync delay ensures audiovisual alignment in all outputs.

Connectivity & Control

Includes multiple analogue and digital inputs and outputs, assignable bus channels, and contact/trigger inputs. Control options include web interface, RS-232, TCP/IP, and IR remote, providing flexible integration with automation systems.
