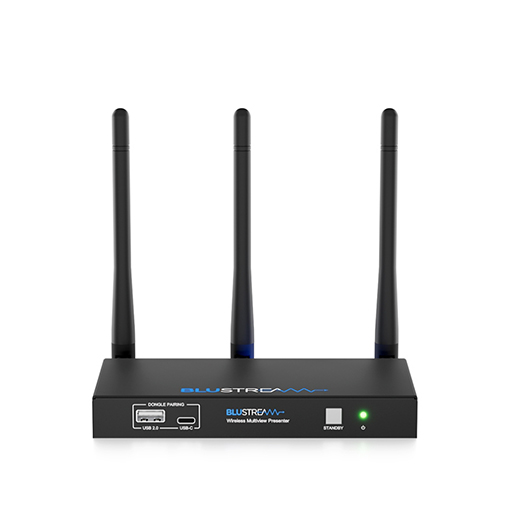

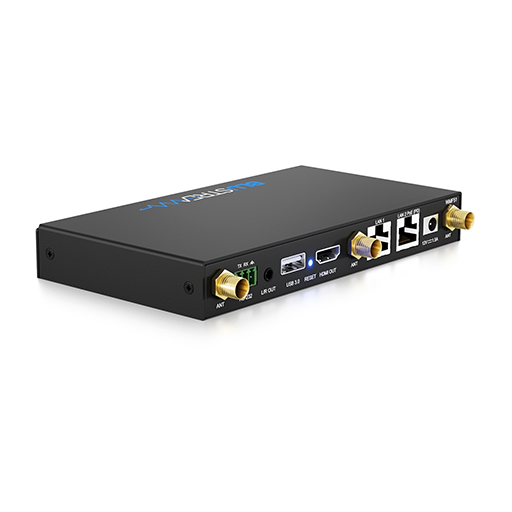

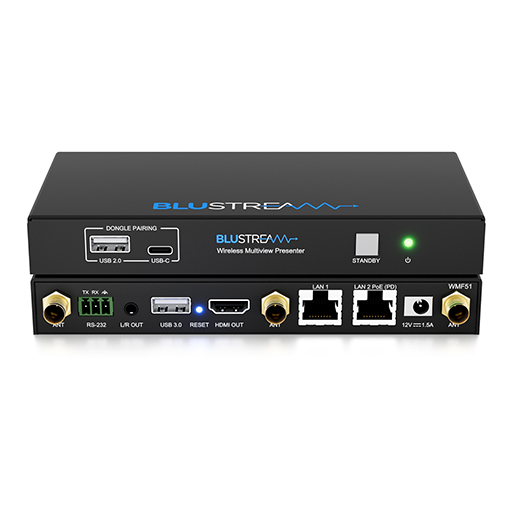

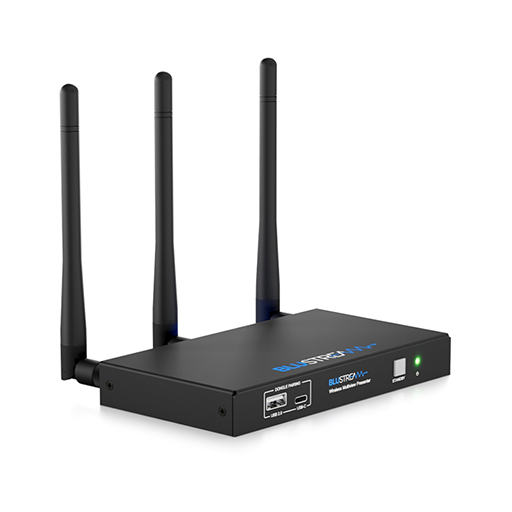

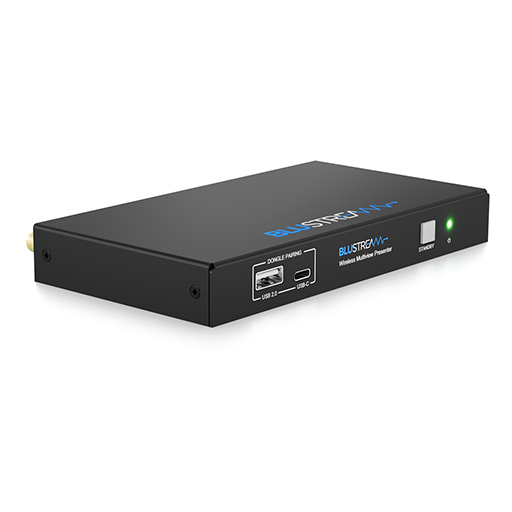

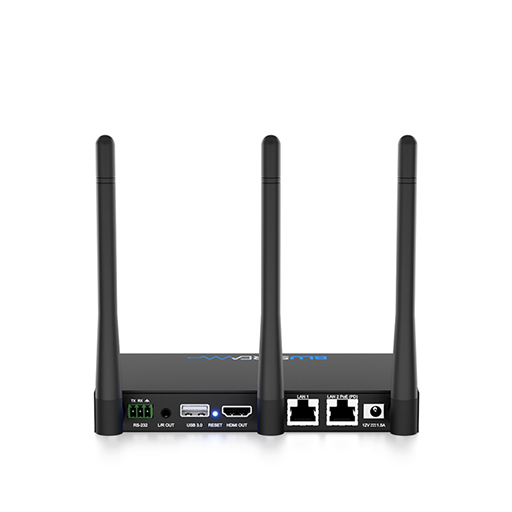

Blustream WMF51 Wireless Multi-Format Presentation Switch

The Blustream WMF51 Wireless Multi-Format Presentation Switch is designed for modern collaboration environments, providing a flexible way to share multiple video sources to a single HDMI display. Supporting AirPlay, Miracast®, Chromecast®, and Blustream wireless dongles, it allows up to four concurrent video streams with configurable multi-view layouts. Integrated video scaling, local Wi-Fi hotspot, and advanced control options make it suitable for classrooms, boardrooms, and huddle spaces where seamless content sharing is essential.

Key Features of BlueStream WMF51

• 4K multi-format multi-view presentation switch
• Features AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to a single HDMI output
• Multiview presentation with up to 4 concurrent video signals with configurable screen layout
• In-built video scaler with output timing up to 4K 60Hz 4:4:4
• Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p)
• Dual LAN connection for integration to existing network infrastructures
• Supports USB 3.0 touch-back feature via WMF-USBC / WMF-HDMI dongles and Miracast®
• Audio breakout to analogue L/R audio
• Web interface module for control and configuration of unit
• OSD control with preview function
• Whiteboard and screen overlay annotation feature
• Control via front panel, RS-232 and TCP/IP with manual or auto source selection
• Features Class 0 IEEE 802.3af PoE for powering of product from a PoE switch

*Miracast touch-back compatibility subject to Windows features. USB 3.0 connection is for connectivity to an interactive display for touch-back capabilities only, and does not feature the full USB 3.0 bandwidth capabilities for use with VC / UC equipment.

Multi-View and Wireless Support

The WMF51 enables up to four video sources to be displayed simultaneously on a single screen. Wireless connectivity through AirPlay, Miracast®, and Chromecast® allows participants to share content without cables, while Blustream wireless dongles ensure compatibility with HDMI and USB-C devices.

Video and Audio Management

The in-built scaler ensures that all video inputs are output at high-quality 4K 60Hz 4:4:4 resolution. Audio can be extracted through analogue L/R outputs for integration with room sound systems, maintaining clarity across both visual and audio channels.

Control and Integration

Flexible control options include front panel operation, RS-232 commands, TCP/IP, and a web interface. Manual or automatic source selection allows for smooth operation during meetings or lessons, and PoE support simplifies installation by eliminating the need for a separate power supply.
