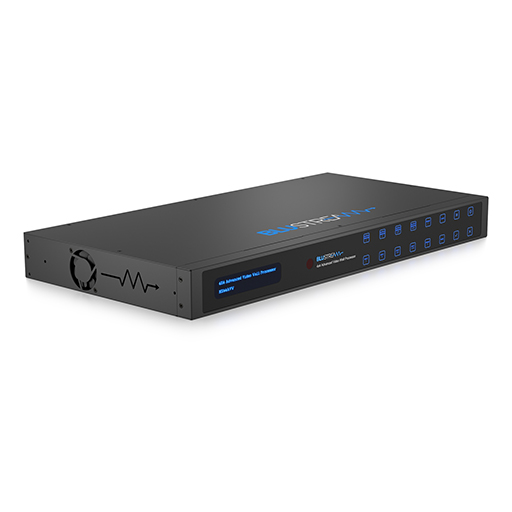

Blustream MX44AVW Advanced 4x4 4K HDMI 2.0 Multi-Purpose Video Processor

The Blustream MX44AVW is a 4x4 HDMI 2.0 video processor designed for flexible video distribution and display management. It combines matrix switching, multiview, and video wall functionality in a single unit. With support for 4K UHD 60Hz 4:4:4 signals and HDR, the MX44AVW allows multiple input sources to be routed and displayed across four outputs with advanced layout options, including PIP, PBP, POP, and customizable video wall arrangements. Audio can be output via analogue or optical channels, and control is possible through front panel, IR, RS-232, TCP/IP, or web interface.

Key Features of BlueStream MX44AVW

• Advanced 4K HDMI 2.0 multi-purpose high-speed video processor supporting matrix, multiview, and video wall function
• Advanced video wall configuration allowing individual overlap and rotation of panels
• Multiview mode supports PIP, PBP, POP, Dual, Triple, and Quad-windows layouts with pre-defined and customizable configurations
• Seamless video switching
• Supports HDMI 2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
• IR routing
• Control via front panel, IR, RS-232, TCP/IP, and web-GUI
• Supplied with Blustream 5V IR receiver and remote control
• HDCP2.2 compliant with advanced EDID management

Video Wall & Multiview Functionality

Supports creative video wall layouts with independent panel rotation and overlap, as well as flexible multiview configurations including picture-in-picture and split-screen layouts, allowing multiple sources to be displayed simultaneously.

Audio & Control

Audio can be output concurrently through analogue and optical channels, while IR routing, RS-232, TCP/IP, and web-GUI control provide full integration with AV systems and easy management of source switching and display layouts.

Installation & Compatibility

The MX44AVW is compatible with all HDMI 2.0 sources and displays, handling high-resolution video with HDR, and includes advanced EDID management to ensure proper handshake and display of protected content. Its compact design allows installation in AV racks or standalone setups.
