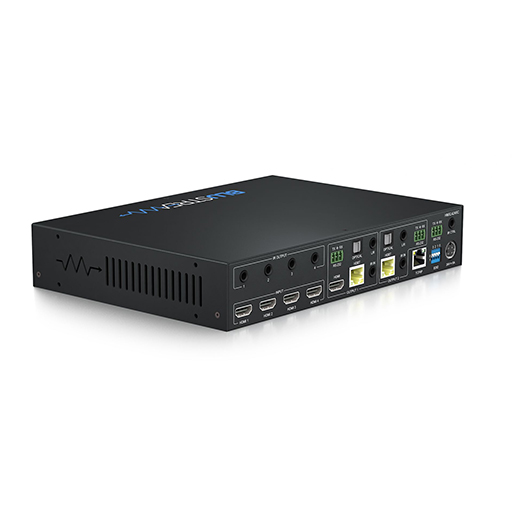

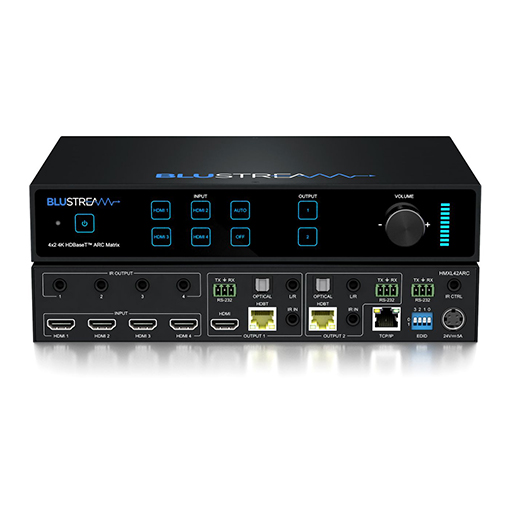

Blustream HMXL42ARC-KIT 4x2 HDBaseT™ CSC AV Matrix Kit - 70m

The Blustream HMXL42ARC-KIT 4x2 HDBaseT™ CSC AV Matrix Kit provides flexible routing of four HDMI sources to two HDBaseT™ outputs plus a local HDMI output. With advanced HDBaseT™ technology, Colour Space Conversion (CSC), and video Smart Scaling, it delivers high-quality 4K UHD video up to 40m and 1080p up to 70m, along with multichannel audio, IR, and PoC over a single CAT cable. The kit comes complete with two RX70CS receivers for a fully integrated AV setup.

Key Features of BlueStream HMXL42ARC-KIT

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• 8 x 2 audio matrix that is independently controllable from video
• Audio source inputs include:
  • 4 x audio breakout from HDMI source
  • 2 x audio breakout from zone outputs
  • 2 x ARC from zone outputs
• Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs
• Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
• 3rd Party drivers available for all major control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Supplied with 2 x RX70CS HDBaseT™ receivers

Flexible Installation

Slimline design and included receivers allow the kit to fit neatly into professional AV installations while keeping cabling simple and organized.

Control & Integration

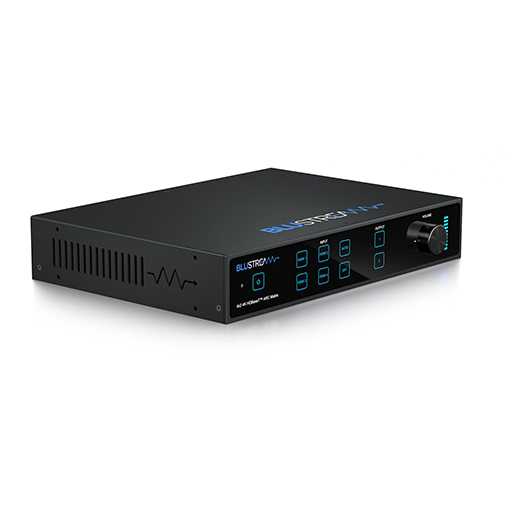

Supports front panel, IR, RS-232, TCP/IP, and web-based control, with compatibility for third-party control systems to integrate seamlessly into larger AV setups.
