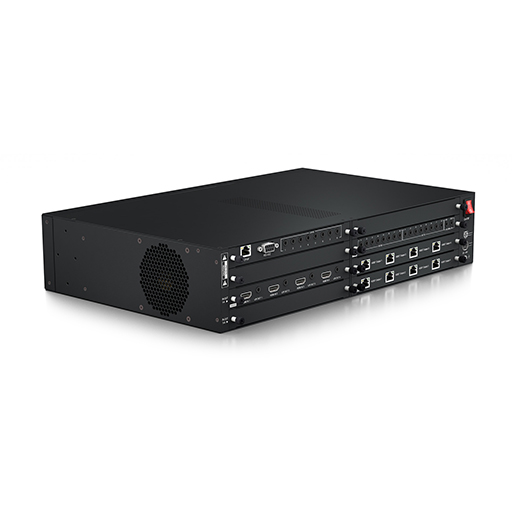

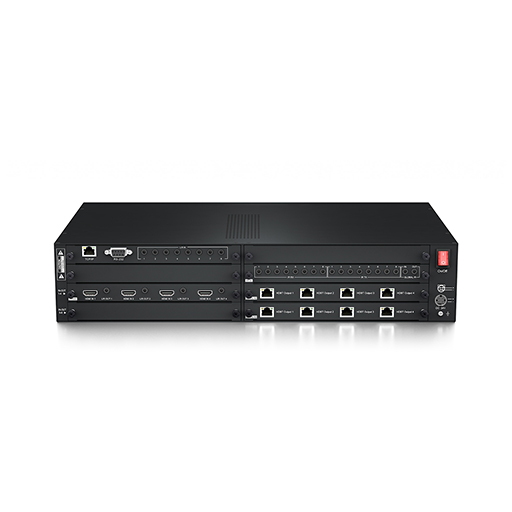

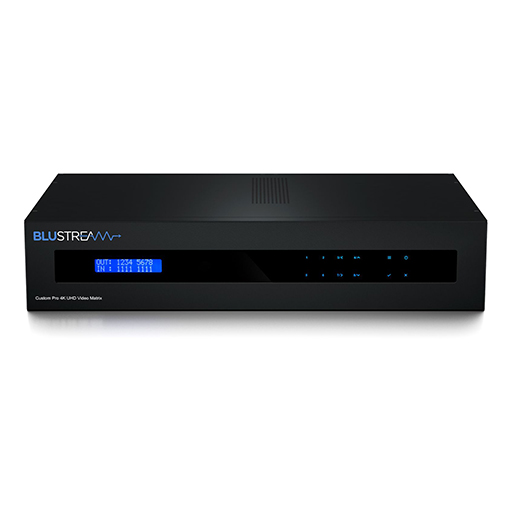

Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT™ CSC Matrix

The Blustream PRO48HBT70CS is a 4x8 HDBaseT™ CSC matrix designed for professional AV installations. It allows four HDMI sources to be independently routed to eight HDBaseT™ outputs over a single CAT cable per output. It delivers HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K with HDR up to 40m), with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. The Matrix also provides advanced features including audio breakout and a web browser interface module for control and configuration of the matrix.

Key Features of BlueStream PRO48HBT70CS

• HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• 4 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
  • 1080p 60Hz (for screens that do not support 4K)
  • 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• Supports 4K HDR
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Analogue audio input can be embedded onto any HDMI input
• Web interface module for control and configuration of Matrix
• Supports bi-directional IR
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• 3rd Party drivers available for major control brands
• 2U Design for 19" rack mount integration - Mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant
• To be used with the HEX70CS-RX receivers

Flexible Video Distribution

This matrix provides independent routing of multiple HDMI sources to multiple HDBaseT™ outputs. Down-scaling and Colour Space Conversion allow displays with lower resolution capabilities to receive compatible signals without losing maximum video quality on other outputs.

Audio and Control

Supports embedded analogue audio, bitstream passthrough for multichannel formats, and offers control via front panel, IR, RS-232, TCP/IP, or web interface. Supplied IR receivers and emitters and third-party driver support ensure integration into diverse AV control systems.
