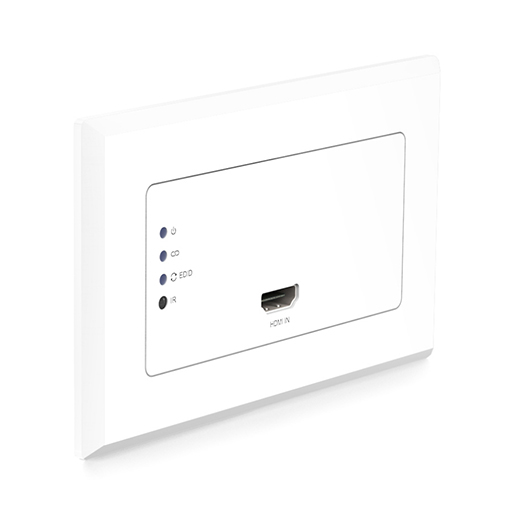

Blustream HEX11WPW-TX HDMI Wallplate Transmitter via HDBaseT™

The Blustream HEX11WPW-TX is a wallplate HDBaseT™ transmitter that extends HDMI video, audio, and control signals over a single CAT cable to compatible receivers or matrix units. It supports 4K UHD video up to 40m and 1080p up to 70m, with full support for HDR and all HDMI audio formats. Smart EDID management ensures compatibility with connected displays, while bi-directional RS-232 and IR pass-through allow remote control of source devices. Power over Cable (PoC) support allows the unit to receive power from compatible Blustream receivers or matrix devices, eliminating the need for a local power supply.

Key Features of BlueStream HEX11WPW-TX

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
• Bi-directional RS-232 pass-through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver / matrix products
• White magnetic faceplate surround allowing for both UK & EU backbox compatibility
• HDCP 2.2 support

*Technical performance is subject to the features supported on the connected HDBaseT™ device.

Video & Audio Performance

Delivers 4K UHD video with HDR and full HDMI audio formats over long CAT cable runs. Maintains signal integrity and supports multichannel and object-based audio passthrough for high-fidelity performance.

Control & Connectivity

Includes bi-directional RS-232 and IR pass-through for remote device management. Smart EDID handling ensures connected devices communicate correctly. PoC support allows the transmitter to be powered from compatible receivers or matrix units.
