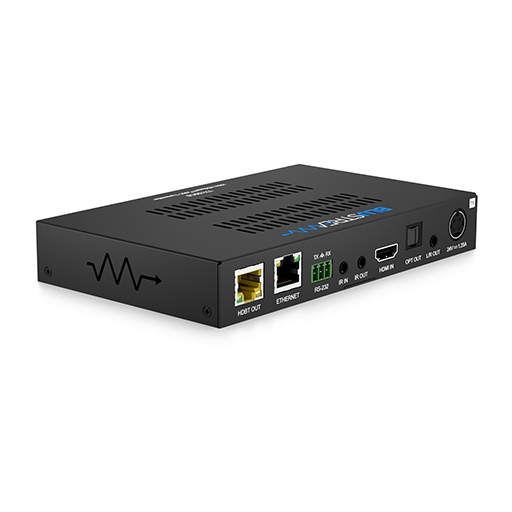

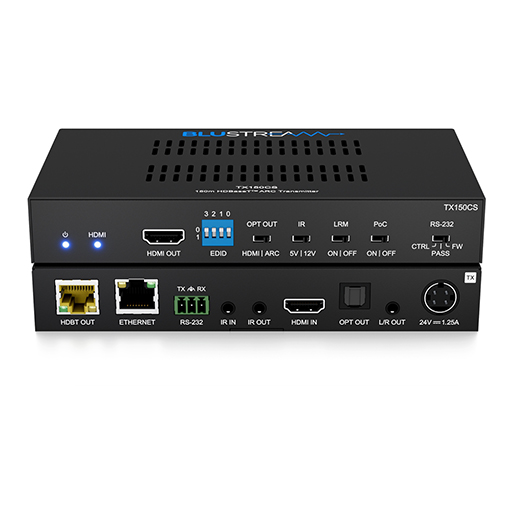

Blustream TX150CS HDBaseT™ CSC Transmitter

The Blustream TX150CS HDBaseT™ CSC Transmitter delivers high-quality video, audio, and control signals over a single CAT cable, making it ideal for professional AV installations with extended cable runs. With Advanced Colour Space Conversion and support for HDMI 2.0, it handles 4K UHD video, HDR formats, and high-fidelity audio. Bi-directional control, Ethernet, and Power over Cable features provide flexible integration with compatible receivers and matrix systems.

Key Features of BlueStream TX150CS

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
• Supports ARC (Audio Return Channel) from connected display via HDMI or optical (S/PDIF) digital inputs (when used with compatible Blustream RX150CS Receiver or PLA88CS Platinum matrix)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Bi-directional 100Mbps Ethernet pass through when used with Blustream RX150CS Receiver or PLA88CS Platinum matrix
• Bi-directional RS-232 pass through
• Bi-directional IR from all input and output locations
• Supports bi-directional PoC (Power over Cable) to power extender from either matrix, transmitter or receiver end
• HDCP 2.2 support

Video Distribution

The transmitter allows long-distance 4K and 1080p video transmission over a single CAT cable, maintaining image quality and supporting the latest HDR and HDMI standards. Loop-through HDMI output enables local display while sending signals to remote receivers.

Audio Handling

Audio is transmitted alongside video, supporting all known HDMI formats. The unit also provides ARC and S/PDIF outputs for flexible integration with audio systems, ensuring high-fidelity multi-channel sound is delivered to compatible receivers.

Control and Integration

Bi-directional RS-232, IR, and Ethernet pass-through allow seamless integration with control systems. PoC support eliminates the need for separate power cables, providing a cleaner and simpler installation when paired with compatible receivers or matrix devices.
