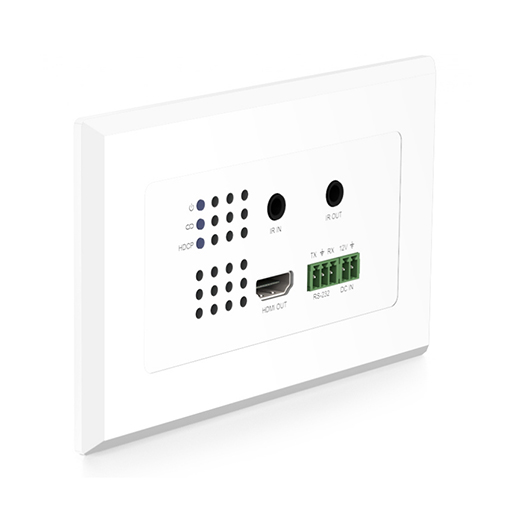

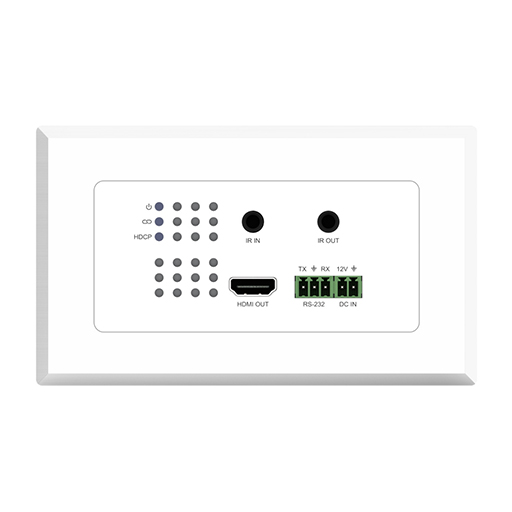

Blustream HEX11WPW-RX HDMI Wallplate HDBaseT™ Receiver

The Blustream HEX11WPW-RX is a wallplate HDBaseT™ receiver designed to extend HDMI video and audio over a single CAT cable. It delivers 4K UHD video up to 40m and 1080p up to 70m, supporting HDR and full HDMI audio formats. The receiver passes RS-232, CEC, and bi-directional IR signals, allowing control of connected devices from the display location. PoC (12-48V) enables power from compatible Blustream transmitters or matrix units, removing the need for a local power supply. The magnetic faceplate supports both UK and EU backboxes, making it ideal for professional AV installations with a clean, discreet finish.

Key Features of BlueStream HEX11WPW-RX

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Supports CEC and RS-232 pass through
• Supports bi-directional IR pass-through to compatible HDBaseT™ device
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products
• Compatible with all Blustream HDBaseT™ transmitter / matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support

*Technical performance is subject to the features supported on the connected HDBaseT™ device.

Video & Audio Performance

Supports 4K UHD video with HDR and full HDMI audio formats, including multichannel and object-based audio. Maintains high-quality signal transmission up to 40m over CAT cable with full compatibility to source and display devices.

Control & Connectivity

Passes CEC, RS-232, and bi-directional IR signals for complete remote control. Compatible with Blustream transmitters and matrix units, with PoC support allowing power over cable without the need for a local supply.
