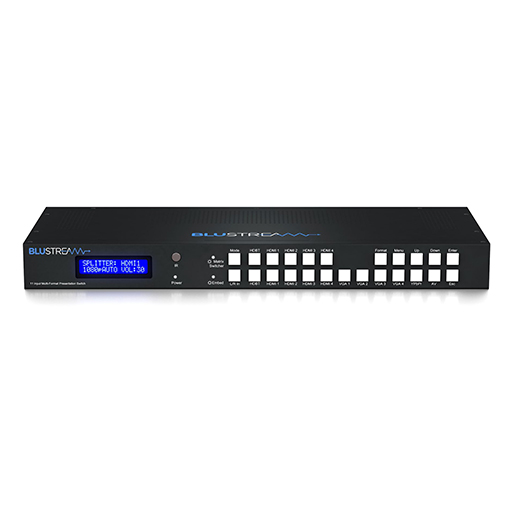

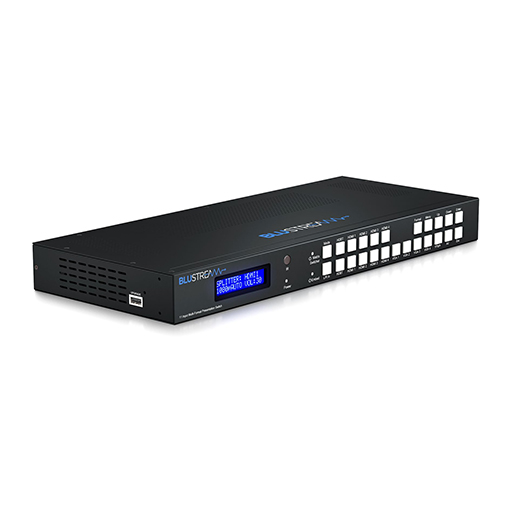

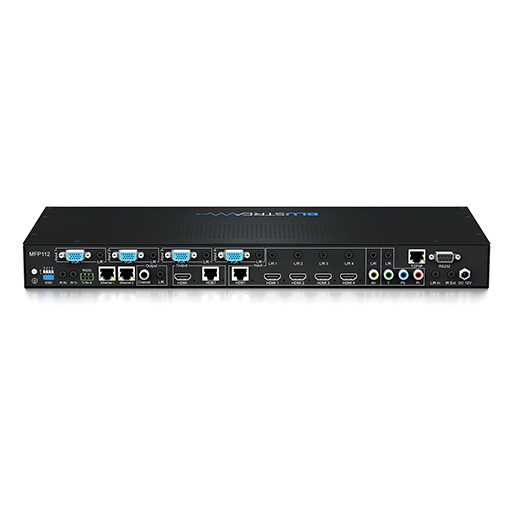

Blustream MFP112 11 input Multi-Format Presentation Switch

The Blustream MFP112 is an 11-input multi-format presentation switch designed to manage a wide variety of video sources in commercial AV settings. The MFP112 works in 2 modes, first as a 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1x HDBaseT™ & 4 x HDMI inputs only and output 2 switching all 11 video + audio inputs. With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Key Features of BlueStream MFP112

• Switcher can function in 2 modes:
  • Splitter Mode - Both HDMI output 1 & HDBaseT™ output 2 display the same selected input
  • Matrix Switcher Mode - HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT™ input + HDMI inputs 1-4 only (HDMI signal pass-through including 4K resolution), whilst HDBaseT™ output 2 has access to all HDMI, HDBaseT™, and analogue video inputs with associated audio
• HDBaseT™ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving, and EDID management
• HDBaseT™ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
• Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions)
• Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Scaled video output resolutions include 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050
• Audio embedding - independent analogue L/R audio input can be embedded to HDMI/HDBaseT™ outputs & analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI/HDBaseT™ outputs 1 & 2 in Splitter mode and HDBaseT™ output 2 only in Matrix Switcher mode)
• HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
• Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs
• PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Front panel display for status feedback
• Control via front panel, IR, RS-232 and TCP/IP
• 3rd party drivers available for all major home control brands
• Advanced EDID management
• HDCP 1.4 compliant

Flexible Video Management

The MFP112 allows multiple video sources to be routed to local and remote displays with full control over input selection and output resolution. Smart scaling ensures that content is compatible with all connected displays without compromising clarity or detail.

Comprehensive Audio Handling

Integrated audio embedding and de-embedding provide flexible audio routing across HDMI, HDBaseT™, analogue, and digital outputs. Volume control and support for major audio formats allow precise audio distribution in multi-zone setups.

Control and Integration

Control options include front panel buttons, IR remote, RS-232, and TCP/IP interfaces. Built-in feedback through the front panel display provides status information, while drivers enable integration with major third-party control systems for seamless operation.
