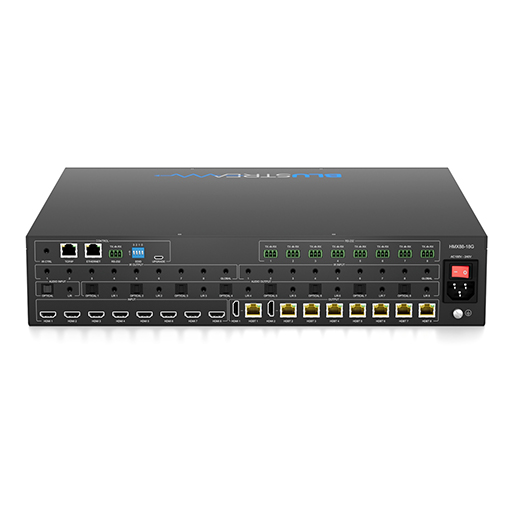

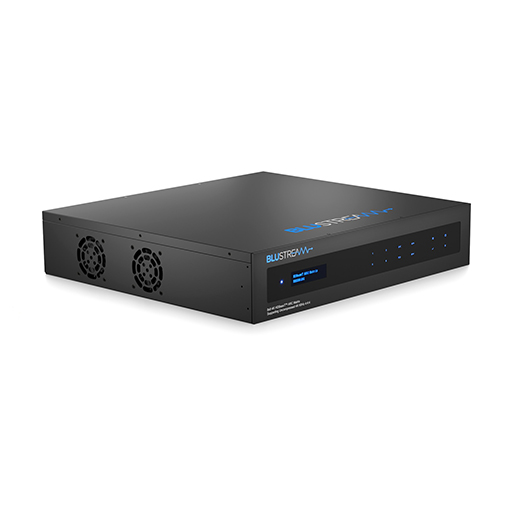

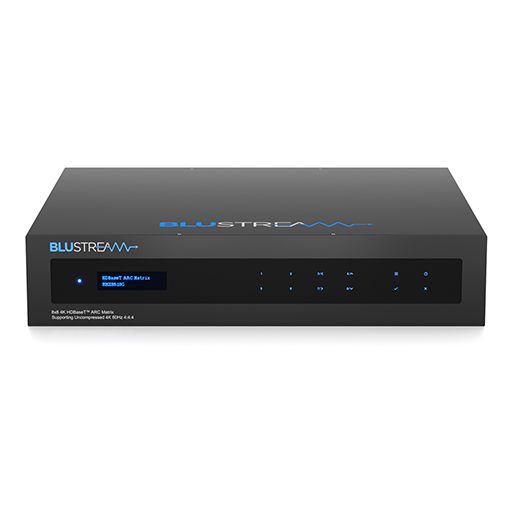

Blustream HMX88-18G 8x8 HDBaseT3™ AV Matrix - 100m

The Blustream HMX88-18G is an 8x8 HDBaseT3™ AV matrix designed to manage and distribute high-bandwidth HDMI signals across multiple zones with consistency and clarity. The HMX88-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ resulting in the ultimate in picture quality for your critical viewing areas.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on outputs 1 & 2, video smart scaling on HDBaseT outputs, and an independent 26x8 audio matrix and ARC. The HMX88-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and Ethernet pass through to enable seamless 3rd party control integration.

Key Features of BlueStream HMX88-18G

• Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Outputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputs
• Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
• Supports distribution of the latest HDR resolutions including HDR10/10+
• 26x8 Audio Matrix independently controllable from video. Audio source inputs include:
  • 8 x audio breakout from HDMI source inputs
  • 8 x audio breakout from zone outputs
  • 8 x audio return from zone outputs*
  • 1 x Optical and 1 x Analogue audio input
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
• Web interface module for control and configuration of the Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Advanced EDID management and HDCP 2.3 compliant

* Transmission distance is subject to video format, cable type and installation environment.

* The HDBaseT3™ specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.

** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only

Flexible Video & Audio Routing

With the ability to route eight HDMI sources to eight independent zones, the HMX88-18G offers extensive control over both video and audio paths. Its integrated audio matrix allows audio sources to be managed separately from video, providing greater freedom when designing multi-room or multi-zone AV layouts.

Control & Integration

The matrix supports control via front panel buttons, IR, RS-232, TCP/IP, and mobile applications for iOS and Android. A built-in web interface simplifies configuration and monitoring, while bi-directional IR and RS-232 over HDBaseT™ ensure seamless communication with connected devices.

Long-Distance Distribution

Using HDBaseT3™ technology, the HMX88-18G delivers uncompressed HDMI signals over distances of up to 100 metres via a single CAT6A cable. Power over Cable support allows compatible receivers to be powered directly from the matrix, reducing the need for additional power supplies at remote locations.
