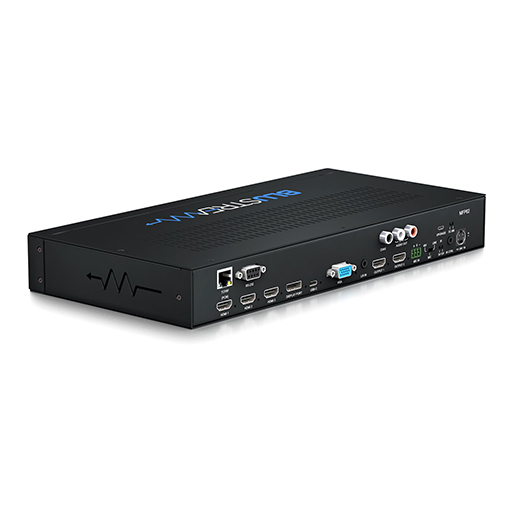

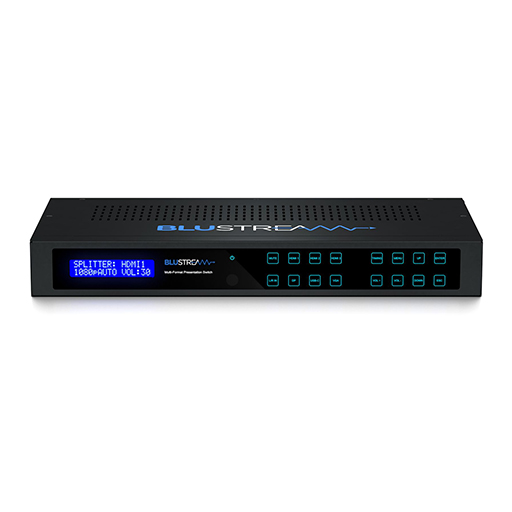

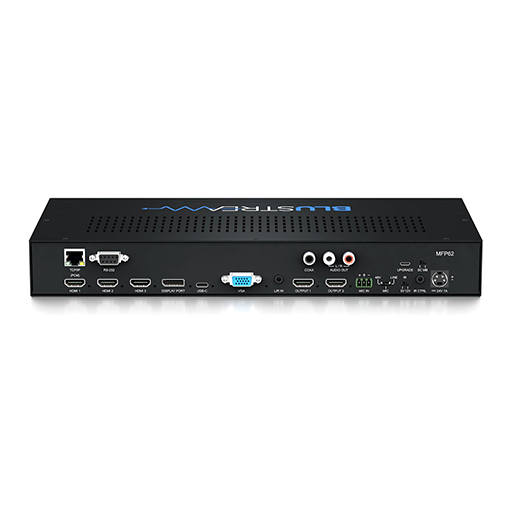

Blustream MFP62 6 input 4K Multi-Format Presentation Switch

The Blustream MFP62 is a 6-input multi-format presentation switch designed for commercial and collaborative AV environments. It accepts HDMI, USB-C, DisplayPort™, and VGA sources, routing them to dual HDMI outputs with video scaling for consistent display performance. It has enhanced features Including video scaling on output, MIC input with phantom power and audio mixing. The MFP62 also features Web GUI for control and configuration, analogue audio embedding, audio de-embedding, and control via front panel, IR, RS-232 and TCP/IP.

Key Features of BlueStream MFP62

• Features 3 x HDMI, 1 x USB-C, 1 x DisplayPort™ & 1 x VGA input switchable to dual HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports resolutions up to 4K UHD 60Hz 4:4:4
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats
• Dual HDMI outputs with video scaling
• Supports USB Type-C up to 4K UHD 60Hz 4:4:4, DP1.2 & Alt mode
• Supports DisplayPort up to 4K UHD 60Hz 4:4:4, DP1.2
• Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
• Features audio mixer with independent level adjustment
• Analogue audio embedding
• MIC input supports line level, 48V/0.5mA Phantom power or 1ch balanced / unbalanced audio
• Web interface module for control and configuration of switch
• Control via front panel, IR, RS-232, and TCP/IP
• HDCP 2.2 compliant with advanced EDID management

Flexible Video Routing

The MFP62 allows multiple video sources to be routed to dual HDMI displays with consistent resolution handling. Video scaling ensures compatibility across various display types while maintaining clarity and sharpness for all inputs.

Integrated Audio Management

The switch supports comprehensive audio handling including embedded audio, independent level adjustment, and microphone input with phantom power support. Audio can be routed to both analogue and digital outputs, maintaining high-quality sound across all outputs.

Control and Integration

Control options include front panel operation, IR remote, RS-232, TCP/IP, and a web interface for configuration. Advanced EDID management and HDCP 2.2 compliance ensure compatibility with a wide range of sources and displays, allowing seamless operation in diverse AV setups.
