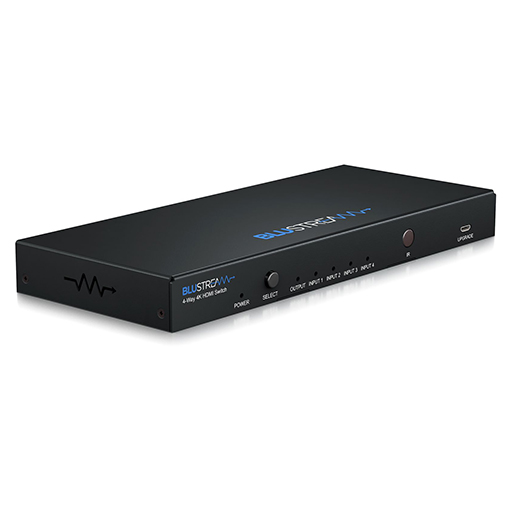

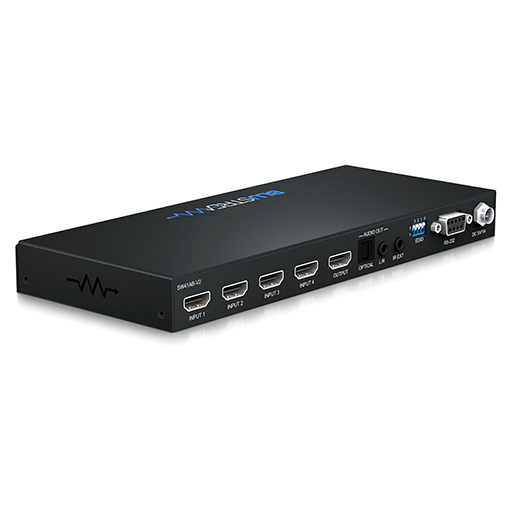

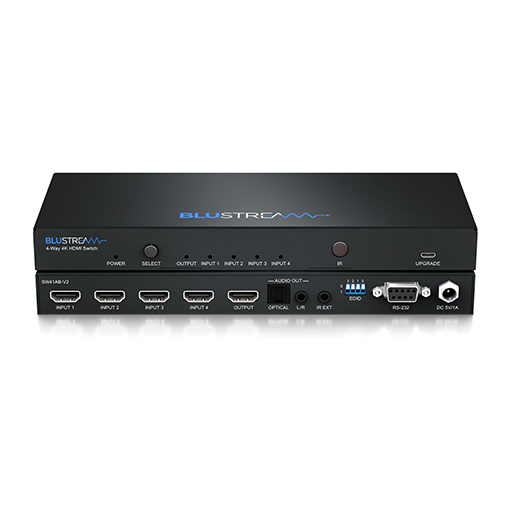

Blustream SW41AB-V2 4-Way 4K 18Gbps HDMI 2.0 Switch

The Blustream SW41AB-V2 is a 4-way HDMI 2.0 switch that allows four HDMI sources to be routed to a single display. It supports 4K UHD 60Hz 4:4:4 video, HDR, and 3D content. The unit offers bitstream passthrough for multichannel audio, with analogue and optical audio breakout, and provides flexible control via front panel, IR remote, or RS-232. Advanced EDID management ensures compatibility with a wide range of displays and devices.

Key Features of BlueStream SW41AB-V2

• 4x HDMI inputs switchable to a single HDMI output
• Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
• HDCP 2.2 compliant
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
• CEC (Consumer Electronic Command) blocked from inputs to the end sink/display
• Control via front panel, RS-232, and IR
• Advanced EDID management

Video Handling

The SW41AB-V2 provides full 4K UHD 60Hz support with HDR and 3D playback. It supports legacy resolutions and ensures smooth video switching between multiple HDMI sources without signal degradation.

Audio & Control

Audio can be routed to analogue and optical outputs while preserving multichannel formats. Control is available via the front panel, IR remote, or RS-232, and advanced EDID management ensures reliable operation with a wide range of displays and devices.
