Blustream PRO16HBT70CS Custom Pro 16x16 HDBaseT™ CSC Matrix

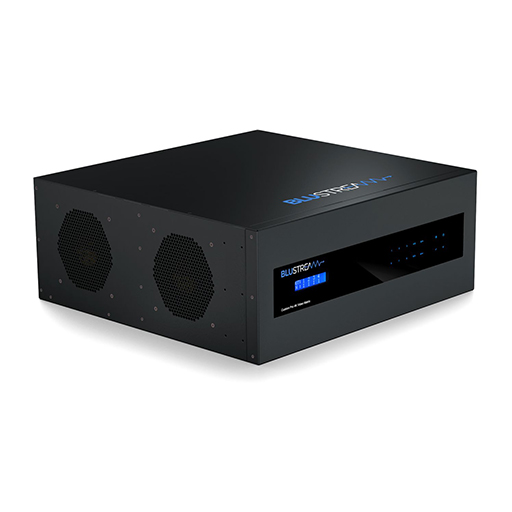

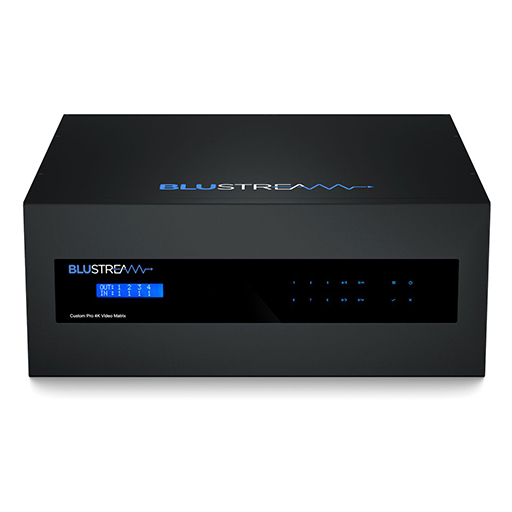

The Blustream PRO16HBT70CS is a pre-configured 16x16 HDBaseT™ CSC matrix designed for large-scale AV systems requiring extensive source routing and long-distance video distribution. It allows sixteen HDMI sources to be routed independently to sixteen HDBaseT™ outputs with simultaneous HDMI pass-through.

The matrix supports 4K UHD 60Hz 4:4:4 video up to 40m over HDBaseT™ and 1080p up to 70m, with automatic Colour Space Conversion for displays with lower capabilities. It features a 24x16 audio matrix with Dolby and DTS support, HDMI audio breakout, analogue L/R audio inputs, and full IR/RS-232 control. Operation is available via front panel, TCP/IP, RS-232, or web interface, making it suitable for complex commercial or residential AV installations.

Key Features of BlueStream PRO16HBT70CS

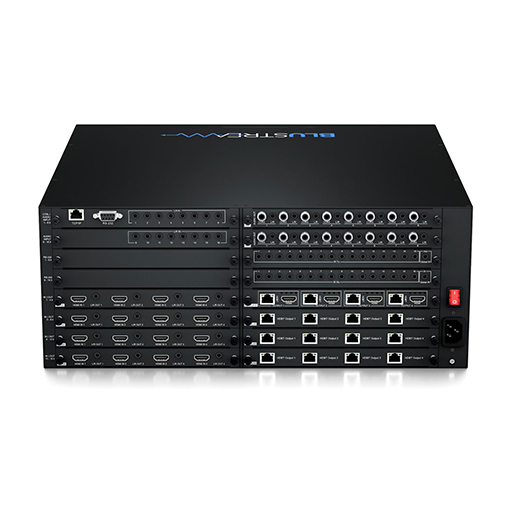

• Pre-configured Custom Pro Matrix bundle with 16 video inputs, 16 video outputs, audio breakout, and 2-way IR control
• Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 40m at 4K 60Hz 4:4:4, or up to 70m at 1080p
• HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats:
  • 1080p@60Hz (for screens that do not support 4K)
  • 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• 16 analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Extend 16 IR outputs for routed control of local source equipment
• 16 IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
• Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
• Audio breakout board with line-level volume control
• Web browser interface for control and configuration of matrix
• Control of matrix via front panel, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
• 3rd Party drivers available for major commercial & residential control brands
• Advanced EDID management
• HDCP 2.2 compliant

Video Distribution & Compatibility

Simultaneous HDBaseT™ and HDMI outputs with independent Colour Space Conversion ensure compatibility with all connected displays, allowing high-resolution 4K signals to be delivered over long distances without loss of quality.

Audio & Control Integration

Includes a 24x16 audio matrix supporting Dolby and DTS formats, HDMI audio breakout, and full IR/RS-232 integration. Control can be executed via front panel, TCP/IP, RS-232, or web interface, with optional third-party control system support.
