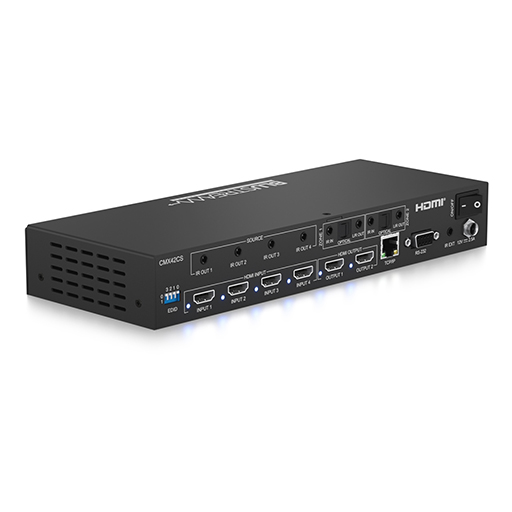

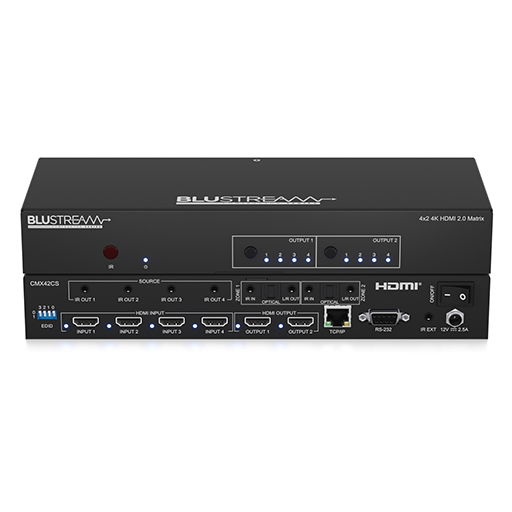

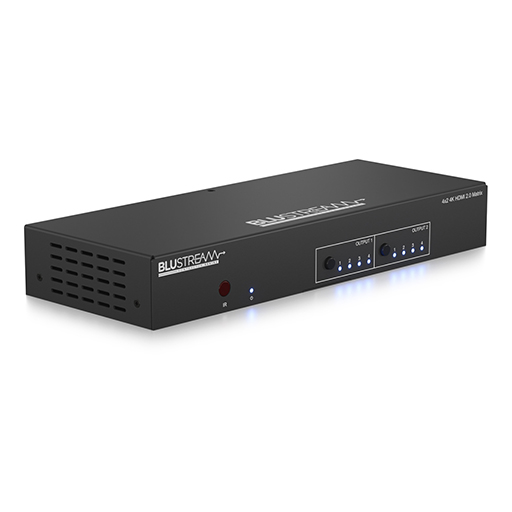

Blustream CMX42CS Contractor 4x2 4K 18Gbps HDMI 2.0 Matrix

The Blustream CMX42CS Contractor 4x2 HDMI 2.0 Matrix provides flexible routing of up to four HDMI sources to two displays, making it ideal for both residential and commercial AV setups. Delivering premium 4K video support and advanced integration capabilities, it represents unmatched value and flexibility for professional AV installers. Supporting full HDMI 2.0 with HDCP 2.2 compliance, the CMX42CS enables the reliable distribution of up to four HDMI source devices to two independent HDMI outputs.

All video resolutions up to 4K UHD at 60Hz 4:4:4 (18Gbps) are supported, ensuring full compatibility with the latest UHD and HDR content. Audio can be extracted via analogue L/R and coaxial outputs, while multiple control options, advanced EDID management, and IR routing allow seamless integration with existing AV systems.

Key Features of BlueStream CMX42CS

• Features 4 x HDMI inputs which can be independently routed to 2 x HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video output
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
• Control via front panel, TCP/IP, IR and RS-232
• IR routing
• Supplied with Blustream 5V IR receivers and emitters
• 3rd Party drivers available for all major control brands
• Advanced EDID management
• HDCP 2.2 support

Video Management

The CMX42CS allows high-quality 4K UHD video to be routed to two displays independently, with output down-conversion for compatibility with lower resolution screens. It supports all standard video resolutions and maintains consistent image quality across all outputs.

Audio Handling

Audio signals from HDMI sources can be extracted to analogue L/R and coaxial digital outputs, enabling integration with external sound systems while preserving multichannel surround sound, including Dolby and DTS formats.

Control and Integration

Multiple control options, including front panel, TCP/IP, RS-232, and IR, allow easy operation and integration into existing AV setups. Advanced EDID management and HDCP 2.2 compliance ensure compatibility with all HDMI sources and displays.
