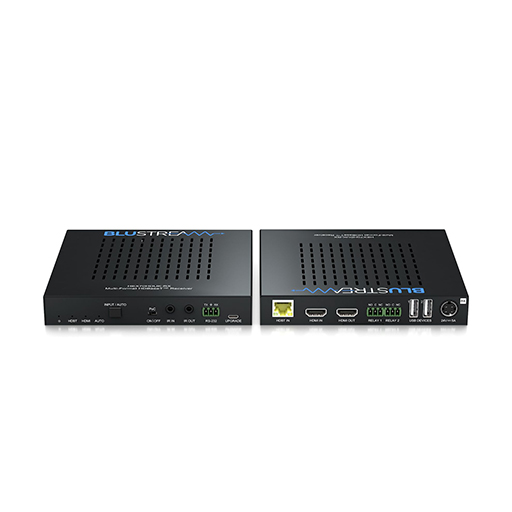

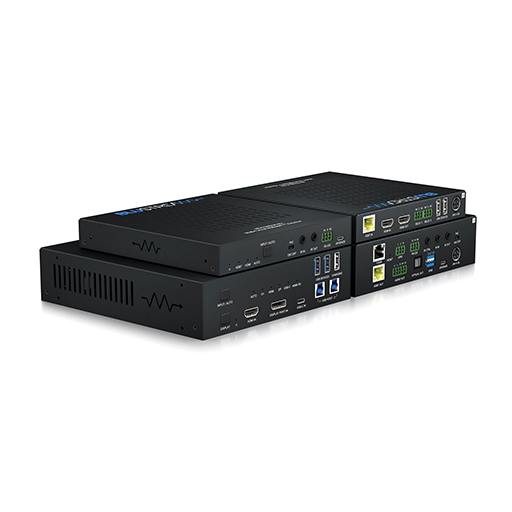

Blustream HEX70HDUK-KIT Multi Format HDBaseT™ CSC Extender Set

The Blustream HEX70HDUK-KIT is a versatile multi-format HDBaseT extender set designed to transmit 4K 60Hz 4:4:4 video, audio, USB, and control signals over a single CAT cable. With HDMI 2.0 and HDCP 2.2 support, it features Colour Space Conversion (CSC) to handle high-bandwidth content. The kit allows long-distance distribution of high-resolution signals while providing flexible input and control options for complex AV setups.

Key Features of BlueStream HEX70HDUK-KIT

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR

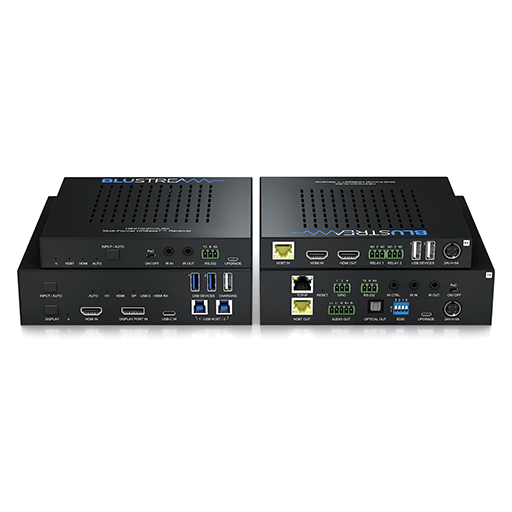

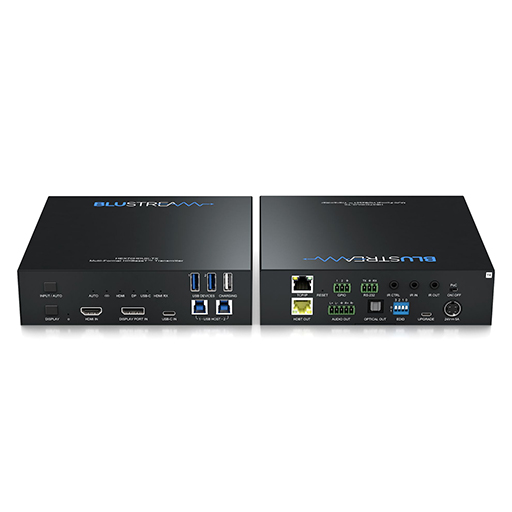

• Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selection
• Features 1 x local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p up to a distance of 70m over single CAT cable
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*
• Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2
• Features 2 x USB-Type A devices (RX - peripherals), 2 x USB-Type A devices (TX - peripherals) and 2 x USB Type-B (TX - host source specific) that support a combined data transmission bandwidth of up to 250Mbps
• USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
• Independent USB Type-A connection to support charging only of devices up to 5V 2A
• Audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently**
• Bi-directional IR pass-through
• Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232
• Web interface module for control and configuration of HEX70HDUK-KIT
• Control via front panel, IR, RS-232 and TCP/IP
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Advanced EDID and HDCP management

*USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device
**Analogue audio breakout supports 2ch PCM only

Flexible Multi-Format Connectivity

The HEX70HDUK-KIT accommodates HDMI, USB-C, and DisplayPort inputs, with automatic or manual source switching. Its receiver includes a local HDMI input for nearby sources, enabling seamless integration into diverse AV setups such as classrooms, conference rooms, and digital signage installations.

High-Quality Video and Audio Transmission

Supporting full 4K 60Hz 4:4:4 video and multichannel audio, the extender set maintains signal integrity over long distances. Audio can be routed to both analogue and digital outputs, ensuring clear sound and high-definition visuals for professional AV applications.

Comprehensive Control and Management

Control options include front panel, IR, RS-232, TCP/IP, and a web interface, with bi-directional IR and RS-232 pass-through. Auto display on/off functionality allows centralized control of connected displays, while advanced EDID and HDCP management ensures compatibility across devices.
