Blustream UEX3D-WP-EU USB 3.2 Gen1 HDBaseT™ Extender EU Wall Plate - Device

The Blustream UEX3D-WP-EU is a USB 3.2 Gen1 HDBaseT™ wall plate device designed to extend high-speed USB connectivity over long distances using standard CAT cabling. Built for clean, in-wall installations, it provides convenient access to multiple USB device connections at the display or user end while maintaining reliable data transfer and power delivery when paired with a compatible Blustream host unit.

Key Features of BlueStream UEX3D-WP-EU

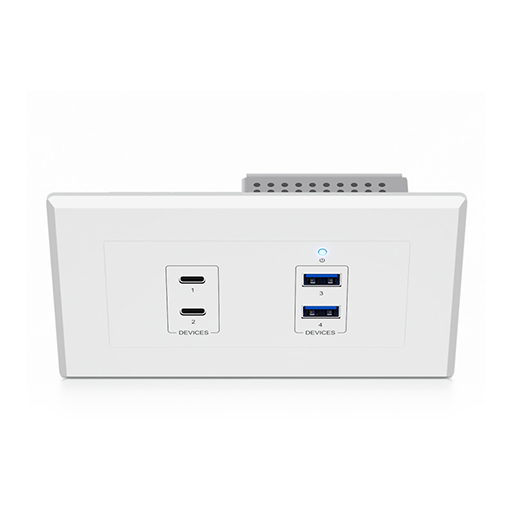

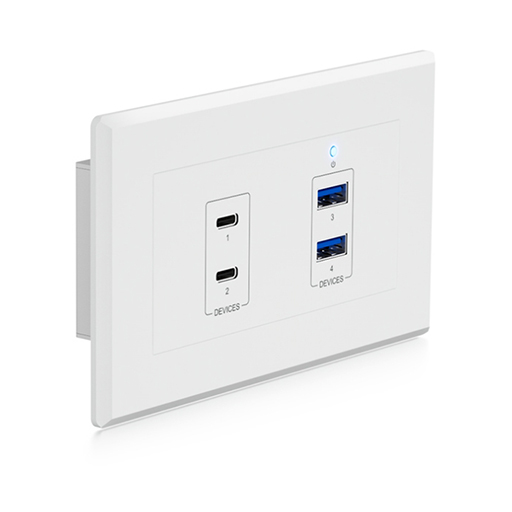

• USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB-C and 2 x USB-B ports for connection to USB devices
• Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
• Backwards compatible with USB 2.0 & 1.1 devices
• Combined USB 3.2 Gen1 data transfer rate up to 5Gbps *
• Provides up to 3A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands

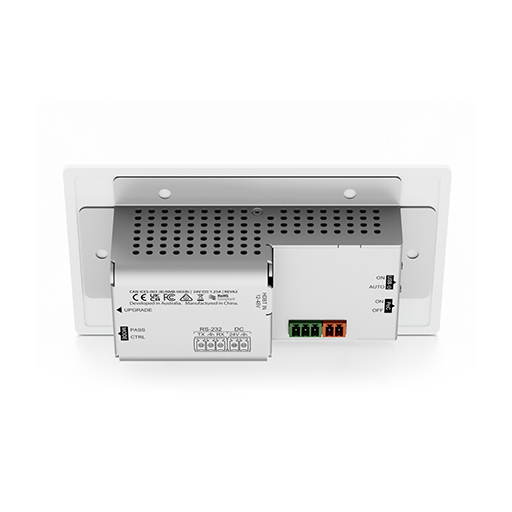

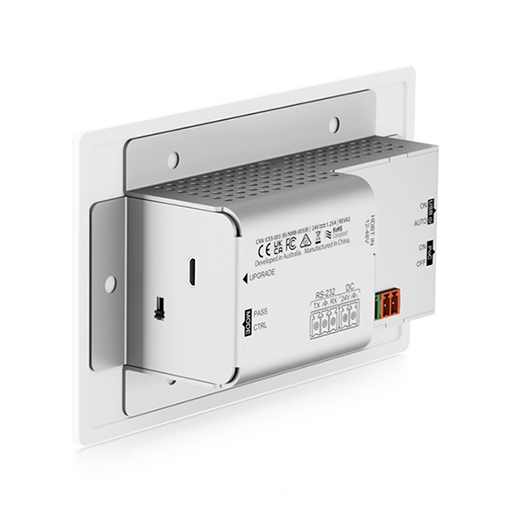

• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC) - PSU supplied with the device end of the link only
• Supports bi-directional RS-232 when used with compatible HDBaseT™ products
• PoC function can be enabled or disabled via dipswitch
• Simple plug and play operation with no driver installation or setup required

Compatible with Blustream UEX3H and UEX3H-WP

* Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

USB Connectivity

The UEX3D-WP-EU supports simultaneous connection of multiple USB peripherals through its dual USB-C and USB-B ports. This makes it well suited for cameras, storage devices, control peripherals, and other USB equipment that needs to be positioned away from the host system.

Power and Control

With bi-directional Power over Cable support, the wall plate can be powered from either end of the link depending on installation requirements. RS-232 pass-through allows compatible control systems to communicate seamlessly across the same HDBaseT™ connection.
