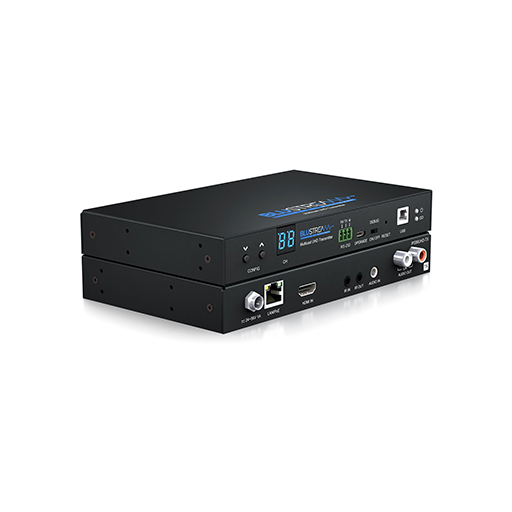

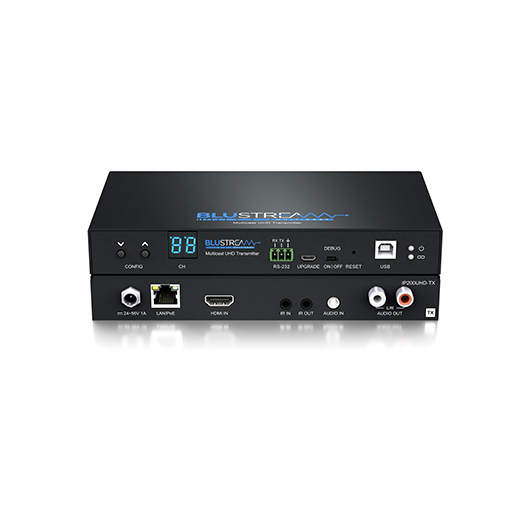

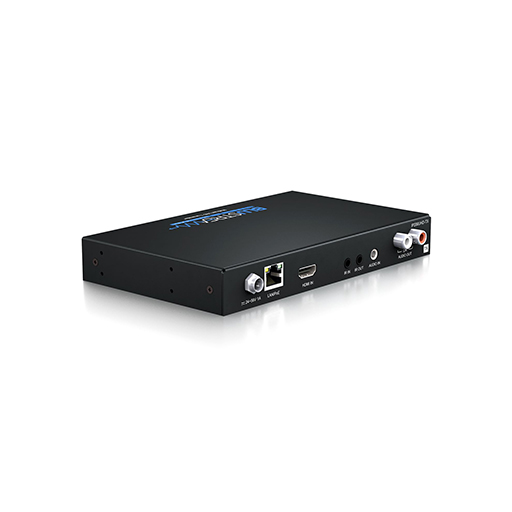

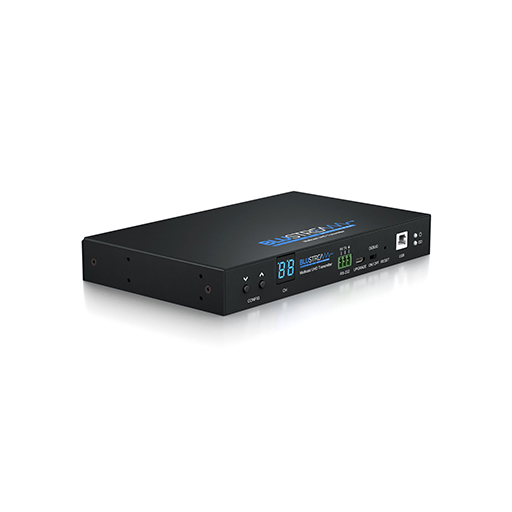

Blustream IP200UHD-TX UHD Video Transmitter

The Blustream IP200UHD-TX is a UHD video transmitter built to send high-quality HDMI video, audio, and control signals over a 1Gb Ethernet network. The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture. The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP200UHD-TX

• Advanced UHD video over 1Gb Network
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• Supports up to 4K HDR UHD video sources (3840 × 2160 @ 30Hz 4:4:4, 4096 × 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
• Supports bitstream passthrough of multichannel surround sound, including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio, and video
• PoE (Power over Ethernet) to power Blustream products from a PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Analogue L/R audio embedding
• Analogue L/R audio breakout
• Local 24-56V power supply (required if the Ethernet switch does not support PoE) - sold separately
• Features 4 operational modes:
  • Matrix distribution (requires 1Gb network switch)
  • Video wall (requires 1Gb network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

Distribution Modes

The transmitter can be used in matrix distribution and video wall setups when connected to a 1Gb network switch. It also operates as a direct HDMI extender in one-to-one or one-to-many configurations without a switch, providing versatile deployment options for both small and large AV systems.

Control and Integration

Integrated routing for IR, RS-232, and USB/KVM ensures that displays and connected devices can be managed centrally. This allows full control of system devices while maintaining synchronized video and audio performance across the network.

Power and Connectivity

The IP200UHD-TX can draw power directly from a PoE-enabled switch or an optional local power supply. This flexibility simplifies installation in locations where PoE may not be available while ensuring uninterrupted operation of the transmitter and connected devices.
