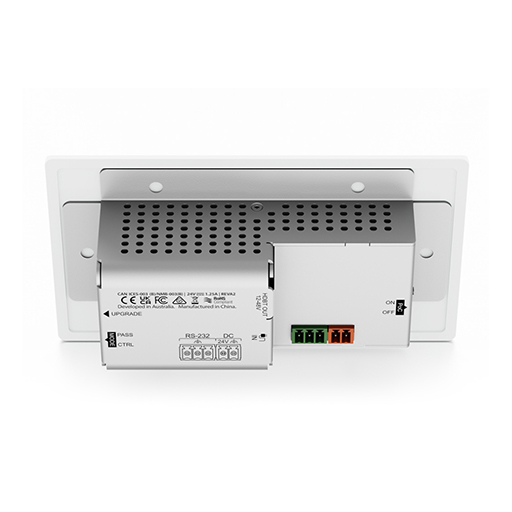

Blustream UEX3H-WP-EU USB 3.2 Gen1 HDBaseT™ Extender EU Wall Plate - Host

The Blustream UEX3H-WP-EU is a USB 3.2 Gen1 HDBaseT™ Host wall plate designed to extend high-speed USB connectivity over long distances using standard CAT cabling. The UEX3H-WP-EU allows 2 x USB Hosts to be switched between the 2 x local USB Devices as well as the Devices connected to a remote compatible Blustream USB HDBaseT™ Transmitter (Device) extender, with support for a combined transmission data bandwidth of up to 5Gbps.

The UEX3H-WP-EU is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT™ link. The UEX3H supports both auto or manual Host selection, which can be controlled via the front panel button, or RS-232 from 3rd party control solutions.

Key Features of BlueStream UEX3H-WP-EU

• USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB host devices and 2 x local USB devices
• Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
• Backwards compatible with USB 2.0 and USB 1.1 devices
• Combined USB 3.2 Gen1 data transfer rate up to 5Gbps *
• 1 x USB-A and 1 x USB-C port for connection to host devices with manual or auto switching
• 2 x USB-A ports for connection to local devices
• 1 x USB-C host charging port for connection of external power supply to power host device
• Provides up to 500mA combined power to USB devices (up to 500mA per single USB port)
• Configurable USB device power management via API commands
• Bi-directional Power over Cable (PoC) to power extenders from either the host or device unit (supports 12-48V PoC) - PSU supplied with the device end of the link
• Supports bi-directional RS-232 when used with compatible HDBaseT™ products
• PoC function can be enabled or disabled via dipswitch
• Simple plug and play, no driver installation or setup required

Compatible with Blustream UEX3D and UEX3D-WP

* Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling.

Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through

USB Connectivity

The UEX3H-WP-EU allows multiple USB devices to connect simultaneously, enabling remote peripherals like cameras, storage drives, and control devices to operate seamlessly alongside local devices.

Power and Control

Bi-directional Power over Cable provides flexible power delivery from either the host or device end. RS-232 support allows control systems to manage and switch USB devices remotely over the HDBaseT™ link.
