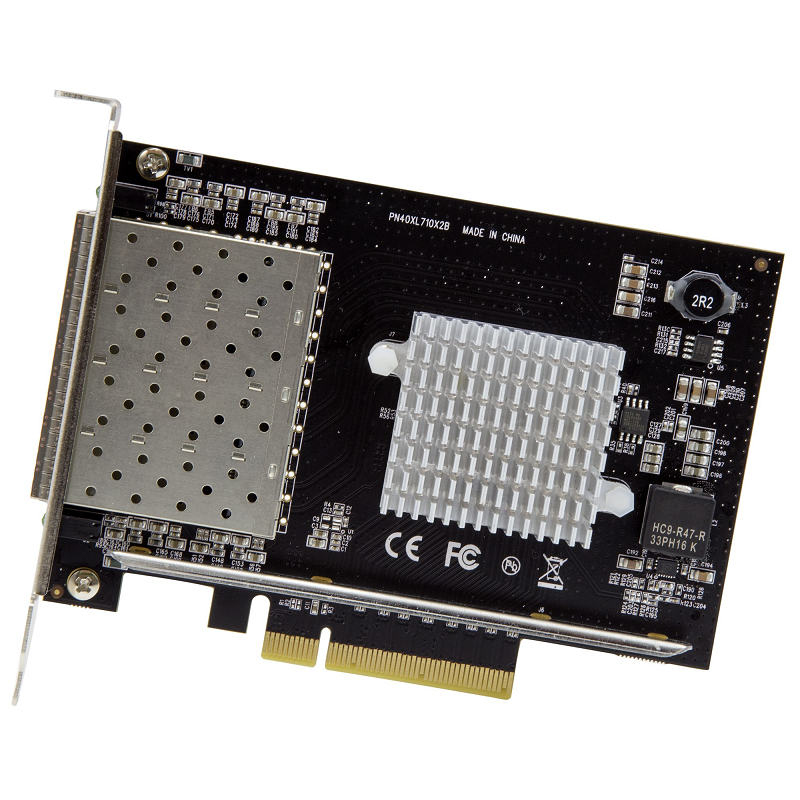

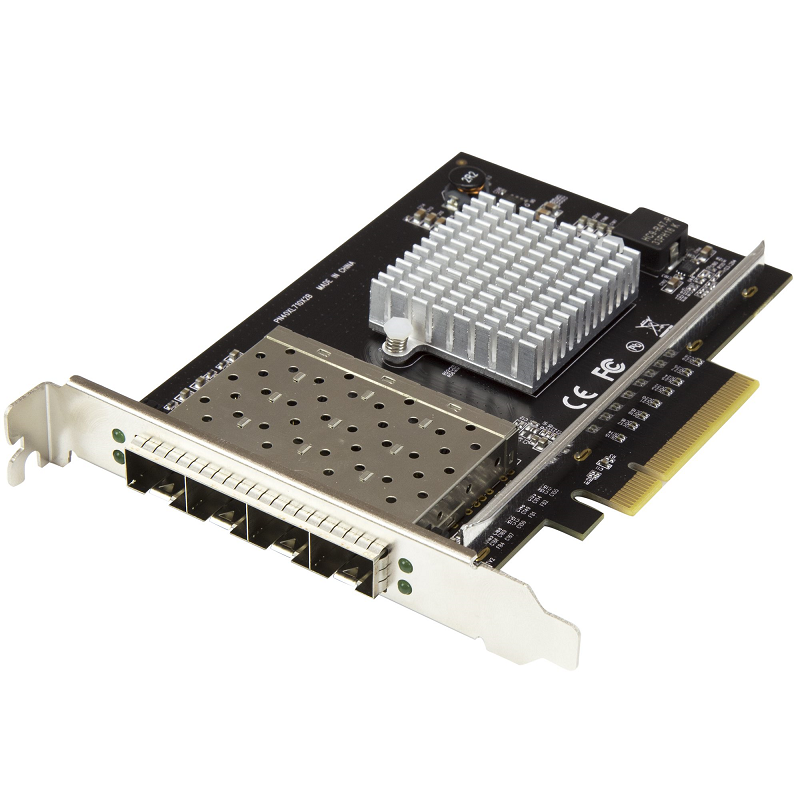

Quad Port 10G SFP+ Network Card - Intel XL710 Open SFP+ Converged Adapter - PCIe 10 Gigabit Ethernet Server NIC - 10GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant
Add four 10 Gigabit fiber Ethernet ports to your server or workstation, using the SFP+ transceiver of your choice
This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.
With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.
This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.
The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.

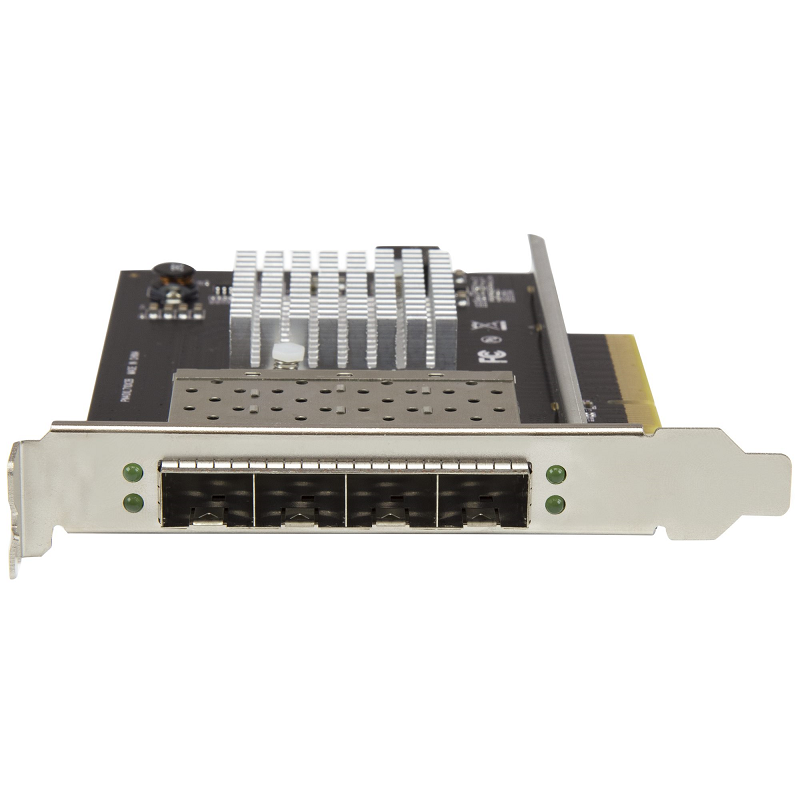

The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP modules to suit your network requirements. In addition, StarTech.com SFP cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.

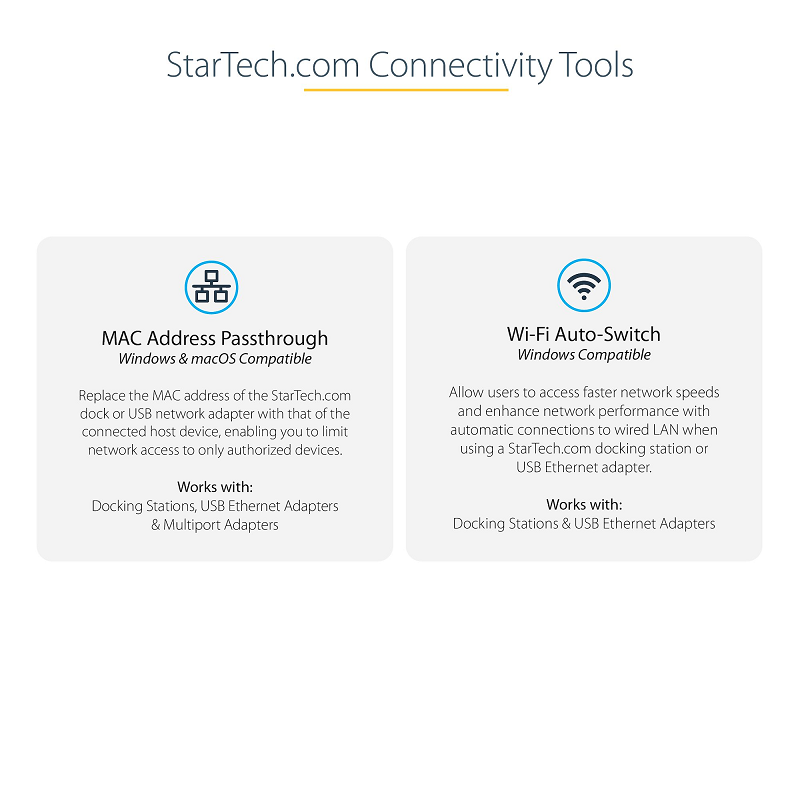

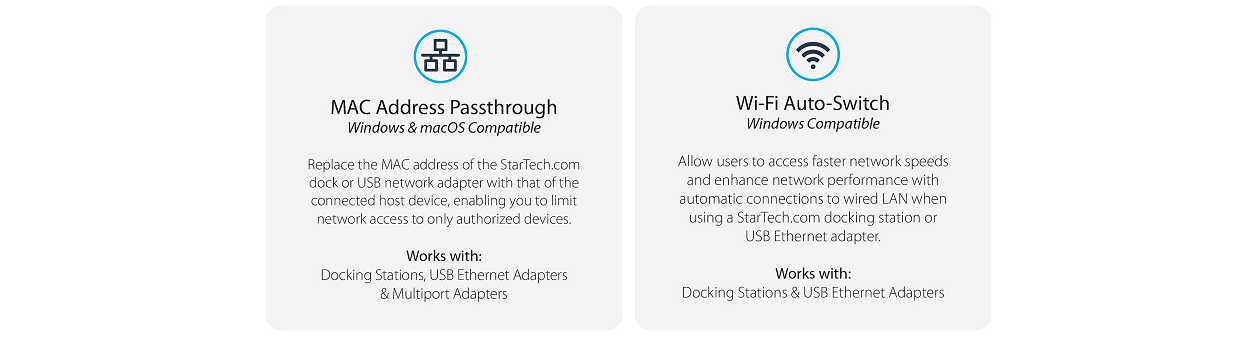

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
Ports & interfaces | |
Internal | Yes |
PCI version | 3.0 |
Fiber ports quantity | 4 |
Fiber optic connector | SPF+ |
Interface | Fiber |
Host interface | PCI Express |
Connectivity technology | Wired |
Bandwidth | |
Full duplex | Yes |
Maximum data transfer rate | 20000 Mbit/s |
Network | |
Chipset | Intel® XL710 |
VLAN tagging | Yes |
Jumbo frames | 9000 |
Networking standards | IEEE 802.1Q,IEEE 802.1ad,IEEE 802.3ae,IEEE 802.3x |
Jumbo frames support | Yes |
Full duplex | Yes |
Flow control support | Yes |
Maximum data transfer rate | 20000 Mbit/s |
Technical details | |
Product colour | Black |
Sustainability certificates | RoHS |
Design | |
Product colour | Black |
Chipset | Intel® XL710 |
Certification | CE, FCC, REACH |
Internal | Yes |
LED indicators | Activity, Link |
Operational conditions | |
Operating temperature (T-T) | 5 - 50 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 80 % |
Weight & dimensions | |
Width | 15 mm |
Depth | 139 mm |
Height | 100 mm |
Weight | 122 g |
Packaging data | |
Package width | 142 mm |
Package depth | 170 mm |
Package height | 30 mm |
Package weight | 182 g |

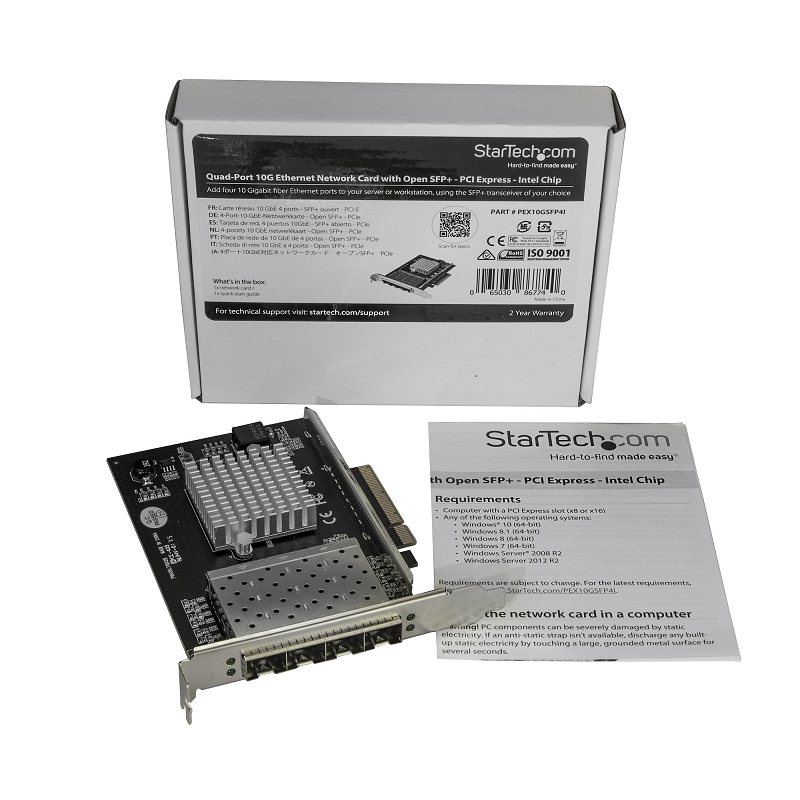

Quick start guide | Yes |
Logistics data | |
Master (outer) case width | 30.5 cm |
Master (outer) case length | 58 cm |
Master (outer) case height | 36 cm |
Quantity per master (outer) case | 80 pc(s) |
Other features | |
Jumbo frames | 9000 |
Chipset | Intel® XL710 |
Quick start guide | Yes |
Flow control support | Yes |
Full specification and details can be found in the PDF file
A quick start guide can be found in the PDF file
