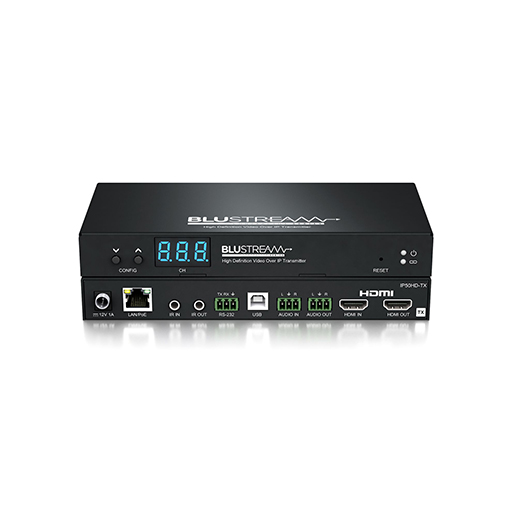

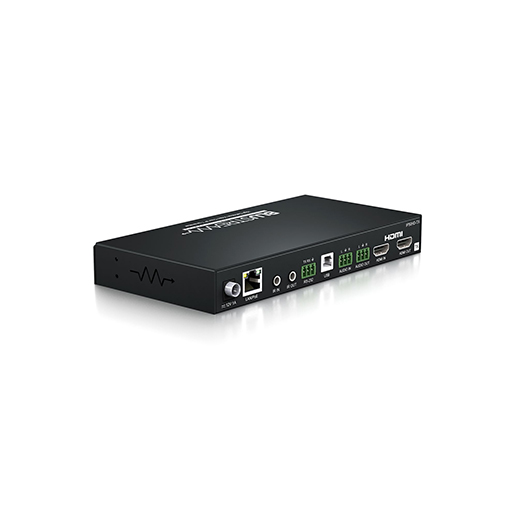

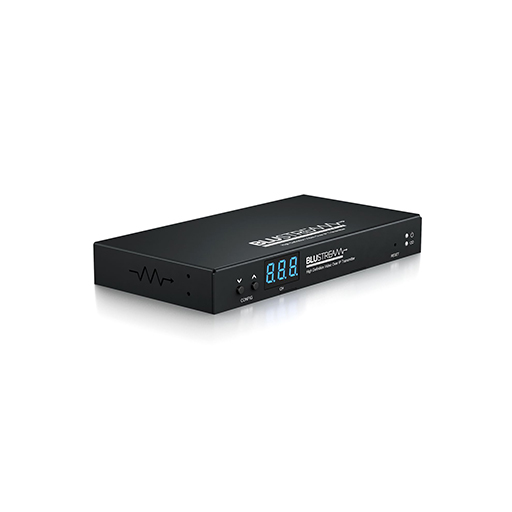

Blustream IP50HD-TX HD Video Transmitter

The Blustream IP50HD-TX is a high-definition video transmitter that delivers HDMI, audio, and control signals over a standard network using H.265 compression. The IP50HD-TX is an industry leading 1080p HDMI transmitter that, using H.265 compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB for KVM up to lengths of 100m over standard network architecture.

The transmitter includes a HDMI loop-out for cascading to multiple devices and can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP50HD-TX

• Advanced HD video, control, and KVM over network infrastructure
• Extends HDMI up to 100m over a single CAT cable
• Supports unicast transmission over unmanaged networks
• Supports multicast transmission for large managed networks
• Supports up to 1080p @ 60Hz
• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports PCM 2.0 channel audio only
• Advanced signal management for independent routing of IR, RS-232, USB 1.1 for KVM, and combined video/audio
• PoE (Power over Ethernet) to power the product from a PoE switch
• HDCP 1.4 compliant with advanced EDID management
• Analogue L/R audio embedding and audio breakout (2ch PCM only)
• Local 12V 1A power supply required if Ethernet switch does not support PoE (supplied separately)
• Features two operational modes:
  • Matrix distribution (requires 100Mbps network switch)
  • One-to-one HDMI extender (no network switch required)

Video Performance

The IP50HD-TX transmits full HD 1080p video with accurate colours and smooth frame rates. The built-in HDMI loop-out allows local display connection or cascading to multiple receivers without compromising signal quality.

Audio and Control

Audio is transmitted as PCM 2.0 and can be broken out via analogue L/R outputs. Bi-directional IR, RS-232, and USB 1.1 signals enable KVM functionality and integration with control systems.

Deployment Flexibility

The IP50HD-TX supports both matrix distribution via a 100Mbps network switch and simple point-to-point HDMI extension, providing versatile deployment options for classrooms, meeting rooms, and commercial AV installations.
