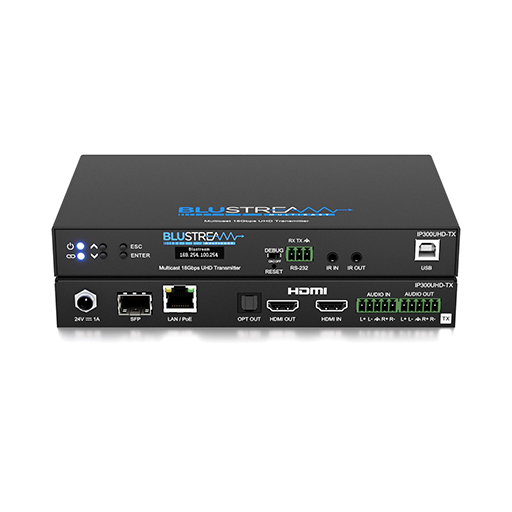

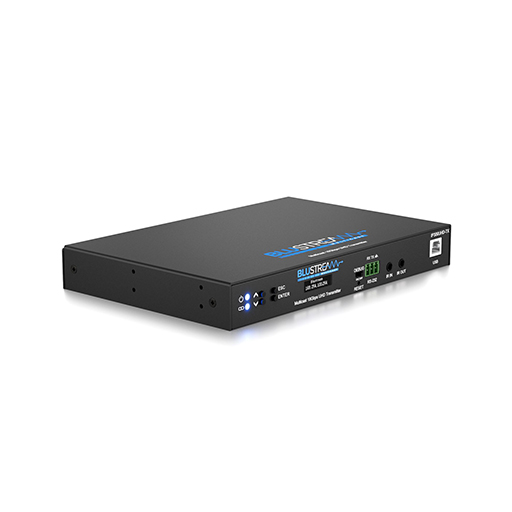

Blustream IP300UHD-TX 18Gbps UHD Video Transmitter

The Blustream IP300UHD-TX is an 18Gbps UHD video transmitter designed to send 4K HDMI video, audio, and control signals over a 1Gb managed network. Featuring full interoperability with the IP350UHD product line where Dante may be required, the IP300UHD-TX is an industry leading 4K HDCP2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, embedded audio, ARC / eARC / optical audio return, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m / 328ft over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.

The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of a video over IP platform makes this solution ideal for a variety installation types across commercial and residential systems.

Key Features of BlueStream IP300UHD-TX

• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m / 328ft over a single CAT cable
• SFP port for long-distance signal distribution over fibre
• 1 × HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
• PoE (Power over Ethernet) to power Blustream unit from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Audio breakout to analogue L/R audio, supporting both balanced and unbalanced audio signals
• Balanced/unbalanced analogue audio input for replacing the HDMI embedded audio with a different audio signal
• HDMI ARC, eARC, or optical audio return from a display connected to an IP300UHD or IP350UHD receiver
• OLED front panel display for advanced system information and manual configuration
• Optional 24V power supply (should Ethernet switch not support PoE)
• Compatible with Blustream IP300UHD-RX and IP350UHD-RX products
• IP300UHD/IP350UHD platform features 4 operational modes:
  • Matrix distribution (requires 1Gb network switch)
  • Video wall (requires 1Gb network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

Distribution Modes

The IP300UHD-TX can operate in matrix distribution and video wall configurations over a managed network switch. It also supports one-to-one and one-to-many HDMI extender setups without a switch, providing flexibility for both small and large AV installations.

Audio and Control Management

Integrated audio breakout, analogue inputs/outputs, and HDMI ARC/eARC support allow precise audio routing. IR, RS-232, and USB/KVM control enable centralized management of connected devices while maintaining synchronized video and audio performance.

Power and Connectivity

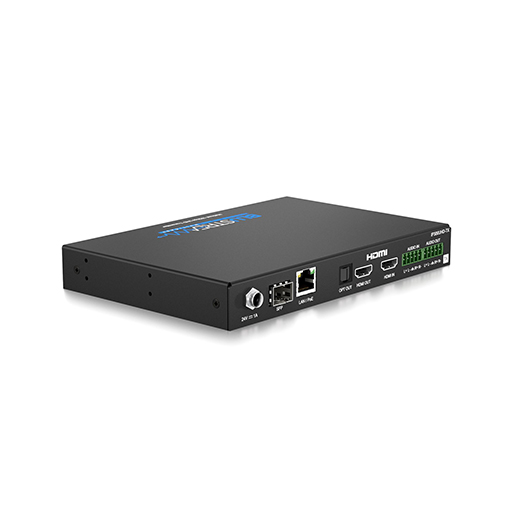

The transmitter can be powered via PoE from a compatible switch or an optional 24V local supply. Dual network ports, SFP fibre interface, and HDMI loop-out provide multiple connectivity options for short- and long-distance installations.
