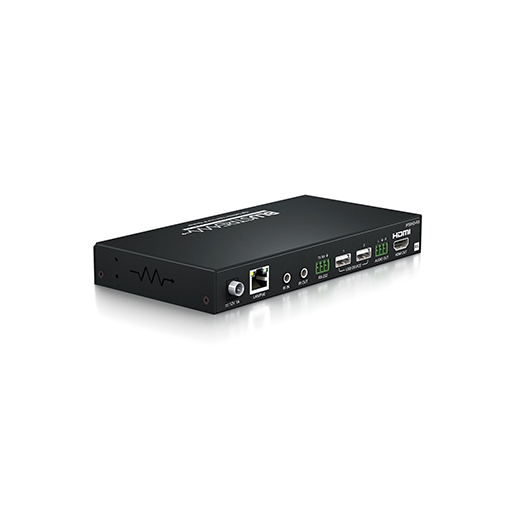

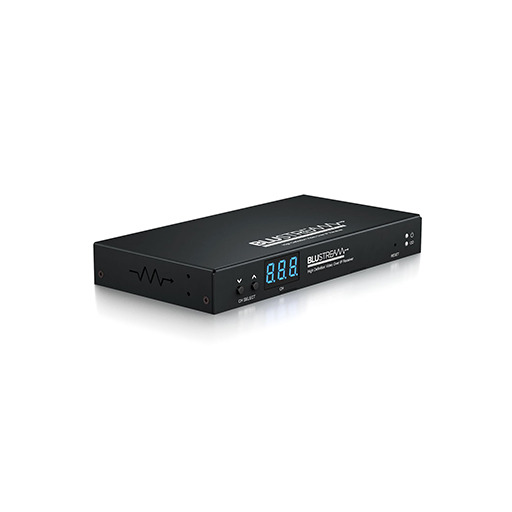

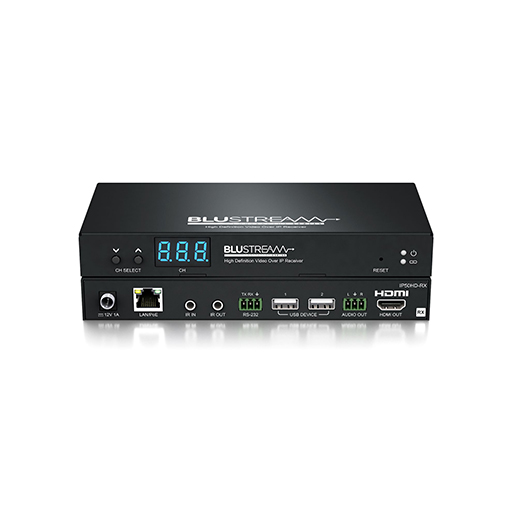

Blustream IP50HD-RX HD Video Receiver

The Blustream IP50HD-RX is a high-definition video receiver designed to deliver HDMI, audio, and control signals over a standard network using H.265 compression. The IP50HD-RX is an industry leading 1080p HDMI video scaling receiver that, using H.265 compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB for KVM up to lengths of 100m over standard network architecture.

The receiver can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP50HD-RX

• Advanced HD video, control, and KVM over network infrastructure
• Extends HDMI up to 100m over a single CAT cable
• Supports unicast transmission over unmanaged networks
• Supports multicast transmission for large managed networks
• In-built video scaler allows inclusion of displays with differing resolutions (1080p max)
• Supports up to 1080p @ 60Hz video output
• Supports PCM 2.0 channel audio only
• Advanced signal management for independent routing of IR, RS-232, USB 1.1 for KVM, and combined video/audio
• PoE (Power over Ethernet) to power Blustream products from a PoE switch
• HDCP 1.4 compliant with advanced EDID management
• Analogue L/R audio breakout
• Local 12V 1A power supply required if Ethernet switch does not support PoE (not included)
• Features two operational modes:
  • Matrix distribution (requires 100Mbps network switch)
  • One-to-one HDMI extender (no network switch required)

Video Performance

The IP50HD-RX delivers full HD 1080p video with accurate colour reproduction and smooth frame rates. Its built-in video scaler ensures consistent output quality across displays with different native resolutions.

Audio and Control

Audio is transmitted as PCM 2.0 with optional analogue breakout. Bi-directional IR, RS-232, and USB 1.1 pass-through allows for KVM control and integration with remote automation systems.

Deployment Flexibility

With support for both matrix distribution and direct HDMI extension, the IP50HD-RX can be deployed in small point-to-point setups or as part of a larger managed network, providing flexible AV distribution options for various environments.
