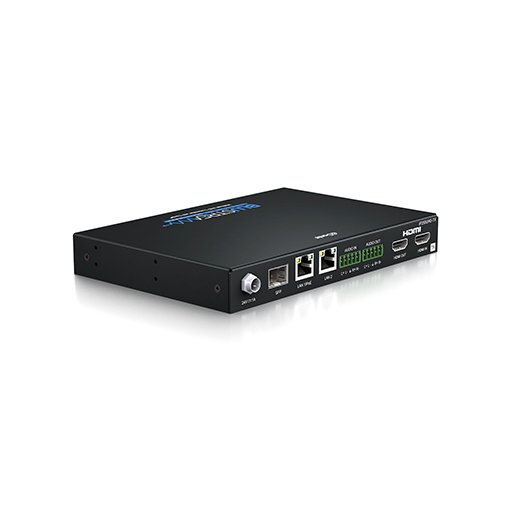

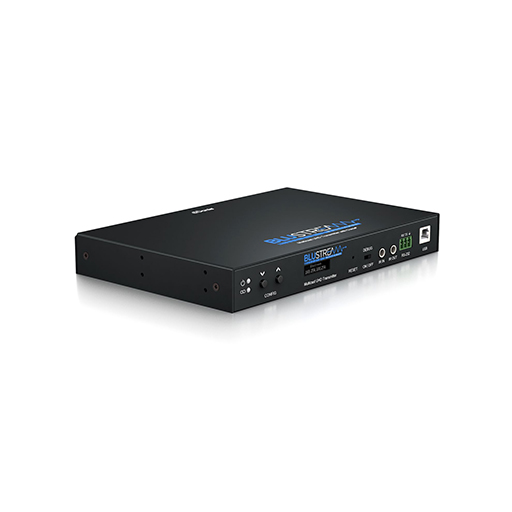

Blustream IP250UHD-TX UHD Video Transmitter

The Blustream IP250UHD-TX is a UHD video transmitter built to deliver high-quality HDMI and Dante audio signals over a 1Gb managed network. Compatible with the current IP200 platform, the IP250UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 10Gb HDMI, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built fibre SFP port. The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.

Key Features of BlueStream IP250UHD-TX

• Advanced UHD video over 1Gb Managed Network
• Operates as a stand-alone system, or together with existing IP200UHD products
• Virtually unlimited system size
• Extends HDMI and Dante up to a distance of 100m over a single CAT cable

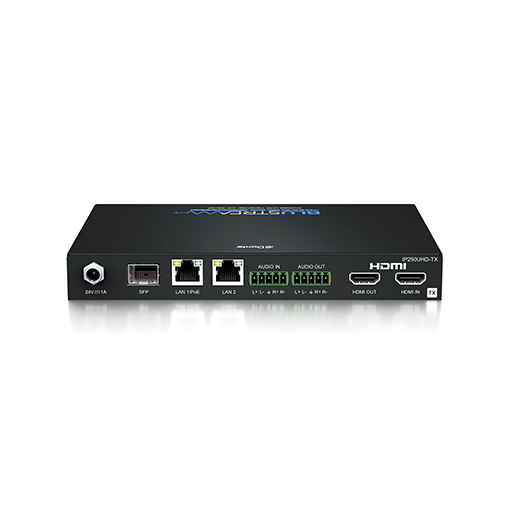

• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
• Supports up to 4K HDR UHD video sources (3840 × 2160 @ 30Hz 4:4:4, 4096 × 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
• Supports HDR input @ 4K 30/25/24Hz
• Features 1 × HDMI loop-out for integrating local displays or cascading to multiple devices
• In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
• In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
• Analogue L/R audio embedding
• Analogue L/R audio outputs support both balanced and unbalanced audio signals
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video

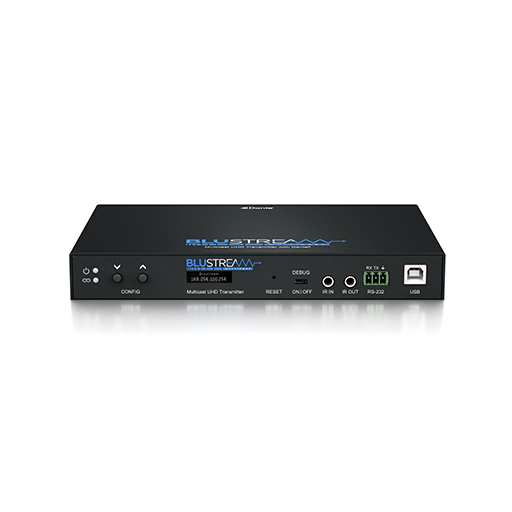

• OLED front panel display for advanced system information and manual configuration
• PoE (Power over Ethernet) to power Blustream Multicast products from a PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Local 24V 1A power supply if Ethernet switch does not support PoE (not included)
• Features 4 operational modes:
  • Matrix distribution (requires 1Gb network switch)
  • Video wall (requires 1Gb network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

Distribution Modes

The IP250UHD-TX can operate in matrix distribution or video wall configurations when connected to a 1Gb network switch. It also functions in one-to-one or one-to-many HDMI extender setups without a switch, making it adaptable for both small and large AV systems.

Audio and Control Management

Integrated Dante audio, analogue inputs/outputs, and HDMI loop-out allow flexible audio routing. IR, RS-232, and USB/KVM support provide full control of connected devices across the network while maintaining consistent video and audio performance.

Power and Connectivity

The transmitter can be powered via PoE from a compatible network switch or with an optional 24V local power supply. Dual Ethernet ports and an SFP fibre interface provide versatile connectivity for both short and long-distance installations.
