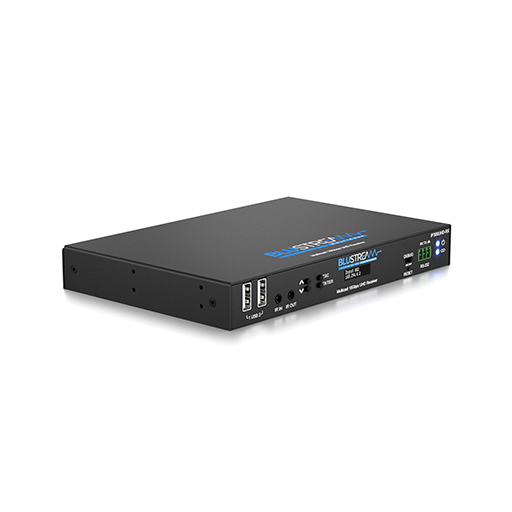

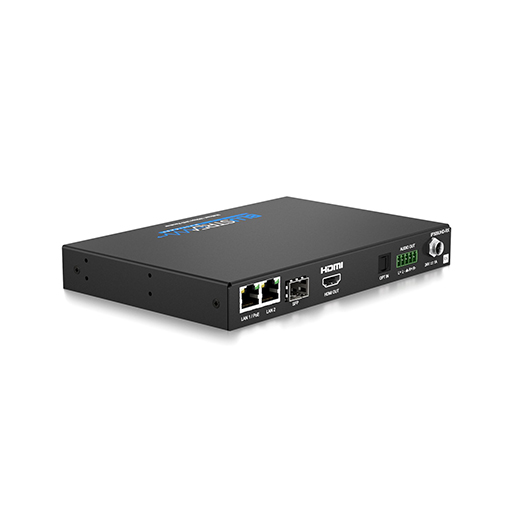

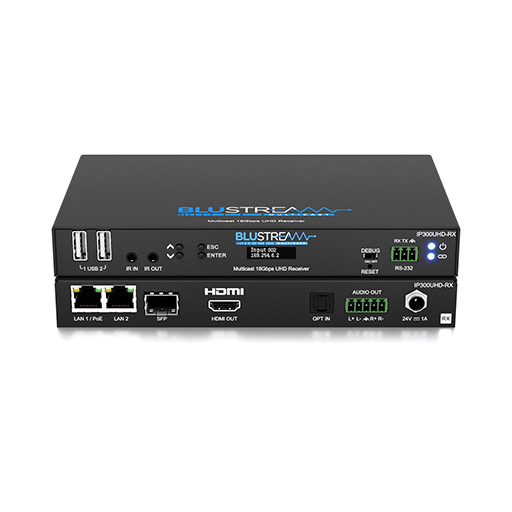

Blustream IP300UHD-RX 18Gbps UHD Video Receiver

The Blustream IP300UHD-RX is an 18Gbps UHD video receiver designed to deliver 4K HDMI video, audio, and control signals over a 1Gb managed network. It supports HDR and full 4:4:4 chroma, allowing high-fidelity video distribution across multiple displays.

Featuring full interoperability with the IP350UHD product line, the IP300UHD-RX is an industry leading 4K HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.

The IP300UHD-RX features a second RJ45 LAN port for daisy chaining the HDMI signal onto further IP300UHD-RX units. With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K. The scaling capabilities of this unit also allow for videowalls to be created where needed.

The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.

Key Features of BlueStream IP300UHD-RX

• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m / 328ft over a single CAT cable
• SFP port for long-distance signal distribution over fibre
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
• PoE (Power over Ethernet) to power Blustream unit from a PoE switch
• HDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the system
• Analogue L/R audio output supports both balanced and unbalanced audio signals
• HDMI ARC, eARC, or optical audio return from display to an IP300UHD or IP350UHD transmitter
• LAN loop-out for one-to-many extender mode
• OLED front panel display for advanced system information and manual configuration
• Optional 24V power supply (should Ethernet switch not support PoE)
• Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products
• Features 4 operational modes:
  • Matrix distribution (requires 1Gb network switch)
  • Video wall (requires 1Gb network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

Distribution Modes

The IP300UHD-RX supports matrix distribution and video wall setups over a managed network switch. It also functions as a direct one-to-one or one-to-many HDMI extender without requiring a switch, offering versatility for both small and large AV networks.

Audio and Control Management

Integrated HDMI audio, analogue outputs, and ARC/eARC support allow flexible audio routing. IR, RS-232, and USB/KVM control interfaces enable centralized management of connected devices while maintaining synchronized video and audio delivery.

Power and Connectivity

The receiver can be powered via PoE from a compatible switch or an optional 24V local power supply. Dual LAN ports and an SFP fibre interface provide multiple connectivity options for both short and long-distance installations.
