Grandstream Managed Network Switches

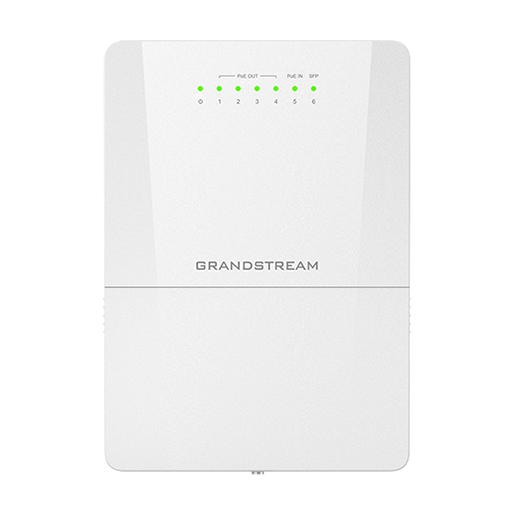

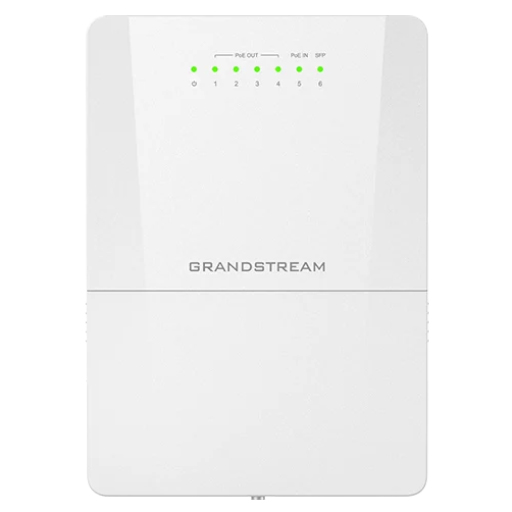

Grandstream GWN7710R 6-Port Outdoor L2 Lite Managed PoE Switch The Grandstream GWN7710R is an outdoor L2 Lite managed PoE switch for business and surveillance networks across campuses, parks and other exposed locations. Its IP66-rated metal enclosure protects against dust and adverse weather, while the -40°C to 60°C operating range suits demanding deployments.

Five Gigabit RJ45 ports provide four configurable PoE outputs and one PoE input. A separate 1G/2.5G SFP port supports a compatible fibre transceiver for links to other network infrastructure.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 2.75em; } 5 x Gigabit RJ45 ports and 1 x 1G/2.5G SFP fibre port
Port 5 supports IEEE 802.3af/at/bt PoE input
Ports 1-4 support IEEE 802.3af/at PoE/PoE+ output at up to 30W per port
Configurable 24V or 48V passive PoE output, including up to 60W from port 1
12-57V DC input through the supplied Phoenix [pluggable terminal block] connector
Up to 60W PoE output budget with PoE++ input or 100W with a suitable DC input
15Gbps switching, 11.16Mpps forwarding, 8K MAC [Media Access Control] address table and jumbo frames up to 15KB
IP66-rated metal enclosure with ±16kV air and contact ESD [Electrostatic Discharge] protection
-40°C to 60°C operating temperature range
Pole, wall or DIN-rail mounting
Flexible PoE Input and Output
The GWN7710R can receive power through its PoE input port or a suitable external 12-57V DC source. IEEE 802.3af, 802.3at and 802.3bt inputs provide PoE output budgets of 3W, 15W and 60W respectively; DC input can provide up to 60W, 72W or 100W according to voltage.

In default standard PoE mode, ports 1-4 can each provide up to 30W to compatible IEEE 802.3af/at devices. Configurable 24V or 48V passive output supports compatible equipment, including up to 60W from port 1 in four-pair 48V mode. PoE Watchdog can detect an unresponsive device and restart its power automatically.

L2 Lite Network Management
The GWN7710R supports port-based, 802.1Q and Voice VLANs to separate network traffic, together with QoS, bandwidth control, IGMP snooping, link aggregation, storm control, DHCP snooping, spanning tree and loop prevention. It can be configured and monitored through the local web interface, the GDMS Networking cloud platform or the on-premise GWN Manager platform.

Key Benefits

Extends managed Gigabit, fibre and PoE connectivity into exposed outdoor locations
Supports standard and passive PoE output for a wider range of compatible network equipment
Offers flexible powering through PoE input or an external DC source
Separates voice, surveillance and general network traffic using configurable VLANs
Supports cloud, on-premise and local web-based management
Allows pole, wall or DIN-rail installation to suit different deployment locations



Comms Express offers related GWN7710R and GWN7711 L2 Lite managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7710R - Outdoor, IP66, 5 Gb ports + 1 x 1G/2.5G SFP, 15Gbps switching
GWN7711 - 8 Gb ports, 16Gbps switching, plastic case, desk/wall-mount
GWN7711P - 8 Gb ports, 16Gbps switching, 4 PoE/PoE+ ports, 60W PoE budget
For a wider choice of networking equipment, Comms Express carries a vast range of products, including:

Grandstream Switches for a greater choice of Grandstream switches
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
The package includes the GWN7710R switch, mounting brackets, a Quick Installation Guide, four assembled screws, four expansion screws, two metal straps and a Phoenix connector.

*For complete specifications see the documentation tab above

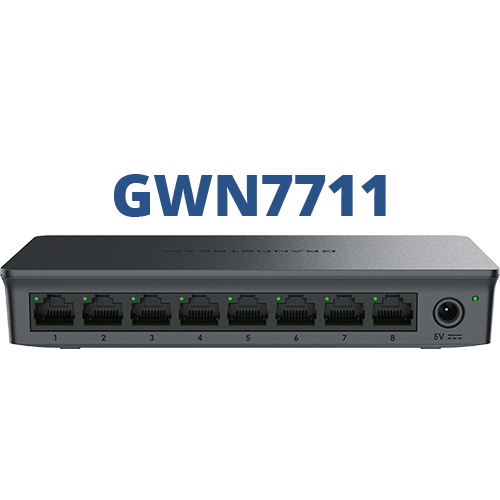

Grandstream GWN7711 8-Port L2 Lite Managed Network Switch The Grandstream GWN7711 is an 8-port L2 Lite managed network switch for small-to-medium businesses, hotels, schools and home offices. It provides Gigabit connectivity with configurable traffic management and security in a compact plastic enclosure.

All eight RJ45 ports support Gigabit Ethernet, while desktop or wall-mount installation provides flexibility for different locations. A Kensington security slot helps protect the switch in shared or publicly accessible areas.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 2.75em; } 8 x Gigabit RJ45 ports
16Gbps switching capacity and 11.9Mpps forwarding rate
8K MAC [Media Access Control] address table and jumbo frames up to 15KB
Up to 32 VLANs with port-based, 802.1Q and Voice VLAN support
4 link aggregation groups, IGMP snooping and report message suppression
QoS [Quality of Service] with port, 802.1p and DSCP priority, bandwidth control and rate limiting
SNMP [Simple Network Management Protocol] support and LLDP [Link Layer Discovery Protocol] endpoint discovery
Port statistics, cable testing, port mirroring and loop detection
Storm control, DHCP snooping, spanning tree and loop prevention
Local web, GDMS Networking and GWN Manager configuration and monitoring
L2 Lite Network Management
The GWN7711 supports port-based, 802.1Q and Voice VLANs for separating network traffic. QoS, bandwidth control, IGMP snooping and link aggregation help administrators manage traffic and network performance, while configuration and monitoring are available through the local web interface, GDMS Networking or GWN Manager.

Network Monitoring and Protection
Cable testing, port mirroring, port statistics and loop detection help locate network problems. Storm control monitors broadcast, multicast and unicast traffic, while DHCP snooping, spanning tree and loop prevention help maintain a stable and secure network.

Key Benefits

Connects up to eight wired network devices at Gigabit speeds
Separates voice and general network traffic using configurable VLANs
Prioritises important applications and controls bandwidth use
Simplifies fault-finding with integrated monitoring and diagnostic tools
Supports local, cloud and on-premise network management
Allows desktop or wall-mount installation to suit different locations





Comms Express offers the GWN7711 and GWN7711P L2 Lite managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7711 - 8 Gb ports, 16Gbps switching, plastic case, desk/wall-mount
GWN7711P - 8 Gb ports, 16Gbps switching, 4 PoE/PoE+ ports, 60W PoE budget
For a wider choice of networking equipment, Comms Express carries a vast range of products, including:

Grandstream Switches for a greater choice of Grandstream switches
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
The package includes the GWN7711 switch, a Quick Installation Guide and power adapter.

*For complete specifications see the documentation tab above

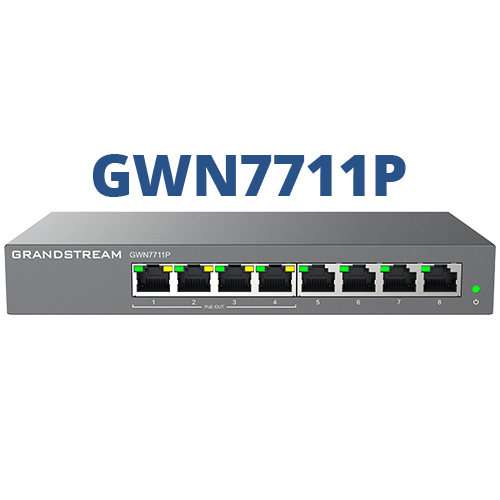

Grandstream GWN7711P 8-Port L2 Lite Managed PoE Switch The Grandstream GWN7711P is an 8-port L2 Lite managed PoE switch for small-to-medium businesses, hotels, schools and surveillance networks. It combines Gigabit connectivity, configurable traffic management and network security with PoE output for powered devices.

Four of its eight Gigabit RJ45 ports can power IP phones, cameras, wireless access points and other compatible devices. Standard PoE/PoE+ and configurable passive PoE modes provide flexible deployment, while the metal enclosure supports desktop or wall-mount installation.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 2.75em; } 8 x Gigabit RJ45 ports, including 4 PoE output ports
Ports 1-4 support IEEE 802.3af/at PoE/PoE+ output at up to 30W per port, with a 60W total PoE budget
Configurable 24V passive PoE output from ports 1-4 and up to 60W 48V four-pair passive output from port 1
Smart dynamic PoE power allocation, real-time power monitoring and uninterrupted output during soft restarts
16Gbps switching, 11.9Mpps forwarding, 8K MAC [Media Access Control] address table and jumbo frames up to 15KB
Up to 32 VLANs with port-based, 802.1Q and Voice VLAN support
4 link aggregation groups, IGMP snooping and report message suppression
QoS [Quality of Service] with port, 802.1p and DSCP priority, bandwidth control and rate limiting
Local web, GDMS Networking and GWN Manager management, with SNMP [Simple Network Management Protocol], LLDP [Link Layer Discovery Protocol], cable testing and port mirroring
Storm control, DHCP snooping, spanning tree, loop prevention and PoE Watchdog
Flexible PoE Output
Ports 1-4 can provide IEEE 802.3af/at PoE/PoE+ output at up to 30W per port within a 60W total power budget. Smart power control dynamically allocates the available output and provides real-time monitoring and control of each PoE port.

For compatible equipment, ports 1-4 can instead be configured for passive 24V output, while port 1 also supports up to 60W in 48V four-pair passive mode. PoE output remains active during a soft restart, and PoE Watchdog can detect an unresponsive endpoint and restart its power automatically.

L2 Lite Network Management
The GWN7711P supports port-based, 802.1Q and Voice VLANs for separating network traffic. QoS, bandwidth control, IGMP snooping and link aggregation help administrators manage traffic and network performance, while configuration and monitoring are available through the local web interface, GDMS Networking or GWN Manager.

Network Monitoring and Protection
Cable testing, port mirroring, port statistics and loop detection help locate network problems. Storm control monitors broadcast, multicast and unicast traffic, while DHCP snooping, spanning tree and loop prevention help maintain a stable and secure network.

Key Benefits

Connects up to eight wired network devices at Gigabit speeds and powers up to four PoE endpoints
Supports standard and passive PoE output for a wider range of compatible equipment
Keeps PoE devices powered during soft restarts and can restart unresponsive endpoints
Separates voice, surveillance and general network traffic using configurable VLANs
Prioritises important applications and controls bandwidth use
Simplifies fault-finding with integrated monitoring and diagnostic tools
Supports local, cloud and on-premise network management
Allows desktop or wall-mount installation to suit different locations





Comms Express offers the GWN7711 and GWN7711P L2 Lite managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7711 - 8 Gb ports, 16Gbps switching, plastic case, desk/wall-mount
GWN7711P - 8 Gb ports, 16Gbps switching, 4 PoE/PoE+ ports, 60W PoE budget
For a wider choice of networking equipment, Comms Express carries a vast range of products, including:

Grandstream Switches for a greater choice of Grandstream switches
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
The package includes the GWN7711P switch, a Quick Installation Guide and power adapter.

*For complete specifications see the documentation tab above

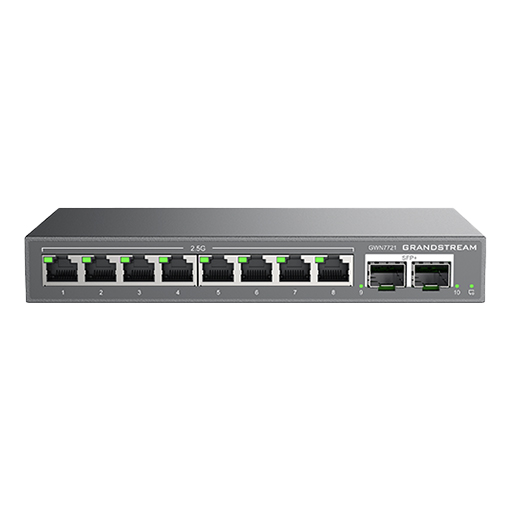

Grandstream GWN7721 10-Port Layer 2 Lite Managed Multi-Gigabit Network Switch with 8 x 2.5GbE & 2 x 10G SFP+ The Grandstream GWN7721 is a 10-port Layer 2 Lite managed multi-Gigabit network switch for small-to-medium business networks requiring faster wired connections. Eight 2.5-Gigabit RJ45 ports connect compatible computers, servers, wireless access points and other network devices, while two multi-rate 10G SFP+ ports support compatible transceivers for high-speed links to other network infrastructure.

An 80Gbps switching capacity, 40Gbps non-blocking throughput and Layer 2 Lite traffic controls help manage demanding network activity. VLAN segmentation, QoS, link aggregation, multicast management and network protection features are combined with local, cloud and on-premise management options.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 8 x 2.5-Gigabit RJ45 ports and 2 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting compatible 1Gbps, 2.5Gbps and 10Gbps modules
80Gbps switching capacity, 40Gbps non-blocking throughput, 59.52Mpps forwarding rate and 8Mb packet buffer
16K MAC [Media Access Control] address capacity, up to 32 VLANs [Virtual Local Area Networks] from 4K VLAN IDs and jumbo frames up to 9216 bytes
Port-based and 802.1Q VLANs, with up to 5 LAGs [Link Aggregation Groups] and 8 connections per group
STP/RSTP [Spanning Tree Protocol/Rapid Spanning Tree Protocol] for loop prevention, network stability and link redundancy
IGMP [Internet Group Management Protocol] Snooping and report message suppression for controlling multicast traffic
QoS [Quality of Service] with port priority, 802.1p and DSCP [Differentiated Services Code Point] mapping, SP/WFQ queue scheduling, bandwidth control and rate limiting
DHCP snooping, loop detection, firmware signature verification and password-protected hierarchical user management
Local web interface, GDMS Networking, GWN Manager and GWN App management, with SNMP monitoring
LLDP [Link Layer Discovery Protocol], Ping, port mirroring, cable testing and fibre-module monitoring for network diagnostics
Metal enclosure with desktop or wall mounting, an external 12V DC power adapter and Kensington security slot


High-Speed Multi-Gigabit Connectivity
Eight 2.5-Gigabit RJ45 ports provide increased bandwidth for compatible workstations, servers, network storage and wireless access points. The two SFP+ ports support compatible modules operating at 1Gbps, 2.5Gbps or 10Gbps, providing flexible connections to switches, servers and other network infrastructure.

The switch provides an 80Gbps switching capacity and 40Gbps non-blocking throughput, allowing all ports to handle high network traffic volumes without creating an internal switching bottleneck.

Layer 2 Lite Network Control
Port-based and 802.1Q VLANs can separate departments, services and device groups, with support for up to 32 active VLANs selected from 4K VLAN IDs. Link aggregation combines multiple physical connections to increase available bandwidth and provide connection redundancy.

STP and RSTP help prevent switching loops and maintain network stability if redundant connections are installed. DHCP snooping restricts DHCP traffic to trusted ports, while loop detection assists with identifying potentially disruptive connections.

Traffic Prioritisation and Multicast Management
QoS controls include port priority, 802.1p and DSCP priority mapping, SP and WFQ queue scheduling, bandwidth control and rate limiting. These options help administrators prioritise important applications and control how available bandwidth is shared between connected devices.

IGMP Snooping monitors multicast group activity and forwards multicast data only where required. Report message suppression reduces unnecessary control traffic, helping improve bandwidth use for applications such as video distribution and surveillance.

Flexible Management and Diagnostics
The GWN7721 can be configured through its local web interface or managed centrally using GDMS Networking, GWN Manager or the GWN App. SNMP supports remote monitoring and configuration management, while backup, restore and mass-provisioning options assist with ongoing administration.

Built-in Ping, port mirroring, copper cable testing and fibre-module monitoring tools help administrators investigate connection and performance problems. LLDP identifies compatible neighbouring network devices, while firmware signature verification helps protect the switch from unauthorised firmware files.

Key Benefits

Connects up to eight compatible 2.5-Gigabit wired devices
Adds two multi-rate SFP+ ports for high-bandwidth network connections
Provides 80Gbps switching capacity for simultaneous multi-Gigabit traffic
Separates departments, services and device groups using configurable VLANs
Combines connections for additional bandwidth and link redundancy
Prioritises important applications and controls bandwidth use
Optimises multicast traffic for video and surveillance applications
Supports local, cloud and on-premise management with integrated diagnostic tools
Offers flexible desktop or wall installation in a metal enclosure


Comms Express offers GWN7721 Series Layer 2 Lite and GWN7806 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7721 - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching
GWN7721P - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7806 - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching
GWN7806P - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching, 48 PoE/PoE+ ports, 400W PoE budget
For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:

Grandstream Fibre Modules for compatible modules to use in SFP/+ ports
SFPs & Fibre Transceivers for a wide range of modules from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
Network Switches for an impressive range of switches from other leading manufacturers
The package includes the GWN7721 switch, a power adapter, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above

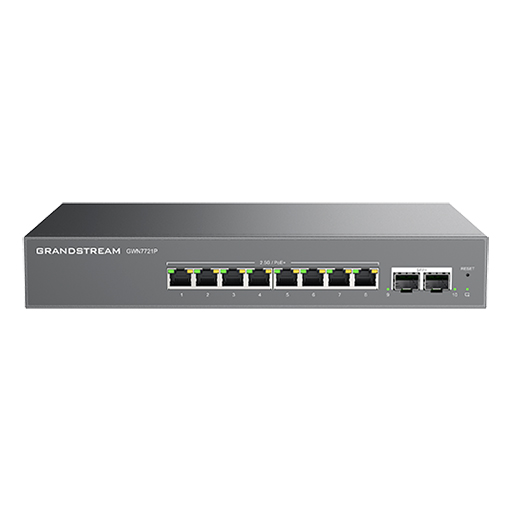

Grandstream GWN7721P 10-Port Layer 2 Lite Managed PoE Multi-Gigabit Network Switch with 8 x 2.5GbE & 2 x 10G SFP+ The Grandstream GWN7721P is a 10-port Layer 2 Lite managed PoE multi-Gigabit network switch for small-to-medium business networks requiring faster wired connections and centralised device power. Eight 2.5-Gigabit RJ45 ports connect and power compatible wireless access points, IP cameras, IP phones and other network devices, while two multi-rate 10G SFP+ ports support compatible transceivers for high-speed links to other network infrastructure.

Each RJ45 port can provide IEEE 802.3af/at PoE/PoE+ output at up to 30W within a 130W total PoE budget. Intelligent power monitoring, PoE Watchdog and continued PoE delivery during a soft reset help maintain connected-device availability. An 80Gbps switching capacity and Layer 2 Lite traffic controls support demanding network activity.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 8 x 2.5-Gigabit RJ45 ports and 2 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting compatible 1Gbps, 2.5Gbps and 10Gbps modules
IEEE 802.3af/at PoE/PoE+ output through all 8 RJ45 ports, providing up to 30W per port and a 130W total PoE budget
Real-time PoE power monitoring, continued power delivery during a soft reset and PoE Watchdog for automatically restarting unresponsive powered devices
80Gbps switching capacity, 40Gbps non-blocking throughput, 59.52Mpps forwarding rate and 8Mb packet buffer
16K MAC [Media Access Control] address capacity, up to 32 VLANs [Virtual Local Area Networks] from 4K VLAN IDs and jumbo frames up to 9216 bytes
Port-based and 802.1Q VLANs, with up to 5 LAGs [Link Aggregation Groups] and 8 connections per group
STP/RSTP [Spanning Tree Protocol/Rapid Spanning Tree Protocol] for loop prevention, network stability and link redundancy
IGMP [Internet Group Management Protocol] Snooping and report message suppression for controlling multicast traffic
QoS [Quality of Service] with port priority, 802.1p and DSCP [Differentiated Services Code Point] mapping, SP/WFQ queue scheduling, bandwidth control and rate limiting
DHCP snooping, loop detection, firmware signature verification and password-protected hierarchical user management
Local web interface, GDMS Networking, GWN Manager and GWN App management, with SNMP monitoring
LLDP [Link Layer Discovery Protocol], Ping, port mirroring, cable testing and fibre-module monitoring, with desktop, wall or rack mounting


High-Speed Multi-Gigabit Connectivity
Eight 2.5-Gigabit RJ45 ports provide increased bandwidth for compatible wireless access points, workstations, servers, network storage and other devices. The two SFP+ ports support compatible modules operating at 1Gbps, 2.5Gbps or 10Gbps, providing flexible connections to switches, servers and other network infrastructure.

The switch provides an 80Gbps switching capacity and 40Gbps non-blocking throughput, allowing all ports to handle high network traffic volumes without creating an internal switching bottleneck.

Intelligent PoE Power Management
All eight 2.5-Gigabit RJ45 ports can power compatible IEEE 802.3af/at devices such as wireless access points, IP cameras and IP phones. Each port can provide up to 30W within the switch's 130W total PoE budget.

Real-time monitoring helps administrators check power delivery and adjust distribution between connected devices. PoE remains active during a soft reset to reduce interruptions, while PoE Watchdog can detect an unresponsive powered device and automatically restart it by cycling the port's power.

Layer 2 Lite Network Control
Port-based and 802.1Q VLANs can separate departments, services and device groups, with support for up to 32 active VLANs selected from 4K VLAN IDs. Link aggregation combines multiple physical connections to increase available bandwidth and provide connection redundancy.

STP and RSTP help prevent switching loops and maintain network stability if redundant connections are installed. DHCP snooping restricts DHCP traffic to trusted ports, while loop detection assists with identifying potentially disruptive connections.

Traffic Prioritisation and Multicast Management
QoS controls include port priority, 802.1p and DSCP priority mapping, SP and WFQ queue scheduling, bandwidth control and rate limiting. These options help administrators prioritise important applications and control how available bandwidth is shared between connected devices.

IGMP Snooping monitors multicast group activity and forwards multicast data only where required. Report message suppression reduces unnecessary control traffic, helping improve bandwidth use for applications such as video distribution and surveillance.

Flexible Management and Diagnostics
The GWN7721P can be configured through its local web interface or managed centrally using GDMS Networking, GWN Manager or the GWN App. SNMP supports remote monitoring and configuration management, while backup, restore and mass-provisioning options assist with ongoing administration.

Built-in Ping, port mirroring, copper cable testing and fibre-module monitoring tools help administrators investigate connection and performance problems. LLDP identifies compatible neighbouring network devices, while firmware signature verification helps protect the switch from unauthorised firmware files.

Key Benefits

Connects and powers up to eight compatible 2.5-Gigabit network devices
Provides up to 30W per port within a 130W total PoE budget
Automatically restarts unresponsive powered devices using PoE Watchdog
Maintains PoE delivery during a soft reset to reduce device interruptions
Adds two multi-rate SFP+ ports for high-bandwidth network connections
Provides 80Gbps switching capacity for simultaneous multi-Gigabit traffic
Separates departments, services and device groups using configurable VLANs
Prioritises important applications and controls bandwidth use
Supports local, cloud and on-premise management with integrated diagnostic tools
Offers flexible desktop, wall or rack installation in a metal enclosure


Comms Express offers GWN7721 Series Layer 2 Lite and GWN7806 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7721 - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching
GWN7721P - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7806 - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching
GWN7806P - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching, 48 PoE/PoE+ ports, 400W PoE budget
For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:

Grandstream Fibre Modules for compatible modules to use in SFP/+ ports
SFPs & Fibre Transceivers for a wide range of modules from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
Network Switches for an impressive range of switches from other leading manufacturers
The package includes the GWN7721P switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, a Simplified Quick Installation Guide, regulatory information, two extended rack-mounting kits, eight M3 x 6mm flat-head machine screws and four rubber footpads.

*For complete specifications see the documentation tab above

Grandstream GWN7801 8-Port Layer 2+ Managed Network Switch with 2 x 1G SFP & 1 x Console Port The Grandstream GWN7801 is an 8-port Layer 2+ managed network switch for growing small-to-medium business networks. Eight Gigabit RJ45 ports connect wired network devices, while two 1G SFP fibre ports support compatible transceivers for links to other network infrastructure. A dedicated console port provides direct command-line access for configuration and troubleshooting.

A 20Gbps switching capacity and advanced VLAN, routing, traffic management and security features help maintain reliable network performance. Flexible local, cloud and on-premise management options support both individual switches and wider Grandstream deployments.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 2.75em; } 8 x Gigabit RJ45 ports and 2 x 1G SFP [Small Form-factor Pluggable] fibre ports
1 x RJ45 console port [for direct CLI configuration and troubleshooting]
20Gbps switching capacity, 10Gbps non-blocking throughput, 14.88Mpps forwarding rate and 4.1Mb packet buffer
8K MAC [Media Access Control] address table, 4K VLANs and jumbo frames up to 10KB
16 VLAN virtual interfaces, 32 IPv4 and 32 IPv6 static routes, DHCP server and DHCP relay
8 link aggregation groups and STP/RSTP/MSTP/PVST(+)/RPVST(+) support
IGMP and MLD snooping with 256 groups each, plus MVR [Multicast VLAN Registration]
QoS [Quality of Service] traffic prioritisation, queue scheduling, traffic shaping, rate limiting and 128 ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, port security, DHCP snooping, ARP inspection and IP Source Guard
Local web, CLI, SNMP, GDMS Networking, GWN Manager and GWN router management, with integrated diagnostic tools
Fanless design with desktop, wall or rack mounting


Layer 2+ Network Control
The GWN7801 supports port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs, together with QinQ for more sophisticated traffic segmentation. Sixteen VLAN virtual interfaces and configurable IPv4 and IPv6 static routes support communication between network segments, while DHCP server and relay functions assist with address distribution.

Link aggregation combines connections to increase bandwidth and provide redundancy. Spanning tree and loop protection help maintain network stability, while IGMP and MLD snooping manage multicast traffic for applications such as video surveillance and conferencing.

Traffic Management and Security
QoS provides port priority, priority mapping, queue scheduling, traffic shaping and rate limiting for controlling network traffic. ACLs filter Ethernet, IPv4 and IPv6 packets, while IP/MAC/VLAN/port binding, authentication, DHCP snooping, ARP inspection, IP Source Guard and DoS protection help defend the network against unauthorised access and common attacks.

Flexible Management and Diagnostics
The switch can be configured and monitored through its local web interface, CLI, SNMP, GDMS Networking, GWN Manager or a compatible GWN series router. Its console port provides direct CLI access from a connected computer or terminal, while port mirroring, copper cable testing, fibre module monitoring, Ping, Ping Watchdog, Traceroute, Syslog and traffic statistics support network monitoring and fault-finding.

Key Benefits

Connects up to eight Gigabit network devices with two fibre ports for network uplinks
Provides direct command-line access for configuration and troubleshooting
Separates departments, services and voice traffic using advanced VLAN options
Supports fixed IPv4 and IPv6 routes between network segments
Prioritises important applications and controls bandwidth use
Optimises multicast traffic for surveillance, conferencing and other video applications
Combines extensive network security with integrated monitoring and diagnostic tools
Supports local, cloud and on-premise management with flexible desktop, wall or rack installation


Comms Express offers GWN7800 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7801 - 8 Gb ports + 2 x 1G SFP, 20Gbps switching
GWN7801P - 8 Gb ports + 2 x 1G SFP, 20Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7802 - 16 Gb ports + 4 x 1G SFP, 40Gbps switching
GWN7802P - 16 Gb ports + 4 x 1G SFP, 40Gbps switching, 16 PoE/PoE+ ports, 240W PoE budget

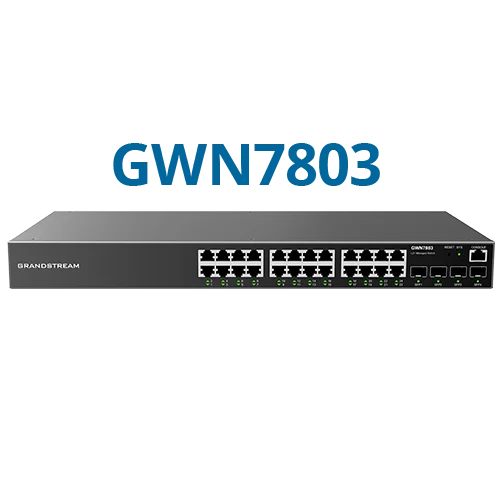

GWN7803 - 24 Gb ports + 4 x 1G SFP, 56Gbps switching

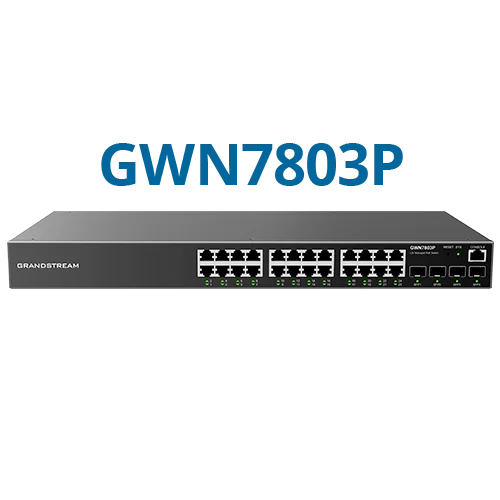

GWN7803P - 24 Gb ports + 4 x 1G SFP, 56Gbps switching, 24 PoE/PoE+ ports, 370W PoE budget
For a wider choice of networking equipment, Comms Express carries a vast range of products, including:

Grandstream Switches for a greater choice of Grandstream switches
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
The package includes the GWN7801 switch, a 1.2m AC power cable, a 25cm ground cable, a Simplified Quick Installation Guide, regulatory information, four rubber footpads, two extended rack-mounting kits and eight M3 x 6mm screws.

*For complete specifications see the documentation tab above

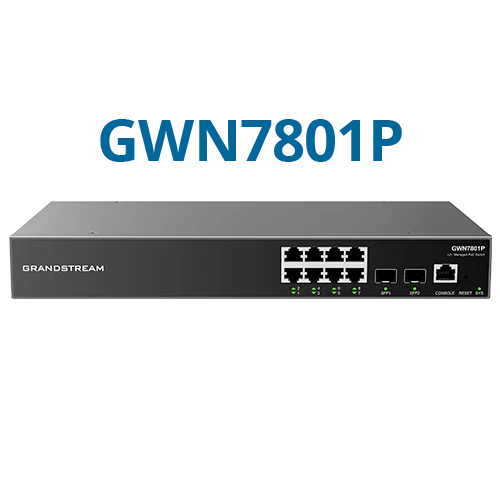

Grandstream GWN7801P 8-Port Layer 2+ Managed PoE Network Switch with 2 x 1G SFP & 1 x Console Port The Grandstream GWN7801P is an 8-port Layer 2+ managed PoE network switch for growing small-to-medium business networks. Eight Gigabit RJ45 ports provide IEEE 802.3af/at PoE/PoE+ output at up to 30W per port within a 130W total PoE budget. Two 1G SFP fibre ports support compatible transceivers for links to other network infrastructure, while a dedicated console port provides direct command-line access for configuration and troubleshooting.

Smart PoE controls support dynamic power allocation, configurable power schedules, port priorities and LLDP-MED power negotiation. A 20Gbps switching capacity and advanced VLAN, routing, traffic management and security features help maintain reliable network performance. Flexible local, cloud and on-premise management options support both individual switches and wider Grandstream deployments.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 2.75em; } 8 x Gigabit RJ45 ports and 2 x 1G SFP [Small Form-factor Pluggable] fibre ports
IEEE 802.3af/at PoE/PoE+ output through all 8 Gigabit ports, providing up to 30W per port and a 130W total PoE budget
Smart PoE management with dynamic power allocation, configurable power schedules, port priorities and LLDP-MED power negotiation
1 x RJ45 console port [for direct CLI configuration and troubleshooting]
20Gbps switching capacity, 10Gbps non-blocking throughput, 14.88Mpps forwarding rate and 4.1Mb packet buffer
8K MAC [Media Access Control] address table, 4K VLANs and jumbo frames up to 10KB
16 VLAN virtual interfaces, 32 IPv4 and 32 IPv6 static routes, DHCP server and DHCP relay
8 link aggregation groups and STP/RSTP/MSTP/PVST(+)/RPVST(+) support
IGMP and MLD snooping with 256 groups each, plus MVR [Multicast VLAN Registration]
QoS [Quality of Service] traffic prioritisation, queue scheduling, traffic shaping, rate limiting and 128 ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, port security, DHCP snooping, ARP inspection and IP Source Guard
Local web, CLI, SNMP, GDMS Networking, GWN Manager and GWN router management, with integrated diagnostic tools
Fanless design with desktop, wall or rack mounting


Layer 2+ Network Control
The GWN7801P supports port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs, together with QinQ for more sophisticated traffic segmentation. Sixteen VLAN virtual interfaces and configurable IPv4 and IPv6 static routes support communication between network segments, while DHCP server and relay functions assist with address distribution.

Link aggregation combines connections to increase bandwidth and provide redundancy. Spanning tree and loop protection help maintain network stability, while IGMP and MLD snooping manage multicast traffic for applications such as video surveillance and conferencing.

Smart PoE Power Management
All eight Gigabit ports can power compatible IEEE 802.3af/at devices such as IP phones, IP cameras and wireless access points. Each port can provide up to 30W within the switch's 130W total PoE budget, with dynamic power allocation helping distribute the available output according to connected-device requirements.

Administrators can configure individual port power limits, power schedules and port priorities through the web interface. LLDP-MED supports dynamic power negotiation, while priority settings determine which devices continue receiving power if demand exceeds the available budget.

Traffic Management and Security
QoS provides port priority, priority mapping, queue scheduling, traffic shaping and rate limiting for controlling network traffic. ACLs filter Ethernet, IPv4 and IPv6 packets, while IP/MAC/VLAN/port binding, authentication, DHCP snooping, ARP inspection, IP Source Guard and DoS protection help defend the network against unauthorised access and common attacks.

Flexible Management and Diagnostics
The switch can be configured and monitored through its local web interface, CLI, SNMP, GDMS Networking, GWN Manager or a compatible GWN series router. Its console port provides direct CLI access from a connected computer or terminal, while port mirroring, copper cable testing, fibre module monitoring, Ping, Ping Watchdog, Traceroute, Syslog and traffic statistics support network monitoring and fault-finding.

Key Benefits

Connects and powers up to eight compatible Gigabit network devices
Provides a 130W PoE budget with intelligent allocation and per-port power controls
Adds two fibre ports for network uplinks and direct console access for configuration and troubleshooting
Separates departments, services, voice and surveillance traffic using advanced VLAN options
Supports fixed IPv4 and IPv6 routes between network segments
Prioritises important applications and controls bandwidth use
Optimises multicast traffic for surveillance, conferencing and other video applications
Combines extensive network security with integrated monitoring and diagnostic tools
Supports local, cloud and on-premise management with flexible desktop, wall or rack installation


Comms Express offers GWN7800 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7801 - 8 Gb ports + 2 x 1G SFP, 20Gbps switching
GWN7801P - 8 Gb ports + 2 x 1G SFP, 20Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7802 - 16 Gb ports + 4 x 1G SFP, 40Gbps switching
GWN7802P - 16 Gb ports + 4 x 1G SFP, 40Gbps switching, 16 PoE/PoE+ ports, 240W PoE budget
GWN7803 - 24 Gb ports + 4 x 1G SFP, 56Gbps switching
GWN7803P - 24 Gb ports + 4 x 1G SFP, 56Gbps switching, 24 PoE/PoE+ ports, 370W PoE budget
For a wider choice of networking equipment, Comms Express carries a vast range of products, including:

Grandstream Switches for a greater choice of Grandstream switches
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
The package includes the GWN7801P switch, a 1.2m AC power cable, a 25cm ground cable, a Simplified Quick Installation Guide, regulatory information, four rubber footpads, two extended rack-mounting kits and eight M3 x 6mm flat-head machine screws.

*For complete specifications see the documentation tab above

Grandstream GWN7802 16-Port Layer 2+ Managed Network Switch with 4 x 1G SFP & 1 x Console Port The Grandstream GWN7802 is a 16-port Layer 2+ managed network switch for growing small-to-medium business networks. Sixteen Gigabit RJ45 ports connect wired network devices, while four 1G SFP fibre ports support compatible transceivers for links to other network infrastructure. A dedicated console port provides direct command-line access for configuration and troubleshooting.

A 40Gbps switching capacity and advanced VLAN, routing, traffic management and security features help maintain reliable network performance. Flexible local, cloud and on-premise management options support both individual switches and wider Grandstream deployments.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 2.75em; } 16 x Gigabit RJ45 ports and 4 x 1G SFP [Small Form-factor Pluggable] fibre ports
1 x RJ45 console port [for direct CLI configuration and troubleshooting]
40Gbps switching capacity, 20Gbps non-blocking throughput, 29.76Mpps forwarding rate and 4.1Mb packet buffer
8K MAC [Media Access Control] address table, 4K VLANs and jumbo frames up to 10KB
16 VLAN virtual interfaces, 32 IPv4 and 32 IPv6 static routes, DHCP server and DHCP relay
8 link aggregation groups and STP/RSTP/MSTP/PVST(+)/RPVST(+) support
IGMP and MLD snooping with 256 groups each, plus MVR [Multicast VLAN Registration]
QoS [Quality of Service] traffic prioritisation, queue scheduling, traffic shaping, rate limiting and 128 ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, port security, DHCP snooping, ARP inspection and IP Source Guard
Local web, CLI, SNMP, GDMS Networking, GWN Manager and GWN router management, with integrated diagnostic tools
Fanless design with desktop, wall or rack mounting


Layer 2+ Network Control
The GWN7802 supports port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs, together with QinQ for more sophisticated traffic segmentation. Sixteen VLAN virtual interfaces and configurable IPv4 and IPv6 static routes support communication between network segments, while DHCP server and relay functions assist with address distribution.

Link aggregation combines connections to increase bandwidth and provide redundancy. Spanning tree and loop protection help maintain network stability, while IGMP and MLD snooping manage multicast traffic for applications such as video surveillance and conferencing.

Traffic Management and Security
QoS provides port priority, priority mapping, queue scheduling, traffic shaping and rate limiting for controlling network traffic. ACLs filter Ethernet, IPv4 and IPv6 packets, while IP/MAC/VLAN/port binding, authentication, DHCP snooping, ARP inspection, IP Source Guard and DoS protection help defend the network against unauthorised access and common attacks.

Flexible Management and Diagnostics
The switch can be configured and monitored through its local web interface, CLI, SNMP, GDMS Networking, GWN Manager or a compatible GWN series router. Its console port provides direct CLI access from a connected computer or terminal, while port mirroring, copper cable testing, fibre module monitoring, Ping, Ping Watchdog, Traceroute, Syslog and traffic statistics support network monitoring and fault-finding.

Key Benefits

Connects up to sixteen Gigabit network devices with four fibre ports for network uplinks
Provides direct command-line access for configuration and troubleshooting
Separates departments, services and voice traffic using advanced VLAN options
Supports fixed IPv4 and IPv6 routes between network segments
Prioritises important applications and controls bandwidth use
Optimises multicast traffic for surveillance, conferencing and other video applications
Combines extensive network security with integrated monitoring and diagnostic tools
Supports local, cloud and on-premise management with flexible desktop, wall or rack installation


Comms Express offers GWN7800 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7801 - 8 Gb ports + 2 x 1G SFP, 20Gbps switching
GWN7801P - 8 Gb ports + 2 x 1G SFP, 20Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7802 - 16 Gb ports + 4 x 1G SFP, 40Gbps switching
GWN7802P - 16 Gb ports + 4 x 1G SFP, 40Gbps switching, 16 PoE/PoE+ ports, 240W PoE budget
GWN7803 - 24 Gb ports + 4 x 1G SFP, 56Gbps switching
GWN7803P - 24 Gb ports + 4 x 1G SFP, 56Gbps switching, 24 PoE/PoE+ ports, 370W PoE budget
For a wider choice of networking equipment, Comms Express carries a vast range of products, including:

Grandstream Switches for a greater choice of Grandstream switches
Network Switches for an impressive range of switches from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
The package includes the GWN7802 switch, a 1.2m AC power cable, a 25cm ground cable, a Simplified Quick Installation Guide, regulatory information, four rubber footpads, two rack-mounting kits and eight M3 x 6mm flat-head machine screws.

*For complete specifications see the documentation tab above

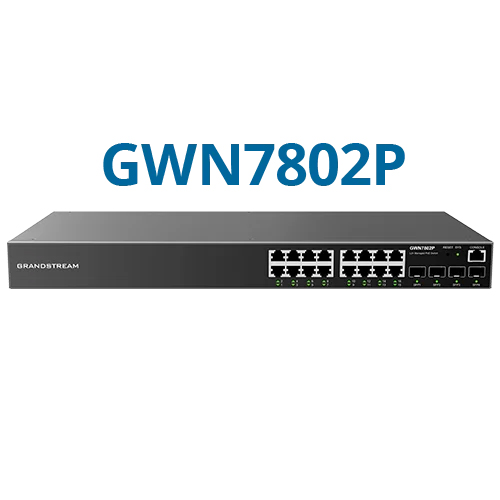

Grandstream GWN7802P 16-Port Layer 2+ Managed PoE Network Switch with 4 x 1G SFP & 1 x Console Port The Grandstream GWN7802P is a 16-port Layer 2+ managed PoE network switch for growing small-to-medium business networks. Sixteen Gigabit RJ45 ports provide IEEE 802.3af/at PoE/PoE+ output at up to 30W per port within a 240W total PoE budget. Four 1G SFP fibre ports support compatible transceivers for links to other network infrastructure, while a dedicated console port provides direct command-line access for configuration and troubleshooting.

Smart PoE controls support dynamic power allocation, configurable power schedules, port priorities and LLDP-MED power negotiation. A 40Gbps switching capacity and advanced VLAN, routing, traffic management and security features help maintain reliable network performance. Flexible local, cloud and on-premise management options support both individual switches and wider Grandstream deployments.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 2.75em; } 16 x Gigabit RJ45 ports and 4 x 1G SFP [Small Form-factor Pluggable] fibre ports
IEEE 802.3af/at PoE/PoE+ output through all 16 Gigabit ports, providing up to 30W per port and a 240W total PoE budget
Smart PoE management with dynamic power allocation, configurable power schedules, port priorities and LLDP-MED power negotiation
1 x RJ45 console port [for direct CLI configuration and troubleshooting]
40Gbps switching capacity, 20Gbps non-blocking throughput, 29.76Mpps forwarding rate and 4.1Mb packet buffer
8K MAC [Media Access Control] address table, 4K VLANs and jumbo frames up to 10KB
16 VLAN virtual interfaces, 32 IPv4 and 32 IPv6 static routes, DHCP server and DHCP relay
8 link aggregation groups and STP/RSTP/MSTP/PVST(+)/RPVST(+) support
IGMP and MLD snooping with 256 groups each, plus MVR [Multicast VLAN Registration]
QoS [Quality of Service] traffic prioritisation, queue scheduling, traffic shaping, rate limiting and 128 ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, port security, DHCP snooping, ARP inspection and IP Source Guard
Local web, CLI, SNMP, GDMS Networking, GWN Manager and GWN router management, with integrated diagnostic tools
Two temperature-controlled fans with desktop, wall or rack mounting


Layer 2+ Network Control
The GWN7802P supports port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs, together with QinQ for more sophisticated traffic segmentation. Sixteen VLAN virtual interfaces and configurable IPv4 and IPv6 static routes support communication between network segments, while DHCP server and relay functions assist with address distribution.

Link aggregation combines connections to increase bandwidth and provide redundancy. Spanning tree and loop protection help maintain network stability, while IGMP and MLD snooping manage multicast traffic for applications such as video surveillance and conferencing.

Smart PoE Power Management
All sixteen Gigabit ports can power compatible IEEE 802.3af/at devices such as IP phones, IP cameras and wireless access points. Each port can provide up to 30W within the switch's 240W total PoE budget, with dynamic power allocation helping distribute the available output according to connected-device requirements.

Administrators can configure individual port power limits, power schedules and port priorities through the web interface. LLDP-MED supports dynamic power negotiation, while priority settings determine which devices continue receiving power if demand exceeds the available budget.

Traffic Management and Security
QoS provides port priority, priority mapping, queue scheduling, traffic shaping and rate limiting for controlling network traffic. ACLs filter Ethernet, IPv4 and IPv6 packets, while IP/MAC/VLAN/port binding, authentication, DHCP snooping, ARP inspection, IP Source Guard and DoS protection help defend the network against unauthorised access and common attacks.

Flexible Management and Diagnostics
The switch can be configured and monitored through its local web interface, CLI, SNMP, GDMS Networking, GWN Manager or a compatible GWN series router. Its console port provides direct CLI access from a connected computer or terminal, while port mirroring, copper cable testing, fibre module monitoring, Ping, Ping Watchdog, Traceroute, Syslog and traffic statistics support network monitoring and fault-finding.

Key Benefits

Connects and powers up to sixteen compatible Gigabit network devices
Provides a 240W PoE budget with intelligent allocation and per-port power controls
Adds four fibre ports for network uplinks and direct console access for configuration and troubleshooting
Separates departments, services, voice and surveillance traffic using advanced VLAN options
Supports fixed IPv4 and IPv6 routes between network segments
Prioritises important applications and controls bandwidth use
Optimises multicast traffic for surveillance, conferencing and other video applications
Combines extensive network security with integrated monitoring and diagnostic tools
Supports local, cloud and on-premise management with flexible desktop, wall or rack installation


Comms Express offers GWN7800 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7801 - 8 Gb ports + 2 x 1G SFP, 20Gbps switching
GWN7801P - 8 Gb ports + 2 x 1G SFP, 20Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7802 - 16 Gb ports + 4 x 1G SFP, 40Gbps switching
GWN7802P - 16 Gb ports + 4 x 1G SFP, 40Gbps switching, 16 PoE/PoE+ ports, 240W PoE budget
GWN7803 - 24 Gb ports + 4 x 1G SFP, 56Gbps switching
GWN7803P - 24 Gb ports + 4 x 1G SFP, 56Gbps switching, 24 PoE/PoE+ ports, 370W PoE budget
For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:

Grandstream Fibre Modules for compatible modules to use in SFP/+ ports
SFPs & Fibre Transceivers for a wide range of modules from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
Network Switches for an impressive range of switches from other leading manufacturers
The package includes the GWN7802P switch, a 1.2m AC power cable, a 25cm ground cable, a Simplified Quick Installation Guide, regulatory information, four rubber footpads, two rack-mounting kits and eight M3 x 6mm flat-head machine screws.

*For complete specifications see the documentation tab above

Grandstream GWN7803 24-Port Layer 2+ Managed Network Switch with 4 x 1G SFP & 1 x Console Port The Grandstream GWN7803 is a 24-port Layer 2+ managed network switch for growing small-to-medium business networks. Twenty-four Gigabit RJ45 ports connect wired network devices, while four 1G SFP fibre ports support compatible transceivers for links to other network infrastructure. A dedicated console port provides direct command-line access for configuration and troubleshooting.

A 56Gbps switching capacity and advanced VLAN, routing, traffic management and security features help maintain reliable network performance. Flexible local, cloud and on-premise management options support both individual switches and wider Grandstream deployments.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 24 x Gigabit RJ45 ports and 4 x 1G SFP [Small Form-factor Pluggable] fibre ports
1 x RJ45 console port [for direct CLI configuration and troubleshooting]
56Gbps switching capacity, 28Gbps non-blocking throughput, 41.66Mpps forwarding rate and 4.1Mb packet buffer
8K MAC [Media Access Control] address table, 4K VLANs and jumbo frames up to 10KB
16 VLAN virtual interfaces, 32 IPv4 and 32 IPv6 static routes, DHCP server and DHCP relay
8 link aggregation groups and STP/RSTP/MSTP/PVST(+)/RPVST(+) support
IGMP and MLD snooping with 256 groups each, plus MVR [Multicast VLAN Registration]
QoS [Quality of Service] traffic prioritisation, queue scheduling, traffic shaping, rate limiting and 128 ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, port security, DHCP snooping, ARP inspection and IP Source Guard
Local web, CLI, SNMP, GDMS Networking, GWN Manager and GWN router management, with integrated diagnostic tools
Fanless design with desktop, wall or rack mounting


Layer 2+ Network Control
The GWN7803 supports port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs, together with QinQ for more sophisticated traffic segmentation. Sixteen VLAN virtual interfaces and configurable IPv4 and IPv6 static routes support communication between network segments, while DHCP server and relay functions assist with address distribution.

Link aggregation combines connections to increase bandwidth and provide redundancy. Spanning tree and loop protection help maintain network stability, while IGMP and MLD snooping manage multicast traffic for applications such as video surveillance and conferencing.

Traffic Management and Security
QoS provides port priority, priority mapping, queue scheduling, traffic shaping and rate limiting for controlling network traffic. ACLs filter Ethernet, IPv4 and IPv6 packets, while IP/MAC/VLAN/port binding, authentication, DHCP snooping, ARP inspection, IP Source Guard and DoS protection help defend the network against unauthorised access and common attacks.

Flexible Management and Diagnostics
The switch can be configured and monitored through its local web interface, CLI, SNMP, GDMS Networking, GWN Manager or a compatible GWN series router. Its console port provides direct CLI access from a connected computer or terminal, while port mirroring, copper cable testing, fibre module monitoring, Ping, Ping Watchdog, Traceroute, Syslog and traffic statistics support network monitoring and fault-finding.

Key Benefits

Connects up to twenty-four Gigabit network devices with four fibre ports for network uplinks
Provides direct command-line access for configuration and troubleshooting
Separates departments, services and voice traffic using advanced VLAN options
Supports fixed IPv4 and IPv6 routes between network segments
Prioritises important applications and controls bandwidth use
Optimises multicast traffic for surveillance, conferencing and other video applications
Combines extensive network security with integrated monitoring and diagnostic tools
Supports local, cloud and on-premise management with flexible desktop, wall or rack installation


Comms Express offers GWN7800 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7801 - 8 Gb ports + 2 x 1G SFP, 20Gbps switching
GWN7801P - 8 Gb ports + 2 x 1G SFP, 20Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7802 - 16 Gb ports + 4 x 1G SFP, 40Gbps switching
GWN7802P - 16 Gb ports + 4 x 1G SFP, 40Gbps switching, 16 PoE/PoE+ ports, 240W PoE budget
GWN7803 - 24 Gb ports + 4 x 1G SFP, 56Gbps switching
GWN7803P - 24 Gb ports + 4 x 1G SFP, 56Gbps switching, 24 PoE/PoE+ ports, 370W PoE budget
For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:

Grandstream Fibre Modules for compatible modules to use in SFP/+ ports
SFPs & Fibre Transceivers for a wide range of modules from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
Network Switches for an impressive range of switches from other leading manufacturers
The package includes the GWN7803 switch, a 1.2m AC power cable, a 25cm ground cable, a Simplified Quick Installation Guide, regulatory information, four rubber footpads, two rack-mounting kits and eight M3 x 6mm flat-head machine screws.

*For complete specifications see the documentation tab above

Grandstream GWN7803P 24-Port Layer 2+ Managed PoE Network Switch with 4 x 1G SFP & 1 x Console Port The Grandstream GWN7803P is a 24-port Layer 2+ managed PoE network switch for growing small-to-medium business networks. Twenty-four Gigabit RJ45 ports provide IEEE 802.3af/at PoE/PoE+ output at up to 30W per port within a 370W total PoE budget. Four 1G SFP fibre ports support compatible transceivers for links to other network infrastructure, while a dedicated console port provides direct command-line access for configuration and troubleshooting.

Smart PoE controls support dynamic power allocation, configurable power schedules, port priorities and LLDP-MED power negotiation. A 56Gbps switching capacity and advanced VLAN, routing, traffic management and security features help maintain reliable network performance. Flexible local, cloud and on-premise management options support both individual switches and wider Grandstream deployments.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 24 x Gigabit RJ45 ports and 4 x 1G SFP [Small Form-factor Pluggable] fibre ports
IEEE 802.3af/at PoE/PoE+ output through all 24 Gigabit ports, providing up to 30W per port and a 370W total PoE budget
Smart PoE management with dynamic power allocation, configurable power schedules, port priorities and LLDP-MED [Link Layer Discovery Protocol - Media Endpoint Discovery] power negotiation
1 x RJ45 console port [for direct CLI configuration and troubleshooting]
56Gbps switching capacity, 28Gbps non-blocking throughput, 41.66Mpps forwarding rate and 4.1Mb packet buffer
8K MAC [Media Access Control] address table, 4K VLANs and jumbo frames up to 10KB
16 VLAN virtual interfaces, 32 IPv4 and 32 IPv6 static routes, DHCP server and DHCP relay
QoS [Quality of Service] traffic prioritisation, queue scheduling, traffic shaping, rate limiting and 128 ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, port security, DHCP snooping, ARP inspection and IP Source Guard
Local web, CLI, SNMP, GDMS Networking, GWN Manager and GWN router management, with integrated diagnostic tools
Two temperature-controlled fans with desktop, wall or rack mounting


Layer 2+ Network Control
The GWN7803P supports port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs, together with QinQ for more sophisticated traffic segmentation. Sixteen VLAN virtual interfaces and configurable IPv4 and IPv6 static routes support communication between network segments, while DHCP server and relay functions assist with address distribution.

Link aggregation combines connections to increase bandwidth and provide redundancy. Spanning tree and loop protection help maintain network stability, while IGMP and MLD snooping manage multicast traffic for applications such as video surveillance and conferencing.

Smart PoE Power Management
All twenty-four Gigabit ports can power compatible IEEE 802.3af/at devices such as IP phones, IP cameras and wireless access points. Each port can provide up to 30W within the switch's 370W total PoE budget, with dynamic power allocation helping distribute the available output according to connected-device requirements.

Administrators can configure individual port power limits, power schedules and port priorities through the web interface. LLDP-MED supports dynamic power negotiation, while priority settings determine which devices continue receiving power if demand exceeds the available budget.

Traffic Management and Security
QoS provides port priority, priority mapping, queue scheduling, traffic shaping and rate limiting for controlling network traffic. ACLs filter Ethernet, IPv4 and IPv6 packets, while IP/MAC/VLAN/port binding, authentication, DHCP snooping, ARP inspection, IP Source Guard and DoS protection help defend the network against unauthorised access and common attacks.

Flexible Management and Diagnostics
The switch can be configured and monitored through its local web interface, CLI, SNMP, GDMS Networking, GWN Manager or a compatible GWN series router. Its console port provides direct CLI access from a connected computer or terminal, while port mirroring, copper cable testing, fibre module monitoring, Ping, Ping Watchdog, Traceroute, Syslog and traffic statistics support network monitoring and fault-finding.

Key Benefits

Connects and powers up to twenty-four compatible Gigabit network devices
Provides a 370W PoE budget with intelligent allocation and per-port power controls
Adds four fibre ports for network uplinks and direct console access for configuration and troubleshooting
Separates departments, services, voice and surveillance traffic using advanced VLAN options
Supports fixed IPv4 and IPv6 routes between network segments
Prioritises important applications and controls bandwidth use
Optimises multicast traffic for surveillance, conferencing and other video applications
Combines extensive network security with integrated monitoring and diagnostic tools
Supports local, cloud and on-premise management with flexible desktop, wall or rack installation


Comms Express offers GWN7800 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7801 - 8 Gb ports + 2 x 1G SFP, 20Gbps switching
GWN7801P - 8 Gb ports + 2 x 1G SFP, 20Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7802 - 16 Gb ports + 4 x 1G SFP, 40Gbps switching
GWN7802P - 16 Gb ports + 4 x 1G SFP, 40Gbps switching, 16 PoE/PoE+ ports, 240W PoE budget
GWN7803 - 24 Gb ports + 4 x 1G SFP, 56Gbps switching
GWN7803P - 24 Gb ports + 4 x 1G SFP, 56Gbps switching, 24 PoE/PoE+ ports, 370W PoE budget
For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:

Grandstream Fibre Modules for compatible modules to use in SFP/+ ports
SFPs & Fibre Transceivers for a wide range of modules from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
Network Switches for an impressive range of switches from other leading manufacturers
The package includes the GWN7803P switch, a 1.2m AC power cable, a 25cm ground cable, a Simplified Quick Installation Guide, regulatory information, four rubber footpads, two rack-mounting kits and eight M3 x 6mm flat-head machine screws.

*For complete specifications see the documentation tab above

Grandstream GWN7806 48-Port Layer 2+ Managed Stackable Network Switch with 6 x 10G SFP+ & 1 x Console Port The Grandstream GWN7806 is a 48-port Layer 2+ managed and stackable network switch for small-to-medium business networks requiring high connection capacity and fast links between network infrastructure. Forty-eight Gigabit RJ45 ports connect computers, servers, wireless access points, IP cameras and other wired devices, while six 10G SFP+ ports support compatible fibre, copper and direct-attach connections.

A 216Gbps switching capacity, 108Gbps non-blocking throughput and extensive VLAN, routing, traffic management and security features support demanding network environments. Switch stacking, enterprise-grade resilience and flexible local, cloud and on-premise management options help simplify deployment and ongoing administration.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 48 x Gigabit RJ45 ports, 6 x 10G SFP+ [Small Form-factor Pluggable Plus] ports and 1 x RJ45 console port
SFP+ support for up to six compatible 10G single-mode or multi-mode modules, DAC cables up to 5m or three alternately installed 10G RJ45 modules
216Gbps switching capacity, 108Gbps non-blocking throughput, 160.704Mpps forwarding rate, 16Mb packet buffer and network latency below 4µs
32K MAC [Media Access Control] address capacity, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 9216 bytes
Port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs, QinQ, 32 VLAN virtual interfaces, IPv4/IPv6 static routing, DHCP server and DHCP relay
32 link aggregation groups, switch stacking and STP/RSTP/MSTP/PVST(+)/RPVST(+) support for increased bandwidth, network expansion and link resilience
IGMP and MLD Snooping with 256 groups each, plus MVR [Multicast VLAN Registration]
QoS [Quality of Service] traffic prioritisation, queue scheduling, traffic shaping, rate limiting and up to 4K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, port security, DHCP/DHCPv6 snooping, ARP inspection, IP Source Guard and DoS protection
Dual hardware boot, dual system-file redundancy, power and fan fault detection, surge protection and loop protection
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and GWN router management, with LLDP [Link Layer Discovery Protocol] and LLDP-MED [Link Layer Discovery Protocol - Media Endpoint Discovery]
Three temperature-controlled fans with desktop or rack mounting and a Kensington security slot


High-Density Gigabit and 10G Connectivity
Forty-eight Gigabit RJ45 ports provide extensive wired connectivity for workstations, servers, network storage, wireless access points, surveillance equipment and other network devices. Six 10G SFP+ ports provide high-bandwidth connections to compatible switches, servers and other network infrastructure.

All six SFP+ ports can accommodate compatible 10G single-mode or multi-mode optical modules. Direct-attach cables up to 5m are also supported, while compatible 10G RJ45 modules are limited to three and must be installed at intervals to allow sufficient spacing.

Layer 2+ Control and Switch Stacking
Port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. Thirty-two VLAN virtual interfaces and configurable IPv4 and IPv6 static routes support communication between network segments, with DHCP server and relay functions assisting address distribution.

Stacking combines multiple physical switches into one virtual system for unified configuration and management. This allows network capacity to be expanded while supporting redundancy between member switches. Thirty-two link aggregation groups can increase connection bandwidth and provide link resilience, including aggregation across stacked devices.

Traffic and Multicast Management
QoS provides port priority, priority mapping, multiple queue-scheduling methods, traffic shaping and rate limiting. Up to 4K Ethernet, IPv4 and IPv6 ACLs provide detailed control over which traffic is permitted or restricted.

IGMP and MLD Snooping monitor multicast group activity and forward multicast data only where required. MVR supports multicast distribution across VLANs, helping optimise network bandwidth for applications such as video surveillance and conferencing.

Enterprise-Grade Resilience and Security
Dual hardware boot and dual system-file redundancy help maintain reliable startup and operation if a software or storage fault occurs. The switch also monitors its power supply and three integrated fans, automatically adjusting fan speed according to operating temperature and generating fault alarms when required.

Authentication, port security, DHCP snooping, ARP inspection, IP Source Guard, storm control and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Spanning-tree protocols, loopback protection, root protection and BPDU protection help prevent network loops and preserve switching stability.

Flexible Management and Diagnostics
The GWN7806 can be configured through its local web interface, command-line interface or SNMP, and managed centrally through GDMS Networking, GWN Manager or a compatible GWN series router. Backup, restore and mass-provisioning options assist with configuration and maintenance across larger deployments.

Built-in Ping, Traceroute, port mirroring, copper cable testing, RMON, Syslog and traffic statistics support monitoring and fault-finding. LLDP and LLDP-MED assist with automatic discovery, provisioning and management of compatible endpoint devices.

Key Benefits

Connects up to forty-eight Gigabit wired network devices
Adds six 10G SFP+ ports for high-bandwidth infrastructure connections
Provides 216Gbps switching capacity for demanding network traffic
Combines multiple switches into one stack for expansion and unified management
Separates departments, services, voice and surveillance traffic using advanced VLAN options
Supports fixed IPv4 and IPv6 routes between network segments
Prioritises important applications and controls bandwidth use
Optimises multicast traffic for surveillance, conferencing and video distribution
Combines layered network security with redundant boot and system files
Supports local, cloud and on-premise management with integrated diagnostic tools


Comms Express offers GWN7721 Series Layer 2 Lite and GWN7806 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7721 - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching
GWN7721P - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7806 - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching
GWN7806P - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching, 48 PoE/PoE+ ports, 400W PoE budget
For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:

Grandstream Fibre Modules for compatible modules to use in SFP/+ ports
SFPs & Fibre Transceivers for a wide range of modules from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
Network Switches for an impressive range of switches from other leading manufacturers
The package includes the GWN7806 switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting kits, eight PM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above

Grandstream GWN7806P 48-Port Layer 2+ Managed Stackable PoE Network Switch with 6 x 10G SFP+ & 1 x Console Port The Grandstream GWN7806P is a 48-port Layer 2+ managed and stackable PoE network switch for small-to-medium business networks requiring high connection capacity, centralised device power and fast links between network infrastructure. Forty-eight Gigabit RJ45 ports connect and power compatible wireless access points, IP cameras, IP phones and other network devices, while six 10G SFP+ ports support compatible fibre, copper and direct-attach connections.

Each RJ45 port can provide IEEE 802.3af/at PoE/PoE+ output at up to 30W within a 400W total PoE budget. Intelligent power controls, 216Gbps switching capacity, extensive Layer 2+ features and flexible local, cloud and on-premise management options support demanding business network deployments.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 48 x Gigabit RJ45 PoE ports, 6 x 10G SFP+ [Small Form-factor Pluggable Plus] ports and 1 x RJ45 console port
SFP+ support for up to six compatible 10G single-mode or multi-mode modules, DAC cables up to 5m or three alternately installed 10G RJ45 modules
IEEE 802.3af/at PoE/PoE+ output through all 48 RJ45 ports, providing up to 30W per port and a 400W total PoE budget
Dynamic PoE power allocation, scheduled port power, configurable per-port limits, power priority and LLDP-MED power negotiation
216Gbps switching capacity, 108Gbps non-blocking throughput, 160.704Mpps forwarding rate, 16Mb packet buffer and network latency below 4µs
32K MAC [Media Access Control] address capacity, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 9216 bytes
Port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs, QinQ, 32 VLAN virtual interfaces, IPv4/IPv6 static routing, DHCP server and DHCP relay
32 link aggregation groups, switch stacking and STP/RSTP/MSTP/PVST(+)/RPVST(+) support for increased bandwidth, network expansion and link resilience
IGMP and MLD Snooping with 256 groups each, plus MVR [Multicast VLAN Registration]
QoS [Quality of Service] traffic prioritisation, queue scheduling, traffic shaping, rate limiting and up to 4K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, port security, DHCP/DHCPv6 snooping, ARP inspection, IP Source Guard, DoS protection and redundant boot and system files
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and GWN router management, with three temperature-controlled fans and desktop or rack mounting


High-Density Gigabit and 10G Connectivity
Forty-eight Gigabit RJ45 ports provide extensive wired connectivity for wireless access points, IP cameras, IP phones, workstations and other network devices. Six 10G SFP+ ports provide high-bandwidth connections to compatible switches, servers and other network infrastructure.

All six SFP+ ports can accommodate compatible 10G single-mode or multi-mode optical modules. Direct-attach cables up to 5m are also supported, while compatible 10G RJ45 modules are limited to three and must be installed at intervals to allow sufficient spacing.

Intelligent PoE Power Management
All forty-eight Gigabit RJ45 ports can power compatible IEEE 802.3af/at devices such as wireless access points, IP cameras and IP phones. Each port can provide up to 30W within the switch's 400W total PoE budget.

Dynamic power allocation helps distribute the available output according to connected-device requirements. Administrators can schedule when individual ports provide power, set a maximum output for each port and prioritise important devices if the remaining power is insufficient. LLDP-MED supports automatic power negotiation with compatible equipment.

Layer 2+ Control and Switch Stacking
Port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. Thirty-two VLAN virtual interfaces and configurable IPv4 and IPv6 static routes support communication between network segments, with DHCP server and relay functions assisting address distribution.

Stacking combines multiple physical switches into one virtual system for unified configuration and management. This allows network capacity to be expanded while supporting redundancy between member switches. Thirty-two link aggregation groups can increase connection bandwidth and provide link resilience, including aggregation across stacked devices.

Traffic and Multicast Management
QoS provides port priority, priority mapping, multiple queue-scheduling methods, traffic shaping and rate limiting. Up to 4K Ethernet, IPv4 and IPv6 ACLs provide detailed control over which traffic is permitted or restricted.

IGMP and MLD Snooping monitor multicast group activity and forward multicast data only where required. MVR supports multicast distribution across VLANs, helping optimise network bandwidth for applications such as video surveillance and conferencing.

Enterprise-Grade Resilience and Security
Dual hardware boot and dual system-file redundancy help maintain reliable startup and operation if a software or storage fault occurs. The switch also monitors its power supply and three integrated fans, automatically adjusting fan speed according to operating temperature and generating fault alarms when required.

Authentication, port security, DHCP snooping, ARP inspection, IP Source Guard, storm control and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Spanning-tree protocols, loopback protection, root protection and BPDU protection help prevent network loops and preserve switching stability.

Flexible Management and Diagnostics
The GWN7806P can be configured through its local web interface, command-line interface or SNMP, and managed centrally through GDMS Networking, GWN Manager or a compatible GWN series router. Backup, restore and mass-provisioning options assist with configuration and maintenance across larger deployments.

Built-in Ping, Traceroute, port mirroring, copper cable testing, RMON, Syslog and traffic statistics support monitoring and fault-finding. LLDP and LLDP-MED assist with automatic discovery, provisioning and management of compatible endpoint devices.

Key Benefits

Connects and powers up to forty-eight compatible Gigabit network devices
Provides up to 30W per port within a 400W total PoE budget
Controls PoE delivery using schedules, port priorities and configurable power limits
Adds six 10G SFP+ ports for high-bandwidth infrastructure connections
Provides 216Gbps switching capacity for demanding network traffic
Combines multiple switches into one stack for expansion and unified management
Separates departments, services, voice and surveillance traffic using advanced VLAN options
Supports fixed IPv4 and IPv6 routes between network segments
Prioritises important applications and optimises multicast traffic
Combines layered network security, redundant system files and flexible management options


Comms Express offers GWN7721 Series Layer 2 Lite and GWN7806 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

GWN7721 - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching
GWN7721P - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
GWN7806 - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching
GWN7806P - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching, 48 PoE/PoE+ ports, 400W PoE budget
For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:

Grandstream Fibre Modules for compatible modules to use in SFP/+ ports
SFPs & Fibre Transceivers for a wide range of modules from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
Network Switches for an impressive range of switches from other leading manufacturers
The package includes the GWN7806P switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting kits, eight PM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above

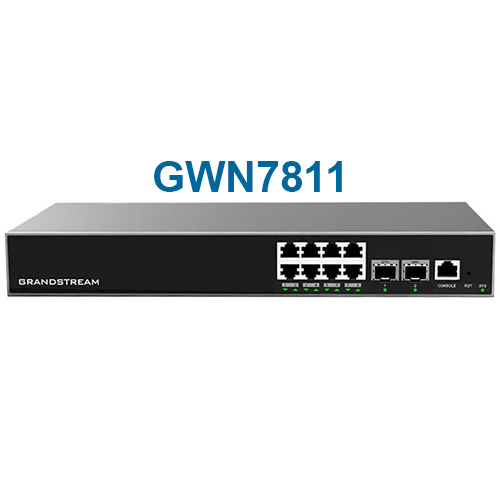

Grandstream GWN7811 8-Port Layer 3 Managed Stackable Network Switch with 2 x 10G SFP+ & 1 x Console Port The Grandstream GWN7811 is a fanless, 8-port Layer 3 managed and stackable switch for businesses requiring advanced network control. Eight Gigabit RJ45 ports connect computers, servers, network storage, wireless access points and other wired devices, while two 10G SFP+ ports provide high-bandwidth infrastructure links. A 56Gbps switching capacity, IPv4 and IPv6 routing, advanced VLAN, traffic-management and security features, plus local, cloud and on-premise management, support scalable deployment, monitoring and administration.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 8 x Gigabit RJ45 ports, 2 x 10G SFP+ [Small Form-factor Pluggable Plus] ports and 1 x console port
SFP+ support for up to two compatible 10G single-mode, multi-mode or RJ45 modules, plus DAC cables up to 5m
56Gbps switching capacity, 28Gbps non-blocking throughput, 41.644Mpps forwarding rate, 12MB packet buffer and network latency below 4µs
16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking for up to four switches, 32 link aggregation groups and comprehensive spanning-tree support
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and compatible GWN series router management
Dual hardware boot, dual system-file redundancy and fanless desktop, wall or rack installation


Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments without requiring a separate router for every connection, with RIP, RIPng, OSPF, OSPFv3 and BGP supported. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while up to 2K Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Dual hardware boot and dual system-file redundancy support reliable startup and operation. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration, while Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist monitoring and fault-finding.

Key Benefits

Connects eight Gigabit devices and provides two 10G infrastructure links
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Increases bandwidth and link resilience through link aggregation
Separates, prioritises and controls business network traffic
Combines layered security with redundant boot and system files
Operates without a fan and supports desktop, wall or rack installation


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7811 - 8 Gb ports + 2 x 10G SFP+, L3, 56Gbps switching
GWN7811P - 8 Gb ports + 2 x 10G SFP+, L3, 8 PoE/PoE+ ports, 120W budget
GWN7812P - 16 Gb ports + 4 x 10G SFP+, L3, 16 PoE/PoE+ ports, 240W budget
GWN7813 - 24 Gb ports + 4 x 10G SFP+, L3, 128Gbps switching, optional 60W RPS

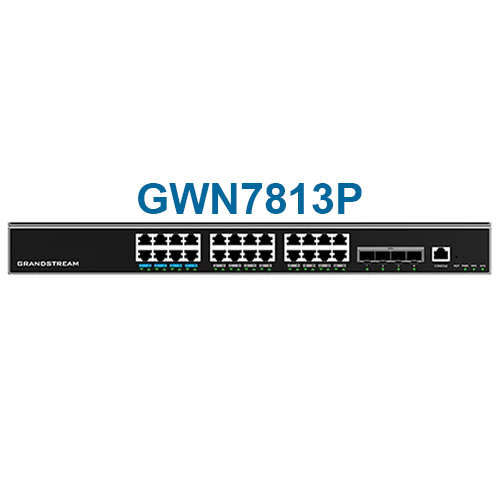

GWN7813P - 24 Gb ports + 4 x 10G SFP+, L3, 24 PoE ports including 8 PoE++, 370W budget
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7811 switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two extended rack-mounting kits, eight KM 3 x 6mm screws and a Quick Installation Guide.

*For complete specifications see the documentation tab above

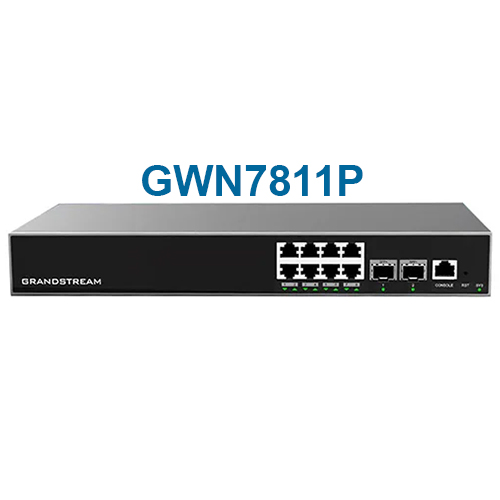

Grandstream GWN7811P 8-Port Layer 3 Managed Stackable PoE+ Network Switch with 2 x 10G SFP+ & 1 x Console Port The Grandstream GWN7811P is a fanless, 8-port Layer 3 managed and stackable PoE switch for businesses requiring advanced network control. Eight Gigabit PoE/PoE+ ports deliver up to 30W each within a 120W budget, while two 10G SFP+ ports provide high-bandwidth infrastructure links. A 56Gbps switching capacity, IPv4 and IPv6 routing, advanced VLAN, traffic-management and security features, plus local, cloud and on-premise management, support scalable deployment and administration.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 8 x Gigabit PoE/PoE+ RJ45 ports, 2 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting compatible single-mode, multi-mode or RJ45 modules and DAC cables up to 5m, plus 1 x console port
Up to 30W per PoE port within a 120W budget, with schedules, port priorities, power limits and LLDP-MED dynamic power negotiation
56Gbps switching capacity, 28Gbps non-blocking throughput, 41.644Mpps forwarding rate, 12MB packet buffer and network latency below 4µs
16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking for up to four switches, 32 link aggregation groups and comprehensive spanning-tree support
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and compatible GWN series router management
Dual hardware boot, dual system-file redundancy and fanless desktop, wall or rack installation


Smart PoE Power Control
All eight Gigabit ports supply IEEE 802.3af/at PoE or PoE+ power, with up to 30W available per port within the 120W total budget. Administrators can schedule power delivery, set port priorities and configure maximum power limits. LLDP-MED supports dynamic power negotiation with compatible devices.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments without requiring a separate router for every connection, with RIP, RIPng, OSPF, OSPFv3 and BGP supported. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while up to 2K Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Dual hardware boot and dual system-file redundancy support reliable startup and operation. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration, while Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist monitoring and fault-finding.

Key Benefits

Connects and powers up to eight Gigabit network devices
Provides two 10G SFP+ ports for high-bandwidth infrastructure links
Controls PoE delivery using schedules, priorities and power limits
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Separates, prioritises and controls business network traffic
Combines layered security with redundant boot and system files
Operates without a fan and supports desktop, wall or rack installation


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7811 - 8 Gb ports + 2 x 10G SFP+, L3, 56Gbps switching
GWN7811P - 8 Gb ports + 2 x 10G SFP+, L3, 8 PoE/PoE+ ports, 120W budget
GWN7812P - 16 Gb ports + 4 x 10G SFP+, L3, 16 PoE/PoE+ ports, 240W budget
GWN7813 - 24 Gb ports + 4 x 10G SFP+, L3, 128Gbps switching, optional 60W RPS
GWN7813P - 24 Gb ports + 4 x 10G SFP+, L3, 24 PoE ports including 8 PoE++, 370W budget
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7811P switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two extended rack-mounting kits, eight KM 3 x 6mm screws and a Quick Installation Guide.

*For complete specifications see the documentation tab above

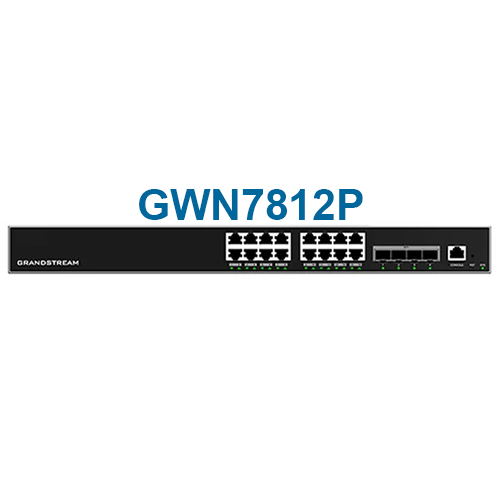

Grandstream GWN7812P 16-Port Layer 3 Managed Stackable PoE+ Network Switch with 4 x 10G SFP+ & 1 x Console Port The Grandstream GWN7812P is a 16-port Layer 3 managed and stackable PoE switch for businesses requiring advanced network control. Sixteen Gigabit PoE/PoE+ ports deliver up to 30W each within a 240W budget, while four 10G SFP+ ports provide high-bandwidth infrastructure links. A 112Gbps switching capacity, IPv4 and IPv6 routing, advanced VLAN, traffic-management and security features, plus local, cloud and on-premise management, support scalable deployment and administration.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 16 x Gigabit PoE/PoE+ RJ45 ports, 4 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting compatible single-mode, multi-mode or RJ45 modules and DAC cables up to 5m, plus 1 x console port
Up to 30W per PoE port within a 240W budget, with schedules, port priorities, power limits and LLDP-MED dynamic power negotiation
112Gbps switching capacity, 56Gbps non-blocking throughput, 83.328Mpps forwarding rate, 12MB packet buffer and network latency below 4µs
16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking for up to four switches, 32 link aggregation groups and comprehensive spanning-tree support
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and compatible GWN series router management
Dual hardware boot, dual system-file redundancy, two fans and desktop, wall or rack installation


Smart PoE Power Control
All sixteen Gigabit ports supply IEEE 802.3af/at PoE or PoE+ power, with up to 30W available per port within the 240W total budget. Administrators can schedule power delivery, set port priorities and configure maximum power limits. LLDP-MED supports dynamic power negotiation with compatible devices.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments without requiring a separate router for every connection, with RIP, RIPng, OSPF, OSPFv3 and BGP supported. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while up to 2K Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Dual hardware boot and dual system-file redundancy support reliable startup and operation. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration, while fan, CPU and memory monitoring, Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist monitoring and fault-finding.

Key Benefits

Connects and powers up to sixteen Gigabit network devices
Provides four 10G SFP+ ports for high-bandwidth infrastructure links
Controls PoE delivery using schedules, priorities and power limits
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Separates, prioritises and controls business network traffic
Combines layered security with redundant boot and system files
Supports desktop, wall or rack installation


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7811 - 8 Gb ports + 2 x 10G SFP+, L3, 56Gbps switching
GWN7811P - 8 Gb ports + 2 x 10G SFP+, L3, 8 PoE/PoE+ ports, 120W budget
GWN7812P - 16 Gb ports + 4 x 10G SFP+, L3, 16 PoE/PoE+ ports, 240W budget
GWN7813 - 24 Gb ports + 4 x 10G SFP+, L3, 128Gbps switching, optional 60W RPS
GWN7813P - 24 Gb ports + 4 x 10G SFP+, L3, 24 PoE ports including 8 PoE++, 370W budget
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7812P switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting kits, eight KM 3 x 6mm screws and a Quick Installation Guide.

*For complete specifications see the documentation tab above

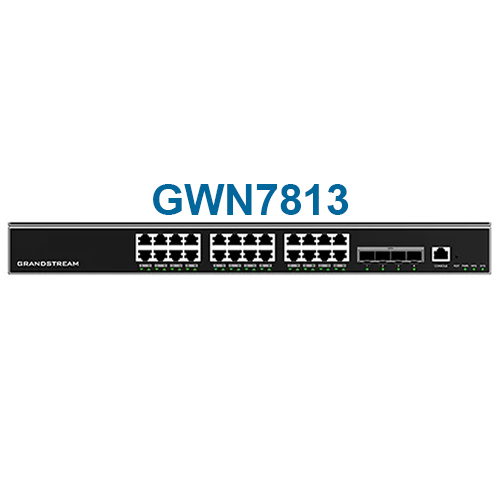

Grandstream GWN7813 24-Port Layer 3 Managed Stackable Network Switch with 4 x 10G SFP+, Console Port & Optional 60W RPS The Grandstream GWN7813 is a fanless, 24-port Layer 3 managed and stackable switch for businesses requiring high-capacity network control. Twenty-four Gigabit RJ45 ports connect wired devices, while four 10G SFP+ ports provide high-bandwidth infrastructure links. A 128Gbps switching capacity, IPv4 and IPv6 routing, advanced VLAN, traffic-management and security features, plus local, cloud and on-premise management, support scalable deployment and administration. An optional 60W external RPS provides power redundancy.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 24 x Gigabit RJ45 ports, 4 x 10G SFP+ [Small Form-factor Pluggable Plus] ports and 1 x console port
SFP+ support for up to four compatible 10G single-mode or multi-mode modules, up to two 10G RJ45 modules, or DAC cables up to 5m
128Gbps switching capacity, 64Gbps non-blocking throughput, 95.232Mpps forwarding rate, 12MB packet buffer and network latency below 4µs
16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking for up to four switches, 32 link aggregation groups and comprehensive spanning-tree support
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and compatible GWN series router management
Optional 60W RPS [Redundant Power Supply], dual hardware boot, dual system-file redundancy and fanless desktop, wall or rack installation


Optional Power Redundancy
The GWN7813 supports the optional RPS-60W-B, a 12V/5A external redundant power supply with a maximum 60W output. If the switch's internal power supply fails, the RPS can provide seamless failover to help maintain network operation.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments without requiring a separate router for every connection, with RIP, RIPng, OSPF, OSPFv3 and BGP supported. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while up to 2K Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Dual hardware boot and dual system-file redundancy support reliable startup and operation. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration, while power, CPU and memory monitoring, Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist monitoring and fault-finding.

Key Benefits

Connects twenty-four Gigabit devices and provides four 10G infrastructure links
Supports optional redundant power with seamless failover
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Increases bandwidth and link resilience through link aggregation
Separates, prioritises and controls business network traffic
Combines layered security with redundant boot and system files
Operates without a fan and supports desktop, wall or rack installation


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7811 - 8 Gb ports + 2 x 10G SFP+, L3, 56Gbps switching
GWN7811P - 8 Gb ports + 2 x 10G SFP+, L3, 8 PoE/PoE+ ports, 120W budget
GWN7812P - 16 Gb ports + 4 x 10G SFP+, L3, 16 PoE/PoE+ ports, 240W budget
GWN7813 - 24 Gb ports + 4 x 10G SFP+, L3, 128Gbps switching, optional 60W RPS
GWN7813P - 24 Gb ports + 4 x 10G SFP+, L3, 24 PoE ports including 8 PoE++, 370W budget
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7813 switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting kits, eight KM 3 x 6mm screws and a Quick Installation Guide.

*For complete specifications see the documentation tab above

Grandstream GWN7813P 24-Port Layer 3 Managed Stackable PoE++ Network Switch with 4 x 10G SFP+, Console Port & Optional 300W RPS The Grandstream GWN7813P is a 24-port Layer 3 managed and stackable PoE switch for businesses requiring high-capacity network control and power delivery. Ports 1-8 provide up to 60W PoE++, while ports 9-24 provide up to 30W PoE/PoE+, within a 370W shared budget. Four 10G SFP+ ports support high-bandwidth infrastructure links, while 128Gbps switching, IPv4 and IPv6 routing, advanced traffic control, comprehensive security and flexible management support scalable deployment. An optional 300W external RPS provides power redundancy.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 24 x Gigabit PoE [Power over Ethernet] RJ45 ports, 4 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting up to four compatible single-mode or multi-mode modules, up to two RJ45 modules or DAC cables up to 5m, plus 1 x console port
IEEE 802.3af/at/bt power delivery, with up to 60W PoE++ on ports 1-8 and up to 30W PoE/PoE+ on ports 9-24, within a 370W budget
PoE schedules, port priorities, maximum power limits and LLDP-MED dynamic power negotiation
128Gbps switching capacity, 64Gbps non-blocking throughput, 95.232Mpps forwarding rate, 12MB packet buffer and network latency below 4µs
16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking for up to four switches, 32 link aggregation groups and comprehensive spanning-tree support
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection
Optional 54V/300W RPS [Redundant Power Supply], dual hardware boot, dual system-file redundancy, three temperature-controlled fans and desktop, wall or rack installation


High-Power PoE and Optional Redundancy
Ports 1-8 support IEEE 802.3bt PoE++ with up to 60W available per port, while ports 9-24 provide IEEE 802.3af/at PoE or PoE+ with up to 30W per port. Administrators can schedule power delivery, set priorities and configure maximum power limits within the 370W budget, while LLDP-MED supports dynamic power negotiation. The optional RPS-300W-B provides an independent 54V/300W power source and up to 240W of PoE capability, with seamless failover if the internal power supply fails.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments without requiring a separate router for every connection, with RIP, RIPng, OSPF, OSPFv3 and BGP supported. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while up to 2K Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP snooping, ARP inspection, IP Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Power, RPS, fan, CPU and memory monitoring, plus Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog, assist monitoring and fault-finding.

Key Benefits

Connects and powers up to twenty-four Gigabit network devices
Supplies up to 60W PoE++ to eight high-power devices
Provides four 10G SFP+ ports for high-bandwidth infrastructure links
Controls PoE delivery using schedules, priorities and power limits
Supports optional redundant power with seamless failover
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Separates, prioritises and secures business network traffic


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7811 - 8 Gb ports + 2 x 10G SFP+, L3, 56Gbps switching
GWN7811P - 8 Gb ports + 2 x 10G SFP+, L3, 8 PoE/PoE+ ports, 120W budget
GWN7812P - 16 Gb ports + 4 x 10G SFP+, L3, 16 PoE/PoE+ ports, 240W budget
GWN7813 - 24 Gb ports + 4 x 10G SFP+, L3, 128Gbps switching, optional 60W RPS
GWN7813P - 24 Gb ports + 4 x 10G SFP+, L3, 24 PoE ports including 8 PoE++, 370W budget
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7813P switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting kits, eight KM 3 x 6mm screws and a Quick Installation Guide.

*For complete specifications see the documentation tab above

Grandstream GWN7816 48-Port Layer 3 Managed Stackable Network Switch with 6 x 10G SFP+, Console Port & Hot-Swappable PSU Support The Grandstream GWN7816 is a 48-port Layer 3 managed and stackable switch for medium-to-large business networks requiring high capacity and control. Forty-eight Gigabit RJ45 ports connect wired devices, while six 10G SFP+ ports provide high-bandwidth infrastructure links. A 216Gbps switching capacity, IPv4 and IPv6 routing, advanced traffic management, comprehensive security and flexible local, cloud and on-premise administration support scalable network deployment. One hot-swappable 70W power supply is included, with space for an optional second unit to provide 1+1 power redundancy and load sharing.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 48 x Gigabit RJ45 ports and 1 x console port
6 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting up to six compatible single-mode or multi-mode modules, up to three interval-inserted 10G RJ45 modules, or DAC cables up to 5m
216Gbps switching capacity, 108Gbps non-blocking throughput, 160.704Mpps forwarding rate, 16Mb packet buffer and network latency below 4µs
32K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and 32 VLAN virtual interfaces with a 9216-byte MTU
IPv4 and IPv6 static and dynamic routing with up to 12K IPv4 and 4K IPv6 routes, RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking [up to four switches managed as one], 32 link aggregation groups and comprehensive spanning-tree support
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 4K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and compatible GWN series router management
One hot-swappable 70W PSU [Power Supply Unit] included, optional second 70W PSU support, dual hardware boot, dual system-file redundancy, four temperature-controlled fans and desktop or rack installation


Hot-Swappable Power Redundancy
The GWN7816 includes one hot-swappable 70W power supply and accepts an optional second 70W unit. Installing two compatible PSUs provides 1+1 redundant power and load sharing, with automatic failover helping to maintain network operation if either power supply fails. Individual power-supply status LEDs and fault monitoring support maintenance and troubleshooting.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments, with RIP, RIPng, OSPF, OSPFv3 and BGP available for different network requirements. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Power-supply, fan, CPU and memory monitoring, plus Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog, assist monitoring and fault-finding.

Key Benefits

Connects up to forty-eight Gigabit network devices
Provides six 10G SFP+ ports for high-bandwidth infrastructure links
Supports optional 1+1 redundant power with automatic failover
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Increases bandwidth and link resilience through link aggregation
Separates, prioritises and secures business network traffic
Adjusts fan speed according to temperature and supports desktop or rack installation


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7816 - 48 Gb + 6 x 10G SFP+, opt. 2nd hot-swap PSU
GWN7816P - 48 Gb PoE (8 PoE++) + 6 x 10G SFP+, opt. 2nd hot-swap PSU
GWN7821P - 8 x 2.5GbE PoE++ + 2 x 10G SFP+, 240W
GWN7822P - 16 Gb + 8 x 2.5GbE PoE++ + 4 x 10G SFP+, 360W
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7816 switch, a 1.2m AC power cable, a 25cm ground cable, four rubber footpads, two front rack-mounting kits, eight KM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above

Grandstream GWN7816P 48-Port Layer 3 Managed Stackable PoE++ Network Switch with 6 x 10G SFP+, Console Port & Hot-Swappable PSU Support The Grandstream GWN7816P is a 48-port Layer 3 managed and stackable PoE switch for medium-to-large business networks requiring high capacity, control and power delivery. Ports 1-8 provide up to 60W PoE++, while ports 9-48 provide up to 30W PoE/PoE+, within a 740W shared budget. Six 10G SFP+ ports support high-bandwidth infrastructure links, while 216Gbps switching, IPv4 and IPv6 routing, advanced traffic management, comprehensive security and flexible administration support scalable deployment. One hot-swappable 920W power supply is included, with space for an optional second unit to provide 1+1 power redundancy and load sharing.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 48 x Gigabit PoE [Power over Ethernet] RJ45 ports and 1 x console port
6 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting up to six compatible single-mode or multi-mode modules, up to three interval-inserted 10G RJ45 modules, or DAC cables up to 5m
IEEE 802.3af/at/bt power delivery, with up to 60W PoE++ on ports 1-8 and up to 30W PoE/PoE+ on ports 9-48, within a 740W budget
PoE schedules, port priorities, maximum power limits and LLDP-MED dynamic power negotiation
216Gbps switching capacity, 108Gbps non-blocking throughput, 160.704Mpps forwarding rate, 16Mb packet buffer and network latency below 4µs
32K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and 32 VLAN virtual interfaces with a 9216-byte MTU
IPv4 and IPv6 static and dynamic routing with up to 12K IPv4 and 4K IPv6 routes, RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking [up to four switches managed as one], 32 link aggregation groups and spanning-tree support [prevents network loops]
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 4K ACLs [Access Control Lists]
One hot-swappable 920W PSU [Power Supply Unit] included, optional second 920W PSU support, dual hardware boot, dual system-file redundancy, four temperature-controlled fans and desktop or rack installation


High-Power PoE and Redundant Power
Ports 1-8 support IEEE 802.3bt PoE++ with up to 60W available per port, while ports 9-48 provide IEEE 802.3af/at PoE or PoE+ with up to 30W per port. Administrators can schedule power delivery, set priorities and configure maximum power limits within the 740W budget, while LLDP-MED supports dynamic power negotiation. The included 920W PSU is hot-swappable, and installing an optional second unit provides 1+1 redundant power and load sharing, with automatic failover helping to maintain network operation if either supply fails.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments, with RIP, RIPng, OSPF, OSPFv3 and BGP available for different network requirements. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Power-supply, fan, CPU and memory monitoring, plus Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog, assist monitoring and fault-finding.

Key Benefits

Connects and powers up to forty-eight Gigabit network devices
Supplies up to 60W PoE++ to eight high-power devices
Provides six 10G SFP+ ports for high-bandwidth infrastructure links
Controls PoE delivery using schedules, priorities and power limits
Supports optional 1+1 redundant power with automatic failover
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Separates, prioritises and secures business network traffic


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7816 - 48 Gb + 6 x 10G SFP+, opt. 2nd hot-swap PSU
GWN7816P - 48 Gb PoE (8 PoE++) + 6 x 10G SFP+, opt. 2nd hot-swap PSU
GWN7821P - 8 x 2.5GbE PoE++ + 2 x 10G SFP+, 240W
GWN7822P - 16 Gb + 8 x 2.5GbE PoE++ + 4 x 10G SFP+, 360W
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7816P switch, a 1.2m AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two front rack-mounting kits, two rear rack-mounting kits, two rear slide rails, sixteen KM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above

Grandstream GWN7821P 8-Port 2.5GbE Layer 3 Managed Stackable PoE++ Network Switch with 2 x 10G SFP+ & Console Port The Grandstream GWN7821P is an eight-port Layer 3 managed and stackable multi-gigabit PoE switch for business networks requiring faster device connections, advanced control and high-power PoE. All eight 2.5GbE ports support up to 60W PoE++ within a 240W shared budget, while two 10G SFP+ ports provide high-bandwidth infrastructure links. An 80Gbps switching capacity, IPv4 and IPv6 routing, advanced traffic management, comprehensive security and flexible local, cloud and on-premise administration support scalable network deployment.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 8 x 2.5GbE PoE [Power over Ethernet] RJ45 ports and 1 x console port
2 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting compatible single-mode, multi-mode or 10G RJ45 modules, or DAC cables up to 5m
IEEE 802.3af/at/bt power delivery, with up to 60W PoE++ available per port within a 240W budget
PoE schedules, port priorities, maximum power limits and LLDP-MED dynamic power negotiation
80Gbps switching capacity, 40Gbps non-blocking throughput, 59.52Mpps forwarding rate, 12Mb packet buffer and network latency below 4µs
16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking [up to four switches managed as one], 32 link aggregation groups and spanning-tree support [prevents network loops]
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection


Multi-Gigabit PoE++ Connectivity
All eight RJ45 ports support network speeds up to 2.5Gbps and IEEE 802.3bt PoE++ output of up to 60W per port. Administrators can schedule power delivery, set port priorities and configure maximum power limits within the 240W budget, while LLDP-MED supports dynamic power negotiation with compatible devices.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments, with RIP, RIPng, OSPF, OSPFv3 and BGP available for different network requirements. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Dual hardware boot and dual system-file redundancy support reliable operation, while power, fan, CPU and memory monitoring, Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist fault-finding.

Key Benefits

Connects and powers up to eight 2.5GbE network devices
Supplies up to 60W PoE++ through every RJ45 port
Provides two 10G SFP+ ports for high-bandwidth infrastructure links
Controls PoE delivery using schedules, priorities and power limits
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Increases bandwidth and link resilience through link aggregation
Separates, prioritises and secures business network traffic


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7816 - 48 Gb + 6 x 10G SFP+, opt. 2nd hot-swap PSU
GWN7816P - 48 Gb PoE (8 PoE++) + 6 x 10G SFP+, opt. 2nd hot-swap PSU
GWN7821P - 8 x 2.5GbE PoE++ + 2 x 10G SFP+, 240W
GWN7822P - 16 Gb + 8 x 2.5GbE PoE++ + 4 x 10G SFP+, 360W
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7821P switch, a 1.2m AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two extended rack-mounting brackets, eight KM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above

Grandstream GWN7822P 24-Port Layer 3 Managed Stackable Multi-Gigabit PoE++ Network Switch with 4 x 10G SFP+, Console Port & Optional RPS The Grandstream GWN7822P is a 24-port Layer 3 managed and stackable multi-gigabit PoE switch for medium-to-large business networks. Sixteen Gigabit ports provide up to 30W PoE/PoE+, while eight 2.5GbE ports provide up to 60W PoE++, within a 360W shared budget. Four 10G SFP+ ports support high-bandwidth infrastructure links, while 152Gbps switching, IPv4 and IPv6 routing, advanced traffic management, comprehensive security and flexible administration support scalable deployment. An optional 300W external RPS provides redundant power.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 16 x Gigabit PoE [Power over Ethernet] RJ45 ports, 8 x 2.5GbE PoE RJ45 ports and 1 x console port
4 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting up to four compatible single-mode or multi-mode modules, up to two interval-inserted 10G RJ45 modules, or DAC cables up to 5m
Up to 30W PoE/PoE+ on ports 1-16 and up to 60W PoE++ on ports 17-24, within a 360W budget, with schedules, port priorities, power limits and LLDP-MED negotiation
152Gbps switching capacity, 76Gbps non-blocking throughput, 113.088Mpps forwarding rate, 12Mb packet buffer and network latency below 4µs
16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking [up to four switches managed as one], 32 link aggregation groups and spanning-tree support [prevents network loops]
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection
Optional 54V/300W RPS [Redundant Power Supply], dual hardware boot, dual system-file redundancy, two temperature-controlled fans and desktop or rack installation


Multi-Gigabit PoE++ and Redundant Power
Ports 1-16 provide Gigabit connectivity with up to 30W PoE/PoE+, while ports 17-24 support 2.5GbE connectivity and up to 60W PoE++. Administrators can schedule power delivery, set priorities and configure maximum power limits within the 360W budget, while LLDP-MED supports dynamic power negotiation. An optional 54V/300W external RPS provides an alternative power source to help maintain operation if the internal power supply fails.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments, with RIP, RIPng, OSPF, OSPFv3 and BGP available for different network requirements. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Dual hardware boot and dual system-file redundancy support reliable operation, while power-supply, fan, CPU and memory monitoring, Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist fault-finding.

Key Benefits

Connects and powers up to twenty-four Gigabit and multi-gigabit devices
Supplies up to 60W PoE++ through eight 2.5GbE ports
Provides four 10G SFP+ ports for high-bandwidth infrastructure links
Controls PoE delivery using schedules, priorities and power limits
Supports optional redundant power for greater resilience
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Separates, prioritises and secures business network traffic


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7816 - 48 Gb + 6 x 10G SFP+, opt. 2nd hot-swap PSU
GWN7816P - 48 Gb PoE (8 PoE++) + 6 x 10G SFP+, opt. 2nd hot-swap PSU
GWN7821P - 8 x 2.5GbE PoE++ + 2 x 10G SFP+, 240W
GWN7822P - 16 Gb + 8 x 2.5GbE PoE++ + 4 x 10G SFP+, 360W
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7822P switch, a 1.2m AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting brackets, eight KM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above

Grandstream GWN7830 12-Port Layer 3 Managed Stackable Aggregation Network Switch with 6 x 1G SFP, 4 x 10G SFP+ & Console Port The Grandstream GWN7830 is a Layer 3 managed and stackable aggregation switch for medium-to-large business networks requiring extensive fibre connectivity and advanced control. Two Gigabit RJ45 ports and six 1G SFP ports support access and infrastructure connections, while four 10G SFP+ ports provide higher-bandwidth links. A 96Gbps switching capacity, IPv4 and IPv6 routing, advanced traffic management, comprehensive security and flexible local, cloud and on-premise administration support scalable network deployment. Its fanless design allows quiet operation.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 2 x Gigabit RJ45 ports, 6 x 1G SFP [Small Form-factor Pluggable] ports, 4 x 10G SFP+ [Small Form-factor Pluggable Plus] ports and 1 x console port
Aggregation switching [brings multiple network links together at a central point], with support for compatible single-mode, multi-mode or RJ45 modules, plus DAC [Direct Attach Cable] connections up to 5m through the SFP+ ports
96Gbps switching capacity, 48Gbps non-blocking throughput, 71.424Mpps forwarding rate, 12Mb packet buffer and network latency below 4µs
16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and 16 VLAN virtual interfaces with a 9216-byte MTU
IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking [up to four switches managed as one], 32 link aggregation groups and spanning-tree support [prevents network loops]
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and compatible GWN series router management
Dual hardware boot, dual system-file redundancy and fanless desktop, wall or rack installation


Flexible Fibre Aggregation
Six 1G SFP ports and four 10G SFP+ ports allow multiple fibre links to be brought together within one managed switch. Compatible single-mode and multi-mode modules support different connection distances, while compatible RJ45 modules provide copper alternatives. The SFP+ ports also support DAC cables up to 5m for short-distance 10G connections.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments, with RIP, RIPng, OSPF, OSPFv3 and BGP available for different network requirements. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Dual hardware boot and dual system-file redundancy support reliable operation, while CPU and memory monitoring, Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist fault-finding.

Key Benefits

Combines Gigabit copper, 1G fibre and 10G fibre connectivity
Provides four 10G SFP+ ports for high-bandwidth infrastructure links
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Increases bandwidth and link resilience through link aggregation
Separates, prioritises and secures business network traffic
Supports local, cloud and on-premise management
Operates without a fan and supports desktop, wall or rack installation


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7830 - 2 Gb + 6 x 1G SFP + 4 x 10G SFP+, 96Gbps
GWN7831 - 4 Gb combo + 24 x 1G SFP + 4 x 10G SFP+, optional backup PSU
GWN7832 - 12 x 10G SFP+, 240Gbps, optional backup PSU
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7830 switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two extended rack-mounting brackets, eight KM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above

Grandstream GWN7831 28-Port Layer 3 Managed Stackable Aggregation Network Switch with 24 x 1G SFP, 4 x 10G SFP+, 4 x Gigabit RJ45 Combo & Optional Backup Power Supply The Grandstream GWN7831 is a 28-port Layer 3 managed and stackable aggregation switch for medium-to-large business networks requiring high-density fibre connectivity and advanced control. Twenty-four 1G SFP ports include four combo connections paired with Gigabit RJ45 ports, while four 10G SFP+ ports provide higher-bandwidth infrastructure links. A 128Gbps switching capacity, IPv4 and IPv6 routing, advanced traffic management, comprehensive security and flexible administration support scalable network deployment. An optional external 60W backup power supply provides power redundancy.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 24 x 1G SFP [Small Form-factor Pluggable] ports, including four combo pairs [each RJ45/SFP pair operates as one port], 4 x 10G SFP+ [Small Form-factor Pluggable Plus] ports and 1 x console port
Aggregation switching [brings multiple network links together at a central point], with support for compatible single-mode, multi-mode or RJ45 modules, plus DAC [Direct Attach Cable] connections up to 5m through the SFP+ ports
128Gbps switching capacity, 64Gbps non-blocking throughput, 95.232Mpps forwarding rate, 12Mb packet buffer and network latency below 4µs
16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and 16 VLAN virtual interfaces with a 9216-byte MTU
IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
Stacking [up to four switches managed as one], 32 link aggregation groups and spanning-tree support [prevents network loops]
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and compatible GWN series router management
Optional 12V/60W external backup PSU [Power Supply Unit], dual hardware boot, dual system-file redundancy, two temperature-controlled fans and desktop, wall or rack installation


High-Density Fibre Aggregation and Backup Power
Twenty-four 1G SFP ports support multiple fibre connections, with four paired Gigabit RJ45 connectors providing copper alternatives through the combo ports. Four 10G SFP+ ports support higher-bandwidth links, including DAC connections up to 5m. The optional 60W external backup power supply provides automatic failover if the internal power supply fails, helping to maintain network operation.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments, with RIP, RIPng, OSPF, OSPFv3 and BGP available for different network requirements. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Dual hardware boot and dual system-file redundancy support reliable operation, while power-supply, fan, CPU and memory monitoring, Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist fault-finding.

Key Benefits

Brings together high-density Gigabit fibre and 10G infrastructure links
Provides four Gigabit RJ45 alternatives through paired combo ports
Supports optional backup power with automatic failover
Routes IPv4 and IPv6 traffic between network segments
Combines up to four switches into one logical stack
Increases bandwidth and link resilience through link aggregation
Separates, prioritises and secures business network traffic
Supports local, cloud and on-premise management


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7830 - 2 Gb + 6 x 1G SFP + 4 x 10G SFP+, 96Gbps
GWN7831 - 4 Gb combo + 24 x 1G SFP + 4 x 10G SFP+, optional backup PSU
GWN7832 - 12 x 10G SFP+, 240Gbps, optional backup PSU
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs & Fibre Transceivers from other leading manufacturers
RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
Network Switches from other leading manufacturers
The package includes the GWN7831 switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting brackets, eight KM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above

Grandstream GWN7832 12-Port Layer 3 Managed Stackable 10G Aggregation Network Switch with SFP+, Console Port & Optional Backup Power Supply The Grandstream GWN7832 is a high-capacity Layer 3 managed and stackable aggregation switch for medium-to-large business and enterprise networks. Its twelve 10G SFP+ ports provide flexible fibre, copper-transceiver and direct-attach connectivity, backed by 240Gbps switching capacity and latency below 2µs. Advanced IPv4 and IPv6 routing, traffic management, security and optional backup power help maintain a fast and resilient network.



Key Features

.spaced-list li { margin-bottom: 0.7em; } .spaced-list li:last-child { margin-bottom: 1.5em; } 12 x 10G SFP+ [Small Form-factor Pluggable Plus] ports and 1 x console port
Aggregation switching [brings multiple network links together at a central point], supporting up to twelve compatible single-mode or multi-mode modules, up to six 10G RJ45 transceiver modules fitted in alternate ports, or DAC [Direct Attach Cable] connections up to 5m
240Gbps switching capacity, 120Gbps non-blocking throughput, 178.56Mpps forwarding rate, 16Mb packet buffer and network latency below 2µs
32K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and 32 VLAN interfaces with a 9216-byte MTU
IPv4 and IPv6 static and dynamic routing with up to 12K IPv4 and 4K IPv6 routes, RIP, RIPng, OSPF, OSPFv3, BGP, DHCP server and DHCP relay
Stacking [up to four switches managed as one], 32 link aggregation groups and spanning-tree support [prevents network loops]
IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 4K ACLs [Access Control Lists]
802.1X and MAC authentication, RADIUS, TACACS+, DHCP and DHCPv6 snooping, ARP inspection, IP Source Guard, port security and DoS protection
Local web and command-line management, SNMP, GDMS Networking, GWN Manager and compatible GWN series router management
Optional 12V/60W external backup PSU [Power Supply Unit], dual boot, dual system-file redundancy, two temperature-controlled fans and desktop, wall or rack installation


High-Capacity 10G Aggregation and Backup Power
Twelve 10G SFP+ ports bring high-bandwidth network connections together at a central point. Compatible fibre modules, 10G RJ45 transceivers and DAC connections provide deployment flexibility, while the optional external 60W PSU offers automatic backup power if the internal supply fails.

Advanced Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing allows the switch to direct traffic efficiently between networks. Up to four compatible switches can be stacked and managed as one, while link aggregation combines connections for greater bandwidth and resilience.

Network Segmentation and Traffic Control
VLANs separate users, devices and services into controlled network segments. QoS prioritises important applications such as voice and video, while multicast controls help distribute streamed traffic efficiently.

Secure and Flexible Management
Authentication, access controls, traffic inspection and attack protection help prevent unauthorised network access. The switch can be administered locally or centrally through its web interface, command line, SNMP, GDMS Networking, GWN Manager or a compatible GWN series router.

Key Benefits

Brings together up to twelve high-speed 10G network connections
Supports fibre, compatible RJ45 transceivers and direct-attach cables
Processes demanding traffic with 240Gbps switching capacity and latency below 2µs
Supports automatic failover to an optional external backup power supply
Routes traffic between IPv4 and IPv6 networks without relying on a separate router
Combines up to four compatible switches into one managed stack
Increases bandwidth and connection resilience through link aggregation
Separates, prioritises and secures traffic for greater control and reliability


Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

GWN7830 - 2 Gb + 6 x 1G SFP + 4 x 10G SFP+, 96Gbps
GWN7831 - 4 Gb combo + 24 x 1G SFP + 4 x 10G SFP+, optional backup PSU
GWN7832 - 12 x 10G SFP+, 240Gbps, optional backup PSU
Comms Express also offers:

Grandstream Fibre Modules for compatible SFP and SFP+ connections
SFPs, Fibre Transceivers, Mini-GBICs & NICs for a wider choice of network modules
RJ45 Ethernet Cables & Patch Leads for copper connections through compatible RJ45 transceivers
Network Switches for additional managed and unmanaged network options
Box Contents: Grandstream GWN7832 switch, 1.2m 10A AC power cable, 25cm grounding cable, four rubber feet, power-cord clamp, two rack-mount brackets, eight KM 3 x 6 screws, simplified quick installation guide and regulatory leaflet. Optional backup PSU not included.

*For complete specifications see the documentation tab above
