| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | GSGWN7721P |
| Manufacturer No: | GWN7721P |
| Delivery: | In Stock: 5-7 Days |
_3.jpg)
 |

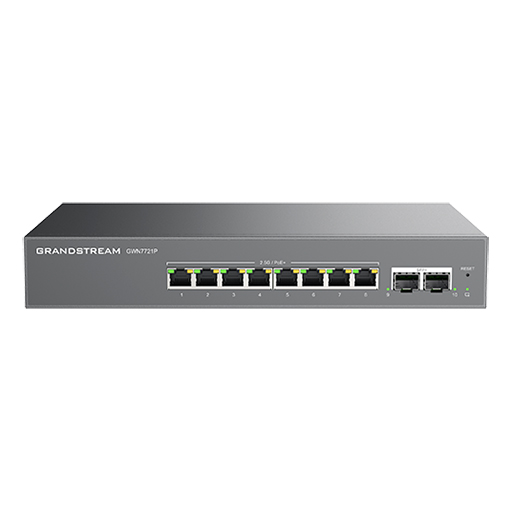

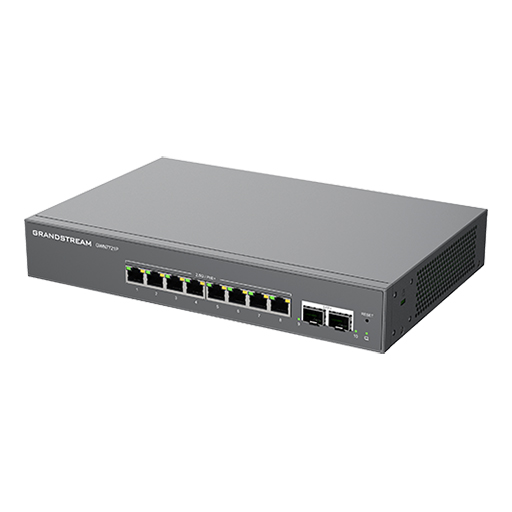

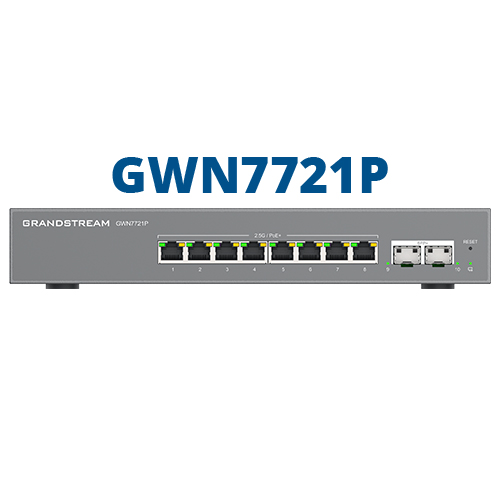

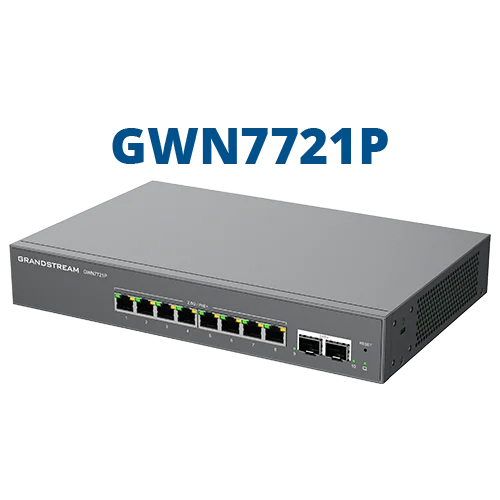

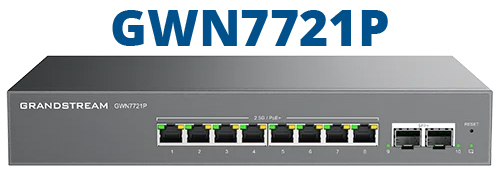

The Grandstream GWN7721P is a 10-port Layer 2 Lite managed PoE multi-Gigabit network switch for small-to-medium business networks requiring faster wired connections and centralised device power. Eight 2.5-Gigabit RJ45 ports connect and power compatible wireless access points, IP cameras, IP phones and other network devices, while two multi-rate 10G SFP+ ports support compatible transceivers for high-speed links to other network infrastructure.
Each RJ45 port can provide IEEE 802.3af/at PoE/PoE+ output at up to 30W within a 130W total PoE budget. Intelligent power monitoring, PoE Watchdog and continued PoE delivery during a soft reset help maintain connected-device availability. An 80Gbps switching capacity and Layer 2 Lite traffic controls support demanding network activity.
_OV1.jpg)

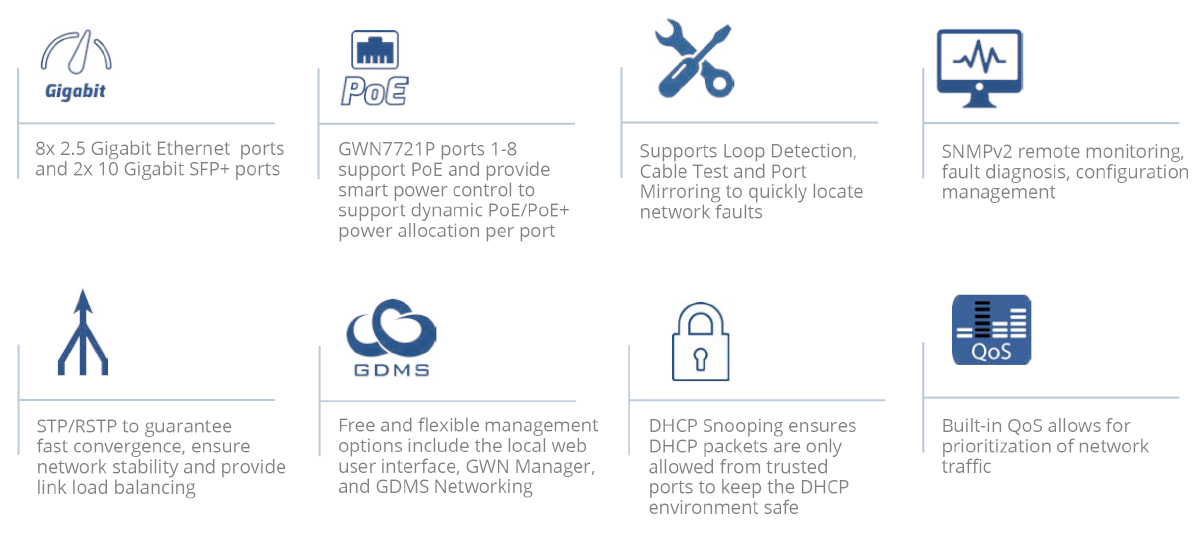

Key Features
High-Speed Multi-Gigabit Connectivity
Eight 2.5-Gigabit RJ45 ports provide increased bandwidth for compatible wireless access points, workstations, servers, network storage and other devices. The two SFP+ ports support compatible modules operating at 1Gbps, 2.5Gbps or 10Gbps, providing flexible connections to switches, servers and other network infrastructure.
The switch provides an 80Gbps switching capacity and 40Gbps non-blocking throughput, allowing all ports to handle high network traffic volumes without creating an internal switching bottleneck.
Intelligent PoE Power Management
All eight 2.5-Gigabit RJ45 ports can power compatible IEEE 802.3af/at devices such as wireless access points, IP cameras and IP phones. Each port can provide up to 30W within the switch's 130W total PoE budget.
Real-time monitoring helps administrators check power delivery and adjust distribution between connected devices. PoE remains active during a soft reset to reduce interruptions, while PoE Watchdog can detect an unresponsive powered device and automatically restart it by cycling the port's power.
Layer 2 Lite Network Control
Port-based and 802.1Q VLANs can separate departments, services and device groups, with support for up to 32 active VLANs selected from 4K VLAN IDs. Link aggregation combines multiple physical connections to increase available bandwidth and provide connection redundancy.
STP and RSTP help prevent switching loops and maintain network stability if redundant connections are installed. DHCP snooping restricts DHCP traffic to trusted ports, while loop detection assists with identifying potentially disruptive connections.
Traffic Prioritisation and Multicast Management
QoS controls include port priority, 802.1p and DSCP priority mapping, SP and WFQ queue scheduling, bandwidth control and rate limiting. These options help administrators prioritise important applications and control how available bandwidth is shared between connected devices.
IGMP Snooping monitors multicast group activity and forwards multicast data only where required. Report message suppression reduces unnecessary control traffic, helping improve bandwidth use for applications such as video distribution and surveillance.
Flexible Management and Diagnostics
The GWN7721P can be configured through its local web interface or managed centrally using GDMS Networking, GWN Manager or the GWN App. SNMP supports remote monitoring and configuration management, while backup, restore and mass-provisioning options assist with ongoing administration.
Built-in Ping, port mirroring, copper cable testing and fibre-module monitoring tools help administrators investigate connection and performance problems. LLDP identifies compatible neighbouring network devices, while firmware signature verification helps protect the switch from unauthorised firmware files.
Key Benefits
_OV3.jpg)

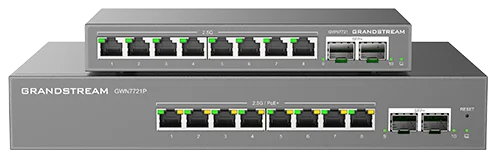

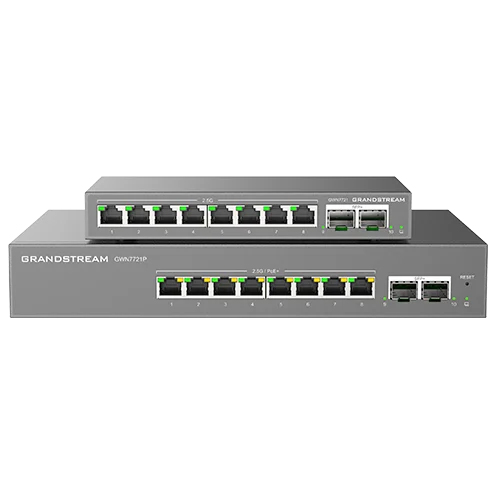

Comms Express offers GWN7721 Series Layer 2 Lite and GWN7806 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:
For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:
The package includes the GWN7721P switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, a Simplified Quick Installation Guide, regulatory information, two extended rack-mounting kits, eight M3 x 6mm flat-head machine screws and four rubber footpads.
*For complete specifications see the documentation tab above
The Grandstream GWN7721P is a 10-port Layer 2 Lite managed PoE multi-Gigabit network switch for small-to-medium business networks requiring faster wired connections and centralised device power. Eight 2.5-Gigabit RJ45 ports connect and power compatible wireless access points, IP cameras, IP phones and other network devices, while two multi-rate 10G SFP+ ports support compatible transceivers for high-speed links to other network infrastructure.
Each RJ45 port can provide IEEE 802.3af/at PoE/PoE+ output at up to 30W within a 130W total PoE budget. Intelligent power monitoring, PoE Watchdog and continued PoE delivery during a soft reset help maintain connected-device availability. An 80Gbps switching capacity and Layer 2 Lite traffic controls support demanding network activity.
Key Features
High-Speed Multi-Gigabit Connectivity
Eight 2.5-Gigabit RJ45 ports provide increased bandwidth for compatible wireless access points, workstations, servers, network storage and other devices. The two SFP+ ports support compatible modules operating at 1Gbps, 2.5Gbps or 10Gbps, providing flexible connections to switches, servers and other network infrastructure.
The switch provides an 80Gbps switching capacity and 40Gbps non-blocking throughput, allowing all ports to handle high network traffic volumes without creating an internal switching bottleneck.
Intelligent PoE Power Management
All eight 2.5-Gigabit RJ45 ports can power compatible IEEE 802.3af/at devices such as wireless access points, IP cameras and IP phones. Each port can provide up to 30W within the switch's 130W total PoE budget.
Real-time monitoring helps administrators check power delivery and adjust distribution between connected devices. PoE remains active during a soft reset to reduce interruptions, while PoE Watchdog can detect an unresponsive powered device and automatically restart it by cycling the port's power.
Layer 2 Lite Network Control
Port-based and 802.1Q VLANs can separate departments, services and device groups, with support for up to 32 active VLANs selected from 4K VLAN IDs. Link aggregation combines multiple physical connections to increase available bandwidth and provide connection redundancy.
STP and RSTP help prevent switching loops and maintain network stability if redundant connections are installed. DHCP snooping restricts DHCP traffic to trusted ports, while loop detection assists with identifying potentially disruptive connections.
Traffic Prioritisation and Multicast Management
QoS controls include port priority, 802.1p and DSCP priority mapping, SP and WFQ queue scheduling, bandwidth control and rate limiting. These options help administrators prioritise important applications and control how available bandwidth is shared between connected devices.
IGMP Snooping monitors multicast group activity and forwards multicast data only where required. Report message suppression reduces unnecessary control traffic, helping improve bandwidth use for applications such as video distribution and surveillance.
Flexible Management and Diagnostics
The GWN7721P can be configured through its local web interface or managed centrally using GDMS Networking, GWN Manager or the GWN App. SNMP supports remote monitoring and configuration management, while backup, restore and mass-provisioning options assist with ongoing administration.
Built-in Ping, port mirroring, copper cable testing and fibre-module monitoring tools help administrators investigate connection and performance problems. LLDP identifies compatible neighbouring network devices, while firmware signature verification helps protect the switch from unauthorised firmware files.
Key Benefits
Comms Express offers GWN7721 Series Layer 2 Lite and GWN7806 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:
For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:
The package includes the GWN7721P switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, a Simplified Quick Installation Guide, regulatory information, two extended rack-mounting kits, eight M3 x 6mm flat-head machine screws and four rubber footpads.
*For complete specifications see the documentation tab above
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
