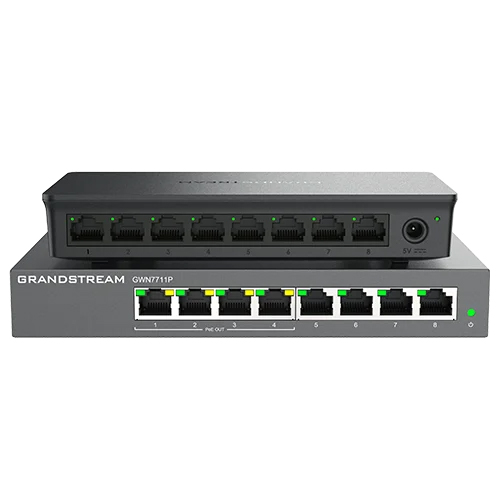

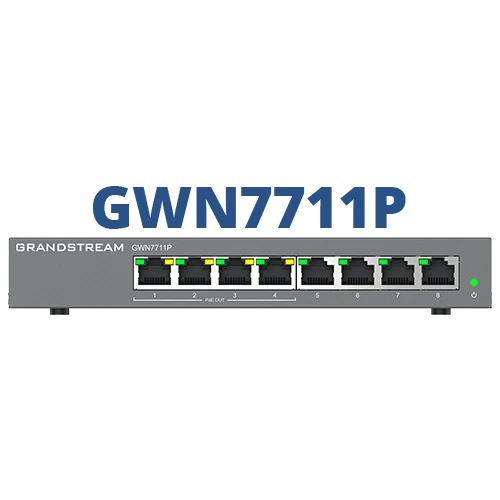

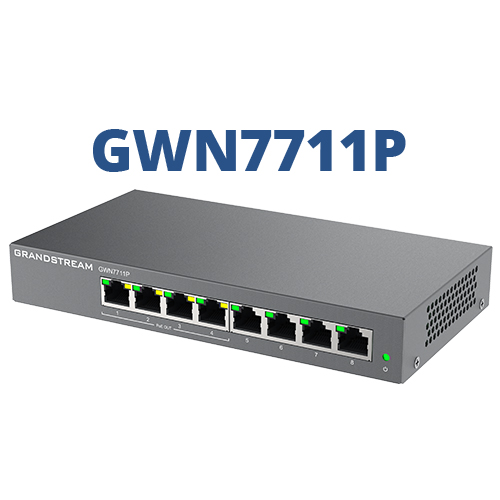

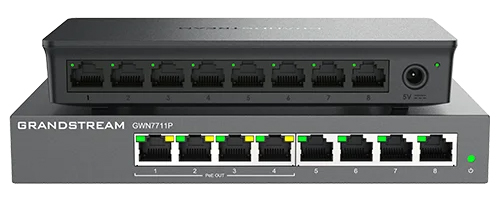

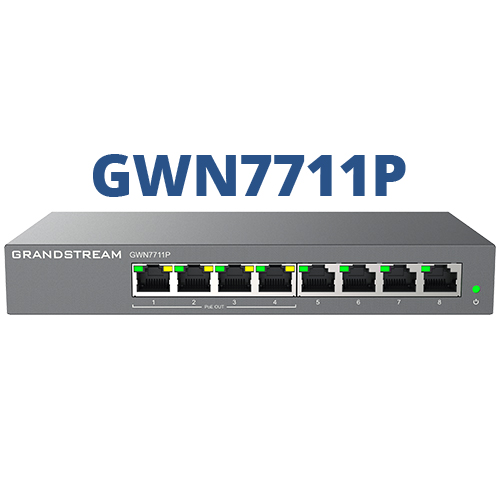

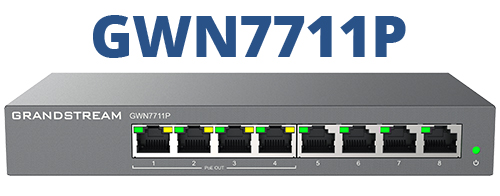

Grandstream GWN7711P L2-Lite Managed Network Switch

Grandstream GWN7711P 8-Port L2 Lite Managed PoE Switch

The Grandstream GWN7711P is an 8-port L2 Lite managed PoE switch for small-to-medium businesses, hotels, schools and surveillance networks. It combines Gigabit connectivity, configurable traffic management and network security with PoE output for powered devices.

Four of its eight Gigabit RJ45 ports can power IP phones, cameras, wireless access points and other compatible devices. Standard PoE/PoE+ and configurable passive PoE modes provide flexible deployment, while the metal enclosure supports desktop or wall-mount installation.

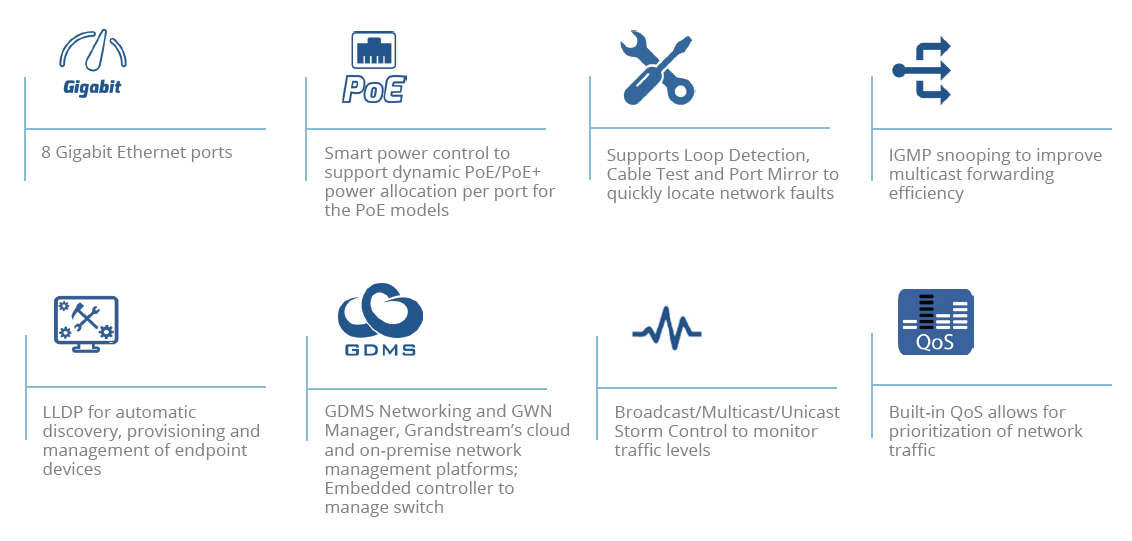

Key Features

• 8 x Gigabit RJ45 ports, including 4 PoE output ports
• Ports 1-4 support IEEE 802.3af/at PoE/PoE+ output at up to 30W per port, with a 60W total PoE budget
• Configurable 24V passive PoE output from ports 1-4 and up to 60W 48V four-pair passive output from port 1
• Smart dynamic PoE power allocation, real-time power monitoring and uninterrupted output during soft restarts
• 16Gbps switching, 11.9Mpps forwarding, 8K MAC [Media Access Control] address table and jumbo frames up to 15KB
• Up to 32 VLANs with port-based, 802.1Q and Voice VLAN support
• 4 link aggregation groups, IGMP snooping and report message suppression
• QoS [Quality of Service] with port, 802.1p and DSCP priority, bandwidth control and rate limiting
• Local web, GDMS Networking and GWN Manager management, with SNMP [Simple Network Management Protocol], LLDP [Link Layer Discovery Protocol], cable testing and port mirroring
• Storm control, DHCP snooping, spanning tree, loop prevention and PoE Watchdog

Flexible PoE Output
Ports 1-4 can provide IEEE 802.3af/at PoE/PoE+ output at up to 30W per port within a 60W total power budget. Smart power control dynamically allocates the available output and provides real-time monitoring and control of each PoE port.

For compatible equipment, ports 1-4 can instead be configured for passive 24V output, while port 1 also supports up to 60W in 48V four-pair passive mode. PoE output remains active during a soft restart, and PoE Watchdog can detect an unresponsive endpoint and restart its power automatically.

L2 Lite Network Management
The GWN7711P supports port-based, 802.1Q and Voice VLANs for separating network traffic. QoS, bandwidth control, IGMP snooping and link aggregation help administrators manage traffic and network performance, while configuration and monitoring are available through the local web interface, GDMS Networking or GWN Manager.

Network Monitoring and Protection
Cable testing, port mirroring, port statistics and loop detection help locate network problems. Storm control monitors broadcast, multicast and unicast traffic, while DHCP snooping, spanning tree and loop prevention help maintain a stable and secure network.

Key Benefits

• Connects up to eight wired network devices at Gigabit speeds and powers up to four PoE endpoints
• Supports standard and passive PoE output for a wider range of compatible equipment
• Keeps PoE devices powered during soft restarts and can restart unresponsive endpoints
• Separates voice, surveillance and general network traffic using configurable VLANs
• Prioritises important applications and controls bandwidth use
• Simplifies fault-finding with integrated monitoring and diagnostic tools
• Supports local, cloud and on-premise network management
• Allows desktop or wall-mount installation to suit different locations

Comms Express offers the GWN7711 and GWN7711P L2 Lite managed switches, along with many others in Grandstream Managed Network Switches including:

• GWN7711 - 8 Gb ports, 16Gbps switching, plastic case, desk/wall-mount
• GWN7711P - 8 Gb ports, 16Gbps switching, 4 PoE/PoE+ ports, 60W PoE budget

For a wider choice of networking equipment, Comms Express carries a vast range of products, including:

• Grandstream Switches for a greater choice of Grandstream switches
• Network Switches for an impressive range of switches from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for all your network patching and device connections

The package includes the GWN7711P switch, a Quick Installation Guide and power adapter.

*For complete specifications see the documentation tab above
