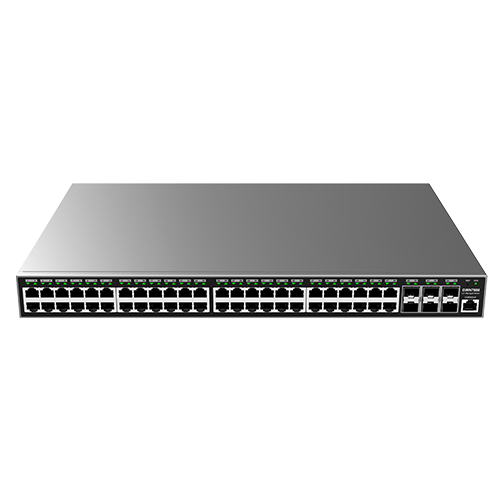

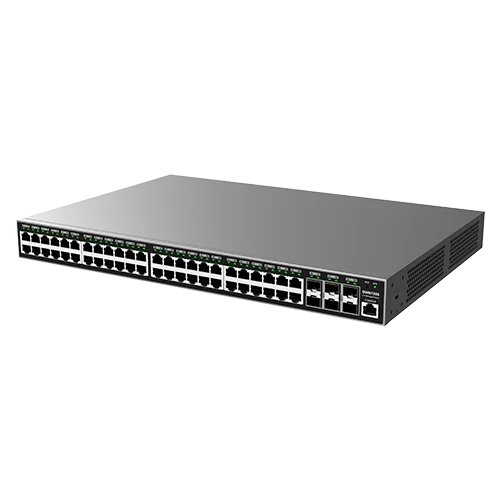

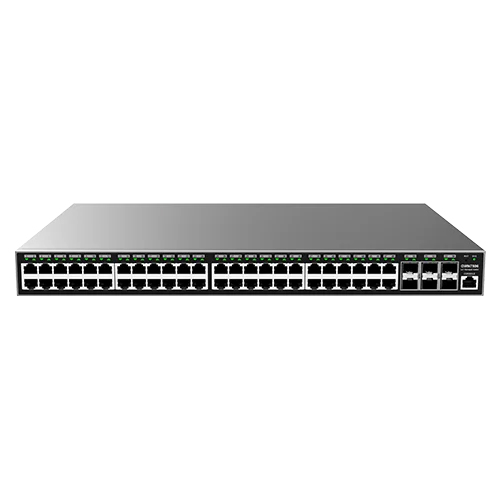

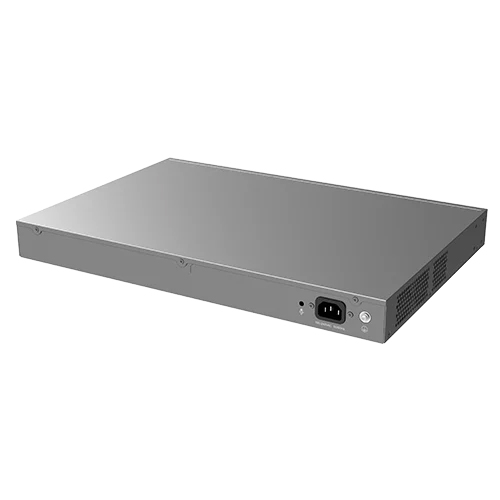

Grandstream GWN7806 L2 NETWORK SWITCH 48PORT GBE, 6 x 10G SFP+

Grandstream GWN7806 48-Port Layer 2+ Managed Stackable Network Switch with 6 x 10G SFP+ & 1 x Console Port

The Grandstream GWN7806 is a 48-port Layer 2+ managed and stackable network switch for small-to-medium business networks requiring high connection capacity and fast links between network infrastructure. Forty-eight Gigabit RJ45 ports connect computers, servers, wireless access points, IP cameras and other wired devices, while six 10G SFP+ ports support compatible fibre, copper and direct-attach connections.

A 216Gbps switching capacity, 108Gbps non-blocking throughput and extensive VLAN, routing, traffic management and security features support demanding network environments. Switch stacking, enterprise-grade resilience and flexible local, cloud and on-premise management options help simplify deployment and ongoing administration.

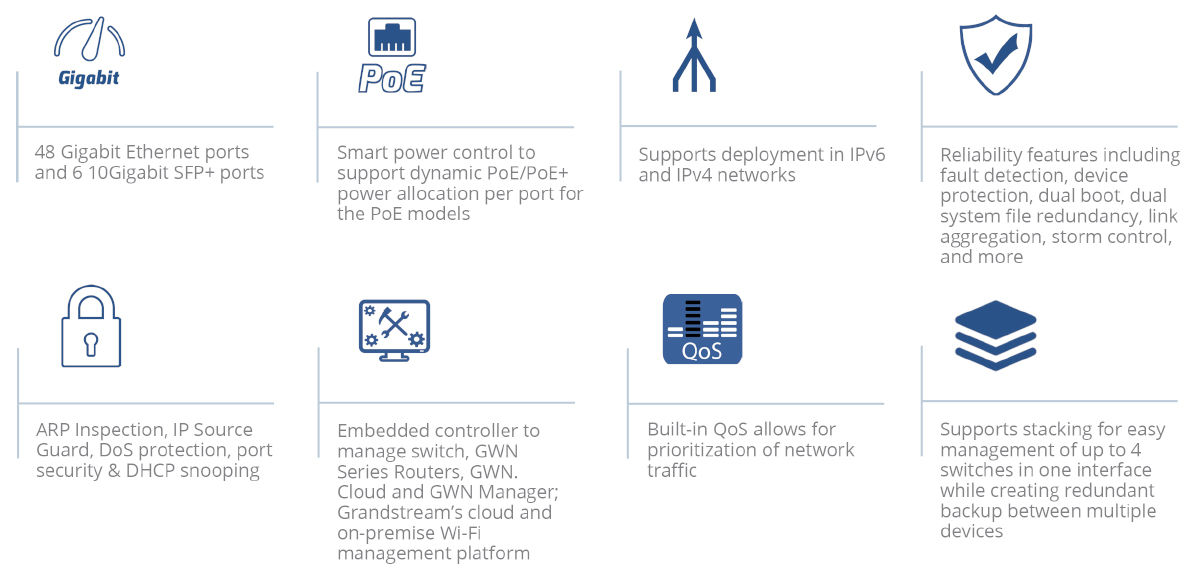

Key Features

• 48 x Gigabit RJ45 ports, 6 x 10G SFP+ [Small Form-factor Pluggable Plus] ports and 1 x RJ45 console port
• SFP+ support for up to six compatible 10G single-mode or multi-mode modules, DAC cables up to 5m or three alternately installed 10G RJ45 modules
• 216Gbps switching capacity, 108Gbps non-blocking throughput, 160.704Mpps forwarding rate, 16Mb packet buffer and network latency below 4µs
• 32K MAC [Media Access Control] address capacity, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 9216 bytes
• Port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs, QinQ, 32 VLAN virtual interfaces, IPv4/IPv6 static routing, DHCP server and DHCP relay
• 32 link aggregation groups, switch stacking and STP/RSTP/MSTP/PVST(+)/RPVST(+) support for increased bandwidth, network expansion and link resilience
• IGMP and MLD Snooping with 256 groups each, plus MVR [Multicast VLAN Registration]
• QoS [Quality of Service] traffic prioritisation, queue scheduling, traffic shaping, rate limiting and up to 4K ACLs [Access Control Lists]
• 802.1X and MAC authentication, RADIUS, TACACS+, port security, DHCP/DHCPv6 snooping, ARP inspection, IP Source Guard and DoS protection
• Dual hardware boot, dual system-file redundancy, power and fan fault detection, surge protection and loop protection
• Local web and command-line management, SNMP, GDMS Networking, GWN Manager and GWN router management, with LLDP [Link Layer Discovery Protocol] and LLDP-MED [Link Layer Discovery Protocol - Media Endpoint Discovery]
• Three temperature-controlled fans with desktop or rack mounting and a Kensington security slot

High-Density Gigabit and 10G Connectivity
Forty-eight Gigabit RJ45 ports provide extensive wired connectivity for workstations, servers, network storage, wireless access points, surveillance equipment and other network devices. Six 10G SFP+ ports provide high-bandwidth connections to compatible switches, servers and other network infrastructure.

All six SFP+ ports can accommodate compatible 10G single-mode or multi-mode optical modules. Direct-attach cables up to 5m are also supported, while compatible 10G RJ45 modules are limited to three and must be installed at intervals to allow sufficient spacing.

Layer 2+ Control and Switch Stacking
Port-based, 802.1Q, MAC-based, protocol-based and Voice VLANs provide flexible traffic separation, while QinQ supports more complex VLAN deployments. Thirty-two VLAN virtual interfaces and configurable IPv4 and IPv6 static routes support communication between network segments, with DHCP server and relay functions assisting address distribution.

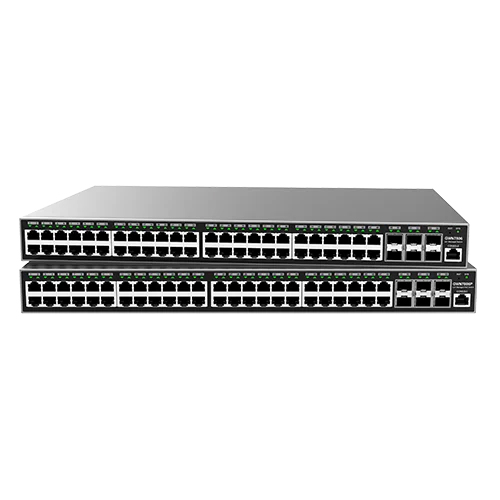

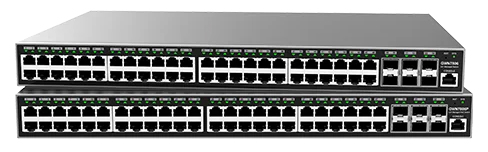

Stacking combines multiple physical switches into one virtual system for unified configuration and management. This allows network capacity to be expanded while supporting redundancy between member switches. Thirty-two link aggregation groups can increase connection bandwidth and provide link resilience, including aggregation across stacked devices.

Traffic and Multicast Management
QoS provides port priority, priority mapping, multiple queue-scheduling methods, traffic shaping and rate limiting. Up to 4K Ethernet, IPv4 and IPv6 ACLs provide detailed control over which traffic is permitted or restricted.

IGMP and MLD Snooping monitor multicast group activity and forward multicast data only where required. MVR supports multicast distribution across VLANs, helping optimise network bandwidth for applications such as video surveillance and conferencing.

Enterprise-Grade Resilience and Security
Dual hardware boot and dual system-file redundancy help maintain reliable startup and operation if a software or storage fault occurs. The switch also monitors its power supply and three integrated fans, automatically adjusting fan speed according to operating temperature and generating fault alarms when required.

Authentication, port security, DHCP snooping, ARP inspection, IP Source Guard, storm control and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Spanning-tree protocols, loopback protection, root protection and BPDU protection help prevent network loops and preserve switching stability.

Flexible Management and Diagnostics
The GWN7806 can be configured through its local web interface, command-line interface or SNMP, and managed centrally through GDMS Networking, GWN Manager or a compatible GWN series router. Backup, restore and mass-provisioning options assist with configuration and maintenance across larger deployments.

Built-in Ping, Traceroute, port mirroring, copper cable testing, RMON, Syslog and traffic statistics support monitoring and fault-finding. LLDP and LLDP-MED assist with automatic discovery, provisioning and management of compatible endpoint devices.

Key Benefits

• Connects up to forty-eight Gigabit wired network devices
• Adds six 10G SFP+ ports for high-bandwidth infrastructure connections
• Provides 216Gbps switching capacity for demanding network traffic
• Combines multiple switches into one stack for expansion and unified management
• Separates departments, services, voice and surveillance traffic using advanced VLAN options
• Supports fixed IPv4 and IPv6 routes between network segments
• Prioritises important applications and controls bandwidth use
• Optimises multicast traffic for surveillance, conferencing and video distribution
• Combines layered network security with redundant boot and system files
• Supports local, cloud and on-premise management with integrated diagnostic tools

Comms Express offers GWN7721 Series Layer 2 Lite and GWN7806 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

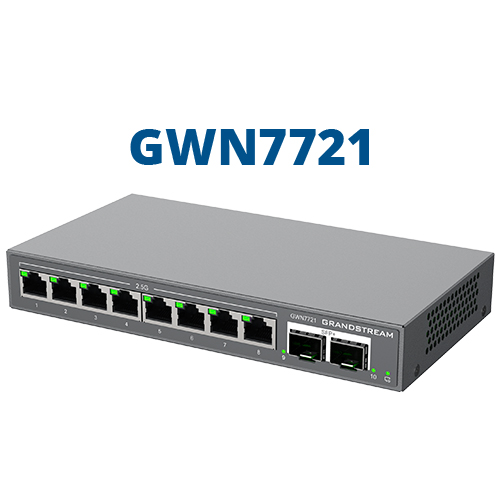

• GWN7721 - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching

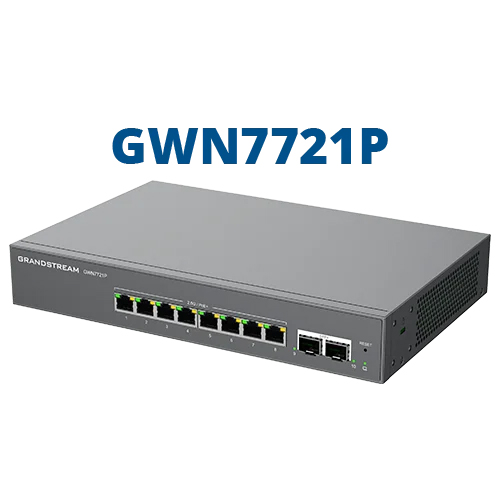

• GWN7721P - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
• GWN7806 - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching
• GWN7806P - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching, 48 PoE/PoE+ ports, 400W PoE budget

For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:

• Grandstream Fibre Modules for compatible modules to use in SFP/+ ports
• SFPs & Fibre Transceivers for a wide range of modules from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
• Network Switches for an impressive range of switches from other leading manufacturers

The package includes the GWN7806 switch, a 1.2m 10A AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two rack-mounting kits, eight PM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above
