Grandstream GWN7711 L2-Lite Managed Network Switch

Grandstream GWN7711 8-Port L2 Lite Managed Network Switch

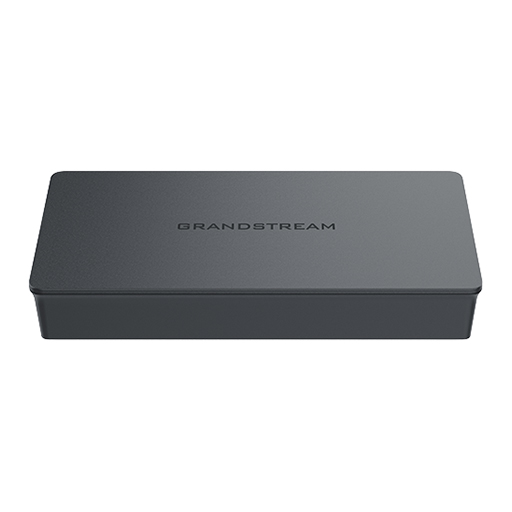

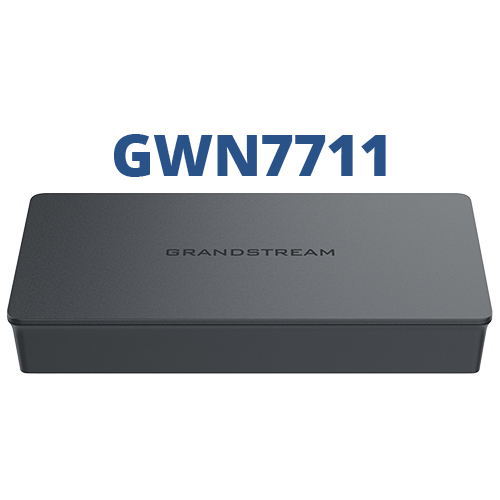

The Grandstream GWN7711 is an 8-port L2 Lite managed network switch for small-to-medium businesses, hotels, schools and home offices. It provides Gigabit connectivity with configurable traffic management and security in a compact plastic enclosure.

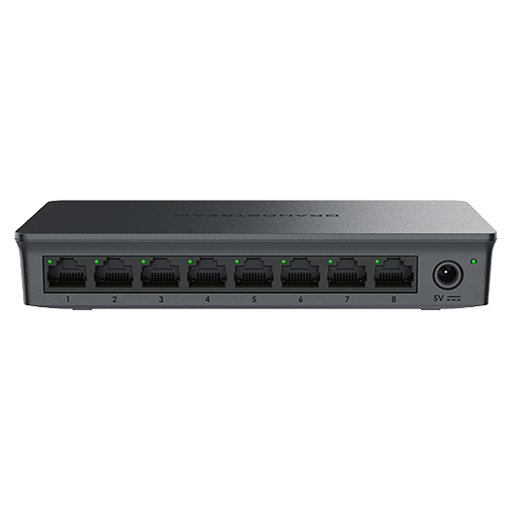

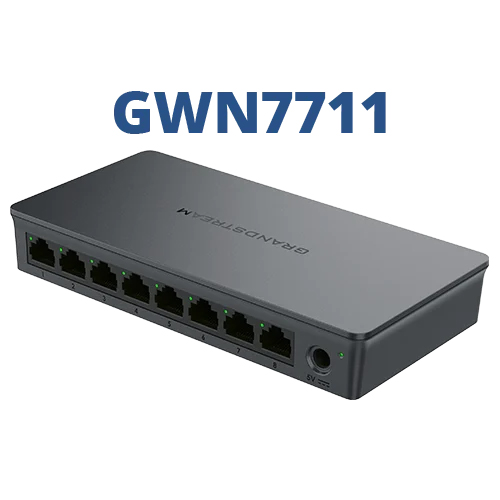

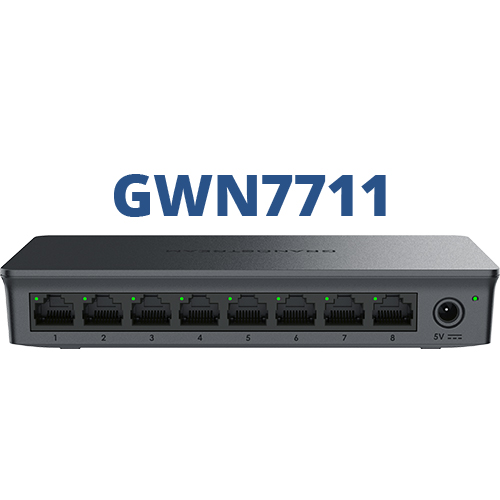

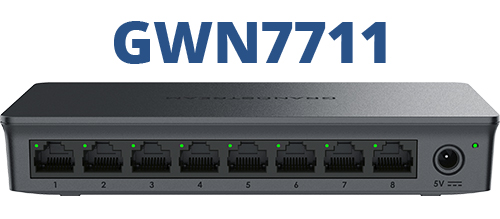

All eight RJ45 ports support Gigabit Ethernet, while desktop or wall-mount installation provides flexibility for different locations. A Kensington security slot helps protect the switch in shared or publicly accessible areas.

Key Features

• 8 x Gigabit RJ45 ports
• 16Gbps switching capacity and 11.9Mpps forwarding rate
• 8K MAC [Media Access Control] address table and jumbo frames up to 15KB
• Up to 32 VLANs with port-based, 802.1Q and Voice VLAN support
• 4 link aggregation groups, IGMP snooping and report message suppression
• QoS [Quality of Service] with port, 802.1p and DSCP priority, bandwidth control and rate limiting
• SNMP [Simple Network Management Protocol] support and LLDP [Link Layer Discovery Protocol] endpoint discovery
• Port statistics, cable testing, port mirroring and loop detection
• Storm control, DHCP snooping, spanning tree and loop prevention
• Local web, GDMS Networking and GWN Manager configuration and monitoring

L2 Lite Network Management
The GWN7711 supports port-based, 802.1Q and Voice VLANs for separating network traffic. QoS, bandwidth control, IGMP snooping and link aggregation help administrators manage traffic and network performance, while configuration and monitoring are available through the local web interface, GDMS Networking or GWN Manager.

Network Monitoring and Protection
Cable testing, port mirroring, port statistics and loop detection help locate network problems. Storm control monitors broadcast, multicast and unicast traffic, while DHCP snooping, spanning tree and loop prevention help maintain a stable and secure network.

Key Benefits

• Connects up to eight wired network devices at Gigabit speeds
• Separates voice and general network traffic using configurable VLANs
• Prioritises important applications and controls bandwidth use
• Simplifies fault-finding with integrated monitoring and diagnostic tools
• Supports local, cloud and on-premise network management
• Allows desktop or wall-mount installation to suit different locations

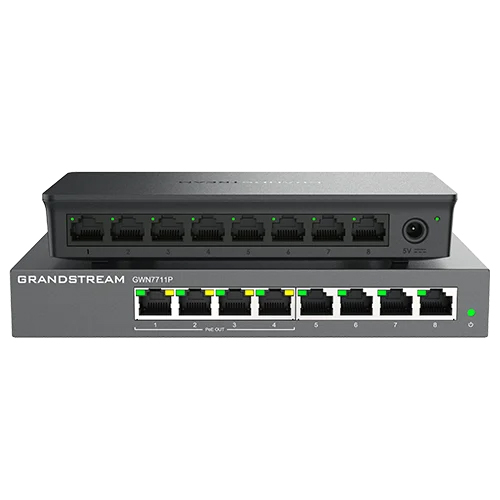

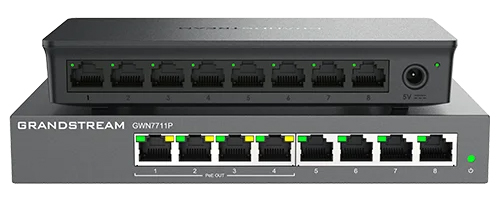

Comms Express offers the GWN7711 and GWN7711P L2 Lite managed switches, along with many others in Grandstream Managed Network Switches including:

• GWN7711 - 8 Gb ports, 16Gbps switching, plastic case, desk/wall-mount
• GWN7711P - 8 Gb ports, 16Gbps switching, 4 PoE/PoE+ ports, 60W PoE budget

For a wider choice of networking equipment, Comms Express carries a vast range of products, including:

• Grandstream Switches for a greater choice of Grandstream switches
• Network Switches for an impressive range of switches from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for all your network patching and device connections

The package includes the GWN7711 switch, a Quick Installation Guide and power adapter.

*For complete specifications see the documentation tab above
