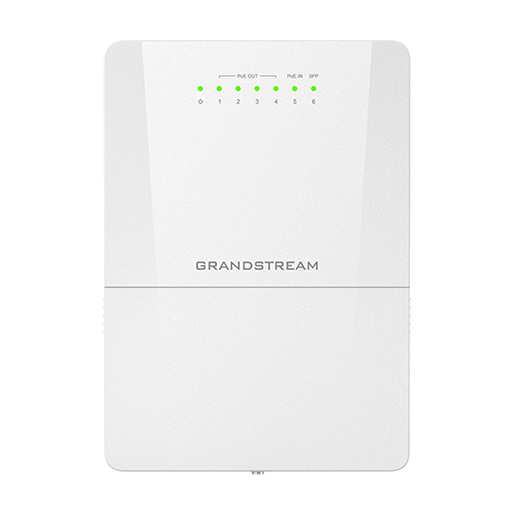

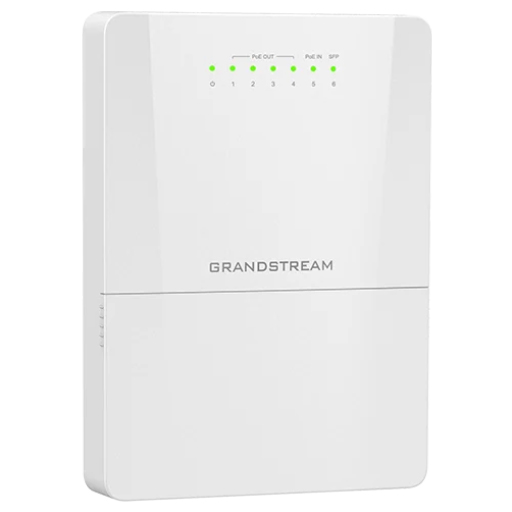

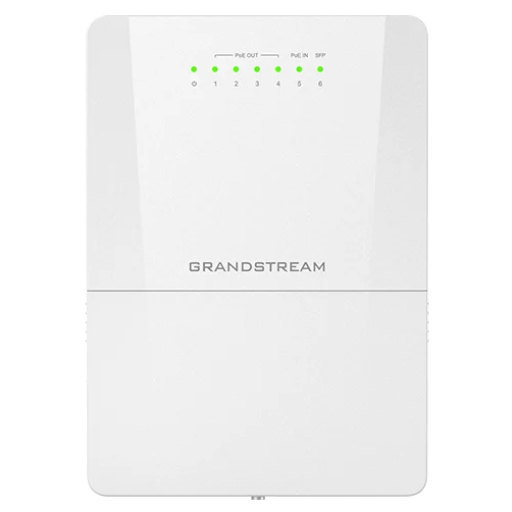

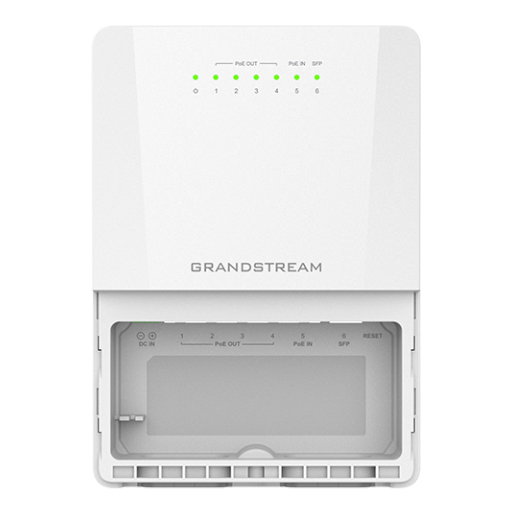

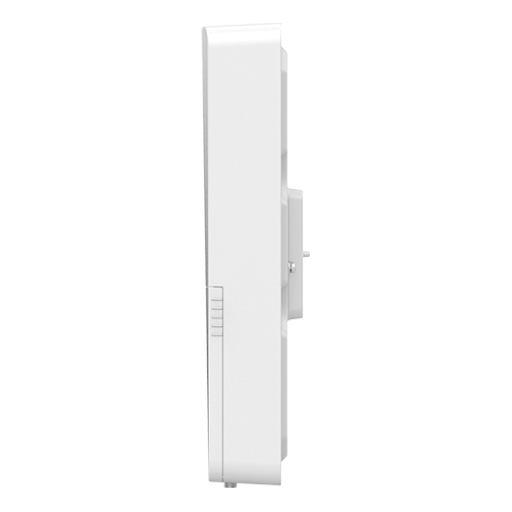

Grandstream GWN7710R 6-Port Outdoor L2 Lite Managed Switch

Grandstream GWN7710R 6-Port Outdoor L2 Lite Managed PoE Switch

The Grandstream GWN7710R is an outdoor L2 Lite managed PoE switch for business and surveillance networks across campuses, parks and other exposed locations. Its IP66-rated metal enclosure protects against dust and adverse weather, while the -40°C to 60°C operating range suits demanding deployments.

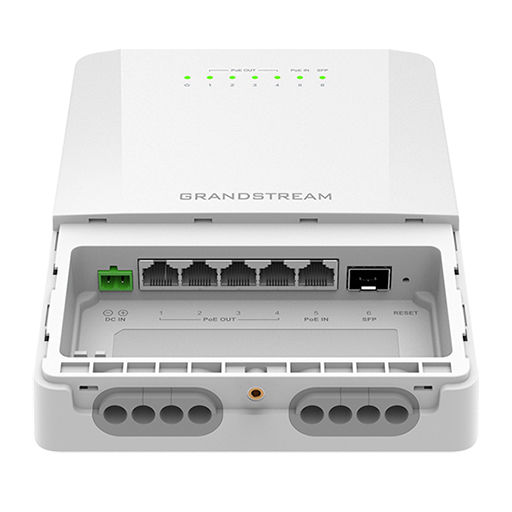

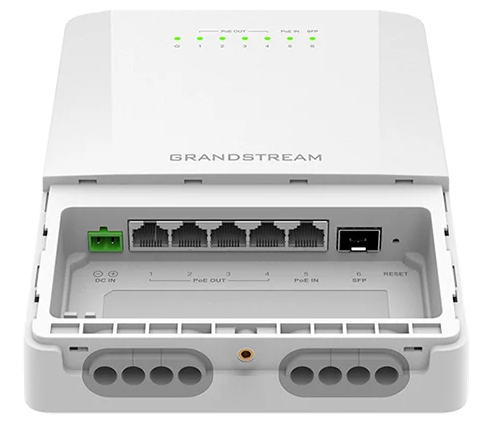

Five Gigabit RJ45 ports provide four configurable PoE outputs and one PoE input. A separate 1G/2.5G SFP port supports a compatible fibre transceiver for links to other network infrastructure.

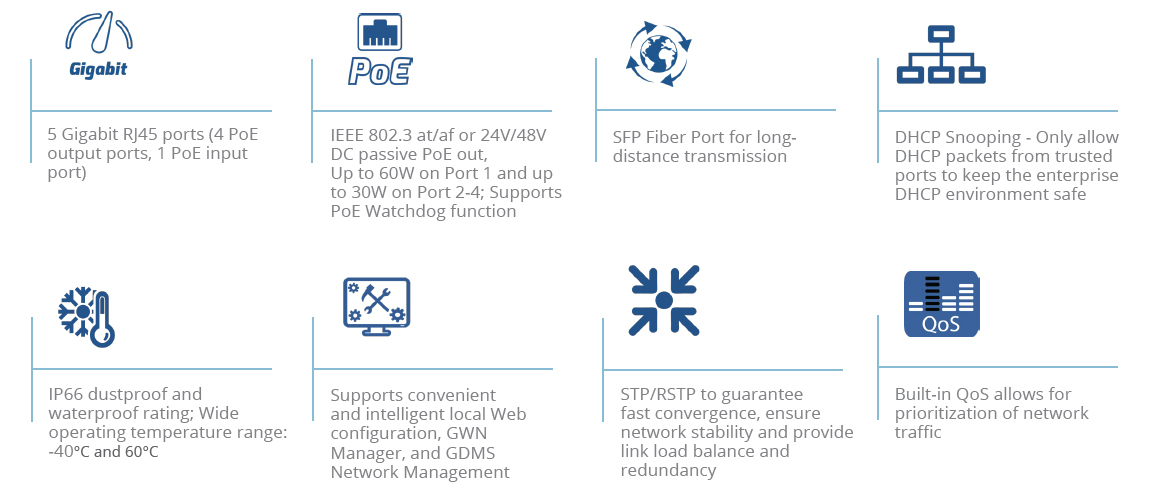

Key Features

• 5 x Gigabit RJ45 ports and 1 x 1G/2.5G SFP fibre port
• Port 5 supports IEEE 802.3af/at/bt PoE input
• Ports 1-4 support IEEE 802.3af/at PoE/PoE+ output at up to 30W per port
• Configurable 24V or 48V passive PoE output, including up to 60W from port 1
• 12-57V DC input through the supplied Phoenix [pluggable terminal block] connector
• Up to 60W PoE output budget with PoE++ input or 100W with a suitable DC input
• 15Gbps switching, 11.16Mpps forwarding, 8K MAC [Media Access Control] address table and jumbo frames up to 15KB
• IP66-rated metal enclosure with ±16kV air and contact ESD [Electrostatic Discharge] protection
• -40°C to 60°C operating temperature range

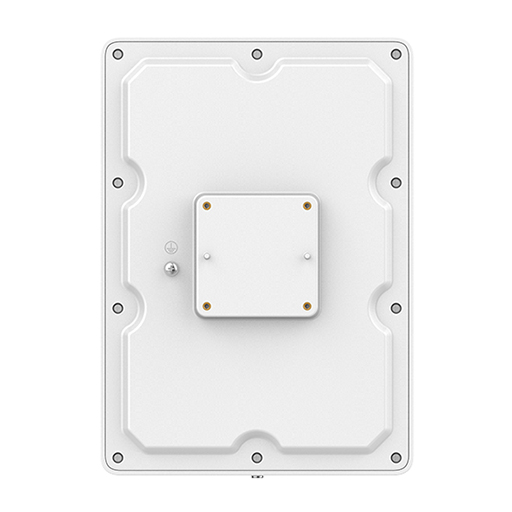

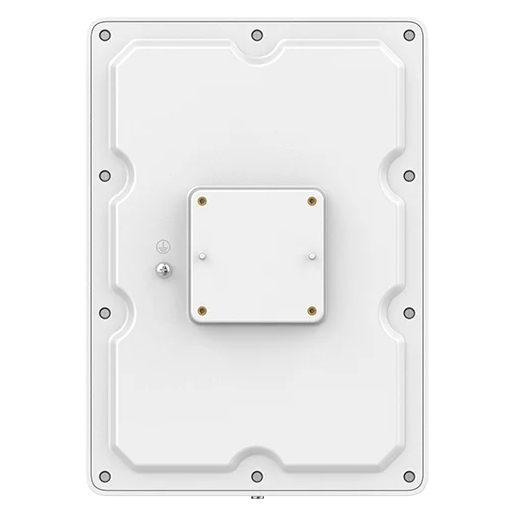

• Pole, wall or DIN-rail mounting

Flexible PoE Input and Output
The GWN7710R can receive power through its PoE input port or a suitable external 12-57V DC source. IEEE 802.3af, 802.3at and 802.3bt inputs provide PoE output budgets of 3W, 15W and 60W respectively; DC input can provide up to 60W, 72W or 100W according to voltage.

In default standard PoE mode, ports 1-4 can each provide up to 30W to compatible IEEE 802.3af/at devices. Configurable 24V or 48V passive output supports compatible equipment, including up to 60W from port 1 in four-pair 48V mode. PoE Watchdog can detect an unresponsive device and restart its power automatically.

L2 Lite Network Management
The GWN7710R supports port-based, 802.1Q and Voice VLANs to separate network traffic, together with QoS, bandwidth control, IGMP snooping, link aggregation, storm control, DHCP snooping, spanning tree and loop prevention. It can be configured and monitored through the local web interface, the GDMS Networking cloud platform or the on-premise GWN Manager platform.

Key Benefits

• Extends managed Gigabit, fibre and PoE connectivity into exposed outdoor locations
• Supports standard and passive PoE output for a wider range of compatible network equipment
• Offers flexible powering through PoE input or an external DC source
• Separates voice, surveillance and general network traffic using configurable VLANs
• Supports cloud, on-premise and local web-based management
• Allows pole, wall or DIN-rail installation to suit different deployment locations

Comms Express offers related GWN7710R and GWN7711 L2 Lite managed switches, along with many others in Grandstream Managed Network Switches including:

• GWN7710R - Outdoor, IP66, 5 Gb ports + 1 x 1G/2.5G SFP, 15Gbps switching
• GWN7711 - 8 Gb ports, 16Gbps switching, plastic case, desk/wall-mount
• GWN7711P - 8 Gb ports, 16Gbps switching, 4 PoE/PoE+ ports, 60W PoE budget

For a wider choice of networking equipment, Comms Express carries a vast range of products, including:

• Grandstream Switches for a greater choice of Grandstream switches
• Network Switches for an impressive range of switches from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for all your network patching and device connections

The package includes the GWN7710R switch, mounting brackets, a Quick Installation Guide, four assembled screws, four expansion screws, two metal straps and a Phoenix connector.

*For complete specifications see the documentation tab above
