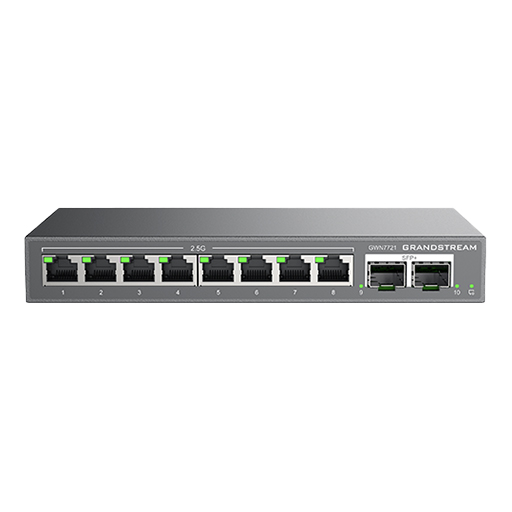

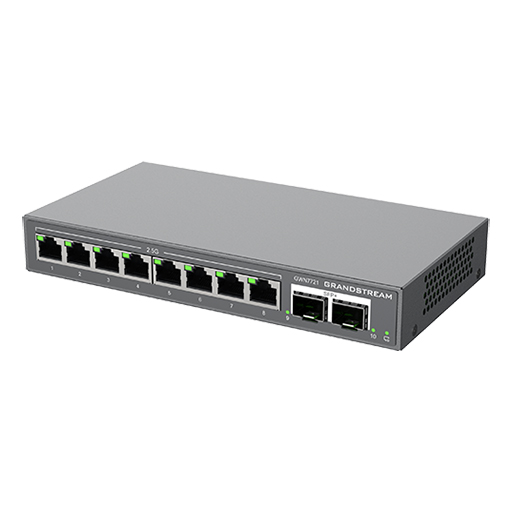

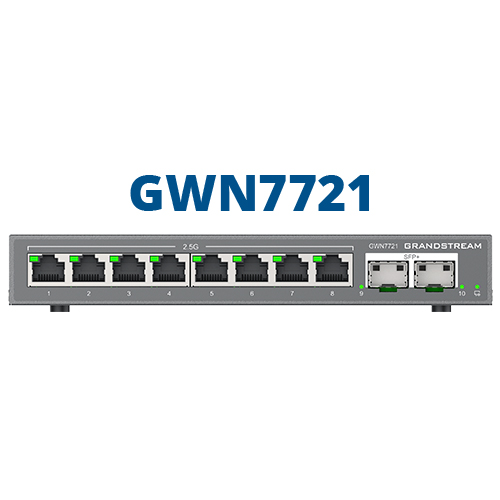

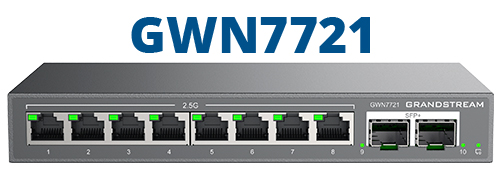

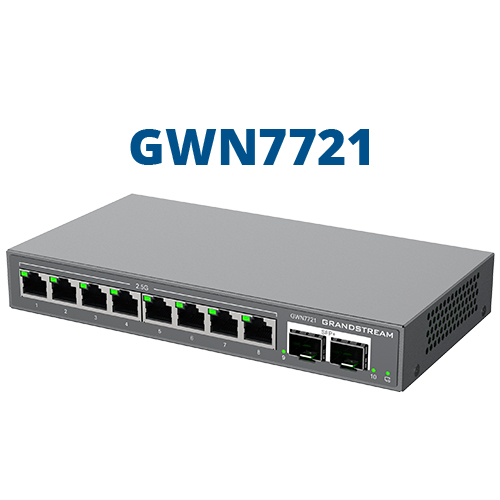

Grandstream GWN7721 10-port Layer 2 Lite Managed 2.5-Gigabit Network Switch

Grandstream GWN7721 10-Port Layer 2 Lite Managed Multi-Gigabit Network Switch with 8 x 2.5GbE & 2 x 10G SFP+

The Grandstream GWN7721 is a 10-port Layer 2 Lite managed multi-Gigabit network switch for small-to-medium business networks requiring faster wired connections. Eight 2.5-Gigabit RJ45 ports connect compatible computers, servers, wireless access points and other network devices, while two multi-rate 10G SFP+ ports support compatible transceivers for high-speed links to other network infrastructure.

An 80Gbps switching capacity, 40Gbps non-blocking throughput and Layer 2 Lite traffic controls help manage demanding network activity. VLAN segmentation, QoS, link aggregation, multicast management and network protection features are combined with local, cloud and on-premise management options.

Key Features

• 8 x 2.5-Gigabit RJ45 ports and 2 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting compatible 1Gbps, 2.5Gbps and 10Gbps modules
• 80Gbps switching capacity, 40Gbps non-blocking throughput, 59.52Mpps forwarding rate and 8Mb packet buffer
• 16K MAC [Media Access Control] address capacity, up to 32 VLANs [Virtual Local Area Networks] from 4K VLAN IDs and jumbo frames up to 9216 bytes
• Port-based and 802.1Q VLANs, with up to 5 LAGs [Link Aggregation Groups] and 8 connections per group
• STP/RSTP [Spanning Tree Protocol/Rapid Spanning Tree Protocol] for loop prevention, network stability and link redundancy
• IGMP [Internet Group Management Protocol] Snooping and report message suppression for controlling multicast traffic
• QoS [Quality of Service] with port priority, 802.1p and DSCP [Differentiated Services Code Point] mapping, SP/WFQ queue scheduling, bandwidth control and rate limiting
• DHCP snooping, loop detection, firmware signature verification and password-protected hierarchical user management
• Local web interface, GDMS Networking, GWN Manager and GWN App management, with SNMP monitoring
• LLDP [Link Layer Discovery Protocol], Ping, port mirroring, cable testing and fibre-module monitoring for network diagnostics
• Metal enclosure with desktop or wall mounting, an external 12V DC power adapter and Kensington security slot

High-Speed Multi-Gigabit Connectivity
Eight 2.5-Gigabit RJ45 ports provide increased bandwidth for compatible workstations, servers, network storage and wireless access points. The two SFP+ ports support compatible modules operating at 1Gbps, 2.5Gbps or 10Gbps, providing flexible connections to switches, servers and other network infrastructure.

The switch provides an 80Gbps switching capacity and 40Gbps non-blocking throughput, allowing all ports to handle high network traffic volumes without creating an internal switching bottleneck.

Layer 2 Lite Network Control
Port-based and 802.1Q VLANs can separate departments, services and device groups, with support for up to 32 active VLANs selected from 4K VLAN IDs. Link aggregation combines multiple physical connections to increase available bandwidth and provide connection redundancy.

STP and RSTP help prevent switching loops and maintain network stability if redundant connections are installed. DHCP snooping restricts DHCP traffic to trusted ports, while loop detection assists with identifying potentially disruptive connections.

Traffic Prioritisation and Multicast Management
QoS controls include port priority, 802.1p and DSCP priority mapping, SP and WFQ queue scheduling, bandwidth control and rate limiting. These options help administrators prioritise important applications and control how available bandwidth is shared between connected devices.

IGMP Snooping monitors multicast group activity and forwards multicast data only where required. Report message suppression reduces unnecessary control traffic, helping improve bandwidth use for applications such as video distribution and surveillance.

Flexible Management and Diagnostics
The GWN7721 can be configured through its local web interface or managed centrally using GDMS Networking, GWN Manager or the GWN App. SNMP supports remote monitoring and configuration management, while backup, restore and mass-provisioning options assist with ongoing administration.

Built-in Ping, port mirroring, copper cable testing and fibre-module monitoring tools help administrators investigate connection and performance problems. LLDP identifies compatible neighbouring network devices, while firmware signature verification helps protect the switch from unauthorised firmware files.

Key Benefits

• Connects up to eight compatible 2.5-Gigabit wired devices
• Adds two multi-rate SFP+ ports for high-bandwidth network connections
• Provides 80Gbps switching capacity for simultaneous multi-Gigabit traffic
• Separates departments, services and device groups using configurable VLANs
• Combines connections for additional bandwidth and link redundancy
• Prioritises important applications and controls bandwidth use
• Optimises multicast traffic for video and surveillance applications
• Supports local, cloud and on-premise management with integrated diagnostic tools
• Offers flexible desktop or wall installation in a metal enclosure

Comms Express offers GWN7721 Series Layer 2 Lite and GWN7806 Series Layer 2+ managed switches, along with many others in Grandstream Managed Network Switches including:

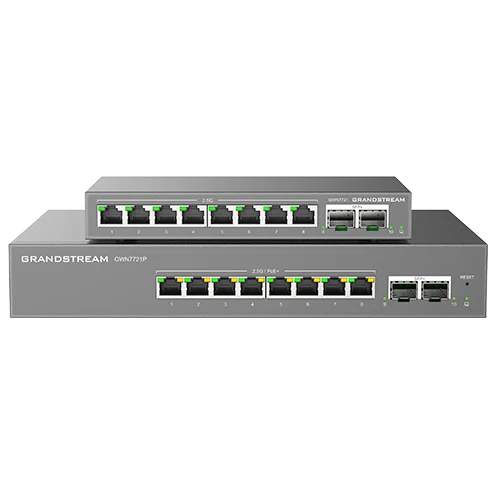

• GWN7721 - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching
• GWN7721P - 8 x 2.5GbE ports + 2 x 10G SFP+, Layer 2 Lite managed, 80Gbps switching, 8 PoE/PoE+ ports, 130W PoE budget
• GWN7806 - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching
• GWN7806P - 48 Gb ports + 6 x 10G SFP+ + console port, Layer 2+ managed and stackable, 216Gbps switching, 48 PoE/PoE+ ports, 400W PoE budget

For a wider choice of networking equipment and connections, Comms Express carries a vast range of products, including:

• Grandstream Fibre Modules for compatible modules to use in SFP/+ ports
• SFPs & Fibre Transceivers for a wide range of modules from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for all your network infrastructure and device connections
• Network Switches for an impressive range of switches from other leading manufacturers

The package includes the GWN7721 switch, a power adapter, a Simplified Quick Installation Guide and regulatory information.
