Reliable protection in tower format for computer rooms

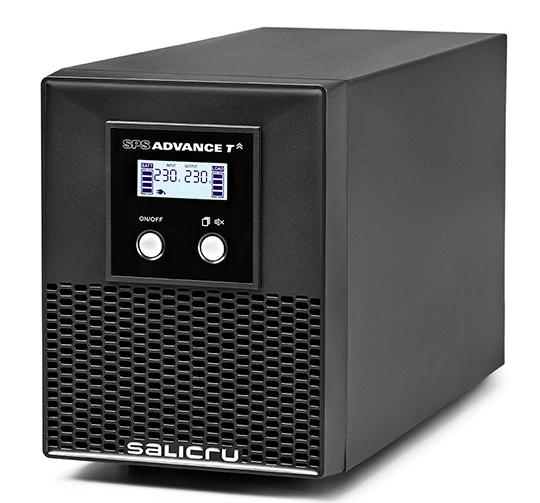

Salicru's SPS ADVANCE T series offers, as a UPS solution, optimum levels of efficiency and reliability for all critical devices that require power supply continuity and dependability. They come in a very compact tower format to save space in server and computer rooms. They also feature line-interactive technology to combat any fluctuations in the mains supply together with an output voltage that is always sine-wave, the highest quality possible to power all sensitive loads.
For easier and more convenient use, they feature a display that shows all necessary information on the operation of the device and power supply (input/output voltage, % load, % battery, etc.) and a wide range of communication options through the USB interface with HID protocol, monitoring and management software (downloadable) and integrated smart slot (SNMP).
Also noteworthy is their compatibility with current APFC (active power factor correction) power supplies.
Features
Application
Salicru's SPS ADVANCE T series UPSs provide an optimum combination of features to protect all computer room equipment, from entry-level servers, through routers, switches, hubs, network devices and access points, to backup systems.

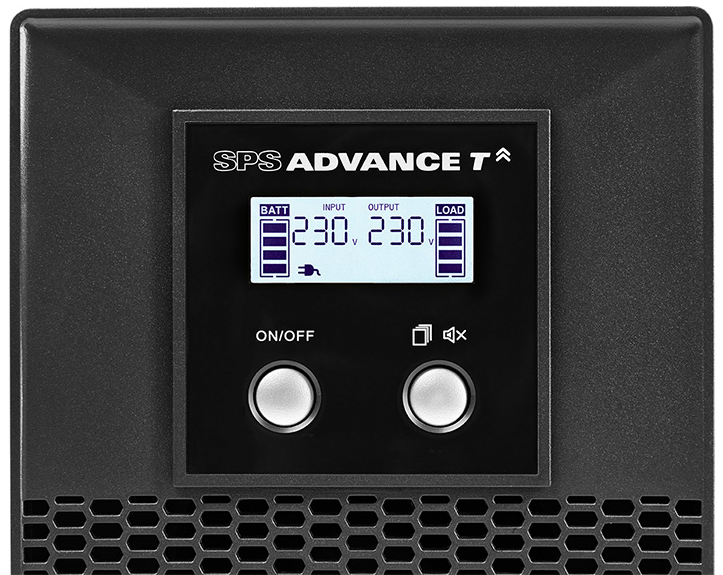

Display
Communication Options
Comparison Chart
Technical Specification
MODEL | SPS 1000 ADVANCE T | ||
UPS Power (VA / W) | 1000 / 700 | ||
Technology | Line-interactive | ||
Format | Tower | ||
Ports | AC outlets | 6 x power IEC 60320 C13 | |
AC outlet type | IEC 60320 C13 | ||
Input | Rated Voltage | 230 V | |
Voltage range | 165 - 290 V | ||
Stabiliser | AVR (buck-boost) | ||
Frequency | 50 / 60 Hz ±10% | ||
Input protection | Resettable breaker | ||
Output | Rated voltage | 230V | |
Voltage accuracy (battery mode) | ±10% | ||
Waveform | Pure sine wave | ||
Total harmonic distortion (THDv) | ≤5% | ||
Frequency | 50/60 Hz (same as input) | ||
Frequency accuracy (battery mode) | ±1 Hz | ||
Compatible with APFC loads | Yes (1) | ||
Admissible overload | Line mode | 110% permanent | |
Battery mode | 110% for 1 min / >130% immediate | ||
Socket type | IEC | ||
Protection | Overloads, short circuit and over discharge and battery charging | ||
Efficiency | On-line mode | >98% | |
Stabiliser mode (AVR) | >92% | ||
Battery mode | >80% | ||
Battery | Battery type | Pb-Ca sealed, AGM, maintenance-free | |
Protection | Internal current limitation | ||
Battery test | Automatic on each start-up + manual | ||
Charging | Charge type | I/U (constant current/constant voltage) | |
Recharge time | 4 hours to 90% | ||
Communication | Interface | RS-232 / USB (HID) | |
Slot for SNMP/potential-free contacts/MODBUS | Yes | ||
Downloadable monitoring software | For Windows, Linux and Mac | ||
Warnings | LCD + keypad | Yes, multifunction screen | |
Displayed values | Input and output voltage / % load / % battery / backup | ||
Levels | Connected load / overload / battery / low battery | ||
Alarm | Battery / low battery / overload / failure | ||
Other Functions | Cold start (start-up from batteries) | Yes | |
Emergency power off (EPO) | Yes | ||
General | Operating temperature | 0ºC - 40ºC | |
Relative humidity | Up to 95%, non-condensing | ||
Noise level at 1 metre | Less than 45 dB | ||
Dimensions (D x W x H mm) | 327 x 140 x 191 | ||
Weight | 13.50Kg | ||
Standards | Safety | EN 62040-1 | |
Electromagnetic compatibility (EMC) | EN 62040-2 | ||
Operation | EN 62040-3 | ||
Quality & Environmental Management | ISO-9001 and ISO-14001 |
Salicru's SPS ADVANCE T series offers, as a UPS solution, optimum levels of efficiency and reliability for all critical devices that require power supply continuity and dependability. They come in a very compact tower format to save space in server and computer rooms. They also feature line-interactive technology to combat any fluctuations in the mains supply together with an output voltage that is always sine-wave, the highest quality possible to power all sensitive loads.
For easier and more convenient use, they feature a display that shows all necessary information on the operation of the device and power supply (input/output voltage, % load, % battery, etc.) and a wide range of communication options through the USB interface with HID protocol, monitoring and management software (downloadable) and integrated smart slot (SNMP).
Salicru's SPS ADVANCE T series UPSs provide an optimum combination of features to protect all computer room equipment, from entry-level servers, through routers, switches, hubs, network devices and access points, to backup systems.
