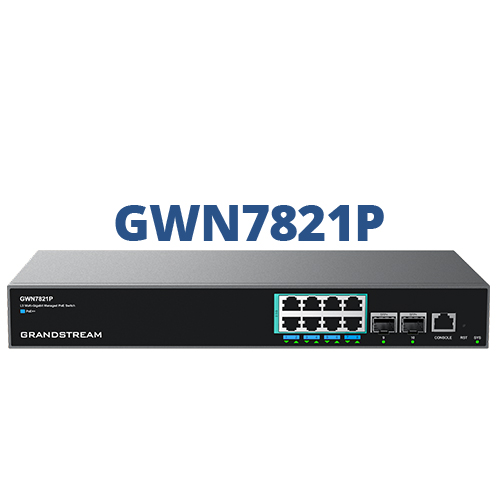

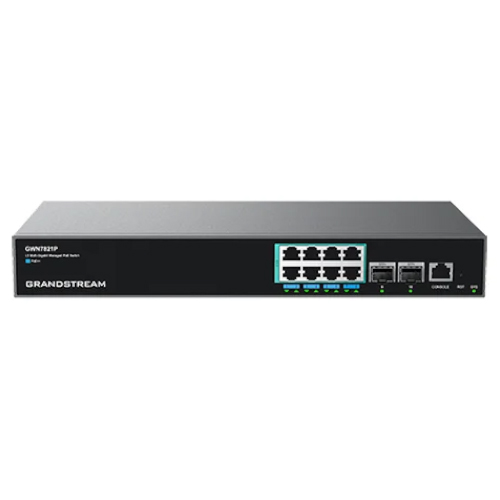

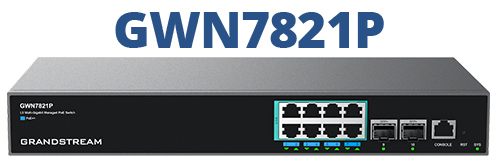

Grandstream GWN7821P 8 PORT POE 2 x 10G SFP+ LAYER 3 MULTI-GIGABIT SWITCH Managed

Grandstream GWN7821P 8-Port 2.5GbE Layer 3 Managed Stackable PoE++ Network Switch with 2 x 10G SFP+ & Console Port

The Grandstream GWN7821P is an eight-port Layer 3 managed and stackable multi-gigabit PoE switch for business networks requiring faster device connections, advanced control and high-power PoE. All eight 2.5GbE ports support up to 60W PoE++ within a 240W shared budget, while two 10G SFP+ ports provide high-bandwidth infrastructure links. An 80Gbps switching capacity, IPv4 and IPv6 routing, advanced traffic management, comprehensive security and flexible local, cloud and on-premise administration support scalable network deployment.

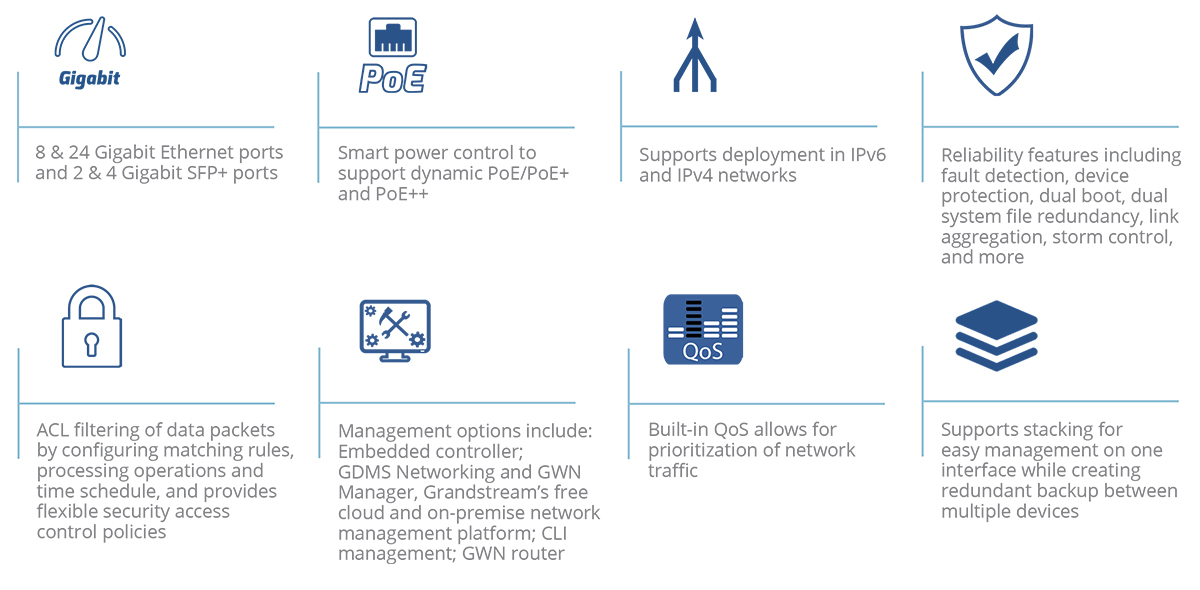

Key Features

• 8 x 2.5GbE PoE [Power over Ethernet] RJ45 ports and 1 x console port
• 2 x 10G SFP+ [Small Form-factor Pluggable Plus] ports supporting compatible single-mode, multi-mode or 10G RJ45 modules, or DAC cables up to 5m
• IEEE 802.3af/at/bt power delivery, with up to 60W PoE++ available per port within a 240W budget
• PoE schedules, port priorities, maximum power limits and LLDP-MED dynamic power negotiation
• 80Gbps switching capacity, 40Gbps non-blocking throughput, 59.52Mpps forwarding rate, 12Mb packet buffer and network latency below 4µs
• 16K MAC [Media Access Control] addresses, 4K VLANs [Virtual Local Area Networks] and jumbo frames up to 12KB
• IPv4 and IPv6 static and dynamic routing with RIP, RIPng, OSPF, OSPFv3, BGP, routing policies, DHCP server and DHCP relay
• Stacking [up to four switches managed as one], 32 link aggregation groups and spanning-tree support [prevents network loops]
• IGMP [Internet Group Management Protocol] and MLD [Multicast Listener Discovery] Snooping, QoS [Quality of Service] controls and up to 2K ACLs [Access Control Lists]
• 802.1X and MAC authentication, RADIUS, TACACS+, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection

Multi-Gigabit PoE++ Connectivity
All eight RJ45 ports support network speeds up to 2.5Gbps and IEEE 802.3bt PoE++ output of up to 60W per port. Administrators can schedule power delivery, set port priorities and configure maximum power limits within the 240W budget, while LLDP-MED supports dynamic power negotiation with compatible devices.

Layer 3 Routing and Stacking
Static and dynamic IPv4 and IPv6 routing supports communication between network segments, with RIP, RIPng, OSPF, OSPFv3 and BGP available for different network requirements. Up to four compatible switches can form one logical stack for unified configuration and expansion, while link aggregation increases bandwidth and provides link resilience, including across stacked switches.

Network Segmentation and Traffic Control
Port-based, 802.1Q, MAC-based, protocol-based, Private and Voice VLANs provide flexible traffic separation. QoS prioritises important applications and controls bandwidth through traffic shaping and rate limiting. IGMP and MLD Snooping conserve bandwidth by directing multicast traffic only where required, while Ethernet, IPv4 and IPv6 ACLs control permitted and restricted traffic.

Secure and Flexible Management
Authentication, DHCP and DHCPv6 snooping, ARP inspection, IP and IPv6 Source Guard, port security and DoS protection help defend against unauthorised access, address spoofing and disruptive traffic. Local web, command-line, SNMP, GDMS Networking, GWN Manager and compatible GWN router management provide flexible administration. Dual hardware boot and dual system-file redundancy support reliable operation, while power, fan, CPU and memory monitoring, Ping, Traceroute, port mirroring, copper cable testing, RMON and Syslog assist fault-finding.

Key Benefits

• Connects and powers up to eight 2.5GbE network devices
• Supplies up to 60W PoE++ through every RJ45 port
• Provides two 10G SFP+ ports for high-bandwidth infrastructure links
• Controls PoE delivery using schedules, priorities and power limits
• Routes IPv4 and IPv6 traffic between network segments
• Combines up to four switches into one logical stack
• Increases bandwidth and link resilience through link aggregation
• Separates, prioritises and secures business network traffic

Comms Express offers L3 and other managed switches in Grandstream Managed Network Switches, including:

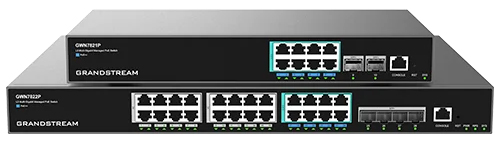

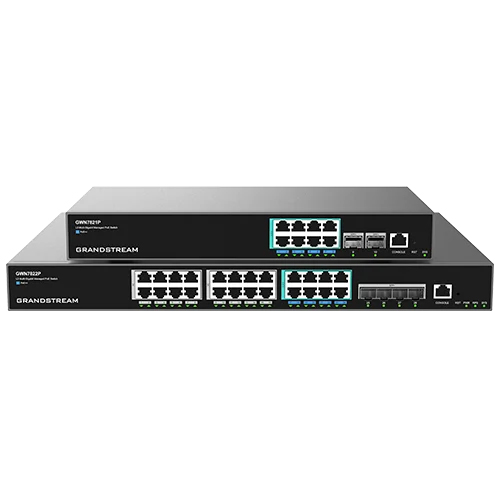

• GWN7816 - 48 Gb + 6 x 10G SFP+, opt. 2nd hot-swap PSU
• GWN7816P - 48 Gb PoE (8 PoE++) + 6 x 10G SFP+, opt. 2nd hot-swap PSU
• GWN7821P - 8 x 2.5GbE PoE++ + 2 x 10G SFP+, 240W
• GWN7822P - 16 Gb + 8 x 2.5GbE PoE++ + 4 x 10G SFP+, 360W

Comms Express also offers:

• Grandstream Fibre Modules for compatible SFP and SFP+ connections
• SFPs & Fibre Transceivers from other leading manufacturers
• RJ45 Ethernet Cables & Patch Leads for network infrastructure and device connections
• Network Switches from other leading manufacturers

The package includes the GWN7821P switch, a 1.2m AC power cable, a 25cm ground cable, a power cable clamp, four rubber footpads, two extended rack-mounting brackets, eight KM 3 x 6mm screws, a Simplified Quick Installation Guide and regulatory information.

*For complete specifications see the documentation tab above
